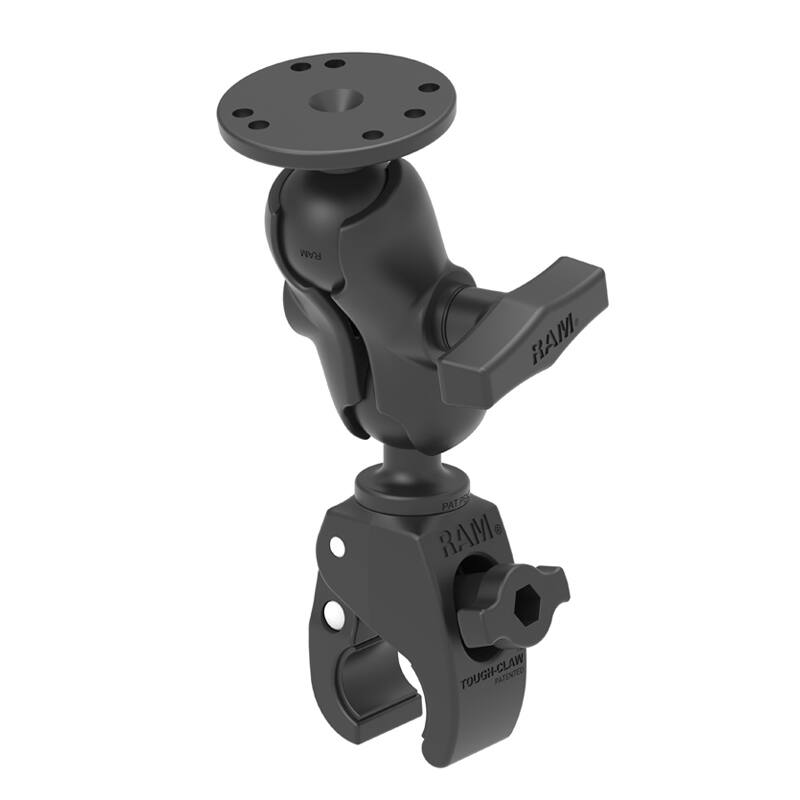

RAM-202-B-400U RAM® Tough-Claw™ Small Clamp Mount with Round Plate Adaptor - Short
Features:
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* 1" RAM® double socket arm and round plate will adapt to many RAM cradles
* Made of aluminium alloy, high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-202-B-400U consists of the small Tough-Claw™ base, short double socket arm and round base adapter. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 16mm to 28mm outer diameter.
The round base adaptor contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Clamping Range
Rail/Tube Surfaces:
16mm to 28mm (0.625" to 1.14")
Flat Surfaces:
0 to 28mm (0" to 1.14")

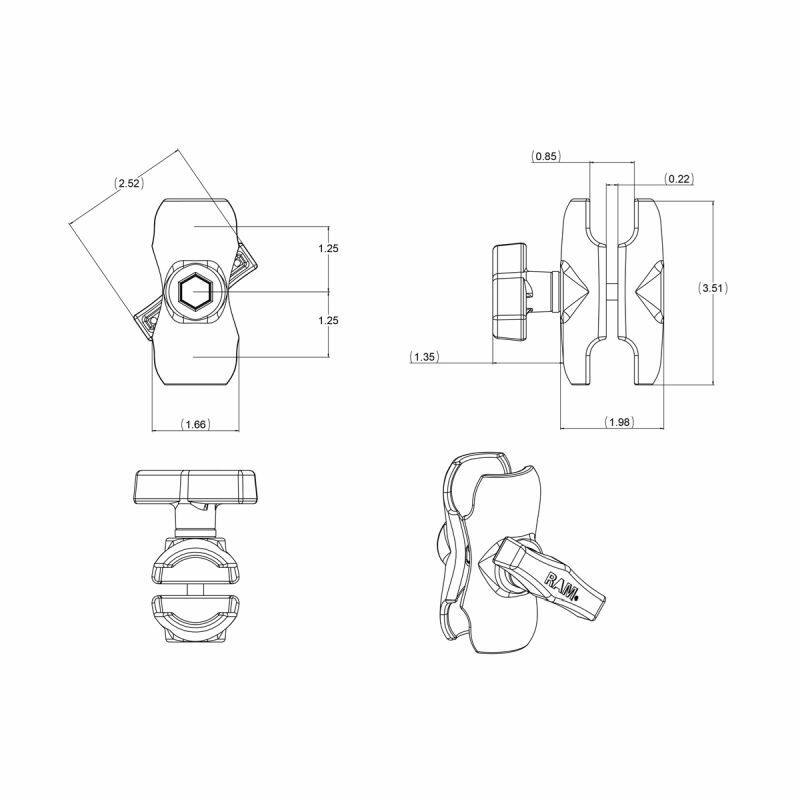

Arm Dimensions
Overall Length:
90 mm (3.56")
Socket-To-Socket Length:
63.5 mm (2.5")
HOLE PATTERNS:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
MATERIALS
Marine-grade aluminium
High strength composite
Components:

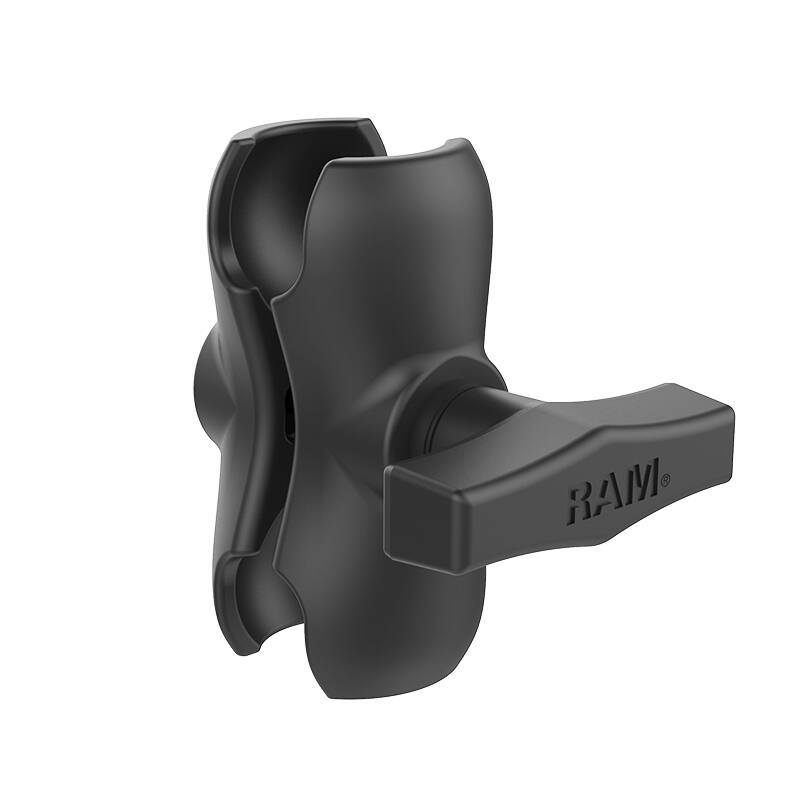

RAM-201U-B short 1.5" (C-Series) Alloy Arm

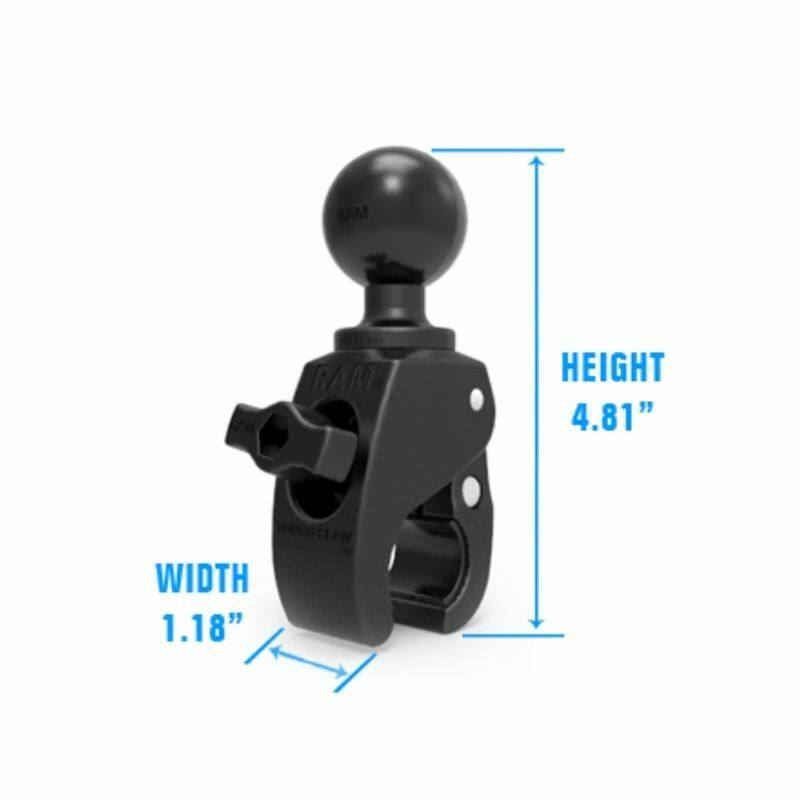

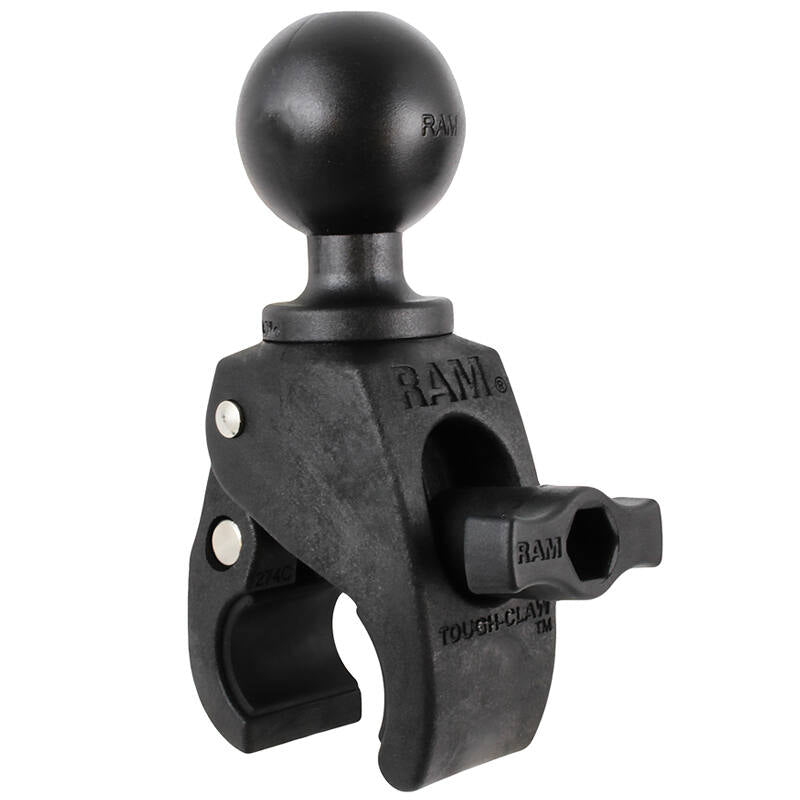

RAP-400U TOUGH-CLAW WITH 1.5" DIA BALL
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

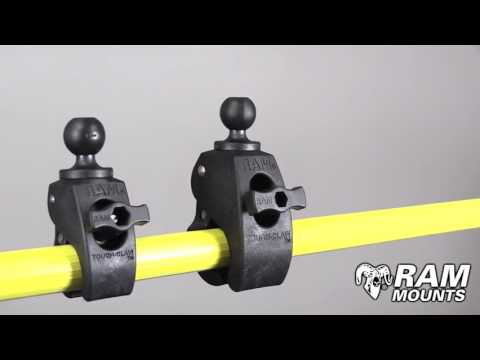

YouTube:
https://www.youtube.com/watch?v=rX36fAdknUY
https://www.youtube.com/watch?v=iO9NEqm9MJk
QUESTIONS & ANSWERS
Q: What size screws are needed for the holes on this ball plate?
A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
