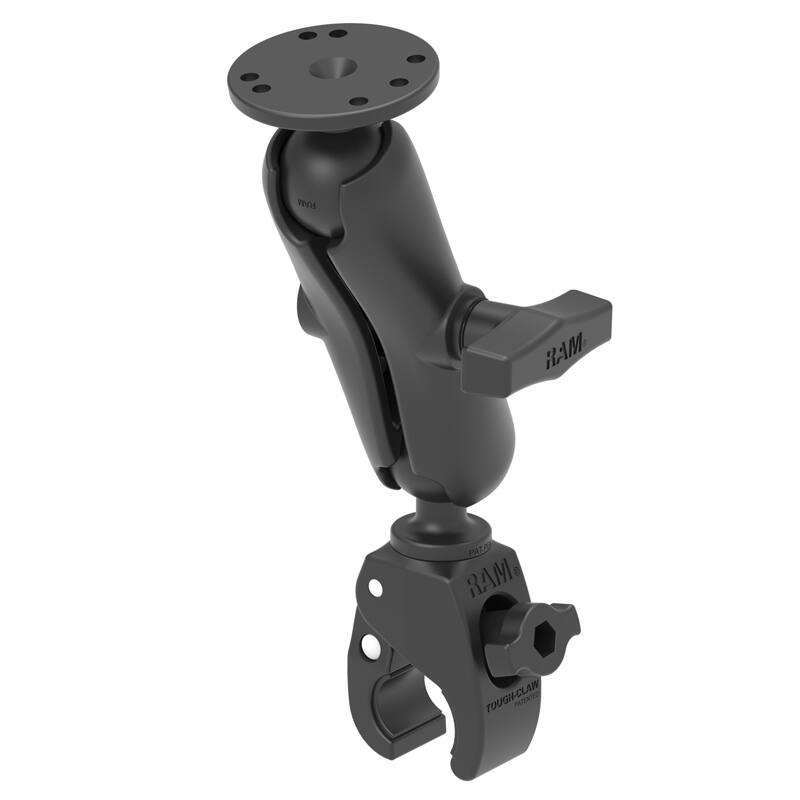

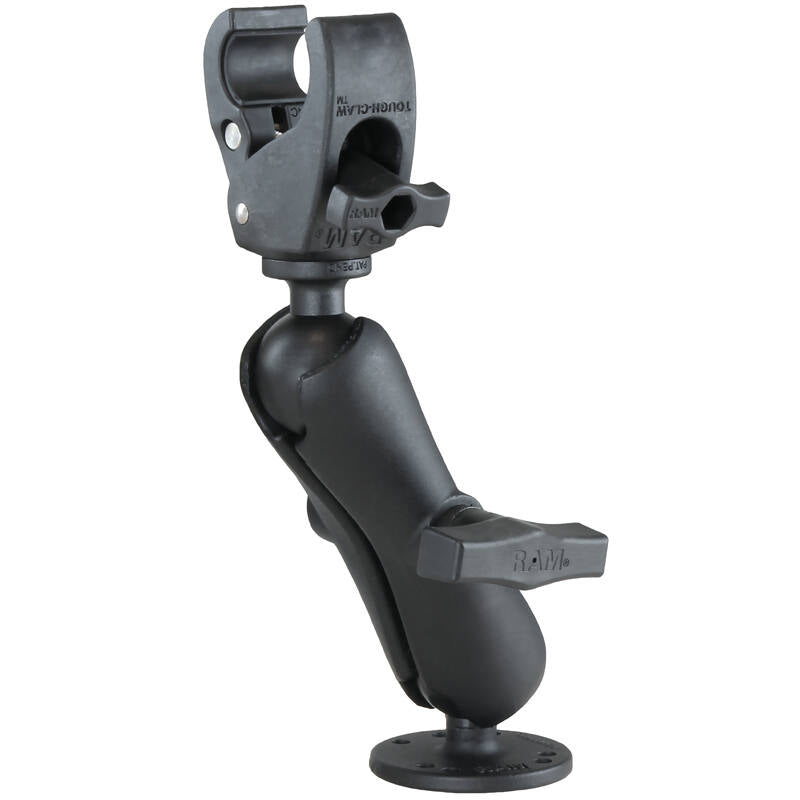

RAM-202-400U RAM® Tough-Claw™ Small Clamp Mount with Round Plate Adaptor - Medium Arm
Features:
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Includes C size double socket arm and round plate
* Made of marine-grade aluminum, high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-202-400U consists of the small Tough-Claw™ base, MEDIUM double socket arm and round base adapter. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 16mm to 38mm outer diameter.

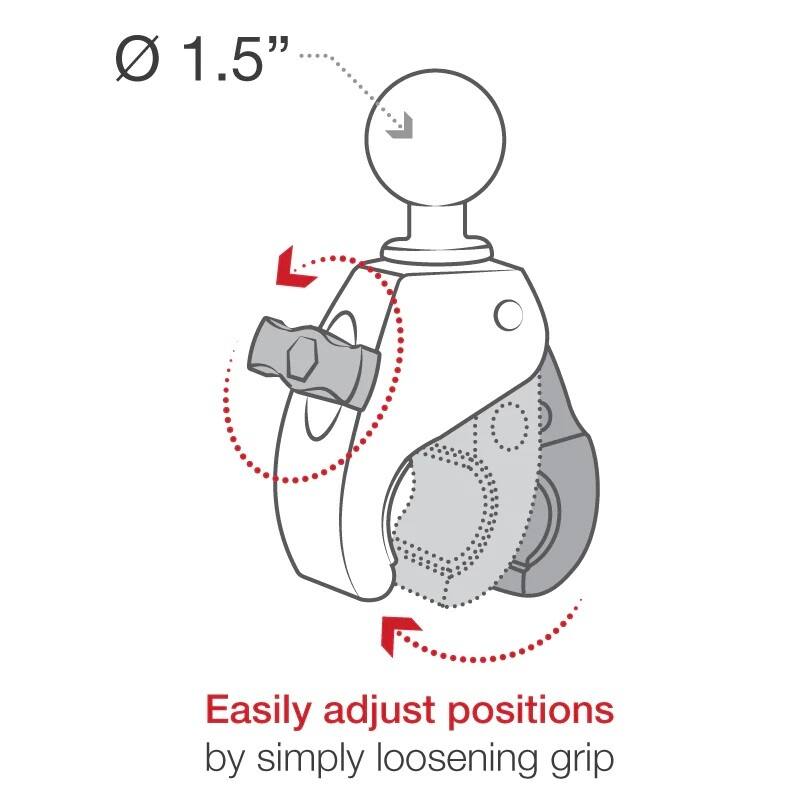

The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Clamping Range
(Rail/Tube Surfaces): 16mm to 38mm (0.625" to 1.5")
(Flat Surfaces): 0 to 29mm (0" to 1.14")
Arm Dimensions:
Overall Length: 143mm (5.625")
Socket-To-Socket Length: 114mm (4.5")
HOLE PATTERN
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
BALL/SOCKET SIZE
C Size (1.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
MATERIALS
Marine-grade aluminium
High strength composite
Components:
RAM-201U 1.5" (C-Series) Alloy Arm

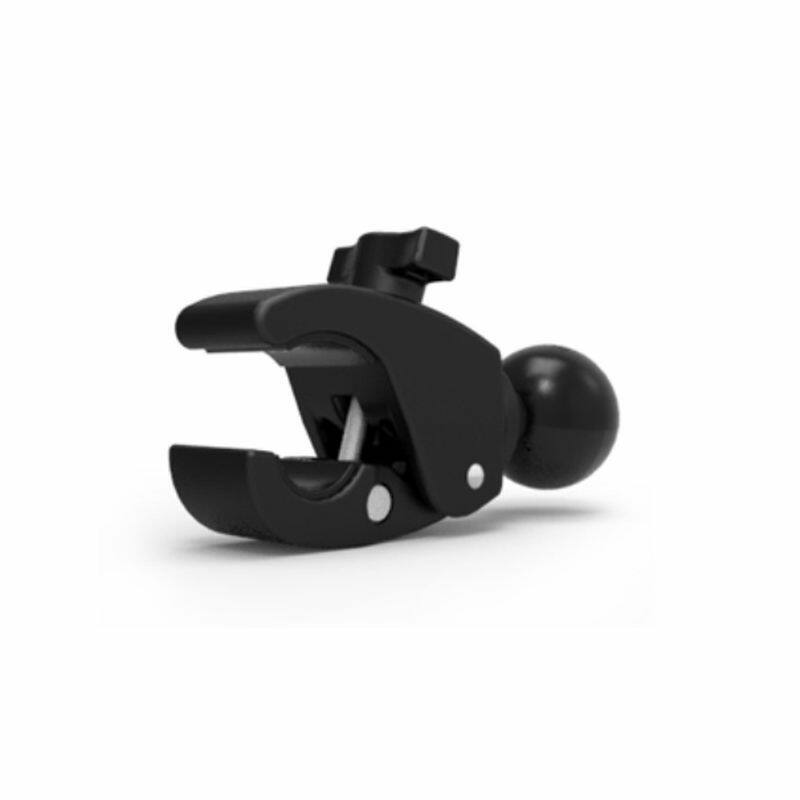

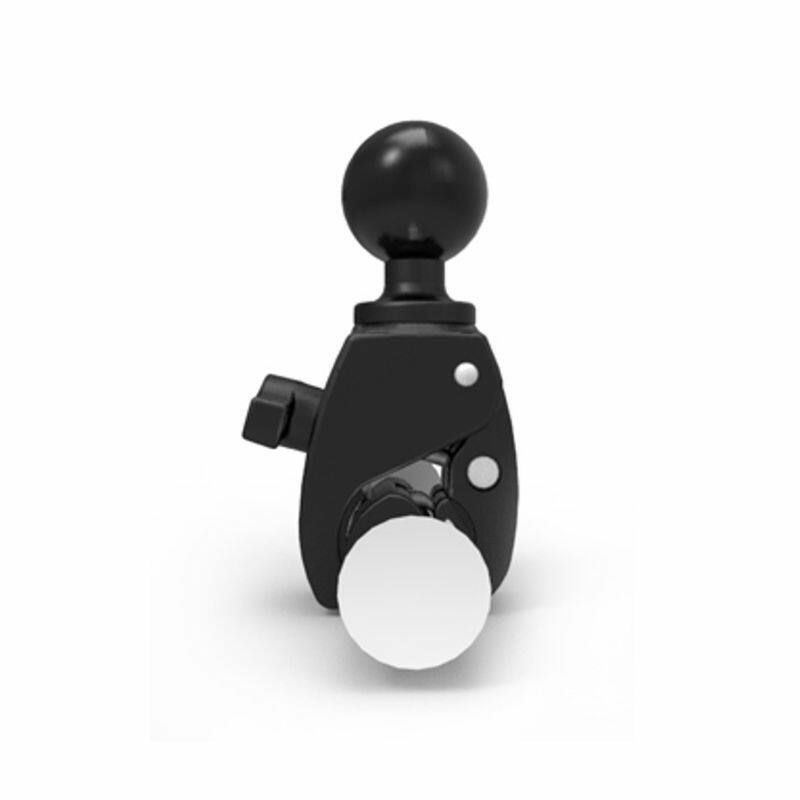

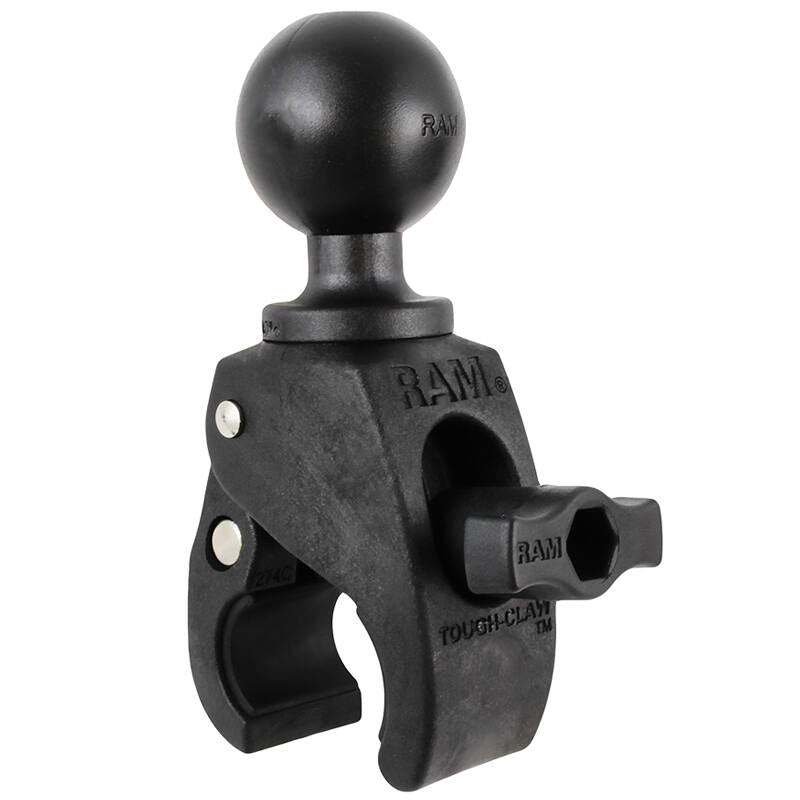

RAP-400U TOUGH-CLAW WITH 1.5" DIA BALL
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

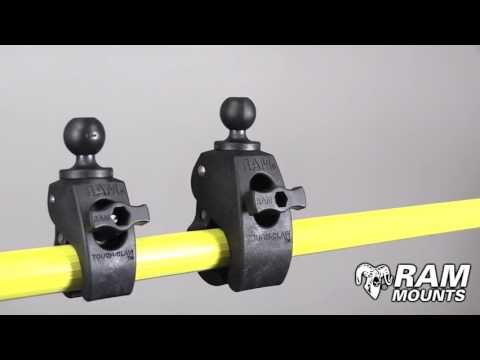

YouTube:
