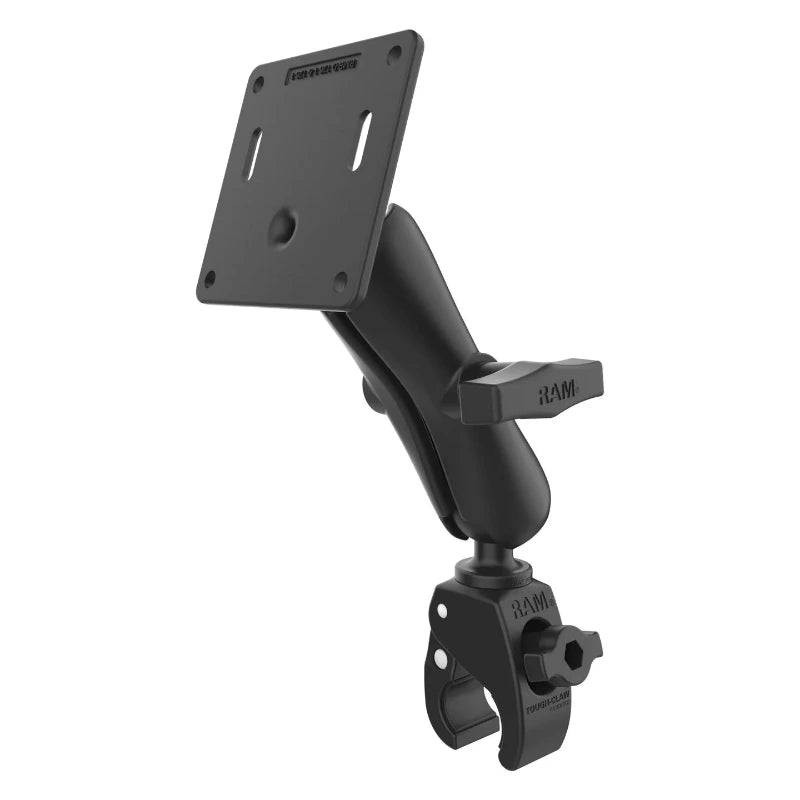

RAP-400-2461U RAM® Tough-Claw™ Small Clamp Mount with 75x75mm VESA Plate – Medium
Features
- Square plate features the VESA hole pattern for connection to a wide variety of devices and holders
- Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer
- Made of powder-coated, marine-grade aluminum, stainless steel hardware, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The RAM® Tough-Claw™ Small Clamp Mount with 75x75mm VESA Plate - Medium (RAP-400-2461U) is a rugged and highly adaptable mounting solution, designed for round, square, and irregular-shaped rails or bars. This medium-sized mount provides quick installation and exceptional holding power, making it ideal for both indoor and outdoor environments.
Featuring a 75x75mm VESA plate, this mount is compatible with all RAM® docks, GDS® Docks™, and monitors or devices with a standard 75x75mm VESA hole pattern. The small Tough-Claw™ base clamps easily onto rails with an outer diameter ranging from 0.625” to 1.14”, making it a great solution for ATV handlebars, roll cages, workstations, and more.
With RAM®’s ball and socket system, this mount allows for nearly infinite adjust-ability, helping you achieve the perfect viewing angle while keeping your device secure and within reach. Whether you're navigating on the road or operating equipment on-site, this mount keeps your essential tech visible and accessible.
Clamping Range
(Rail/Tube Surfaces): 16mm to 38mm (0.625" to 1.5")
(Flat Surfaces): 0 to 29mm (0" to 1.14")
Arm Dimensions:
Overall Length: 143mm (5.625")
Socket-To-Socket Length: 114mm (4.5")
Hole Pattern:
75 x 75mm VESA
Ball Size:
C Size (1.5")
Weight Capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Materials:
Marine-grade aluminum
High strength composite
Weight:
671 grams (1.48 lb)
Components:

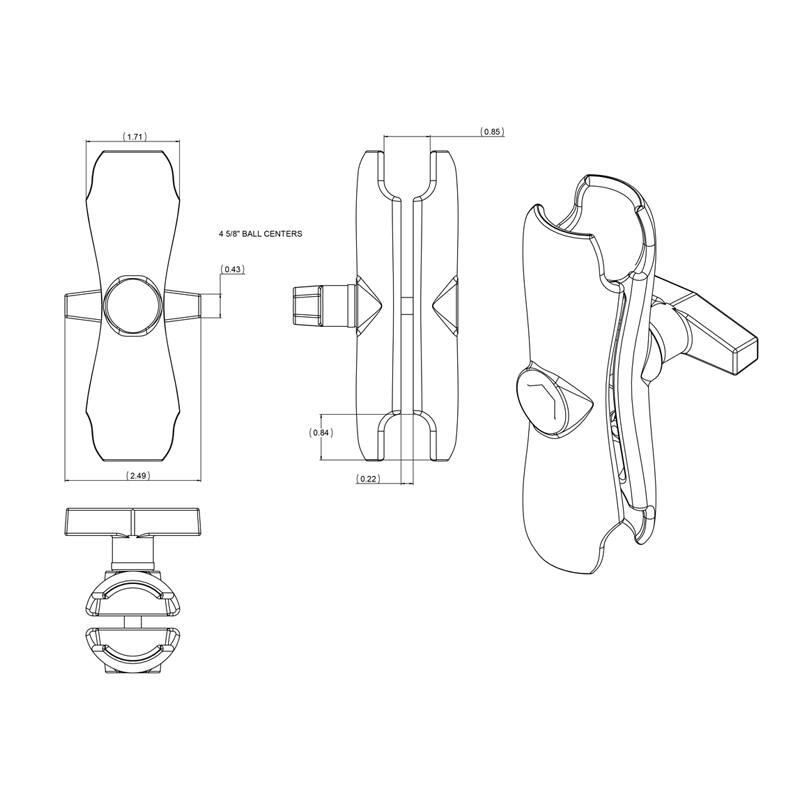

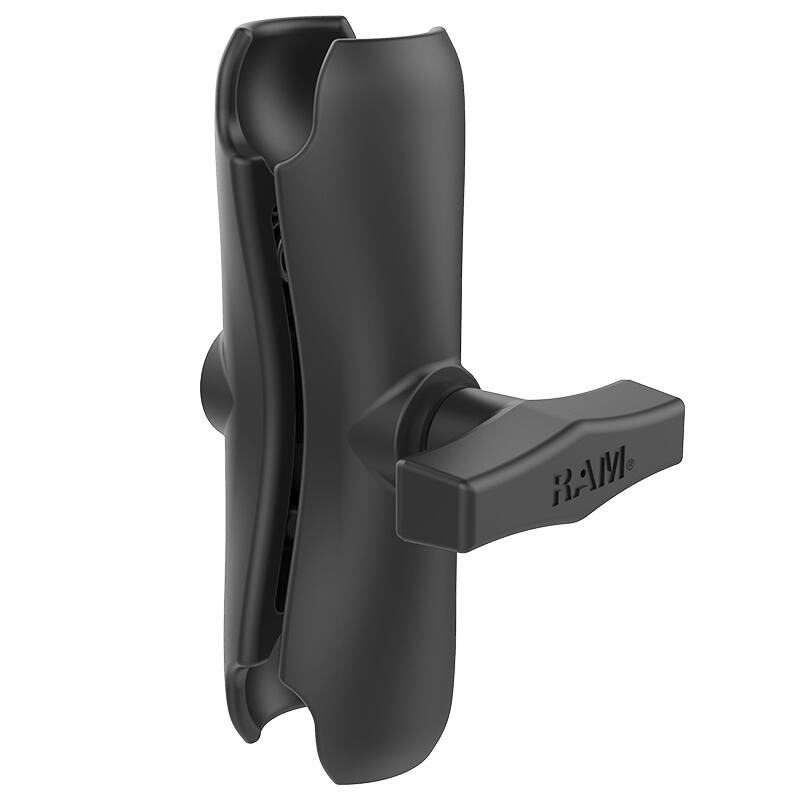

RAM-201U 1.5" (C-Series) Alloy Arm

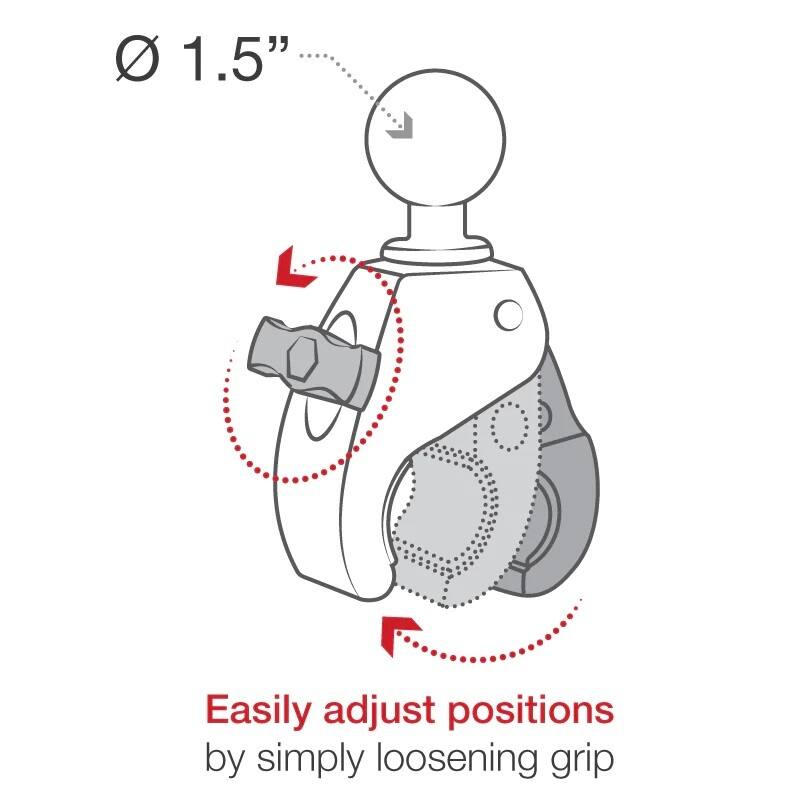

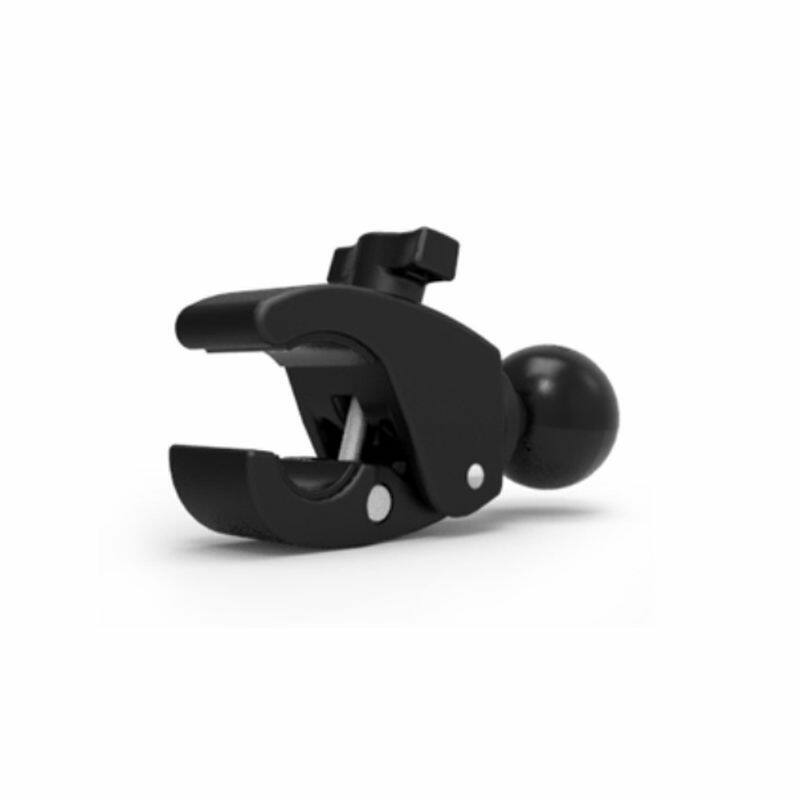

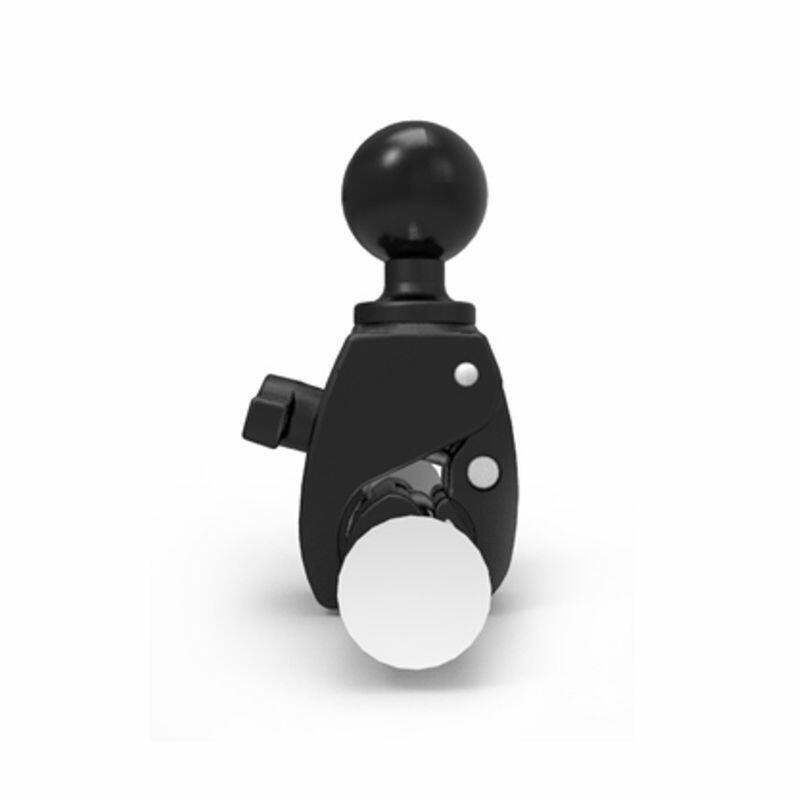

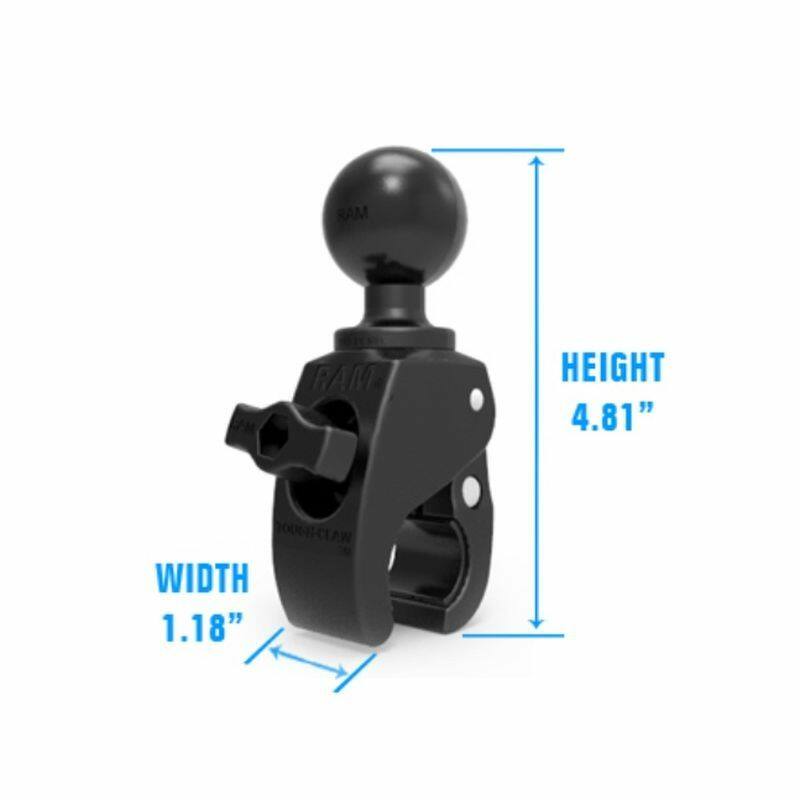

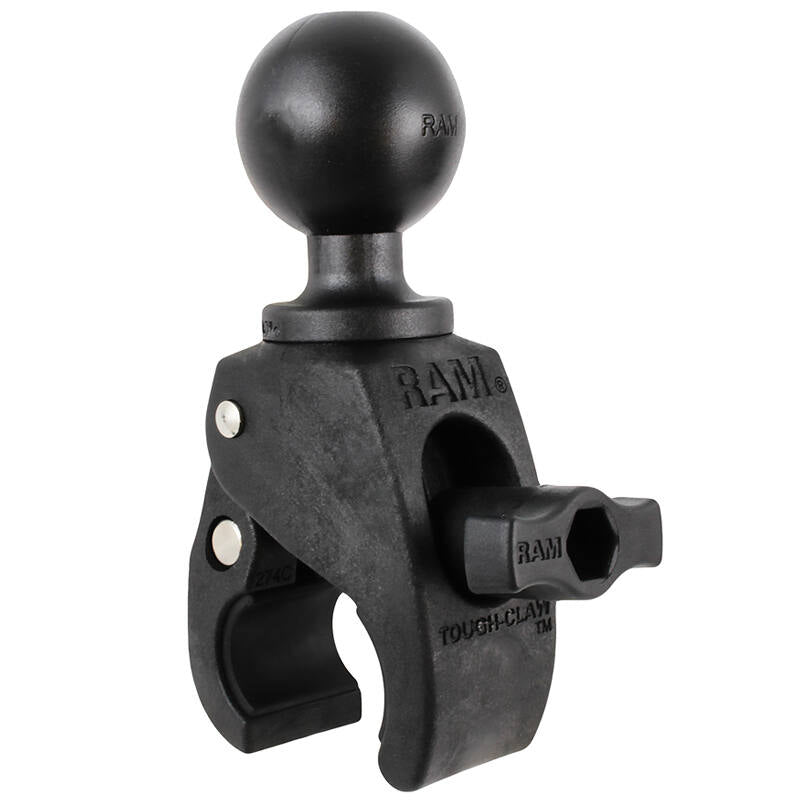

RAP-400U TOUGH-CLAW WITH 1.5" DIA BALL

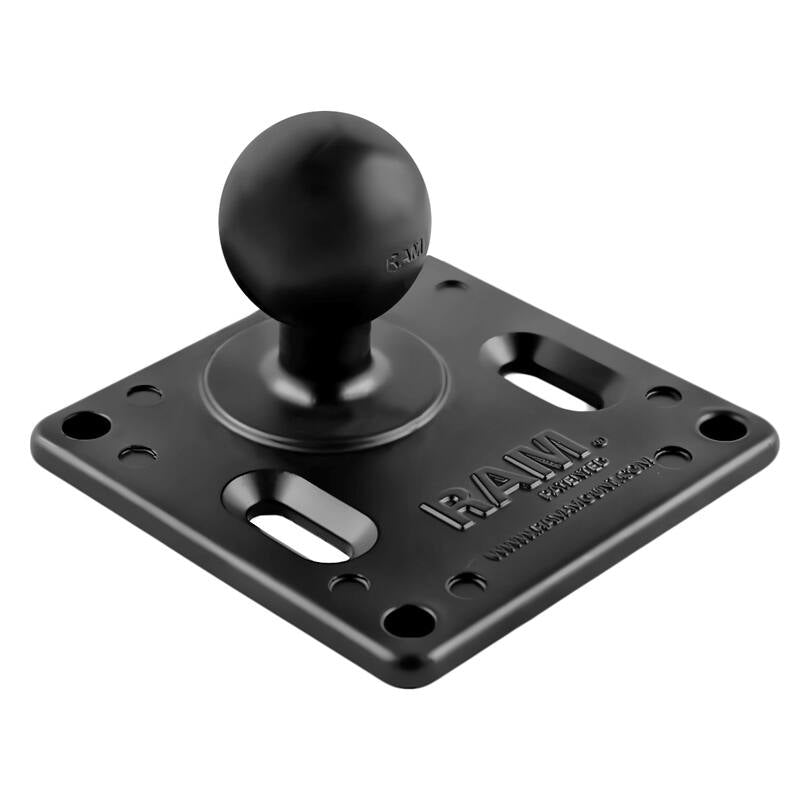

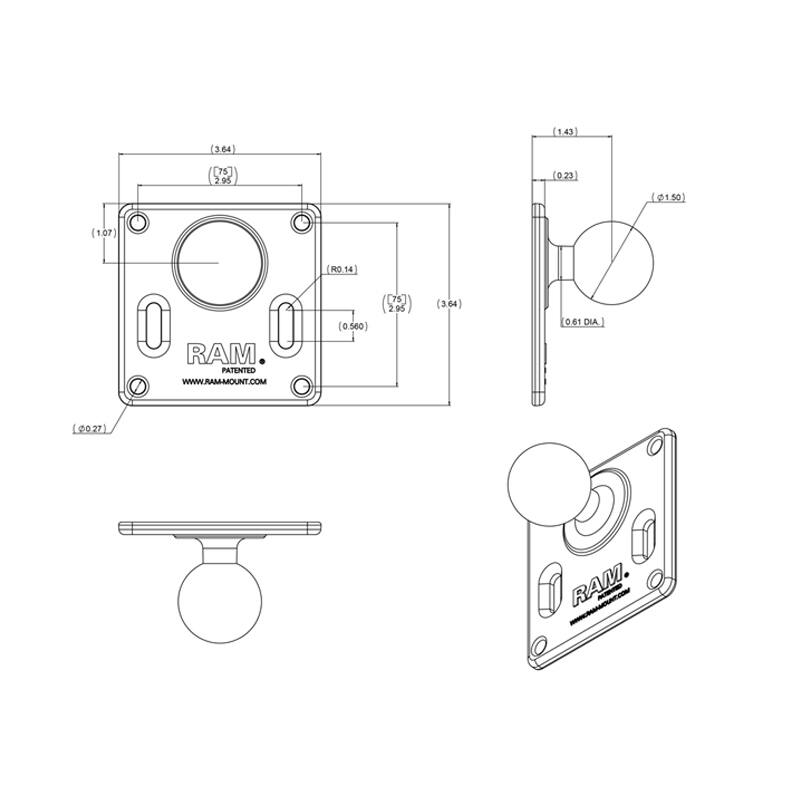

RAM-2461U 75mm Vesa Plate
