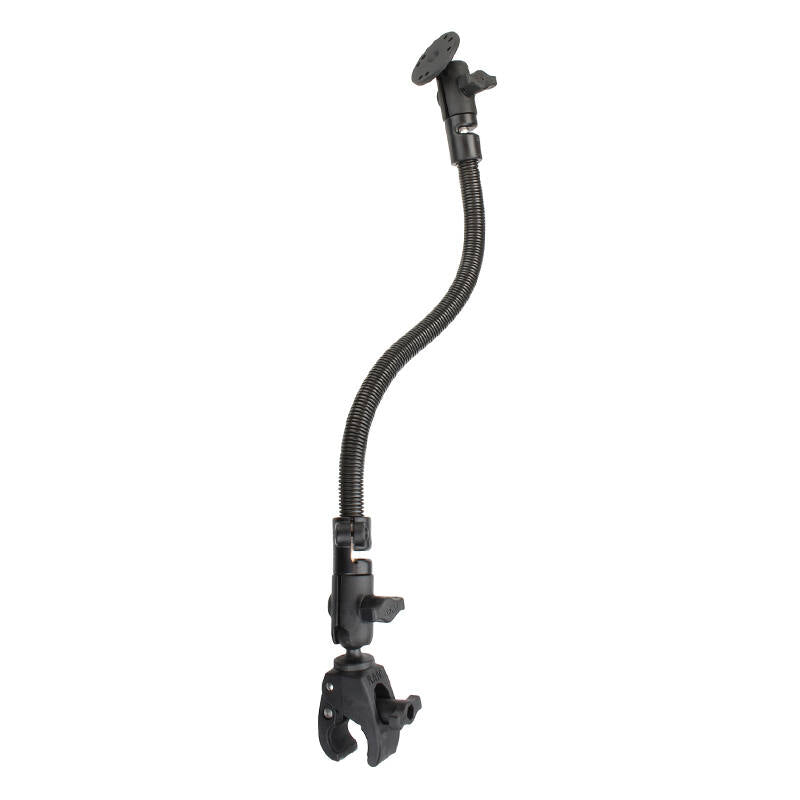

RAM-B-316-400-202U RAM® Tough-Claw™ Mount with 18" Rod and Round Plate
Features:
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* 18" rigid aluminium rod can be bent to position to fit your vehicle and move your device to its optimum viewing location
* The round base adaptor contains the universal AMPS hole pattern that will adapt to most RAM device cradles
* Ideal mounting base for phones, tablets, cameras, rod holders, and much more; includes 1" B size rubber ball for attachment to RAM® double socket arms
* Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The easy solution for mounting a cradle for your device when the base to be clamped to is some distance from the position you need the cradle.
The RAM-B-316-400-202U consists of the RAM Tough-Claw, 458mm / 18” rigid aluminium rod, single B Size 1" ball socket arm and round base plate.

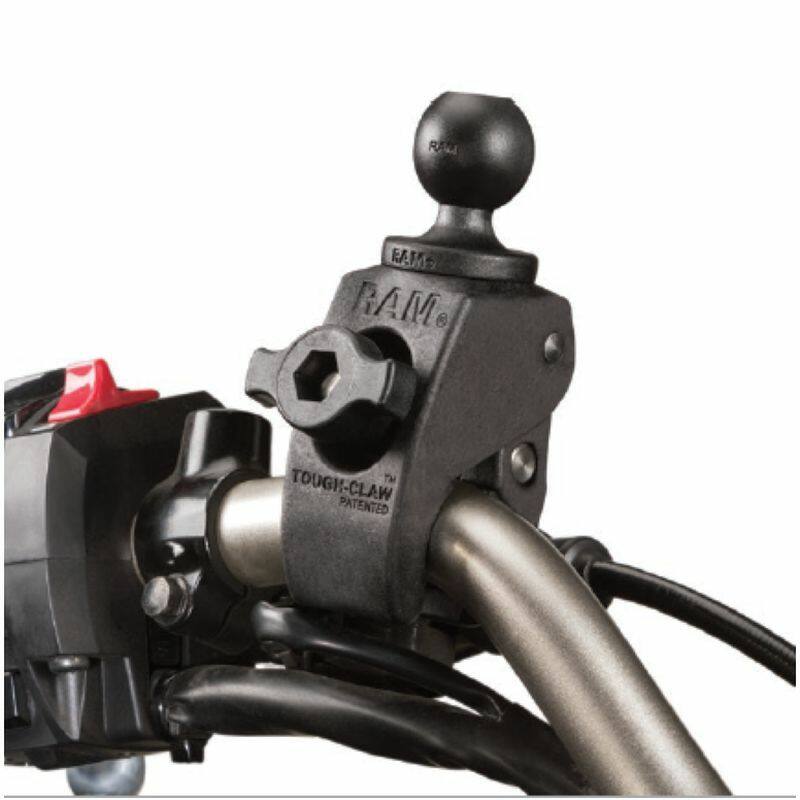

The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 28mm (0.625" to 1.14") outer diameter.
The rubber ball provides a stable mount and has the advantage of vibration dampening to some degree.

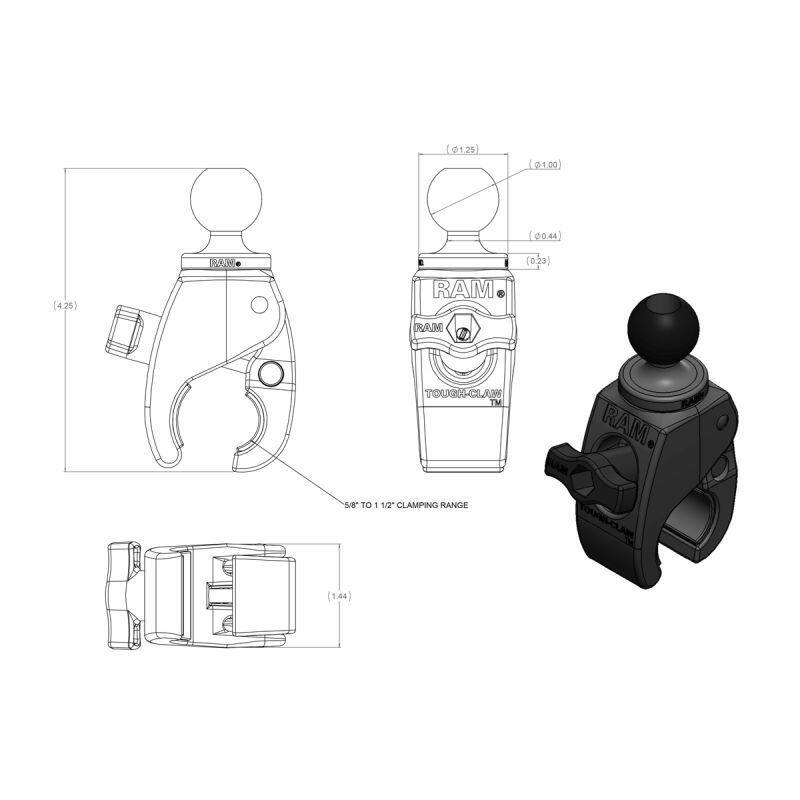

Clamping Range
Rail/Tube Surfaces:
16mm to 28mm (0.625" to 1.14")
Flat Surfaces:
0 to 29mm (1.14")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS
1.812” (46.0mm)
Ball Size:
1" B-size Rubber Ball.
Weight Capacity
907 grams (2 lbs)
Weight
785 grams (1.73 lbs.)
Materials
Marine-grade aluminium
High strength composite
Components:

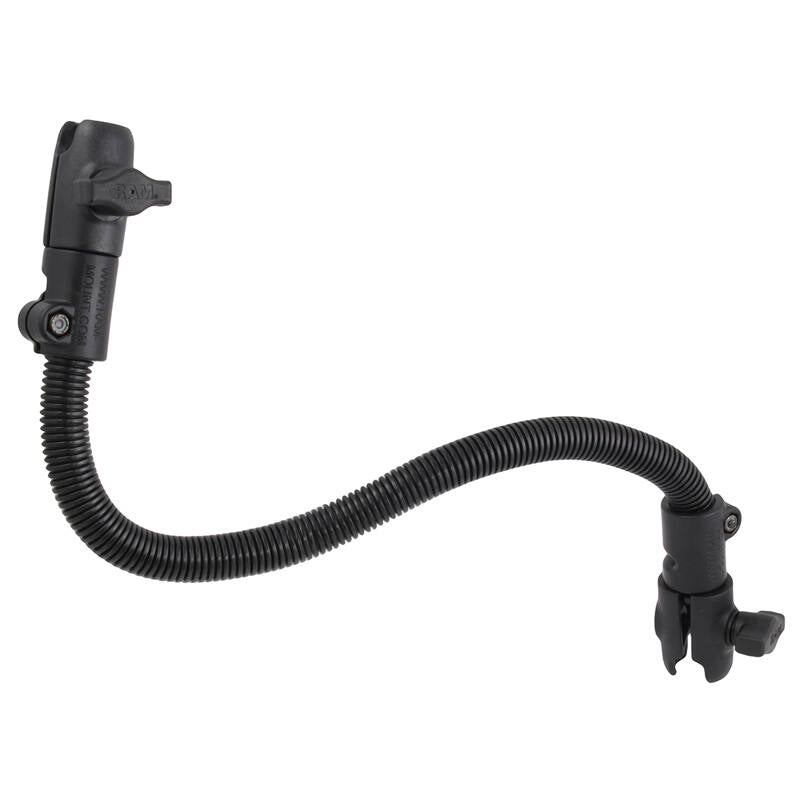

RAP-B-200-1-18U RAM 457mm Long Rigid Aluminum Rod & (2 QTY) Single Socket Arms for 1" Balls
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL

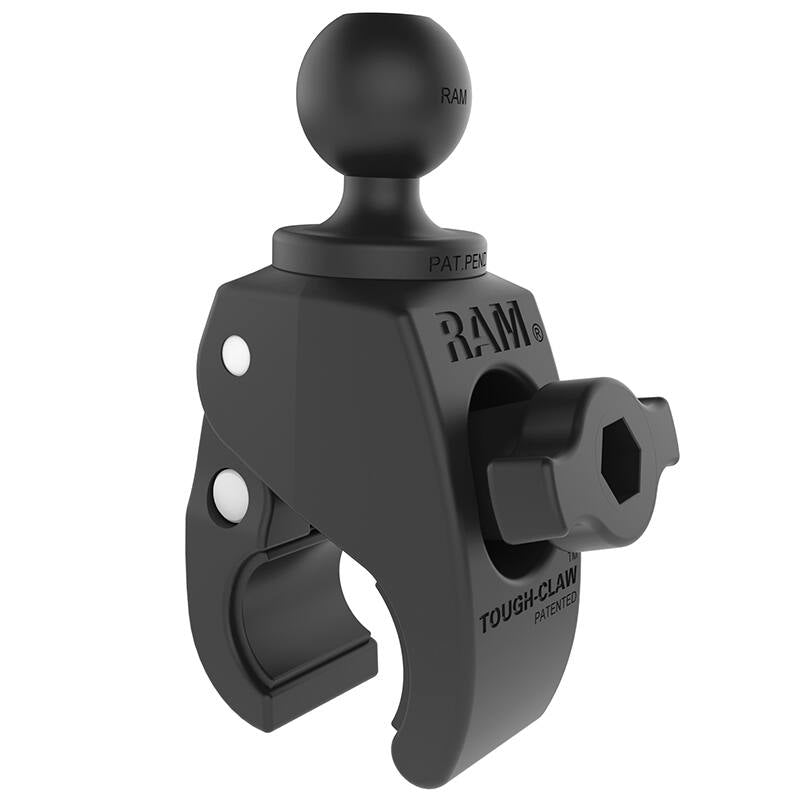

RAP-B-400U RAM SMALL TOUGH CLAW WITH 1" BALL
YouTube:
https://www.youtube.com/watch?v=rX36fAdknUY
