RAM Tough-Claw Small Clamp Base with RAM Pin-Lock Pattern

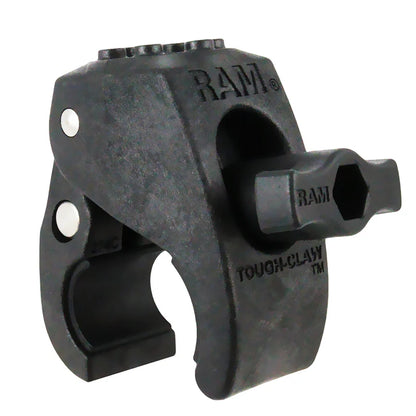

RAP-400NBU RAM® Tough-Claw™ Small Clamp Base with RAM® Pin-Lock™ Pattern

The RAP-400NBU is a small RAM® Tough-Claw™ clamp base with the RAM® Pin-Lock™ hole pattern, letting you bolt on either a B-size or C-size ball to suit the arm and cradle you're building. The claw clamps tool-free to round, square, and odd-shaped rails and bars — ideal for phones, tablets, cameras, and rod holders on aircraft yokes, bicycle and motorcycle handlebars, kayak rails, roll bars, and wheelchairs.

Key Features

• Small Tough-Claw™ clamps round, square, and odd-shaped rails and bars from 16mm to 38mm (0.625" to 1.5") tool-free; rubber pads protect the mounting surface
• Pin-Lock™ hole pattern accepts either a B-size or C-size ball
• Ideal mounting base for phones, tablets, cameras, and rod holders
• High-strength composite and stainless steel hardware; lifetime warranty

Dimensions & Specifications

• Clamping range, rails/tubes: 16mm to 38mm (0.625" to 1.5")
• Clamping range, flat surfaces: 0 to 29mm (0" to 1.14")
• Height: 122mm (4.81"); width: 30mm (1.18")
• Weight: 127g (0.28 lb)
• Materials: high-strength composite, stainless steel hardware

FAQs

What ball sizes fit? The Pin-Lock™ pattern accepts either a B-size (1") or C-size (1.5") RAM ball, sold separately.
