RAP-400-D-202U RAM Tough-Claw™ Trolling Motor Stabilizer - Long
Features
* Includes small version of the RAM® Tough-Claw™, long length C size RAM® double socket arm, and 2.5" round plate with C size 1.5" RAM® rubber ball
* Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAP-400-202U consists of the small Tough-Claw™ base, long double socket arm and round base adapter. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 16-28mm outer diameter.
The round base adapter contains the industry standard universal AMPS hole pattern and 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. This allows for almost infinite adjustment and perfect viewing angles.
Clamping Range
Rail/Tube Surfaces:
16mm to 28mm (0.625" to 1.14")
Flat Surfaces:
0 to 29mm (1.14")

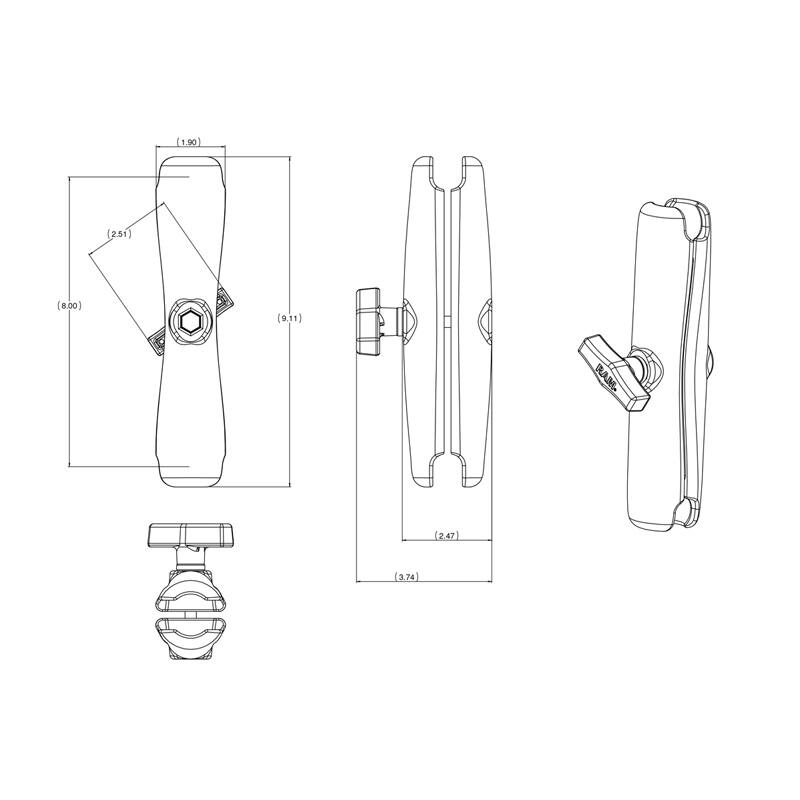

Arm Dimensions:
Overall Length:
232mm (9.125")
Socket-To-Socket Length:
203mm ( 8")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Plate Size
2.5" Diameter
Ball/Socket Size
C Size (1.5")
Weight Capacity
1.814kg (4 lbs)
Materials
Marine-grade aluminium
High strength composite
Weight
603 grams (1.33 lbs.)
Components:
RAP-404U Medium Tough-Claw

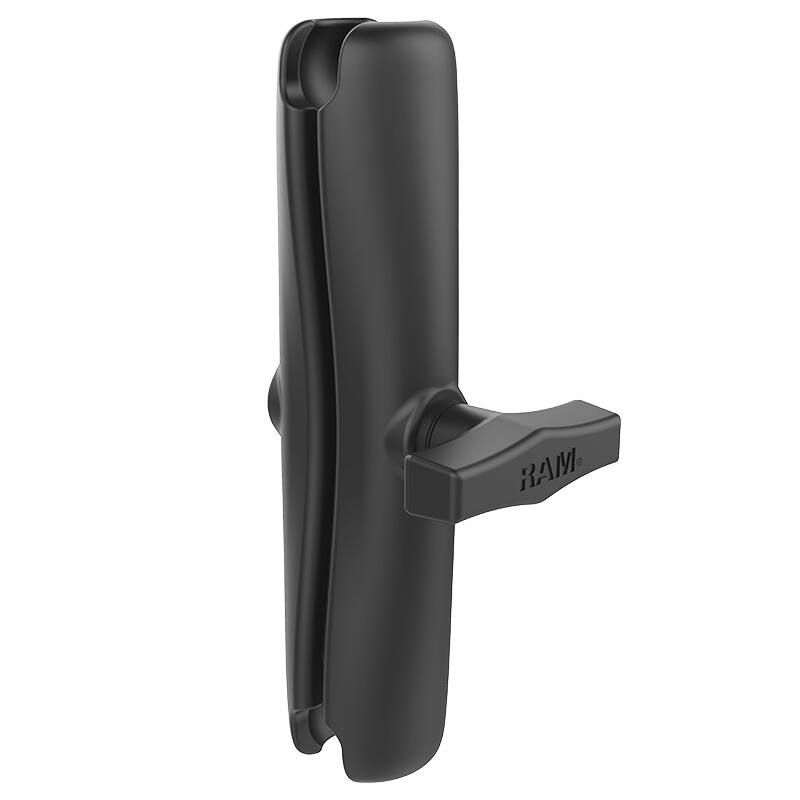

RAM-201U-D Lomg Double Socket Arm
RAM-202U 2.5" / 63mm DIA. BASE
