RAM Tough-Strap Handlebar / Rail Mount with 1" Ball

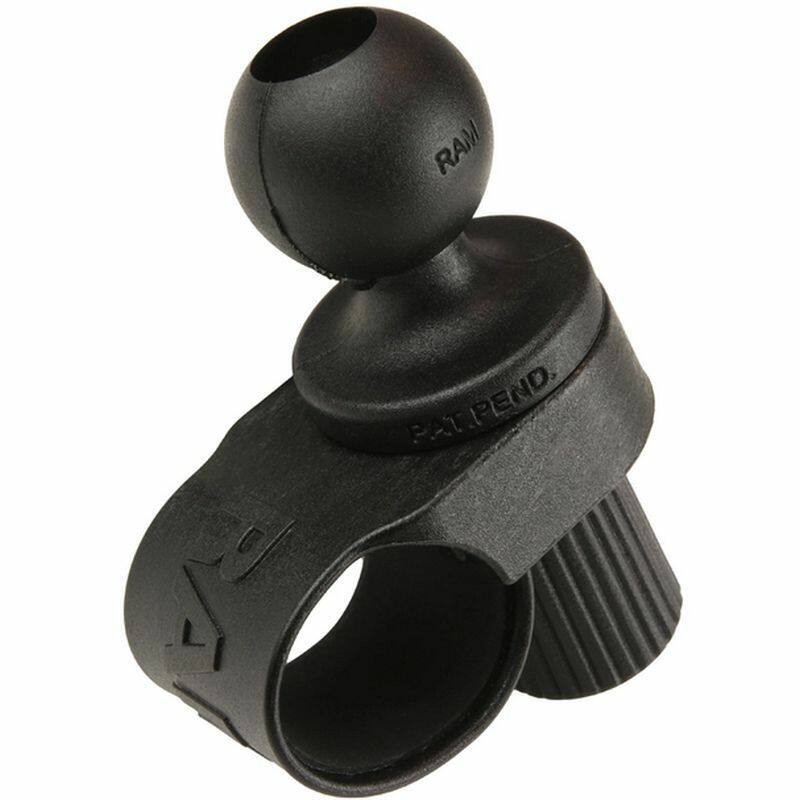

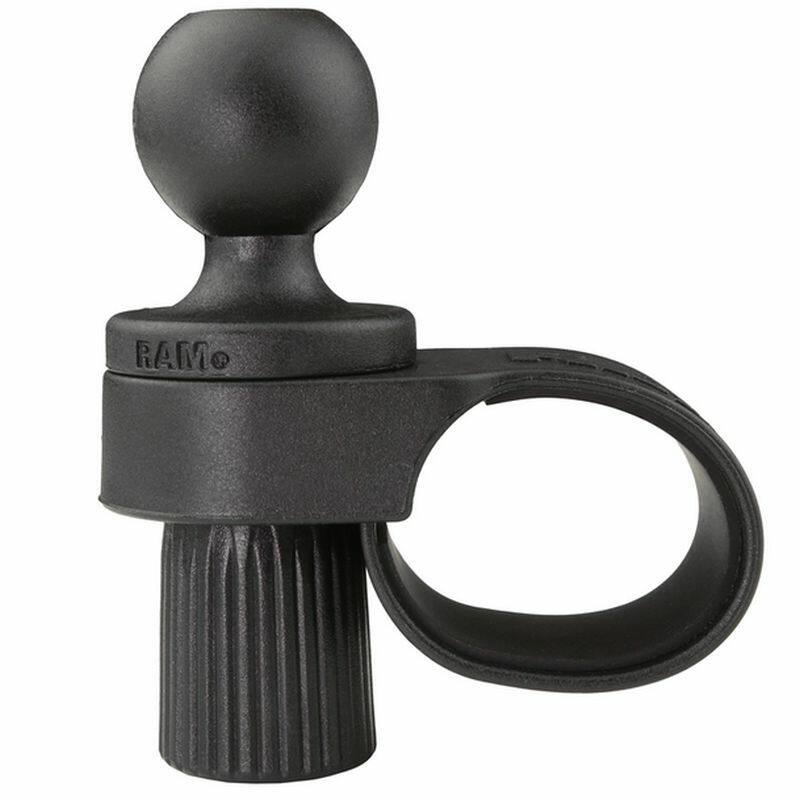

RAP-B-460U Tough-Strap™ Handlebar Ball Base

The RAP-B-460U is a low-profile Tough-Strap™ handlebar mount that clamps on with a single knob, giving a 1" B-Size ball mounting point for mountain bikes, road bikes, e-bikes, and motorcycles.

Key Features

• Tool-free single-knob tightening

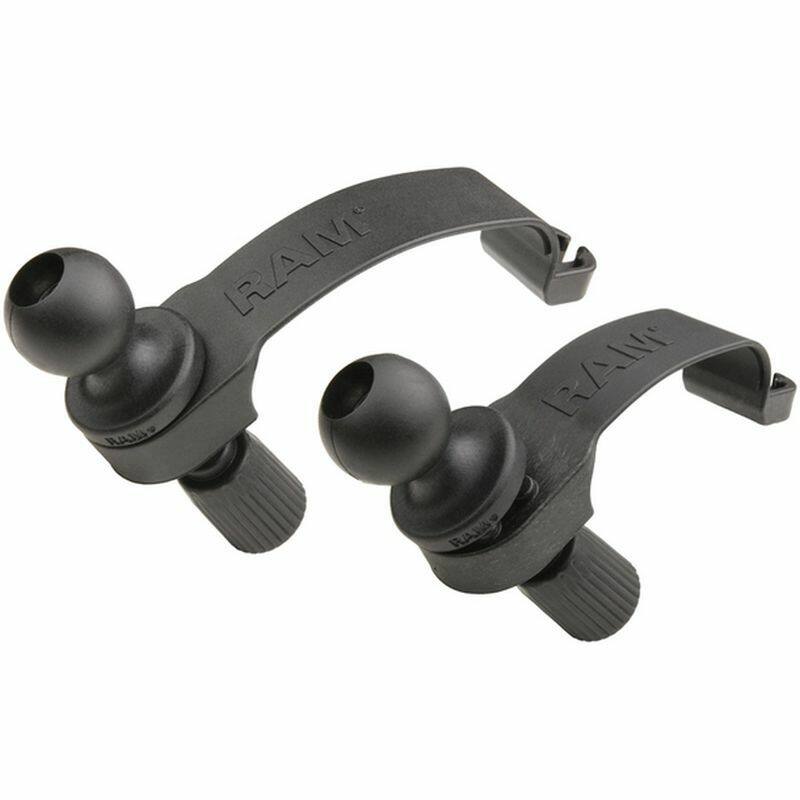

• Two strap sizes included, plus an extra rubber strip for a custom fit
• Connects to any B-Size RAM® double socket arm and device holder
• High-strength composite construction with stainless steel hardware
• Lifetime warranty

Dimensions & Specifications

• Clamp range: 22.23mm to 35.01mm (0.875" to 1.38")
• Long strap: 31.75mm–35.01mm (1.25"–1.38") diameter
• Short strap: 22.23mm–25.4mm (0.875"–1") diameter
• Extra rubber strip narrows fit to 25.4mm–28.6mm (1"–1.125")
• Ball/socket size: B-Size (1")
• Material: high-strength composite
• Weight: 113g (0.25 lbs)
• Weight capacity — standard use: 907g (2 lbs); heavy-duty use: 454g (1 lb)

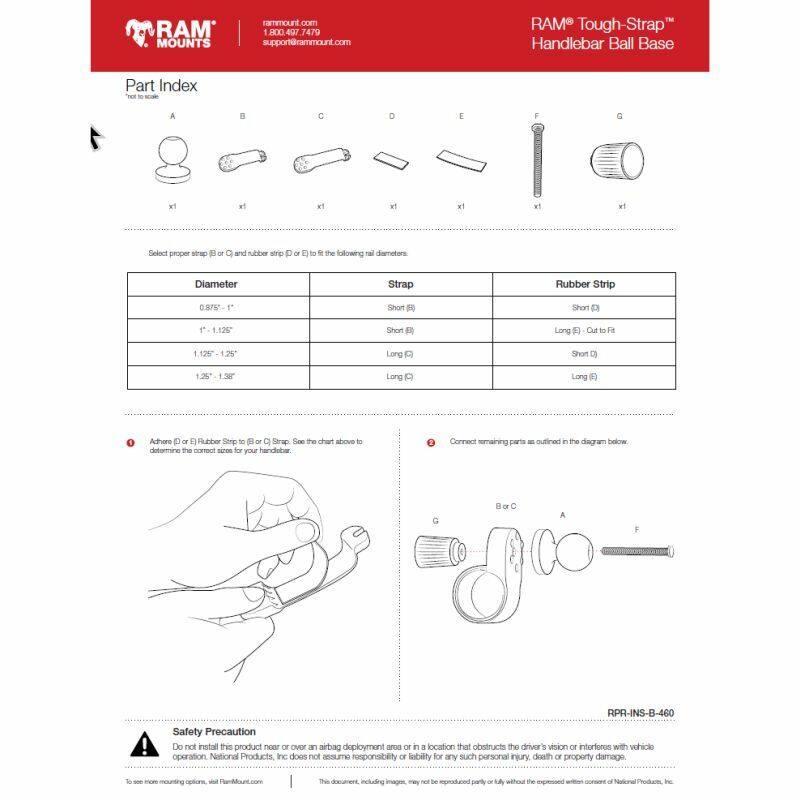

Hardware Included

• 1x #10-24 x 2.5" machine screw
• 1x long strap
• 1x short strap
• 1x long rubber strip
• 1x short rubber strip
• 1x tightening knob

FAQs

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

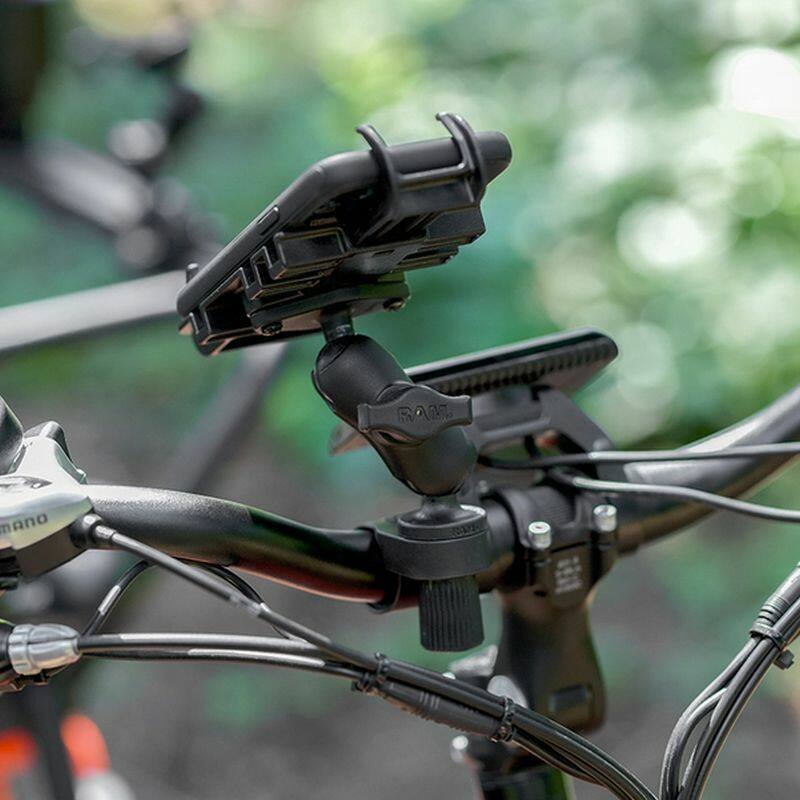

Watch the Tough-Strap mount in use
