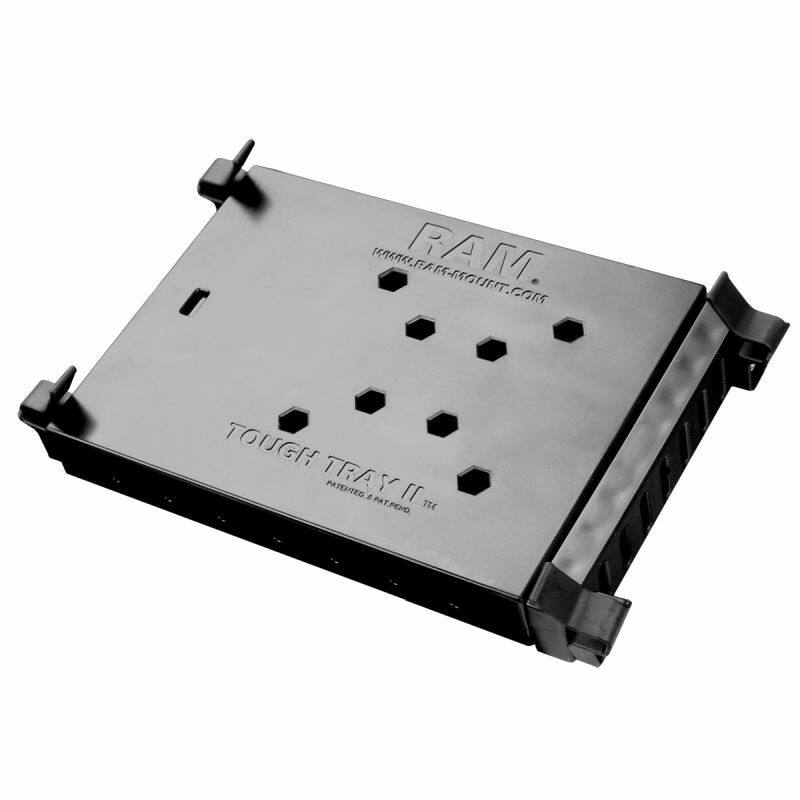

RAM Tough-Tray II - Universal Tablet & Netbook Holder

RAM-234-6 RAM® Tough-Tray™ II Spring-Loaded Netbook/Tablet Holder

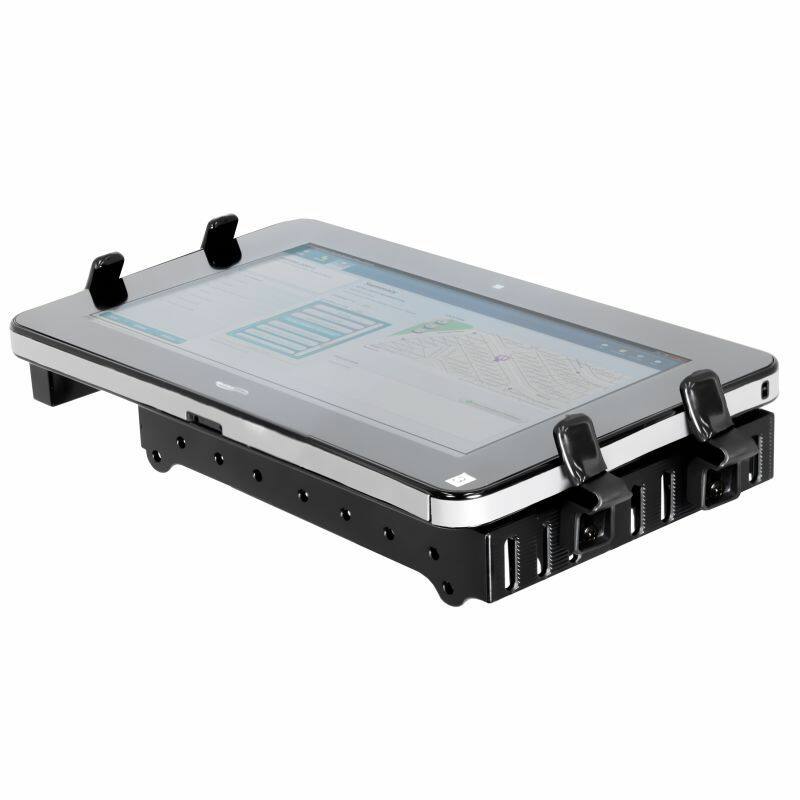

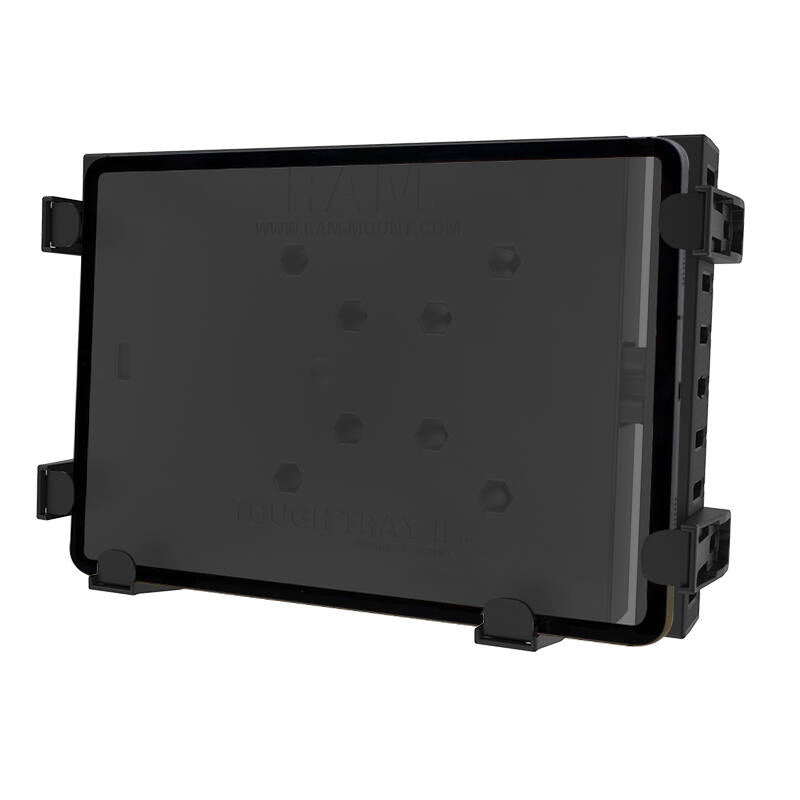

The RAM-234-6 is a spring-loaded universal holder for tablets, UMPCs and compact laptops, with interchangeable clamping arms that hold devices securely without blocking ports or buttons.

Key Features

• Spring-loaded tray applies just the right amount of holding force
• Includes four arm styles for a tailored fit across different devices

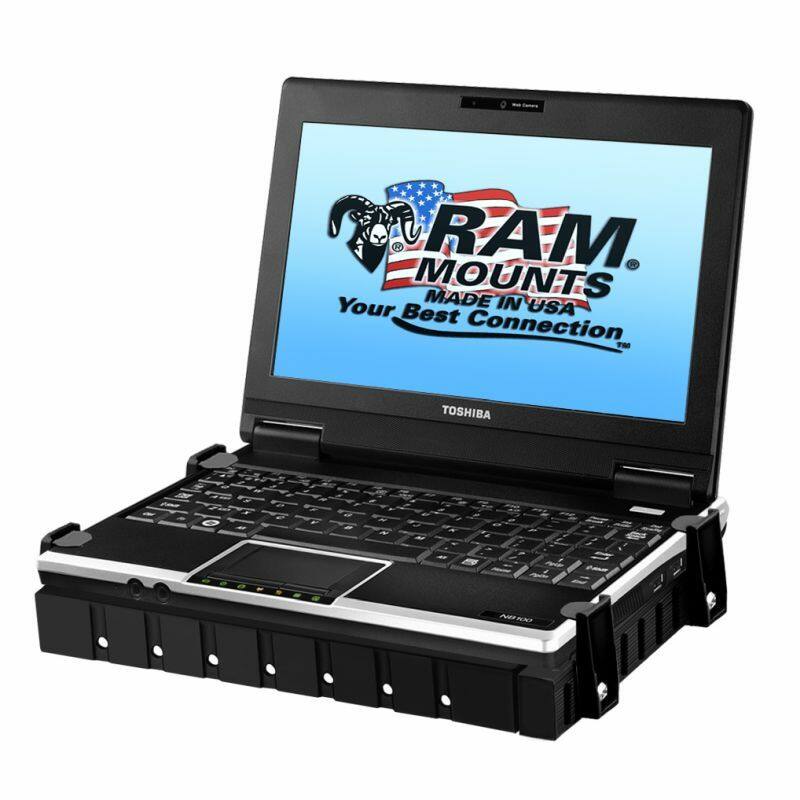

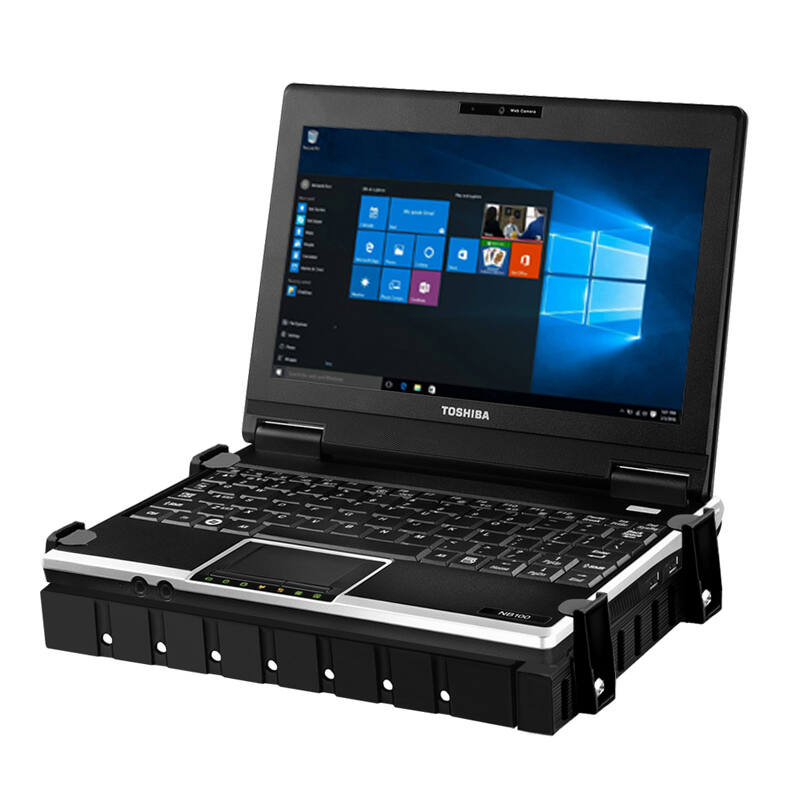

• Retaining arms hold a laptop firm with the screen up or down
• 4-hole AMPS base pattern attaches to common RAM balls, including RAM-B-202U, RAM-202U and RAM-D-254U
• High-strength composite construction; lifetime warranty

Works With

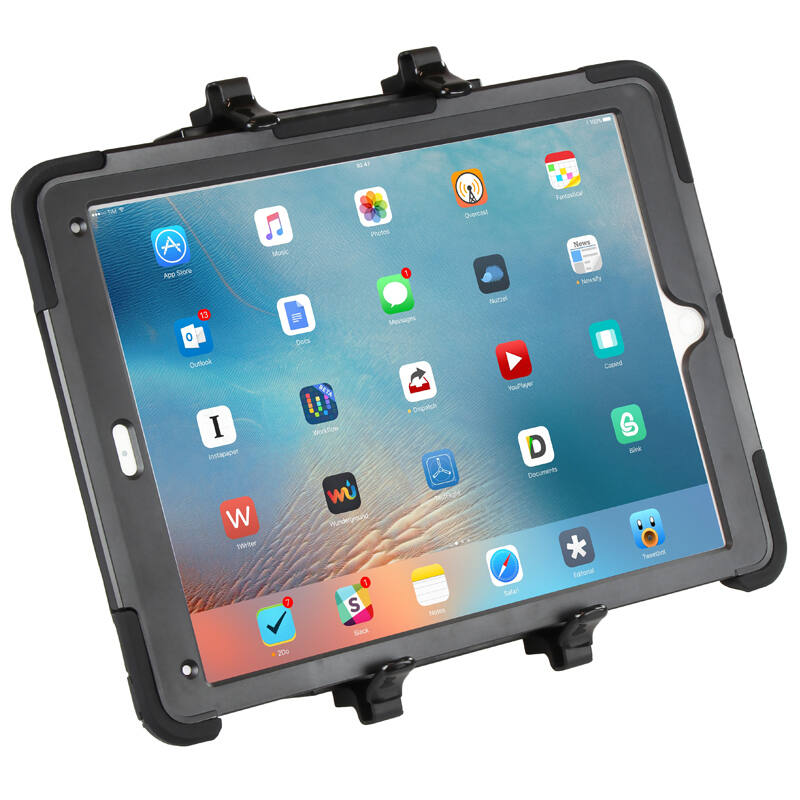

Most tablets, UMPCs and compact laptops between 217.4mm and 282.4mm (8.56"–11.12") wide. Attaches to any RAM base or arm using the 4-hole AMPS pattern.

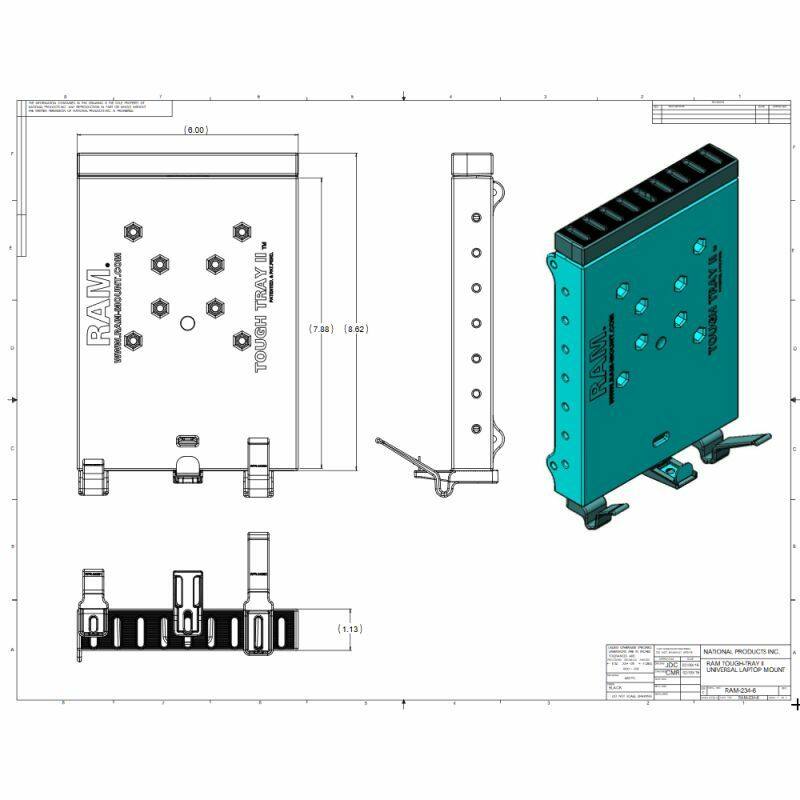

Dimensions & Specifications

• Tray depth: 152.4mm (6.0")
• Tray thickness: 25.4mm (1")
• Tray width (expansion range): 217.4mm–282.4mm (8.56"–11.12")
• Side clamp arm height: 69.9mm (2.75") max
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 526g (1.16 lbs)
• Material: high-strength composite

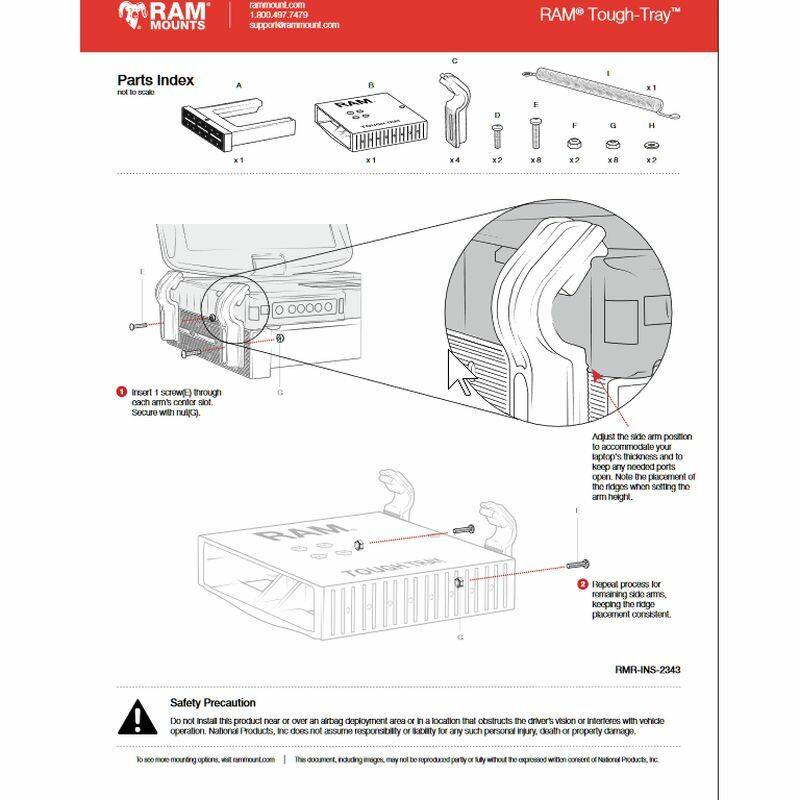

Included with Purchase

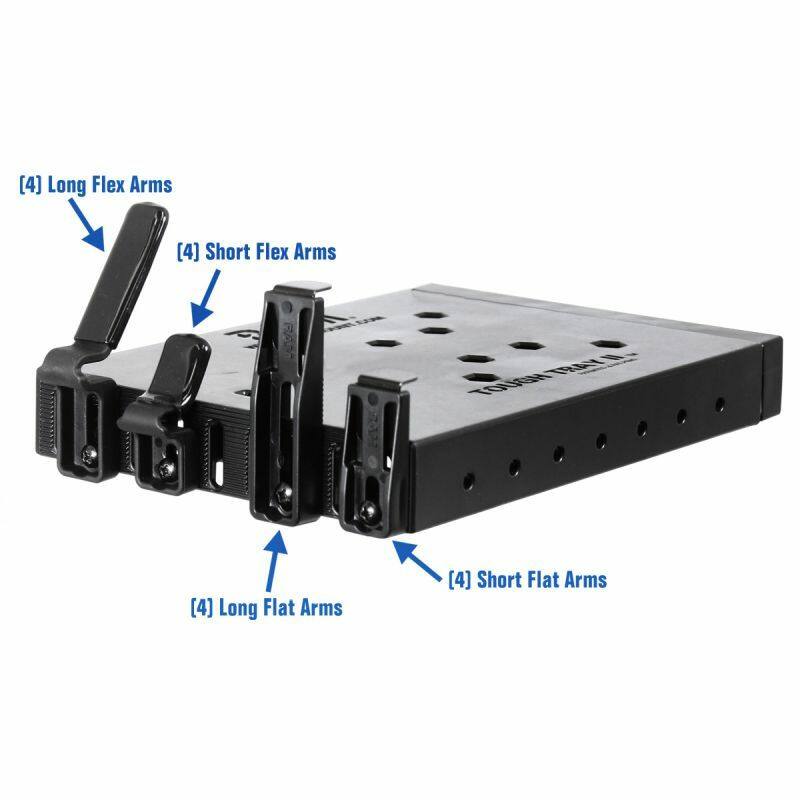

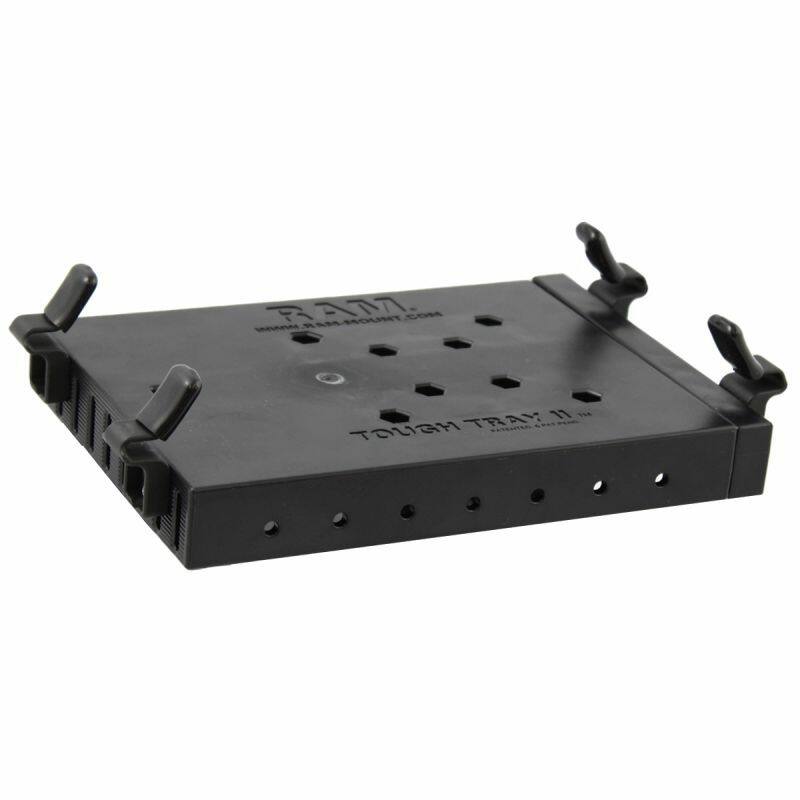

• 1x laptop tray
• 4x short flex retaining arms
• 4x long flex retaining arms
• 4x short flat arms
• 4x long flat arms

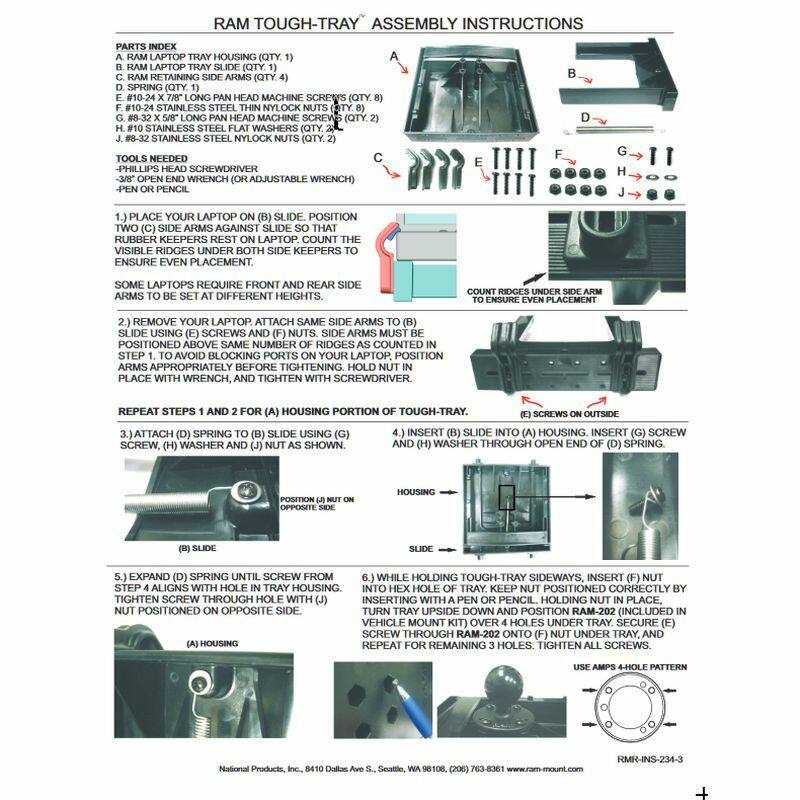

• Tray assembly hardware: 4x #8-32 x 5/8" machine screws, 4x #8-32 nylock nuts

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
