RAM Tough-Tray Universal Laptop Holder

RAM-234-3 RAM® Tough-Tray™ Spring-Loaded Laptop Holder

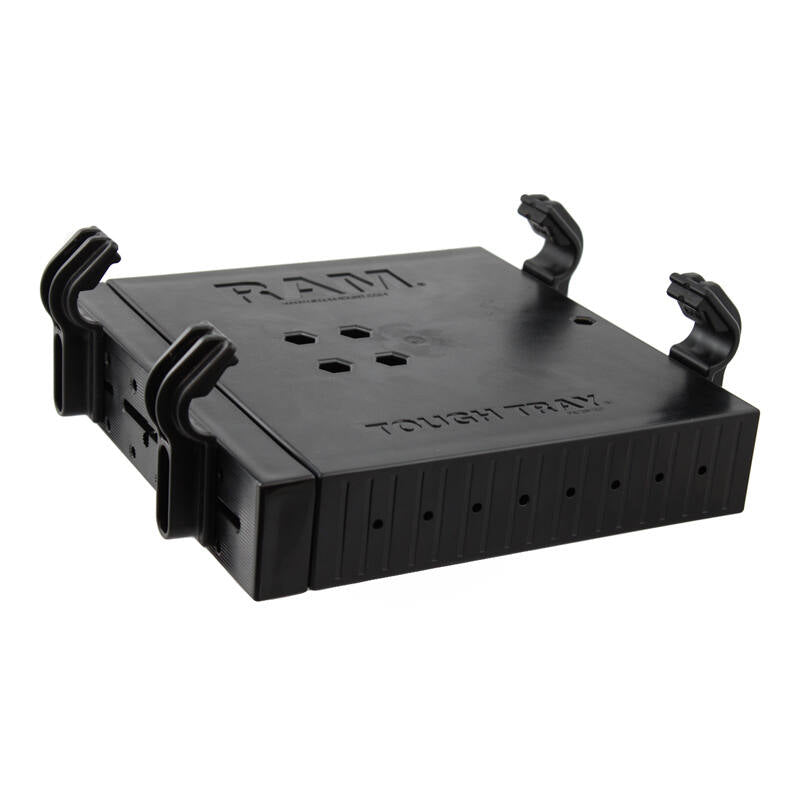

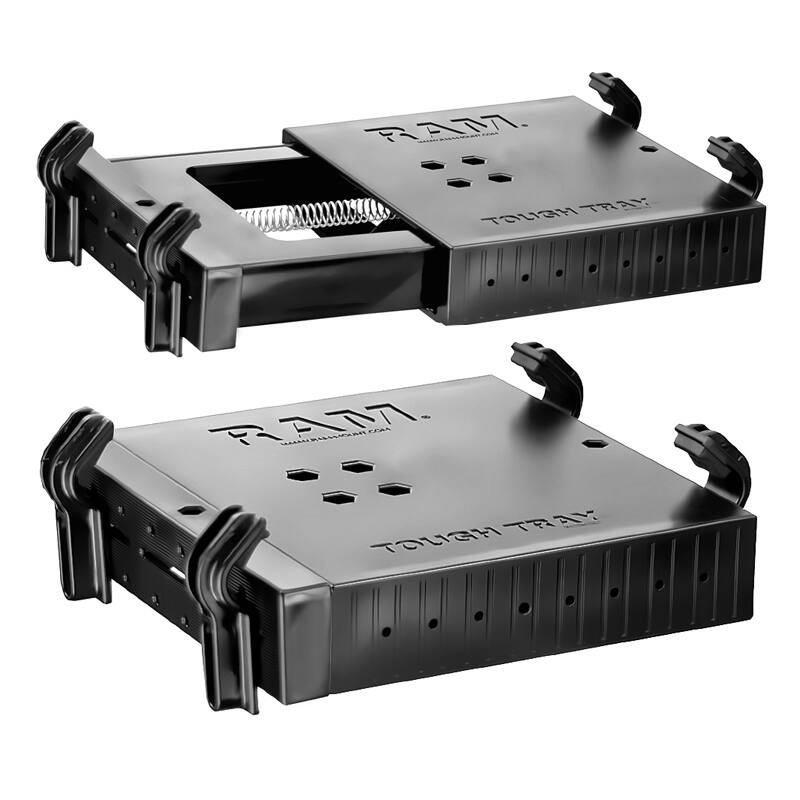

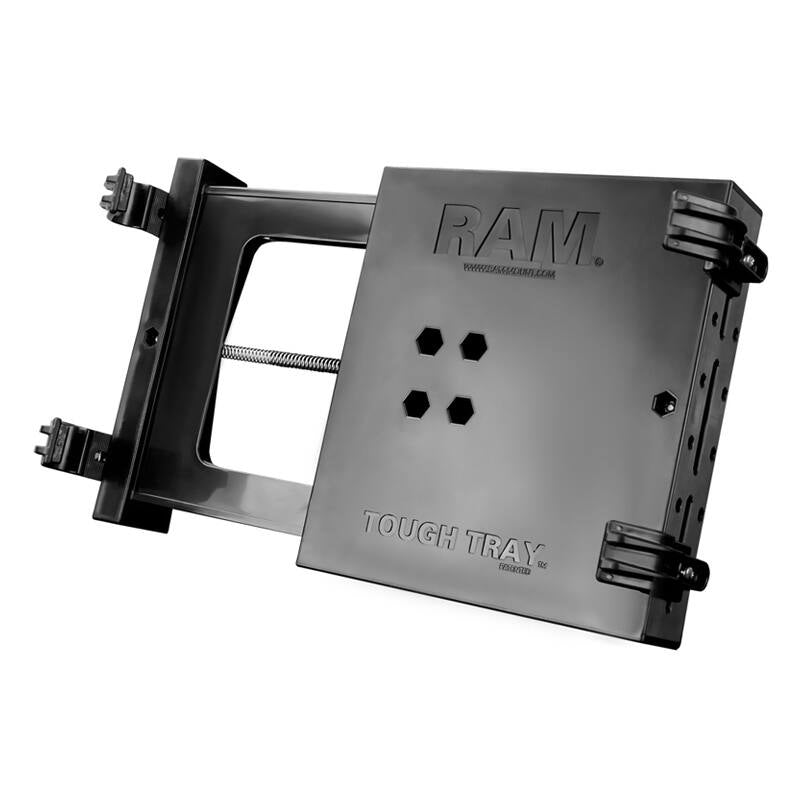

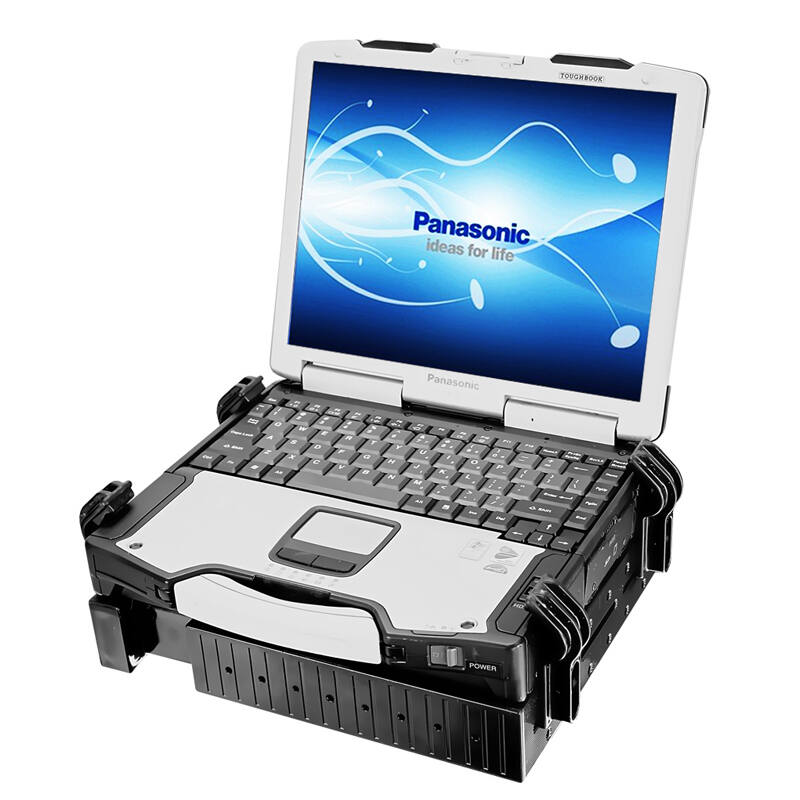

The RAM-234-3 is a spring-loaded, expandable laptop tray that holds 10"–16" wide laptops (compatible with up to 17" screens, measured diagonally) securely in place in any vehicle, vessel, or worksite. Four adjustable rubber-grip retaining arms keep the laptop steady without blocking ports or drives, and it mounts to any compatible RAM® ball-and-socket base or arm.

Key Features

• Spring-loaded, expandable tray fits 10"–16" wide laptops (17" screens supported)
• Four adjustable clamping arms with rubber grips move both vertically and horizontally for a custom fit
• Keeps ports and drives accessible while the laptop is mounted
• High-strength composite construction for demanding environments
• Perimeter hole pattern accepts additional RAM accessories (GPS, PDA, phone holders, and more)
• Backed by a lifetime warranty

Works With

The tray attaches to any compatible RAM® vehicle base or arm using a C Size (1.5") ball — for example, RAM-VB-196-1 (right-hand-drive base) or RAM-VB-196 (left-hand-drive base). It doesn't include a base or mounting arm; pick one to suit your vehicle.

Dimensions & Specifications

• Tray depth: 254mm (10")
• Tray thickness: 54mm (2.125")
• Tray width (expansion): 254mm–406.4mm (10"–16")
• Side clamp arm height: 12.7mm–44.5mm (0.5"–1.75")
• Hole pattern: 4-hole AMPS, 30mm × 38mm (1.181" × 1.496")
• Recommended ball size: C Size (1.5")
• Material: high-strength composite
• Weight: 1.252kg (2.76 lbs)

FAQs

What size laptops does it fit? 10" to 16" laptops by width, and it's also compatible with laptops that have 17" screens (measured diagonally).

Does it come with a locking feature? No, but a security kit (RAM-234-SNMU) is available separately if you need to lock the laptop in place.

Does it include a mounting base? No — this is the tray only. Pair it with a compatible RAM vehicle base such as RAM-VB-196-1 or RAM-VB-196.

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

See it in action: RAM-234-3 Tough-Tray overview | Installation demo
