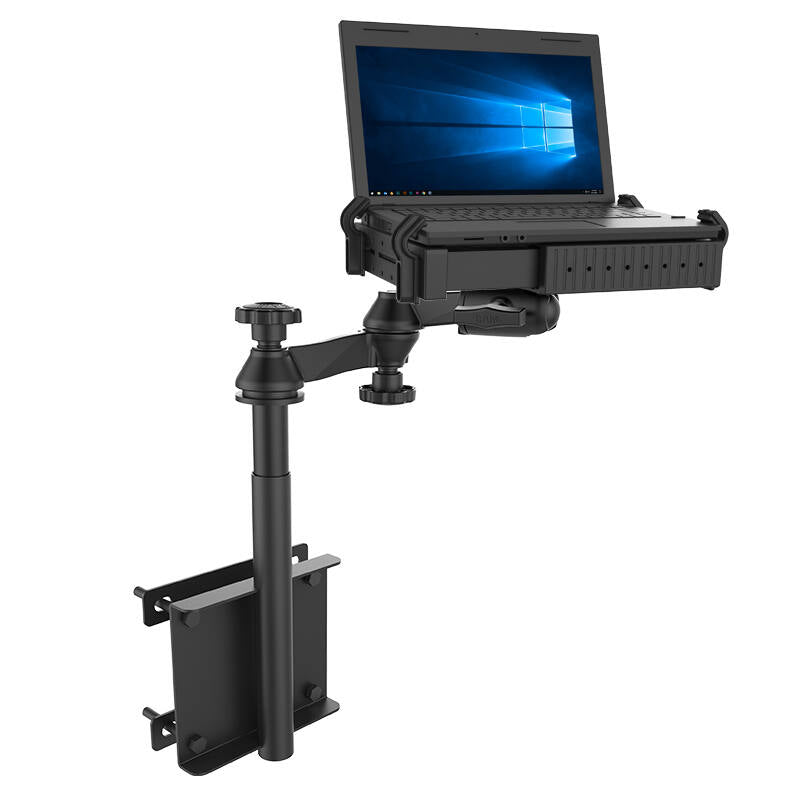

RAM-VBD-128-SW1 RAM® Universal Drill-Down Vertical Laptop Mount
Features
* RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
* Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
* Made of powder-coated steel, high strength composite and marine-grade aluminium
* Backed by a lifetime warranty

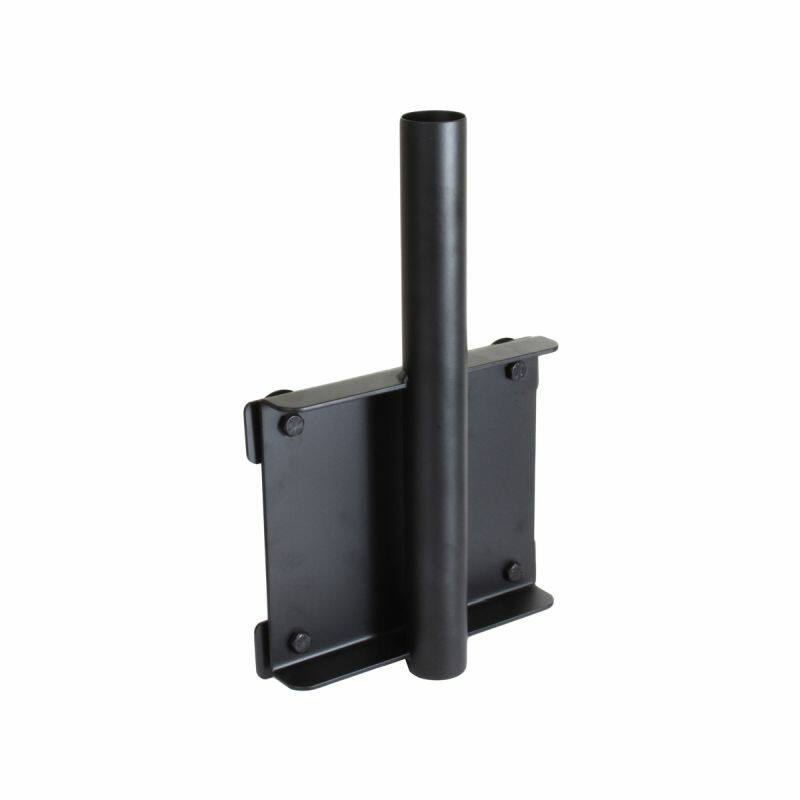

This universal drill type Laptop Stand System installs quickly and easily into most vehicles by using self tapping screws, or by drilling and then bolting down the mount base to the vehicle*.

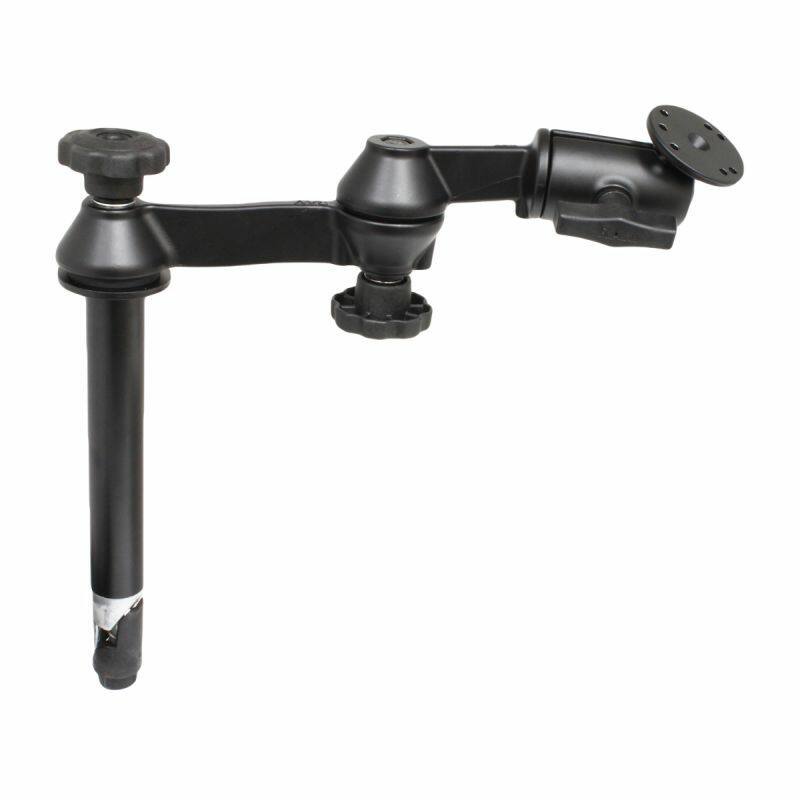

This configuration provides a telescoping feature that ranges from 305 - 457mm (12 to 18"). Dual swing arms provide articulation and 305mm / 12" of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation.

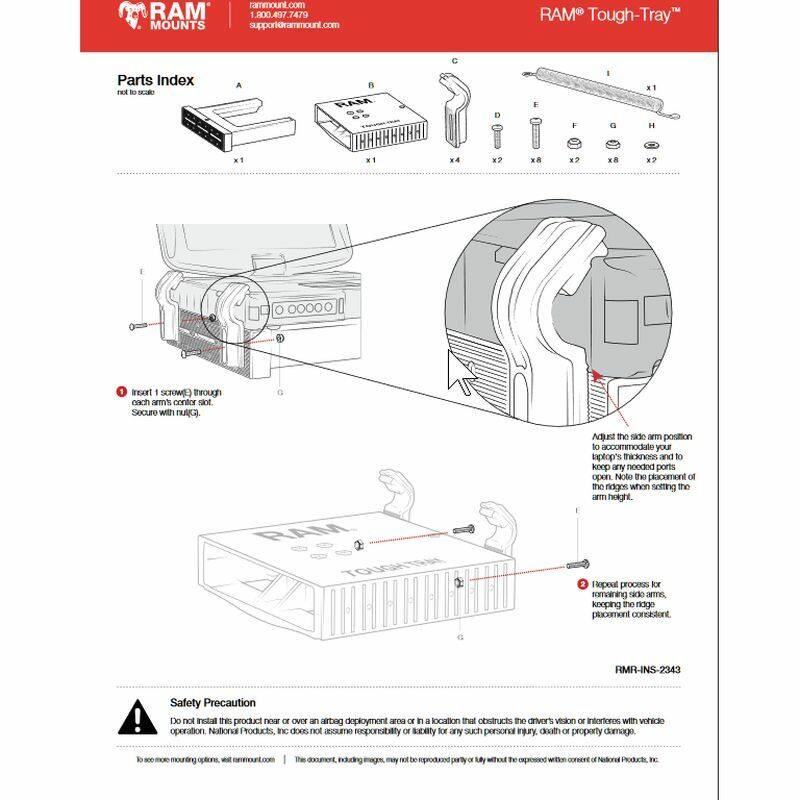

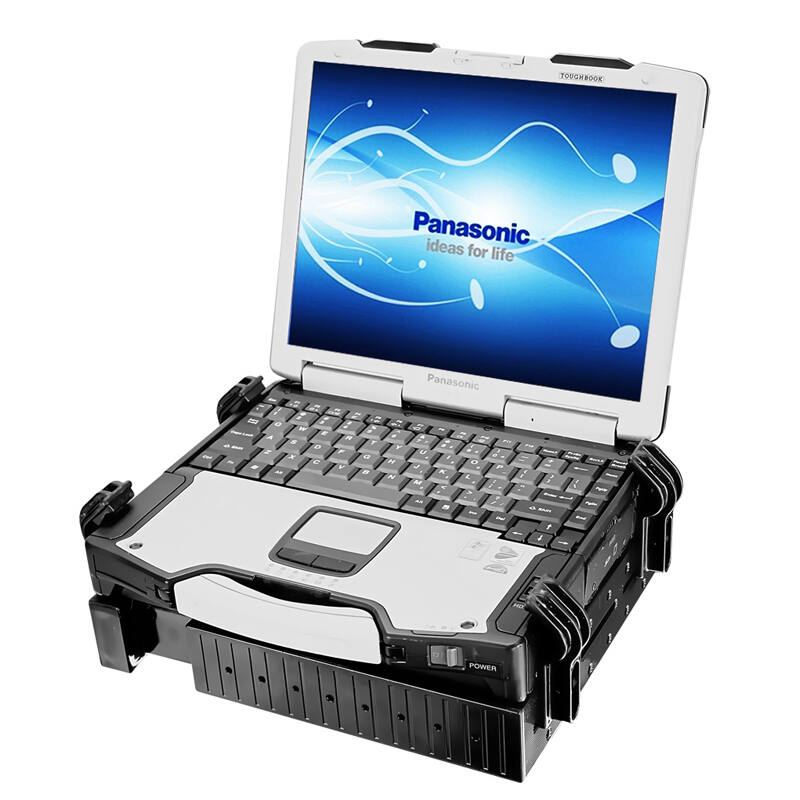

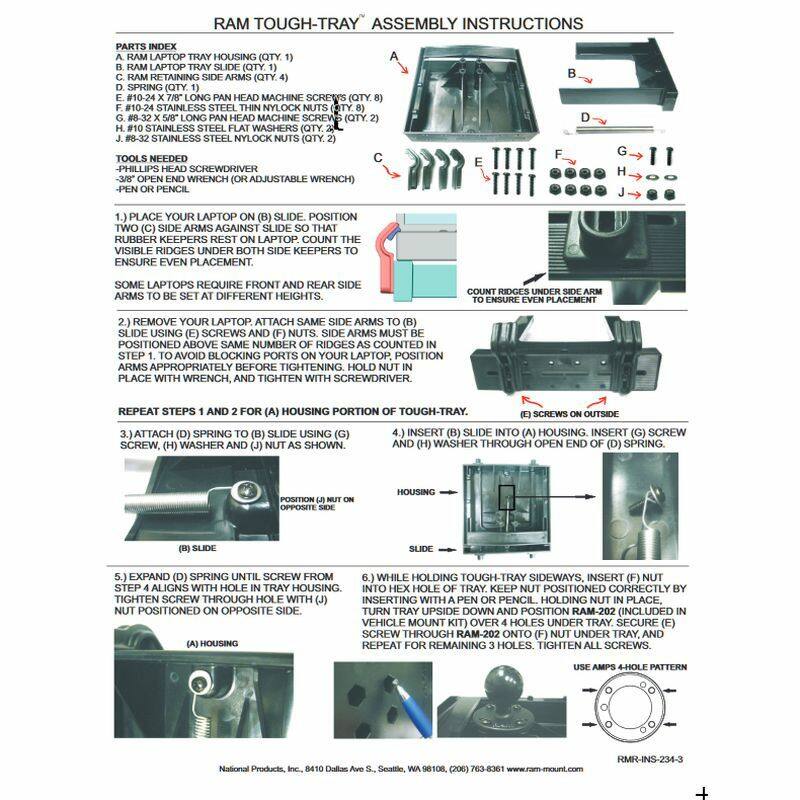

The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray.
Compatible Devices
10" to 16" Wide Laptops & (17" Wide Screens)
Hardware Included
Assembly Hardware
(2) Backing Plates
(4) 5/16"-18 x 7/8" Hex Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Fender Washers
(4) 5/16" Split Lock Washers
Tray Dimensions
Width Range: 254 - 406mm (10" - 16")
Side Arm Clamp Height: 12.7 - 44.5mm (.5" - 1.75")
Tray Depth: 254mm (10")
Tray Thickness: 54mm (2.125")
Hole Pattern

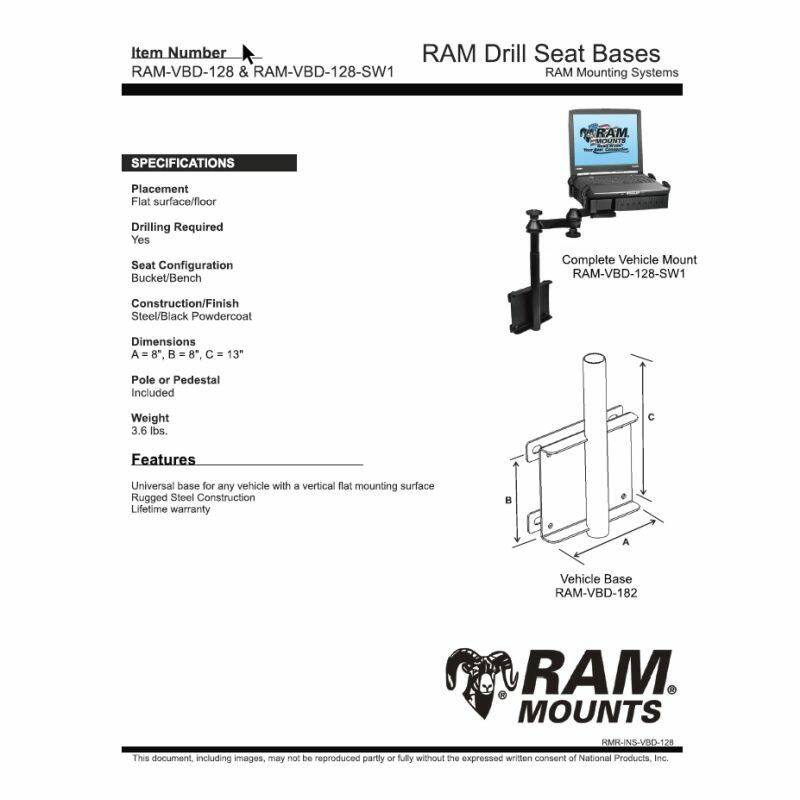

Base: See Drawing
Ball/Socket Size
C Size (1.5")
Materials
Powder coated steel
Marine grade-aluminium
High strength composite
Weight
5.89kg (13.0 lbs.)
