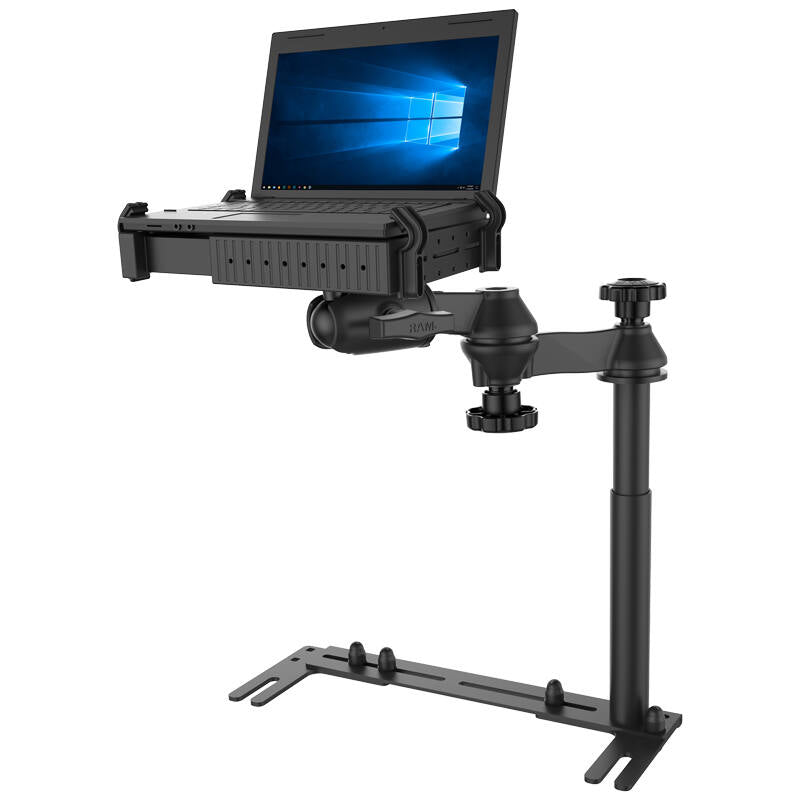

RAM-VB-196-1-SW1 RAM® No-Drill™ Universal Laptop Mount with Reverse Configuration
Features
* Spring-loaded universal laptop and tablet holder
* Includes a variety of clamping arms to keep your device secure

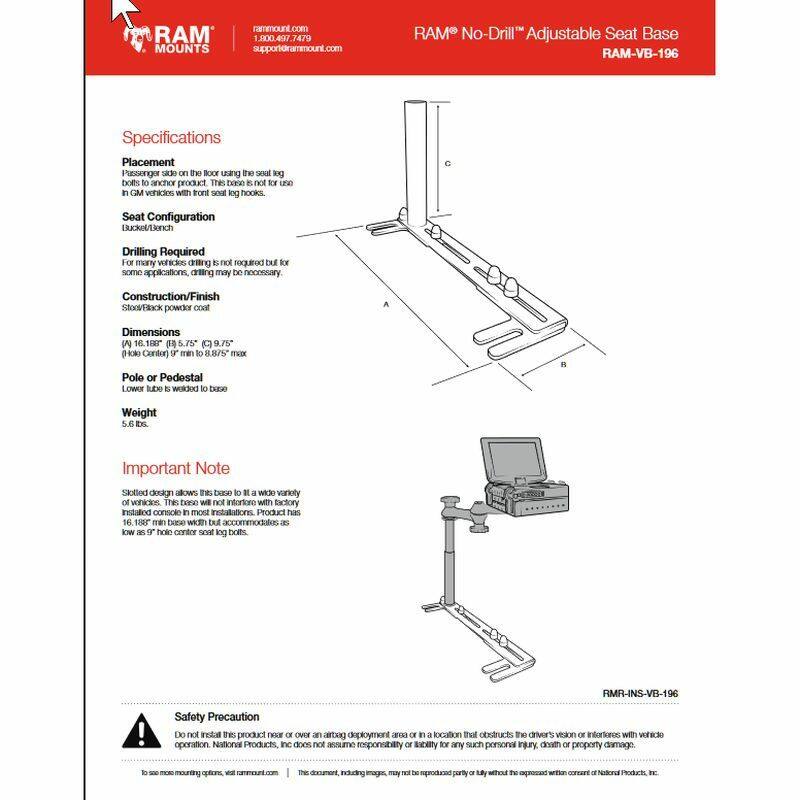

* Custom RAM® low profile No-Drill™ mounting base
* Universal adjustable base accommodates a wide range of vehicles (see Additional Information)
* Patented ball and socket mounting system provides a degree of shock and vibration damping

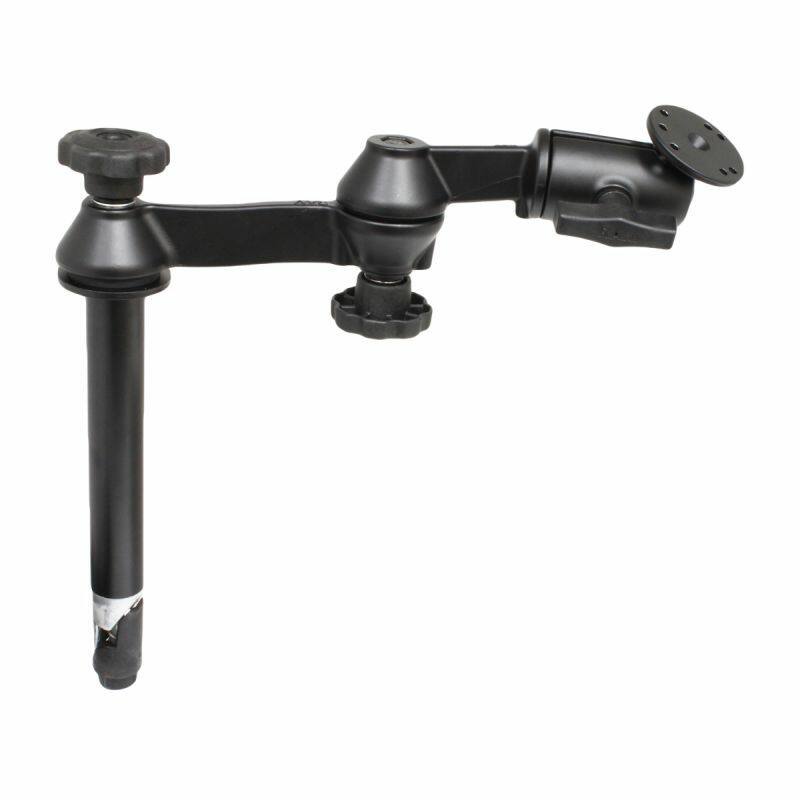

* Dual articulating swing arm for simple and comfortable adjustment
* Backed by a lifetime warranty

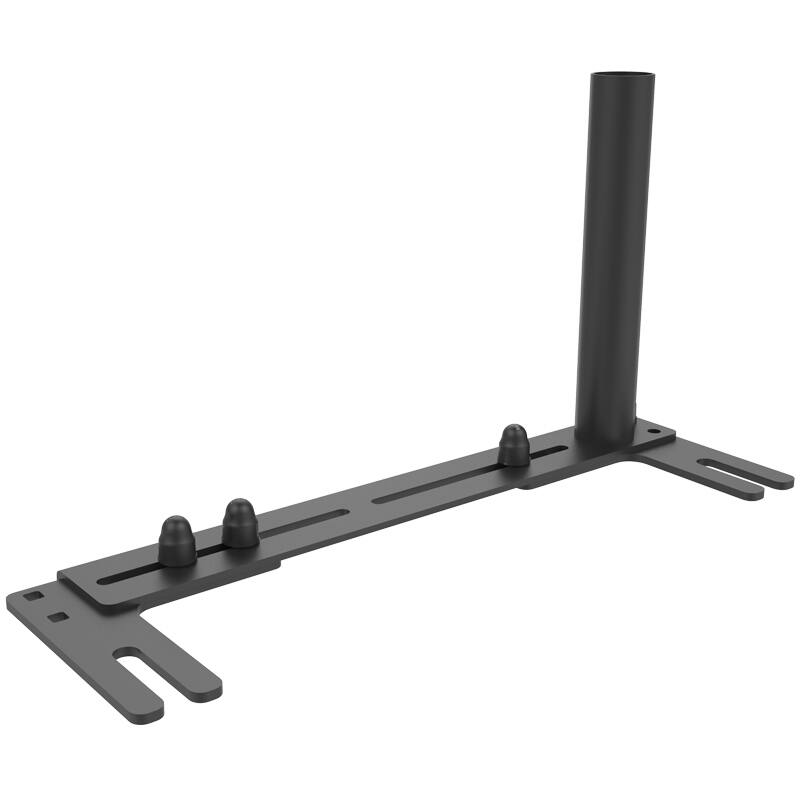

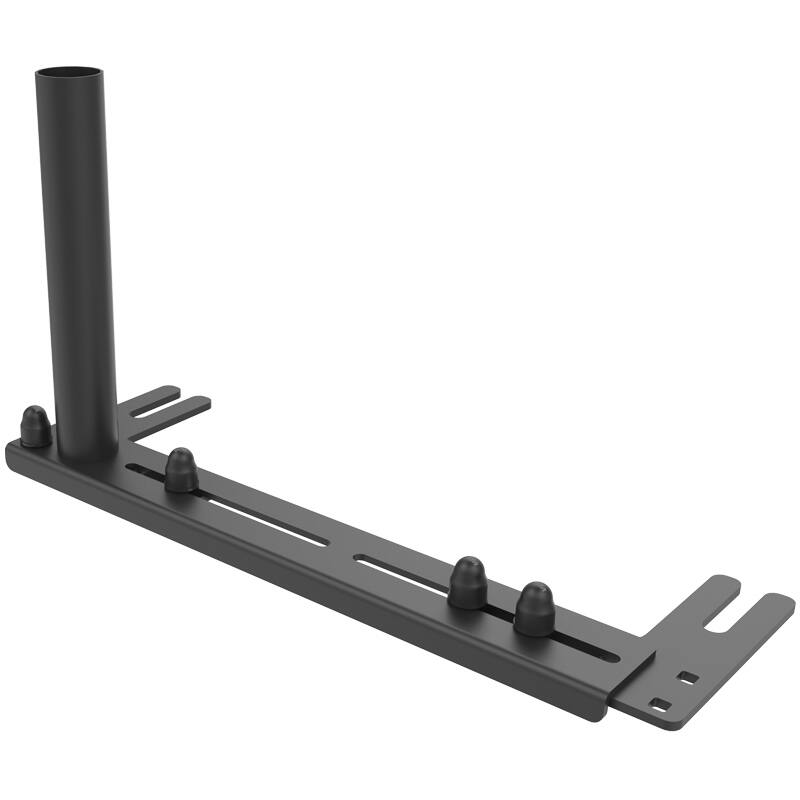

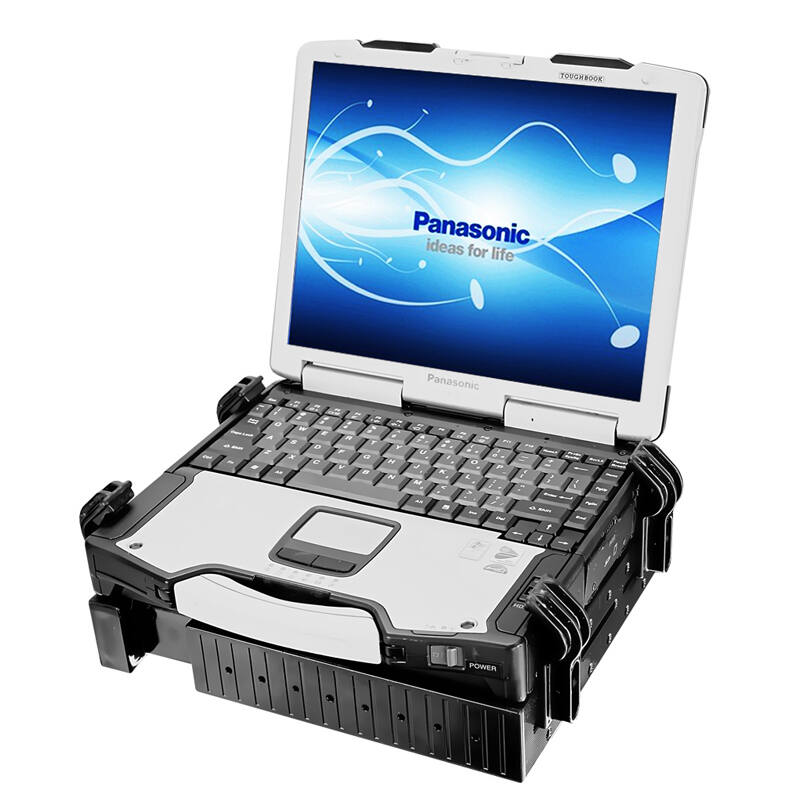

The RAM® Right-hand-drive Configuration Universal No-Drill™ Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM Tough-Tray™ is spring loaded to accommodate 10" to 17" class laptops.

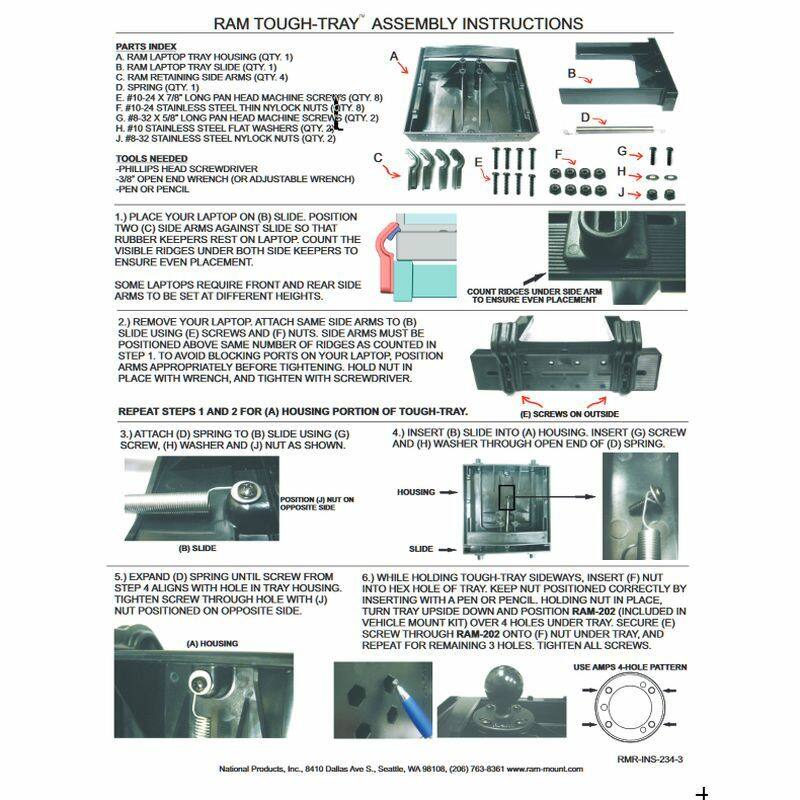

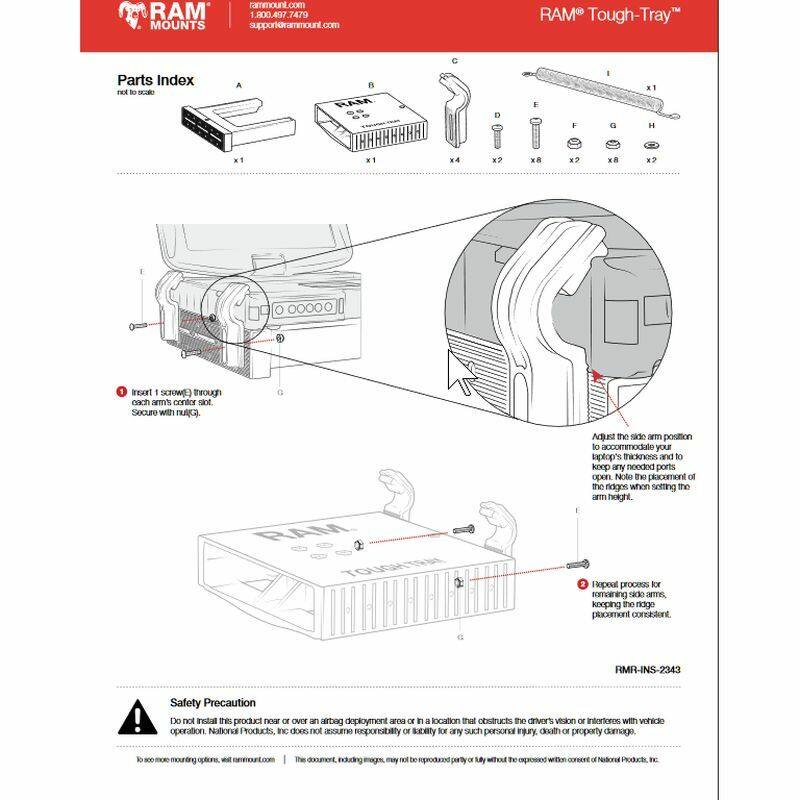

The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives.
A screen support and USB light are also available as optional extra accessories (not included). The hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.
HARDWARE INCLUDED
Assembly Hardware
Stabilizer Foot
PRODUCT DIMENSIONS
Height Range: 463mm to 610mm (18.25" - 24")
TRAY DIMENSIONS
Width Range: 254 - 406.4mm (10" - 16")
Side Arm Clamp Height: 12.7mm to 44.5mm (.5" - 1.75")
Tray Depth: 254mm (10")
Tray Thickness: 54mm (2.125")
HOLE PATTERN

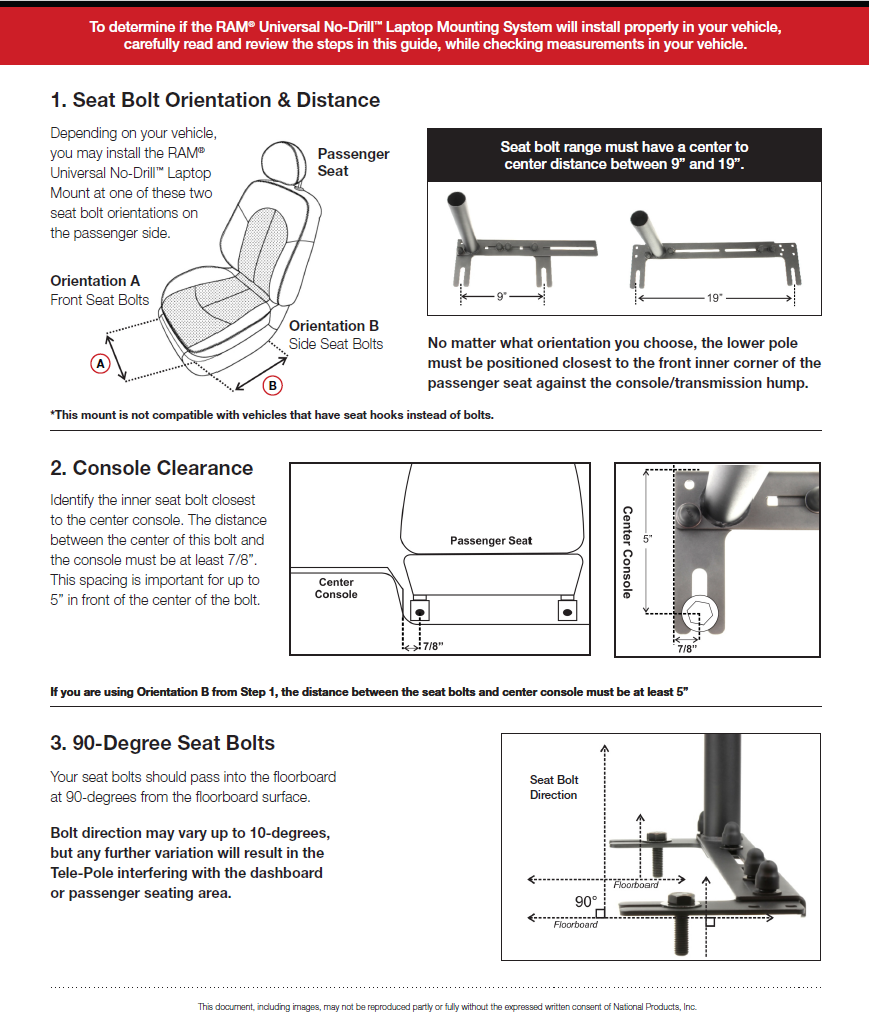

Seat Bolt Distance: 228mm to 479mm (9"-18.875") centre to centre)
BALL/SOCKET SIZE
C Size (1.5")
MATERIALS
Powder coated steel
Marine grade-aluminium
High strength composite

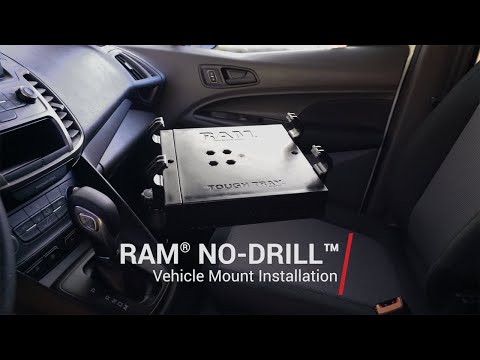

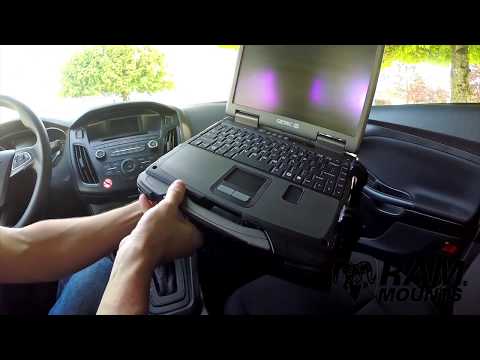

YouTube:
