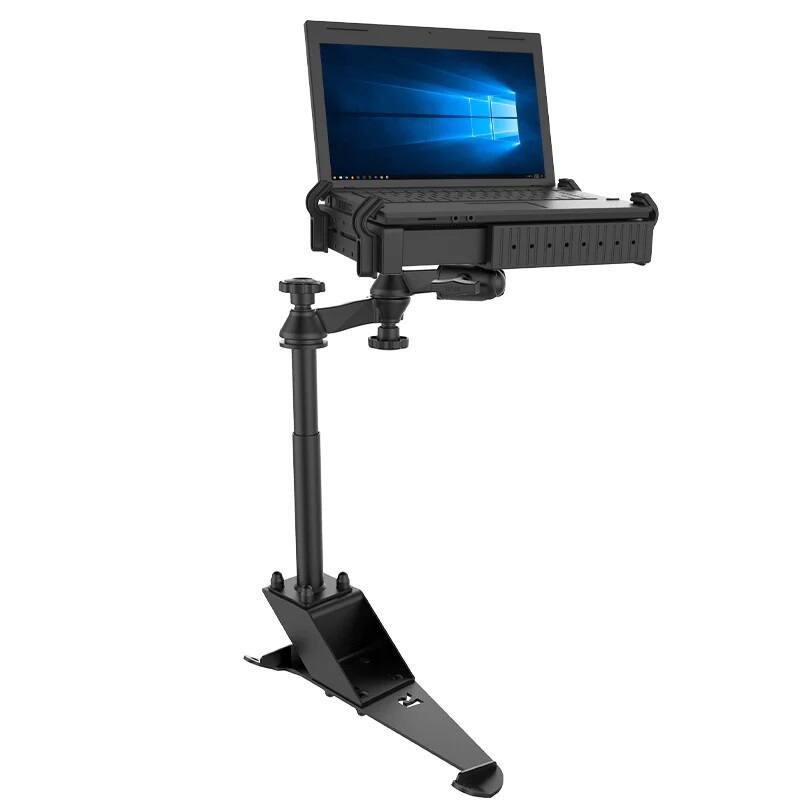

RAM-VB-138-SW1 RAM® No-Drill™ Laptop Mount for '05-21 Toyota 4Runner & Tacoma
Features
* RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

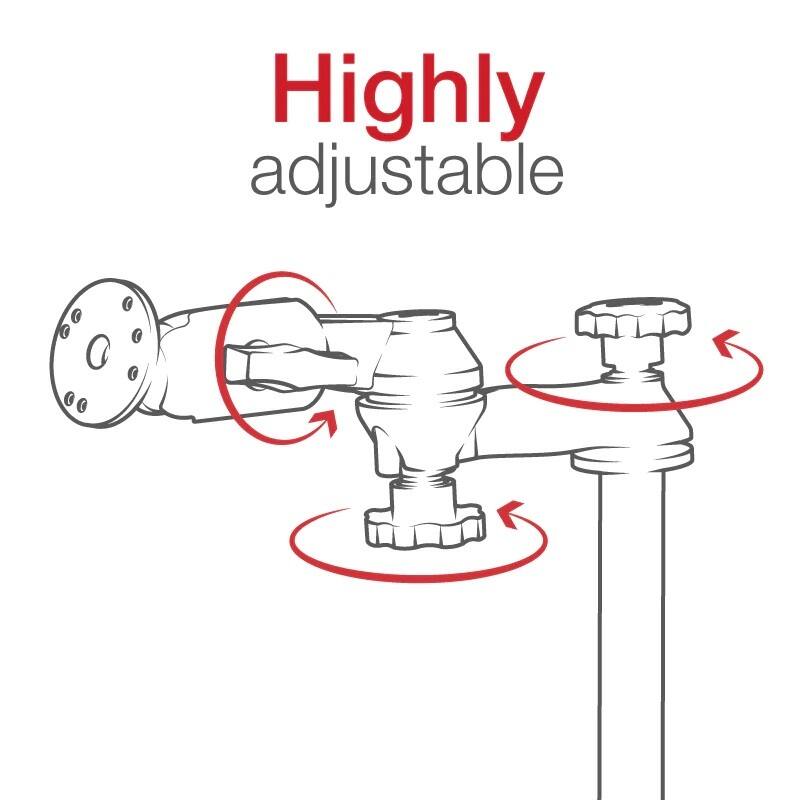

* Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
* Made of powder-coated steel and marine-grade aluminum
* Backed by a lifetime warranty

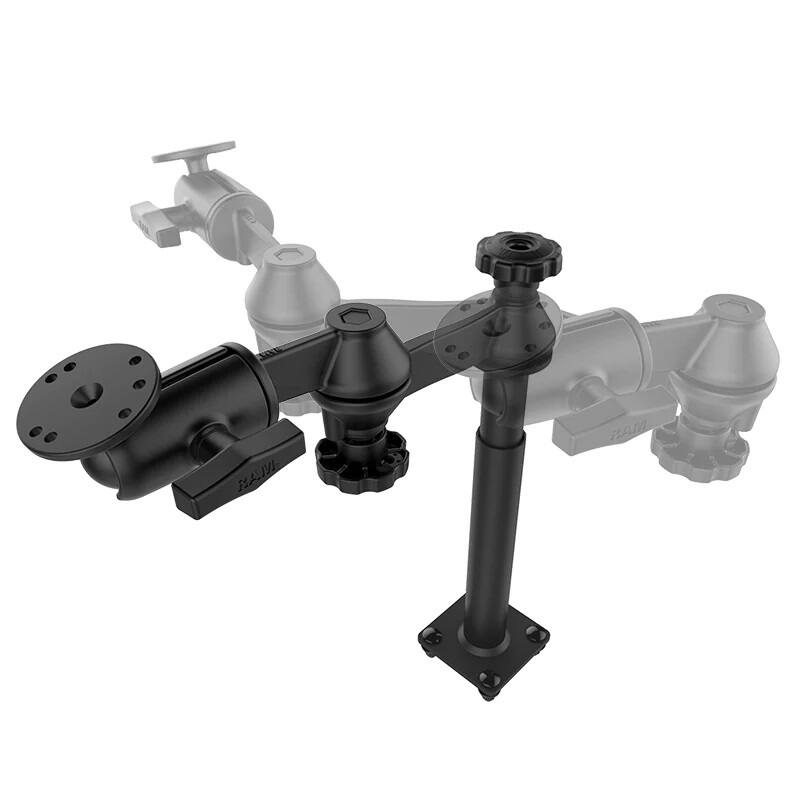

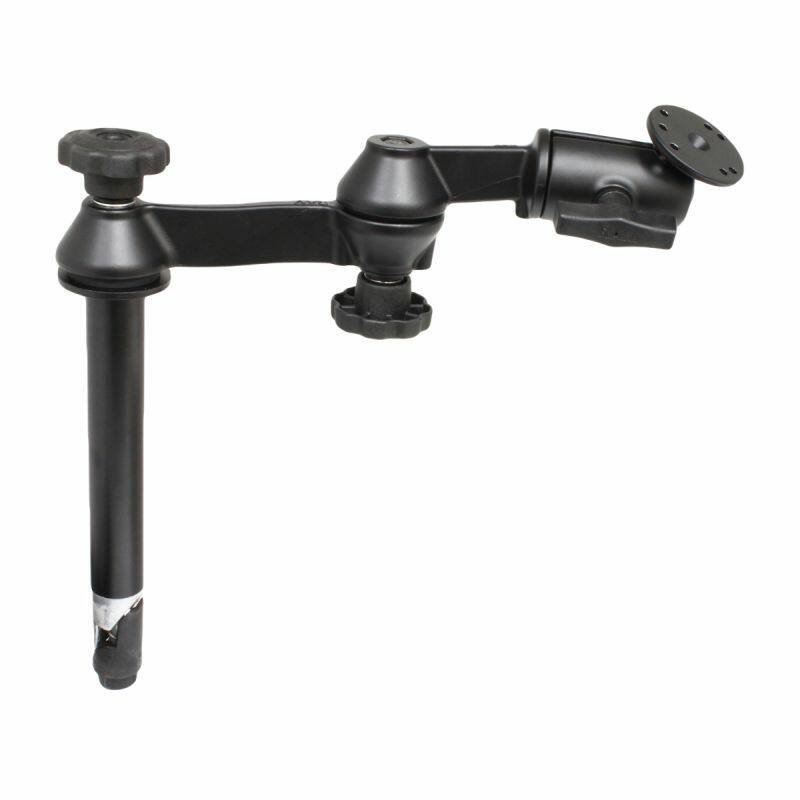

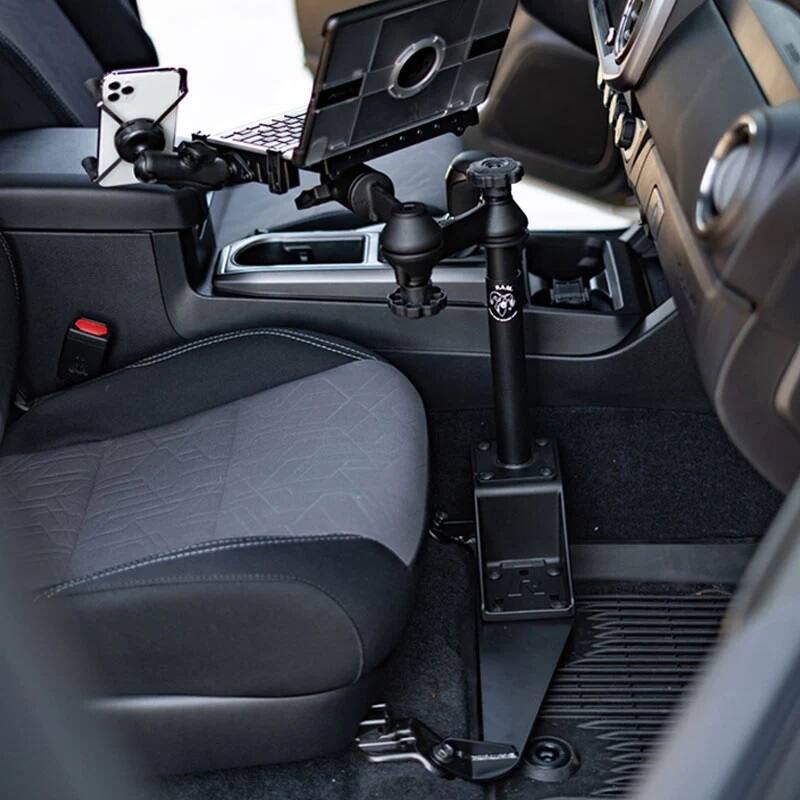

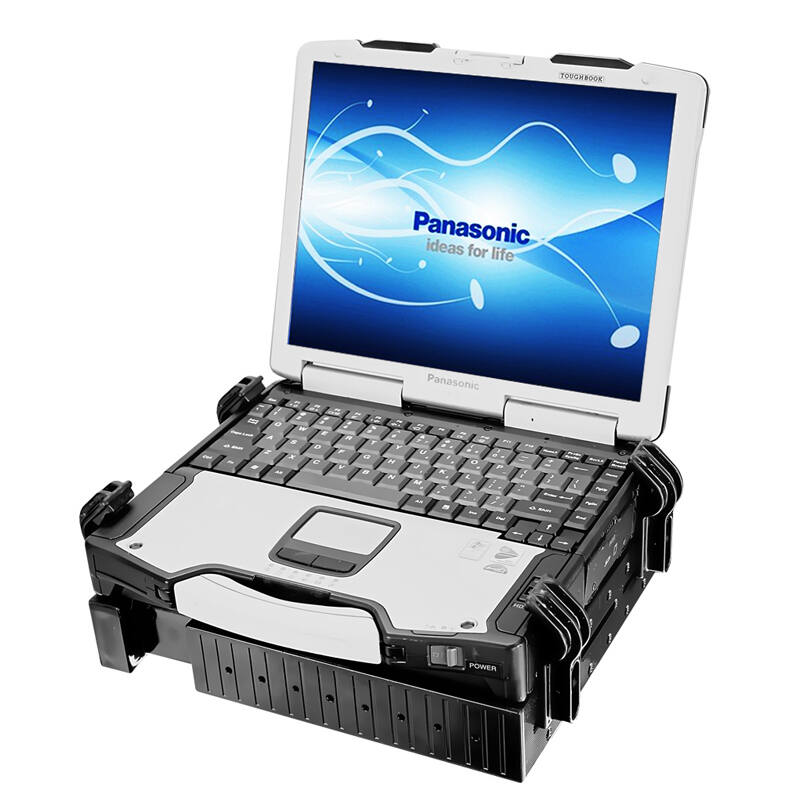

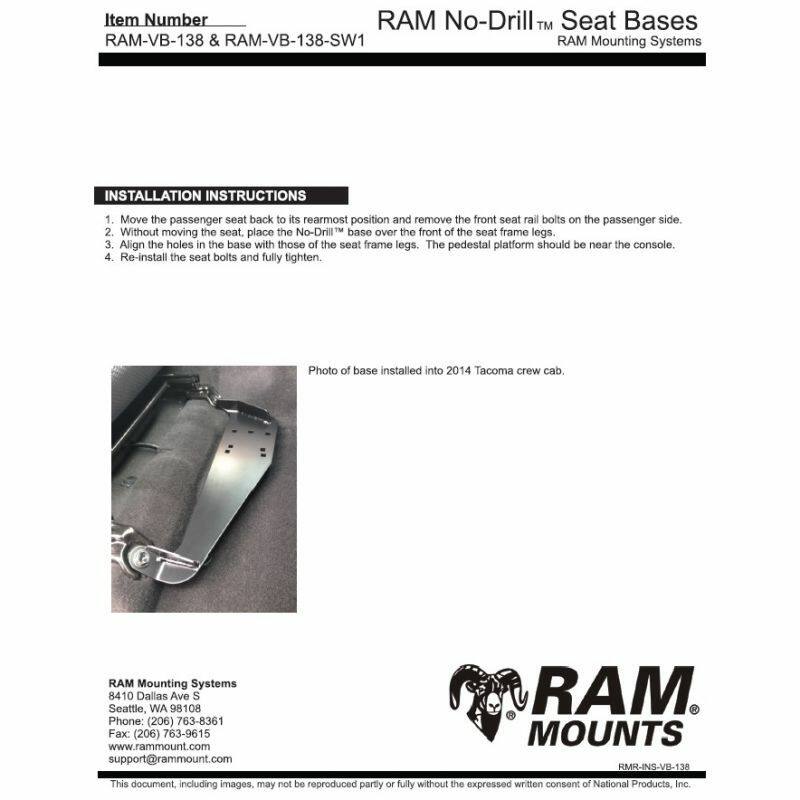

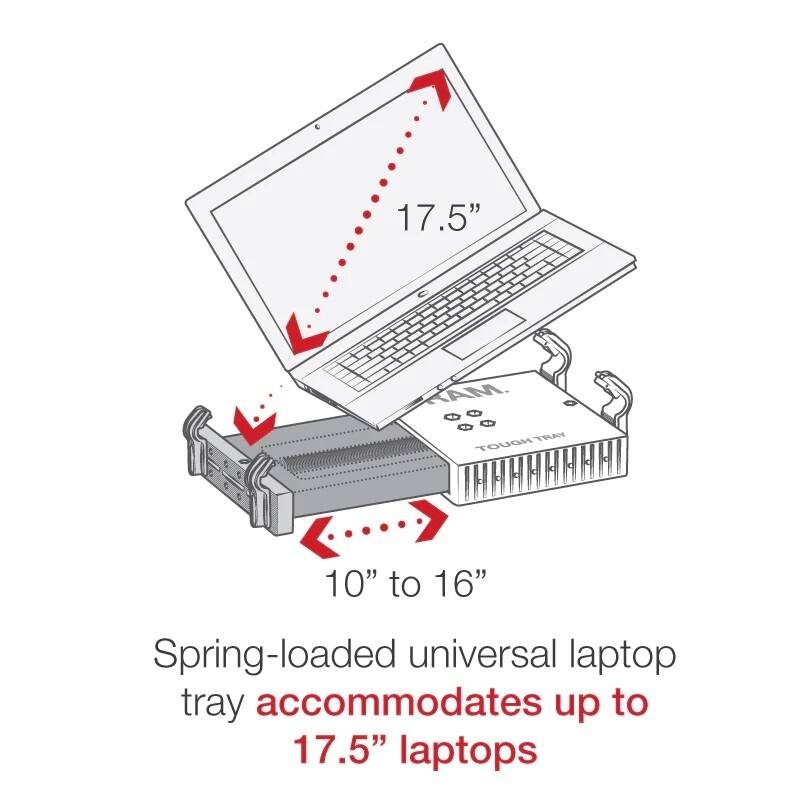

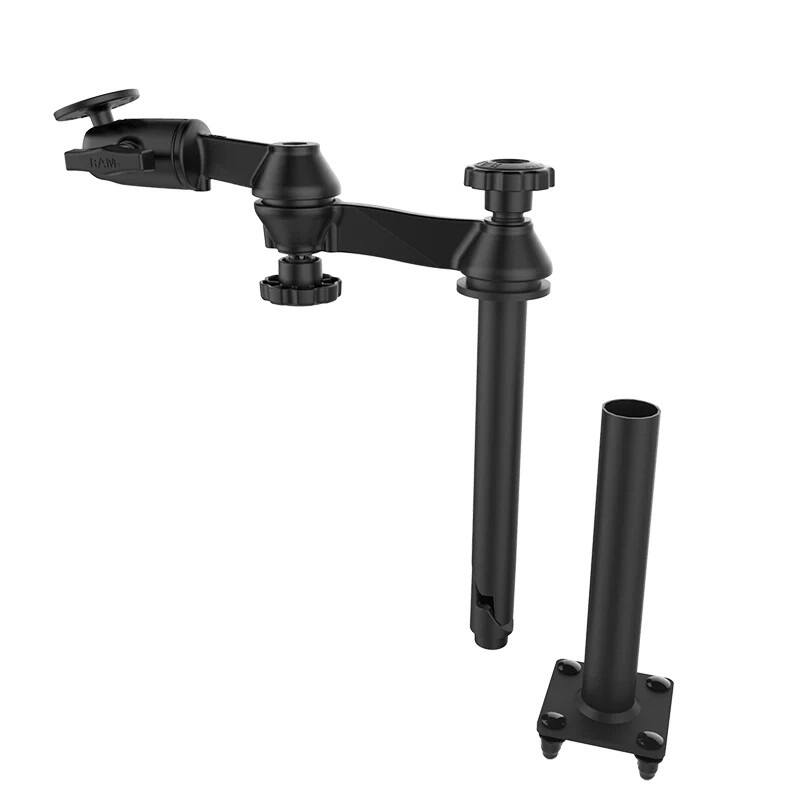

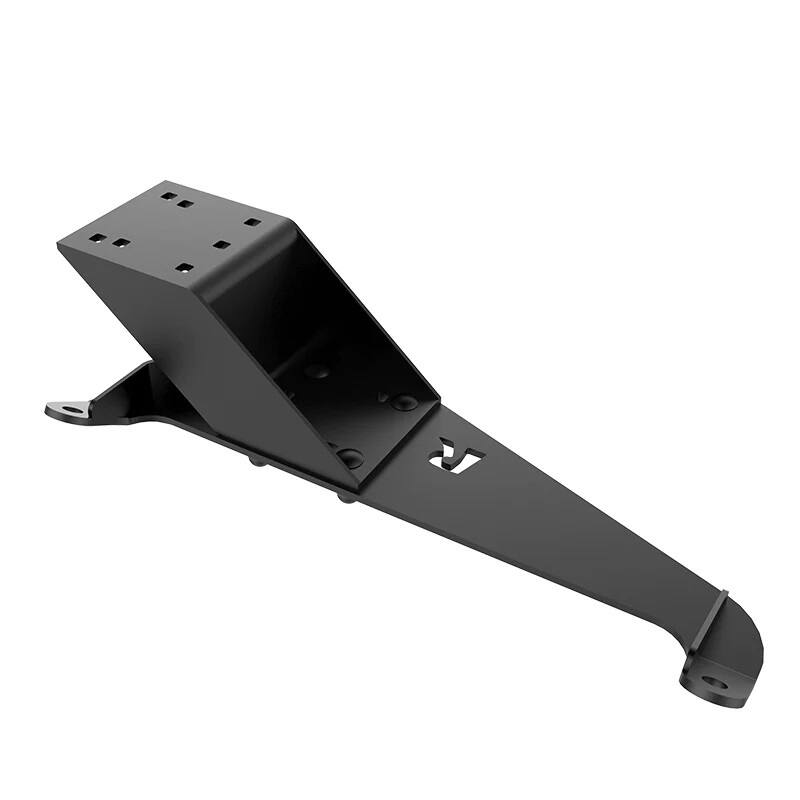

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens).

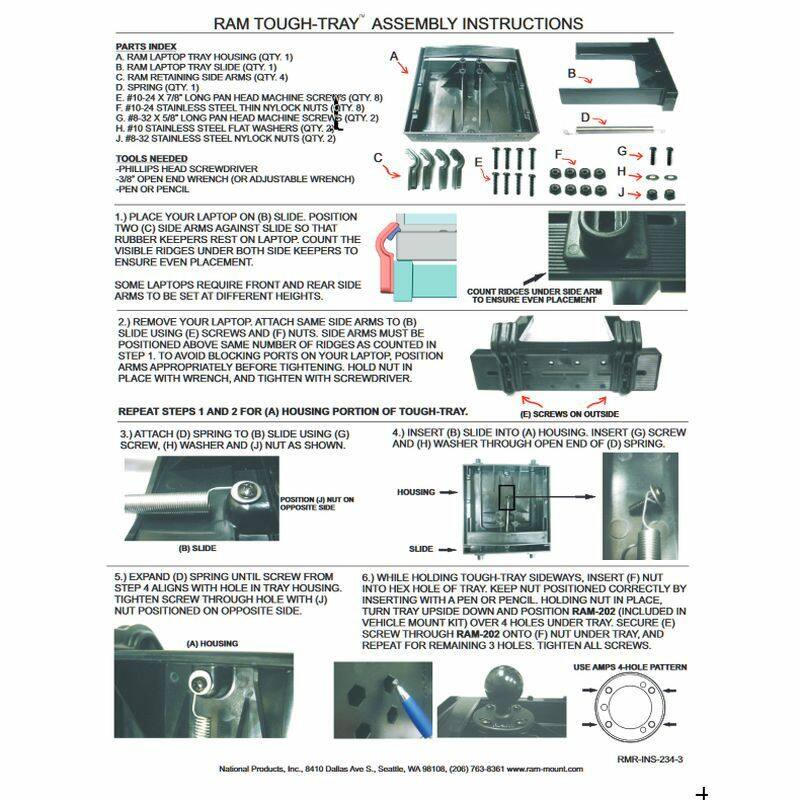

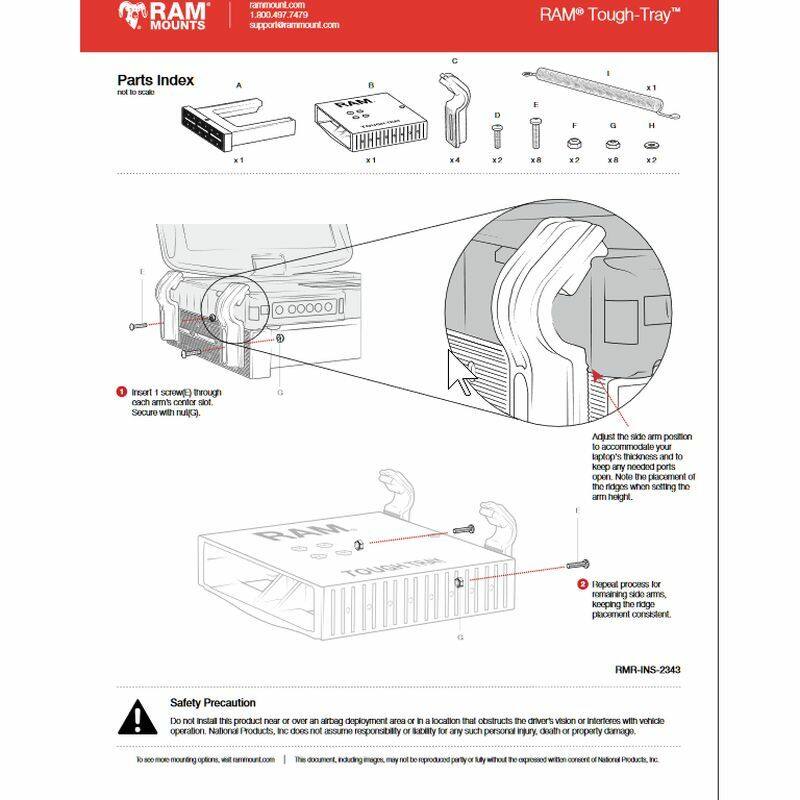

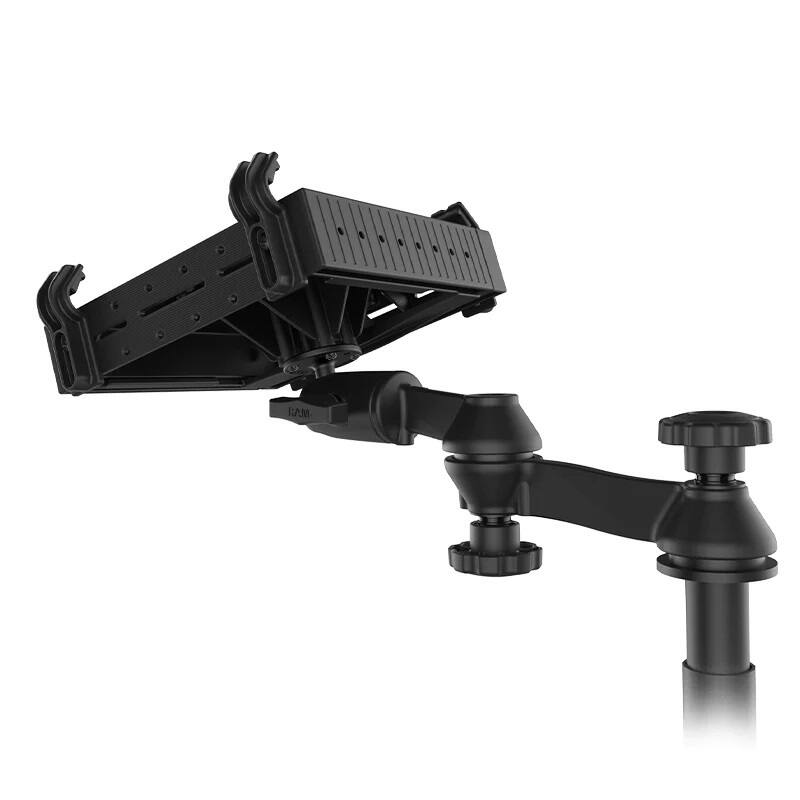

The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
Hardware Included
Assembly Hardware
TRAY DIMENSIONS
Width Range: 254 - 406.4mm (10" - 16")
Side Arm Clamp Height: 12.7mm to 44.5mm (.5" - 1.75")
Tray Depth: 254mm (10")
Tray Thickness: 54mm (2.125")
Hole pattern
Seat Bolt Distance: 403mm / 15.875" centre to centre
Ball size
C Size (1.5")
Materials
Powder coated steel
Marine grade-aluminium
High strength composite
Weight
6.8kg / 15.0 lb
Note - this is designed for LHD vehicles so is not fully reversable for RHD
YouTube:
https://youtu.be/1HGlKR5-Mv0
QUESTIONS & ANSWERS
Q: Can someone sit in the passenger seat while this mount is installed?
A: Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable. If you want to be able to quickly remove the mount to make room for a passenger you could install our Remove-A-Pole base (RAM-VB-REM1).
