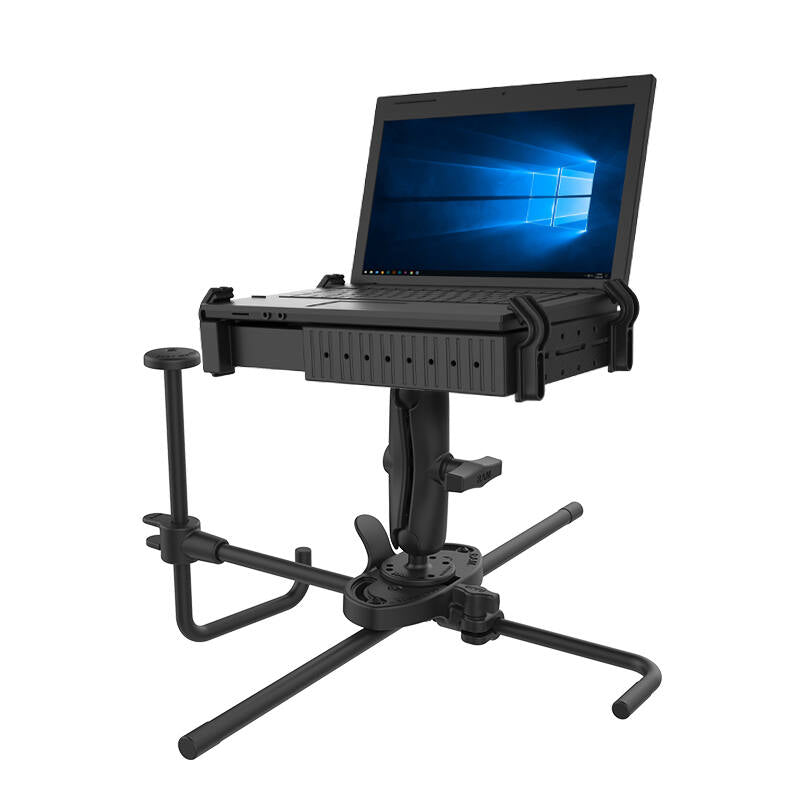

RAM-SM1-234-3 RAM® Seat-Mate Universal Laptop Mount - Medium
Features
* Spring-loaded universal laptop tray accommodates most 10" to 16" laptops
* Four adjustable clamping arms with rubber grips keep your laptop secure
* Seat-Mate utilises passenger seat to create an extremely stable base for heavier devices in many situations
* Made of Powder Coated Marine Grade Aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

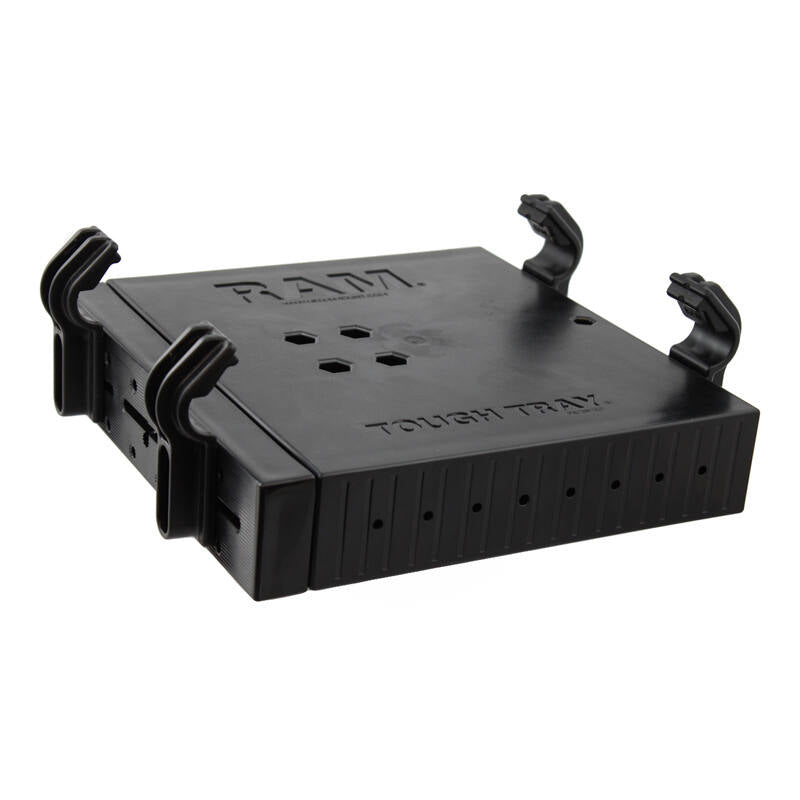

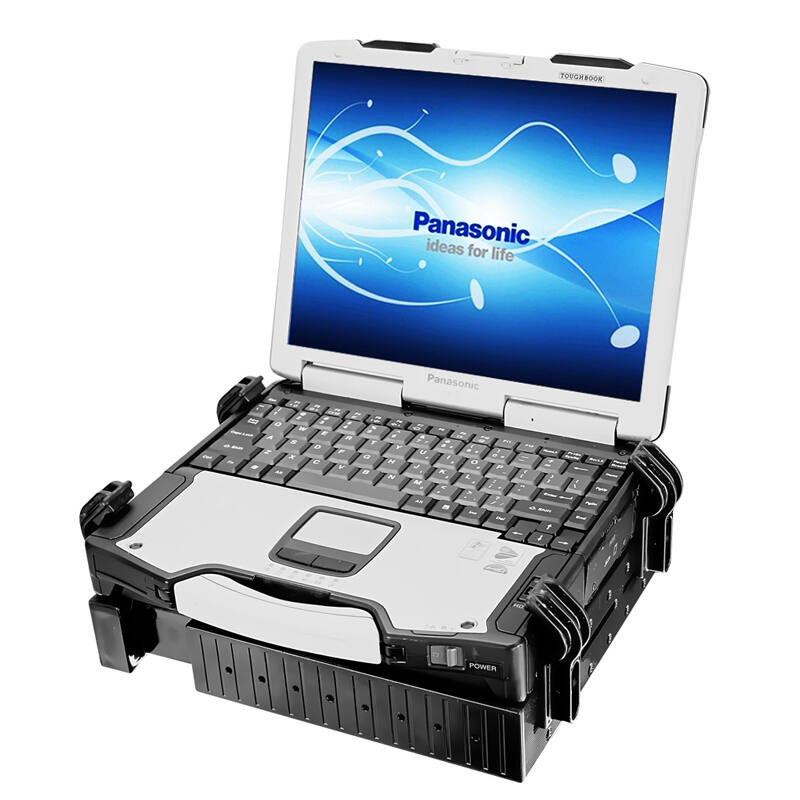

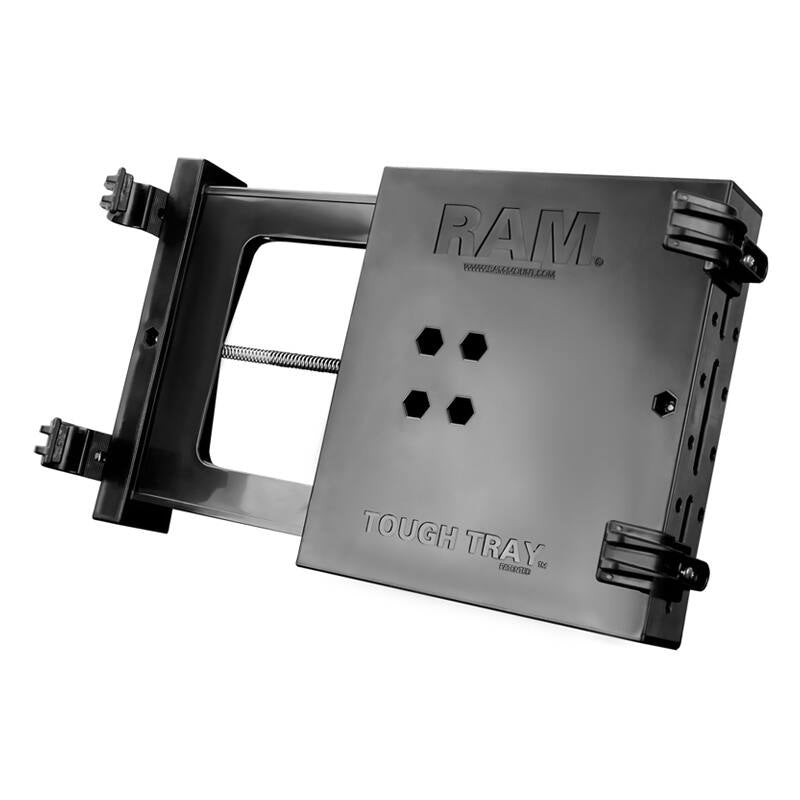

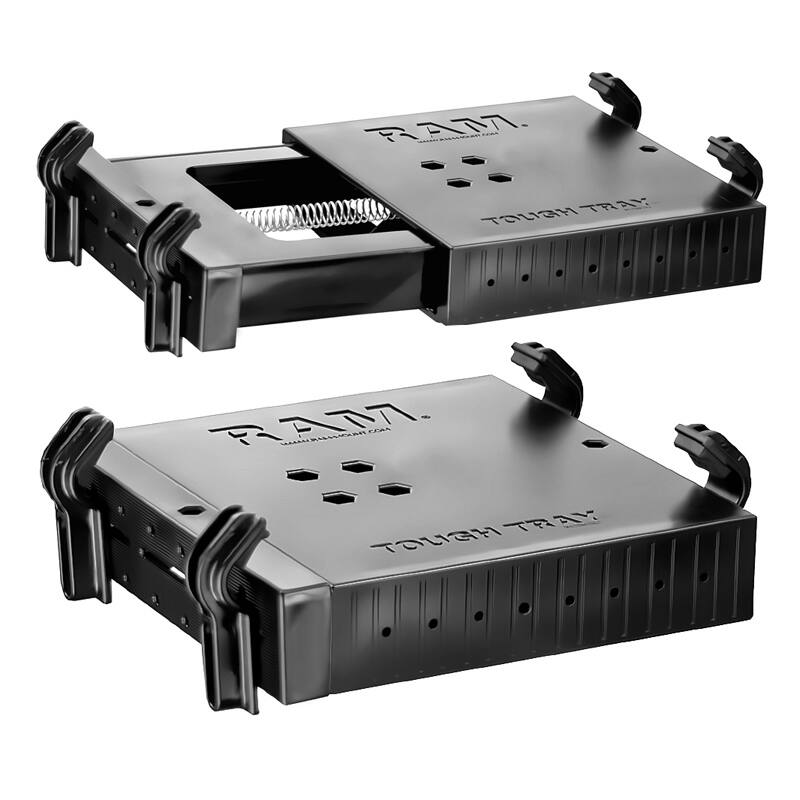

The RAM Tough-Tray™ is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. he tray includes four side clamping arms with rubber grips to keep your laptop secure in any rugged environment. These arms can be moved both vertically and horizontally, allowing a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.

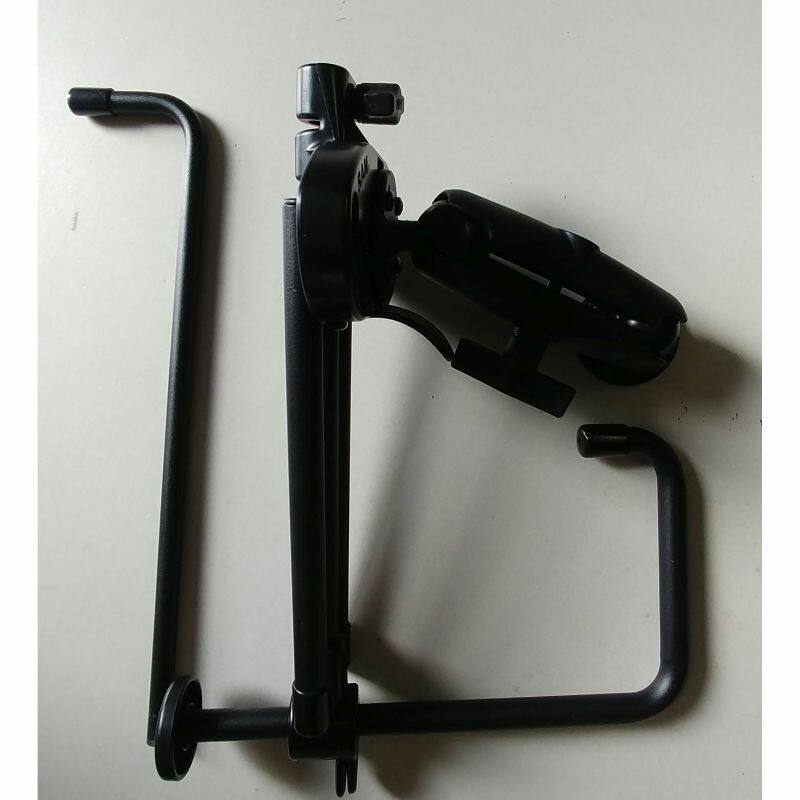

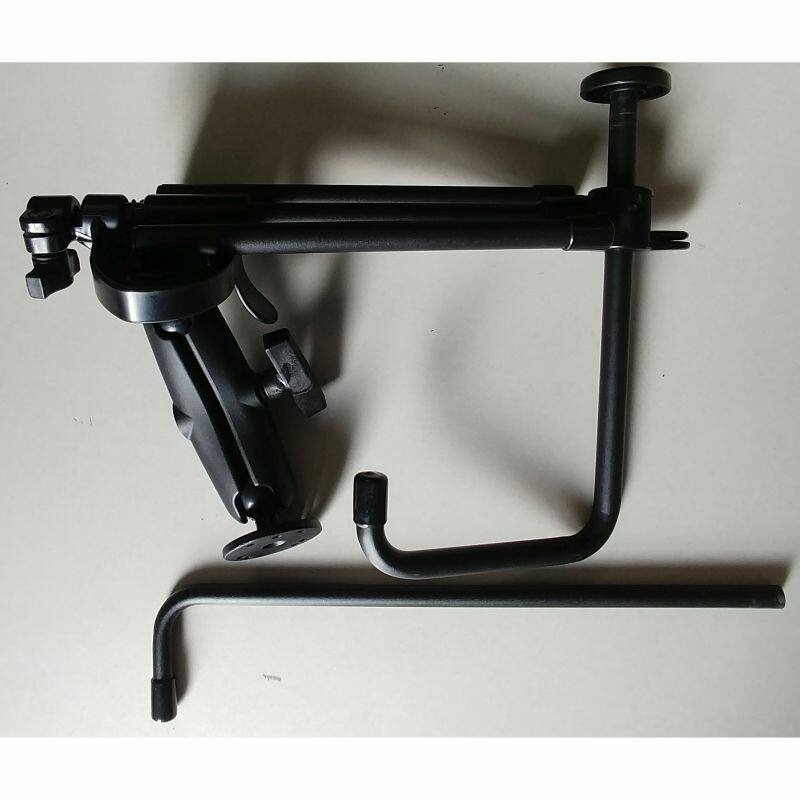

The Seat-Mate is compact, portable, amazingly strong and no tools required are words that best describe the new RAM Seat-Mate™.

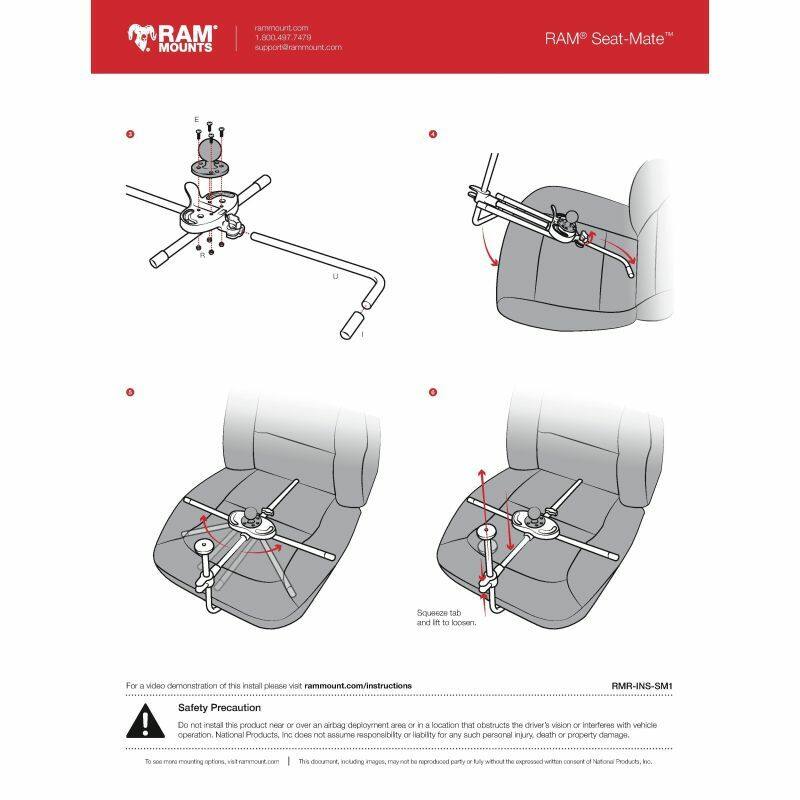

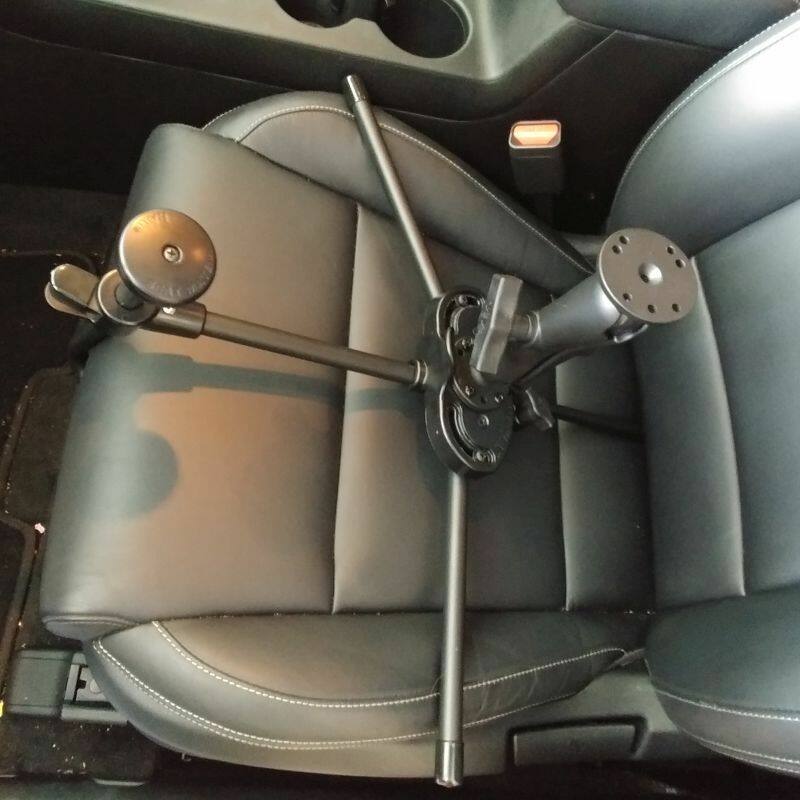

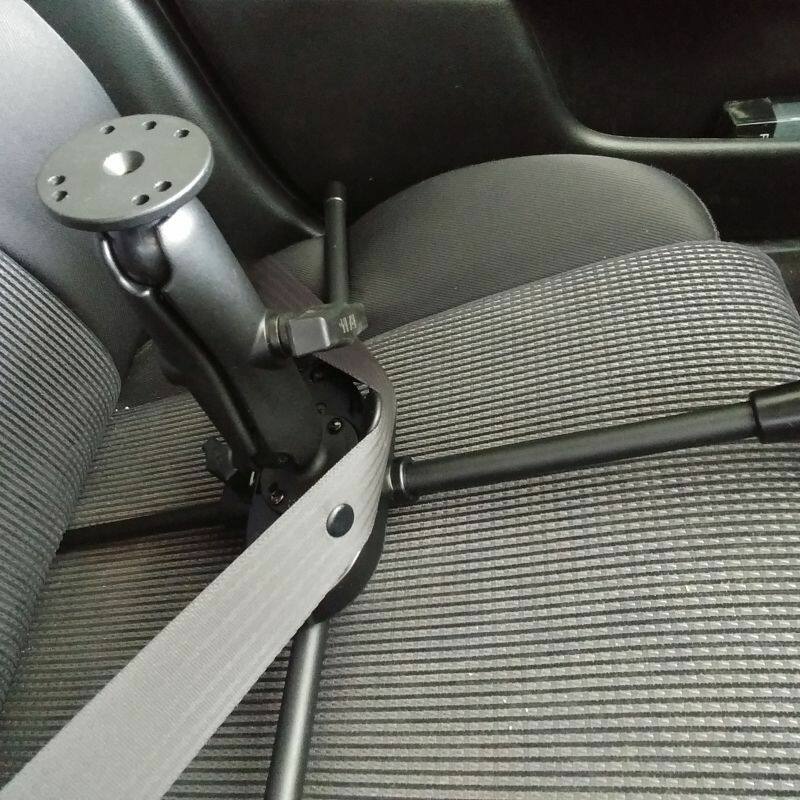

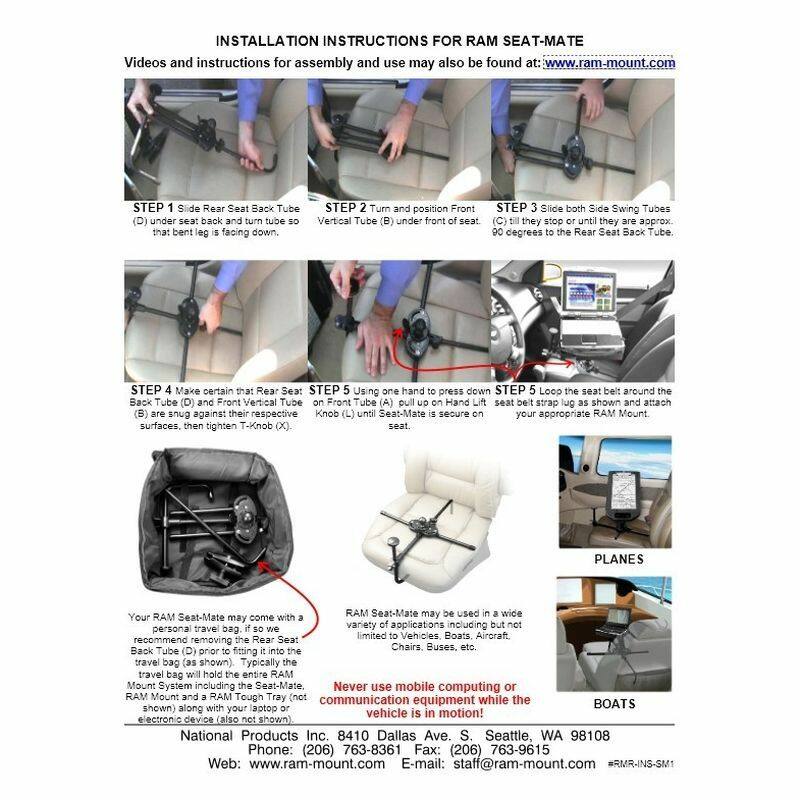

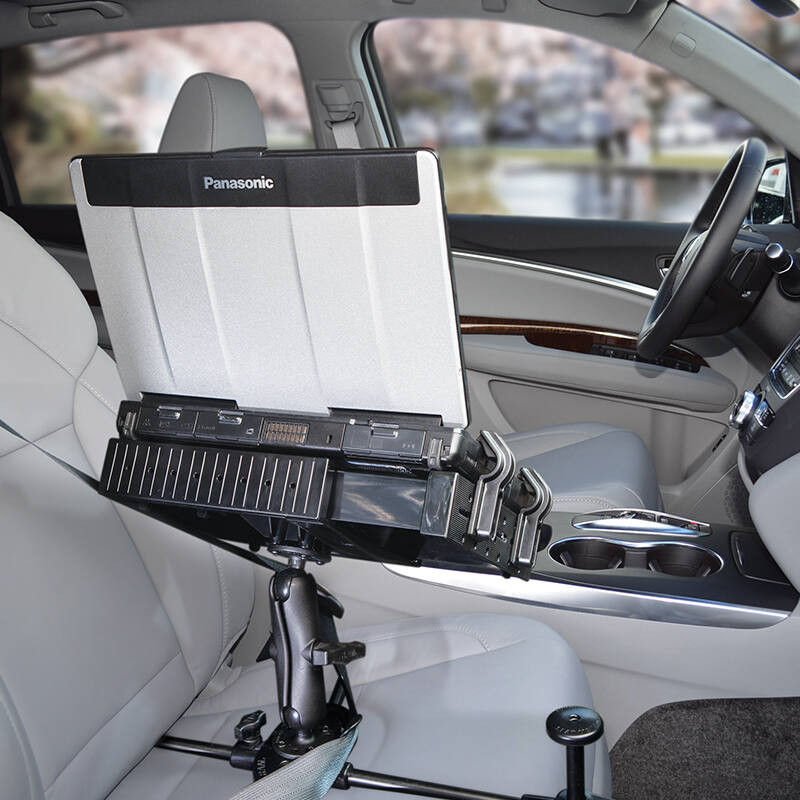

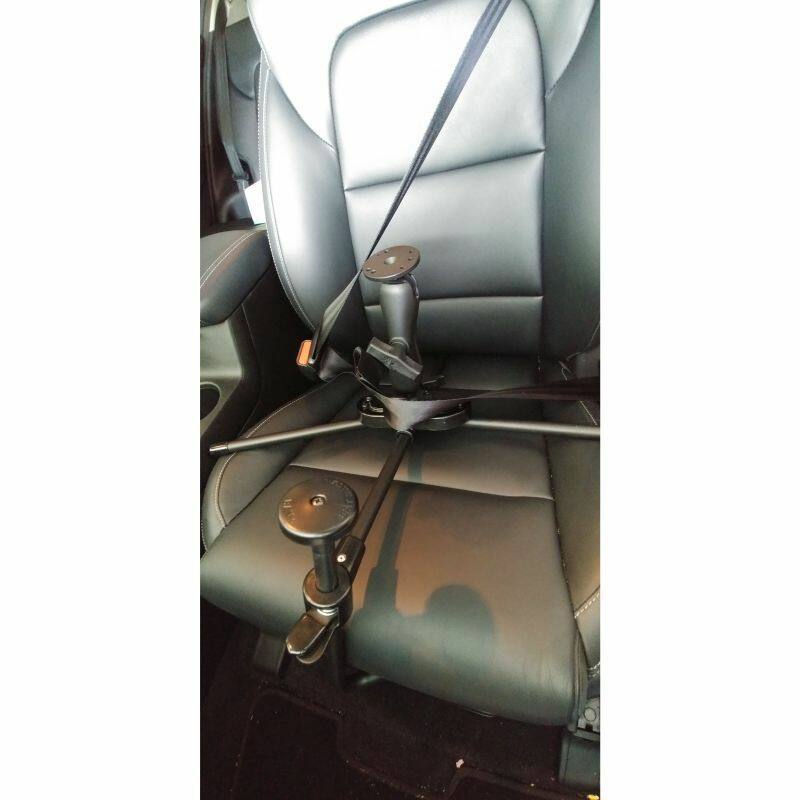

Able to transform most any passenger seat into a workstation, simply unpack the mount from the compact bag, unfold the legs, and buckle it in. Truly innovative in design, this product is able to actively hold onto the seat and stabilize itself. For anyone who needs a temporary mobile workstation, this mounting solution is absolutely perfect. Designed to easily pack into a travel bag, suit case, or even under the seat of a vehicle, RAM makes it possible to create a comfortable workspace in minutes where ever your job takes you.
The integrated rubber ball and socket system allows the user to achieve ergonomic viewing and typing angles. If you’re a mobile professional, this product was designed for you.

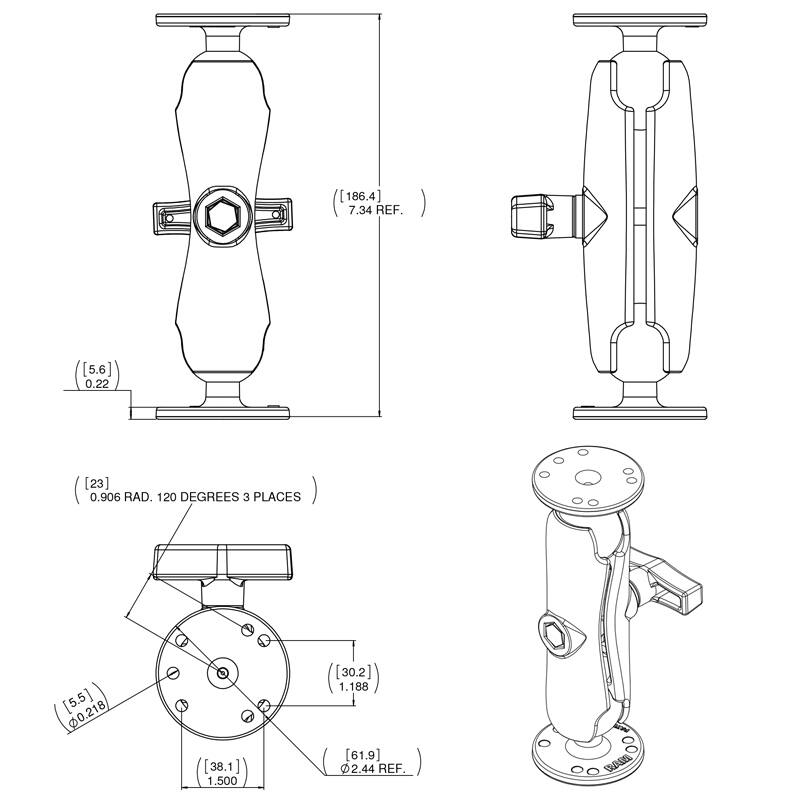

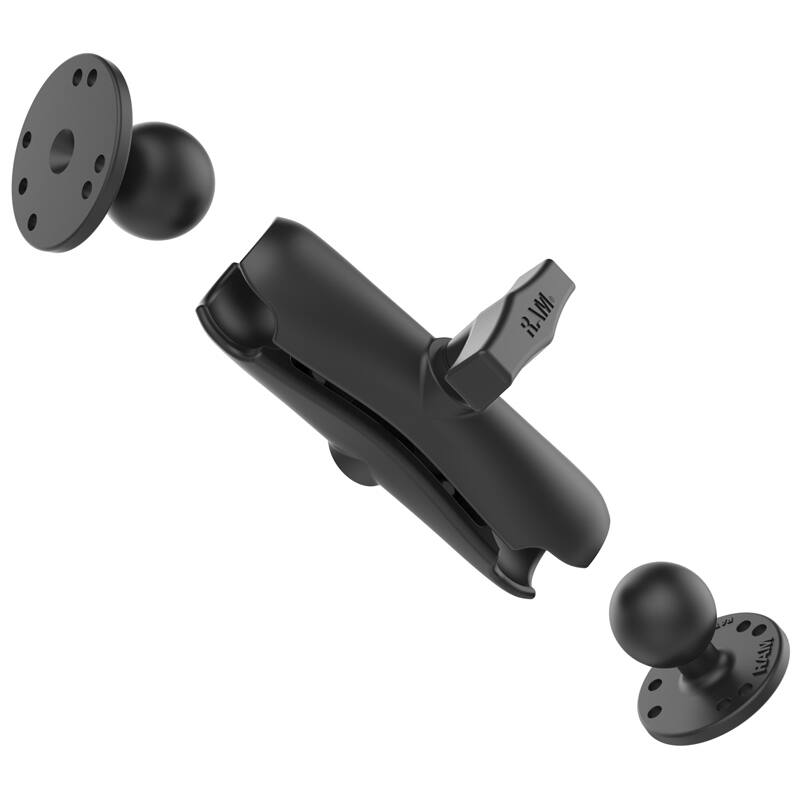

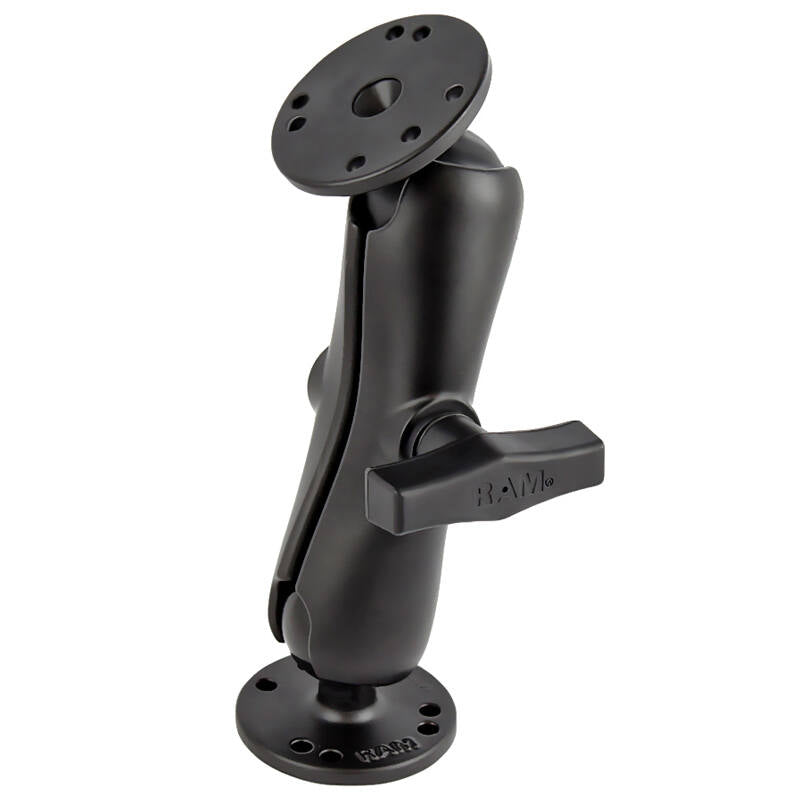

The connecting arm and bases consist of a double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Tough-Tray™ Dimensions:
Tray Depth: 254mm (10.0")
Tray Thickness: 54 mm (2.125")
Tray Width (Expansion): 254 to 406.4mm (10 to 16")
Side Clamp Arm Height: 12.7 to 44.4mm (0.5" to 1.75")
Compatible Devices
10" to 16" Wide Laptops & (17" Wide Screens)
Overall Length:
187 mm (7.35")
Arm Length:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Ball size
C Size (1.5")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Weight:
4.53 kg (10 lbs)

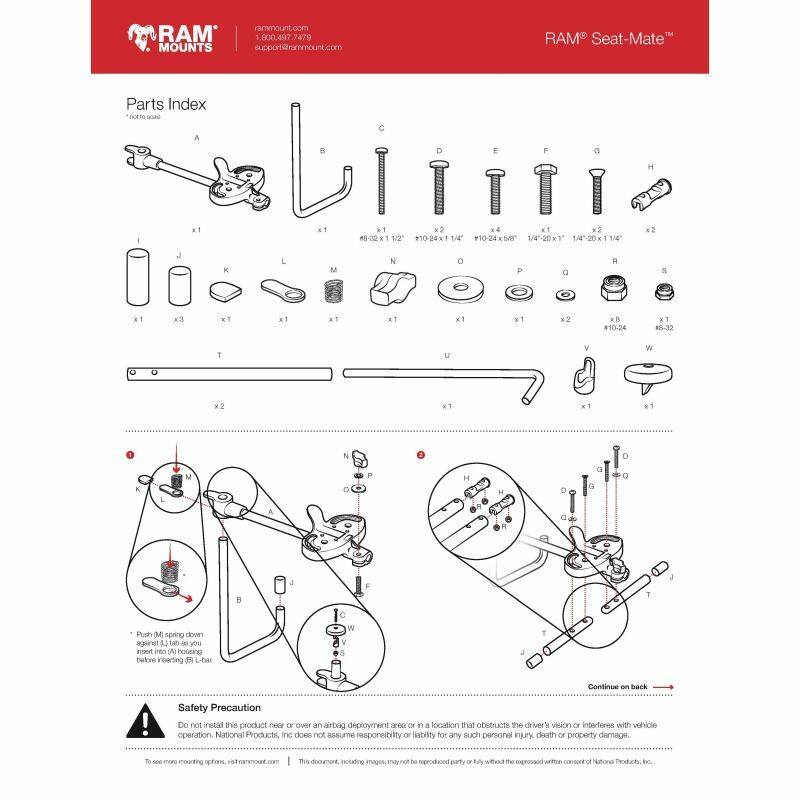

Components:

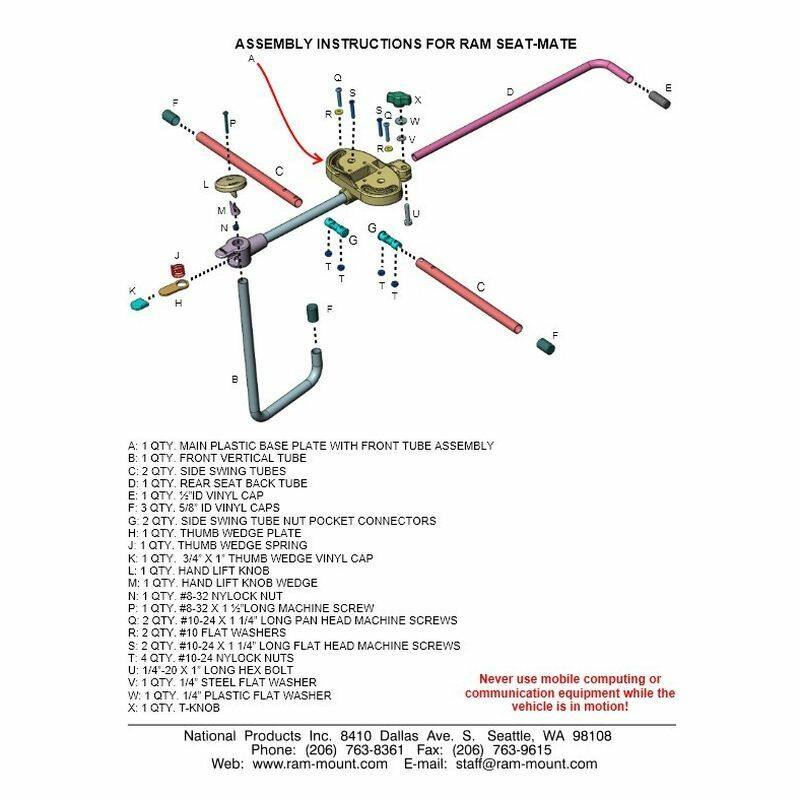

RAM-SM1NB SEAT-MATE SYSTEM (No carry bag)
RAM-234-3 Universal Laptop Tough-Tray Holder
RAM-201U Standard Double Socket Arm for 1.5" Balls
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball (x2)
YouTube:
https://www.youtube.com/watch?v=TvErgaMaHXo
