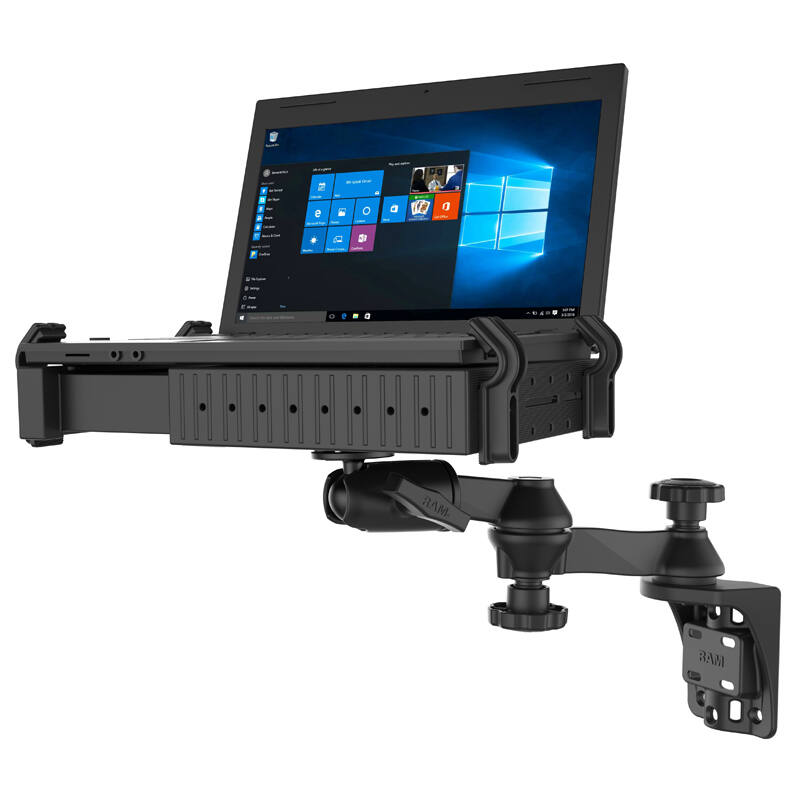

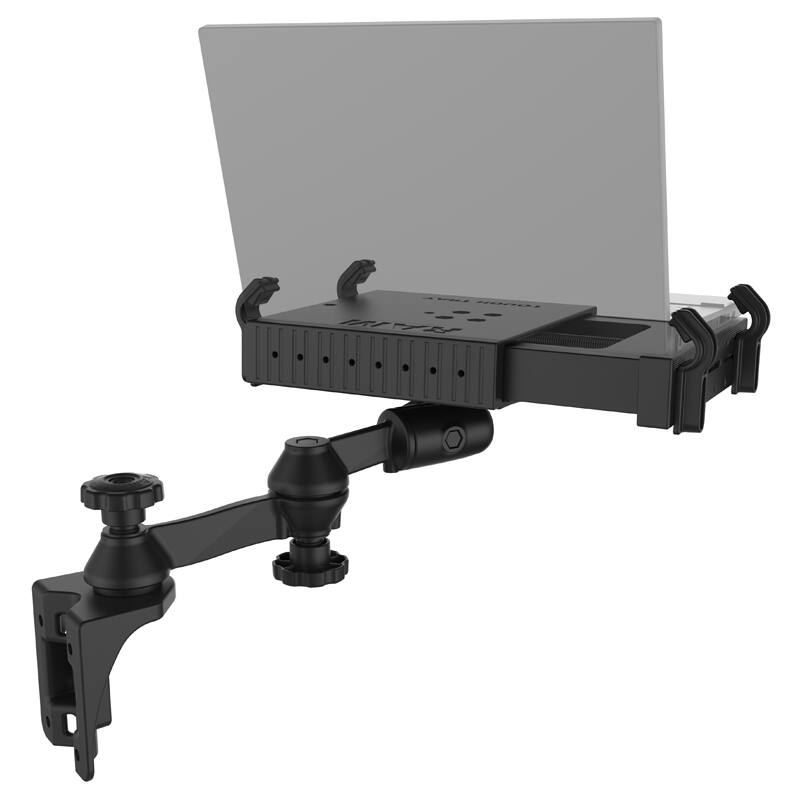

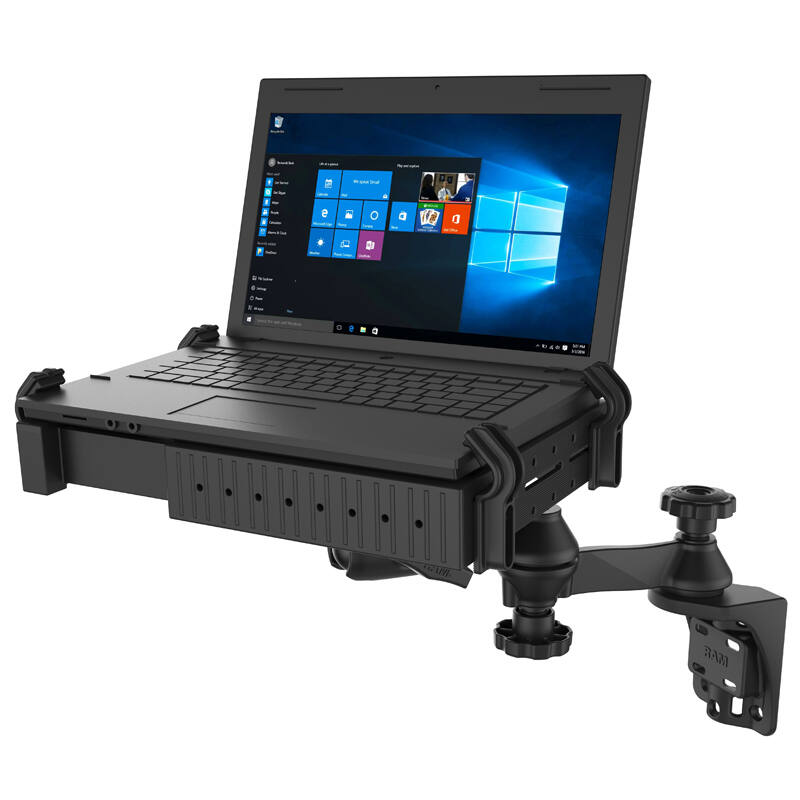

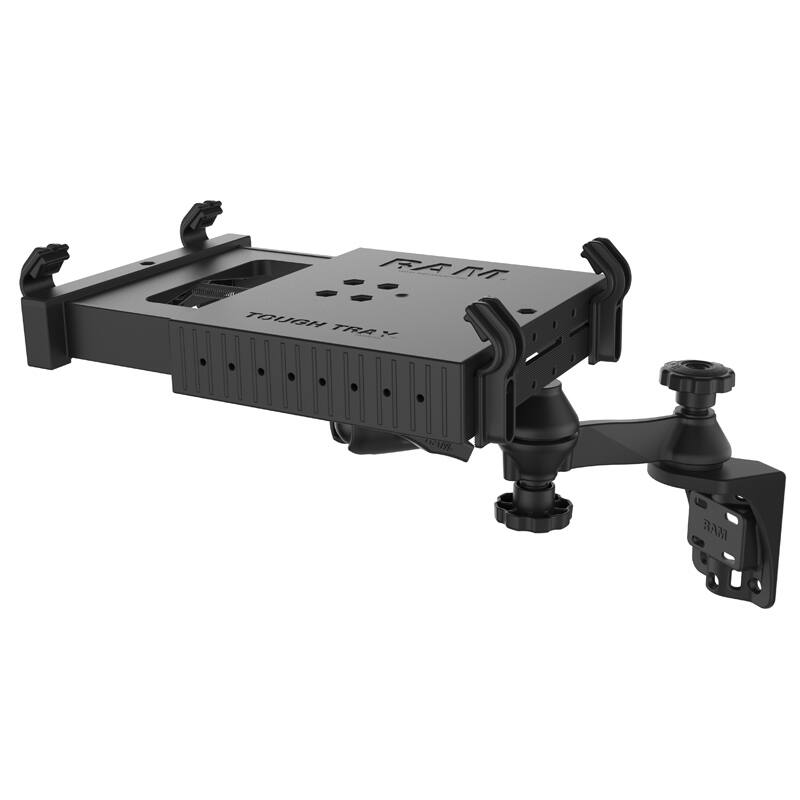

RAM-109V-234U RAM® Tough-Tray™ Laptop Holder with Vertical Swing Arm Mount
Features
* Spring-loaded universal laptop tray accommodates most 10" to 16" laptops
* Four adjustable clamping arms with rubber grips keep your laptop secure
* Swing arm provides versatile and robust base and will secure to many vertical surfaces with a variety of hole patterns included
* Made of Marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Perfect for mounting laptops in yachts, cruising boats and other tight offices. The swing arm allows access when needed and easy stowage when not in use.

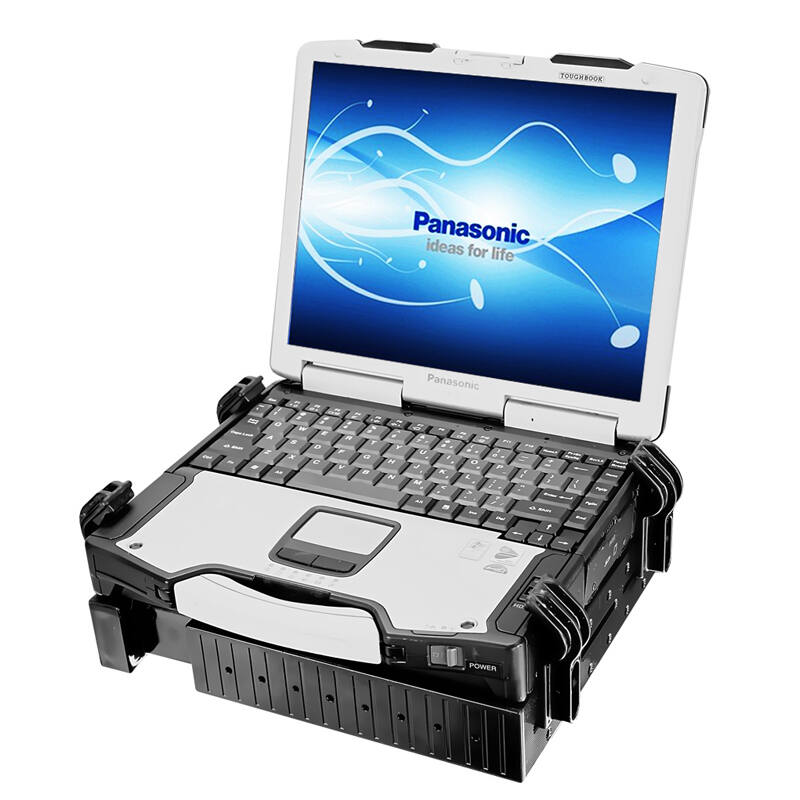

The RAM Tough-Tray™ is spring loaded expandable tray that can accommodate 10 to 16" wide laptops. The tray includes four side clamping arms with rubber grips to keep your laptop secure in any rugged environment. These arms can be moved both vertically and horizontally, allowing a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.
Compatible Devices
10" to 16" Wide Laptops & (17" Wide Screens)

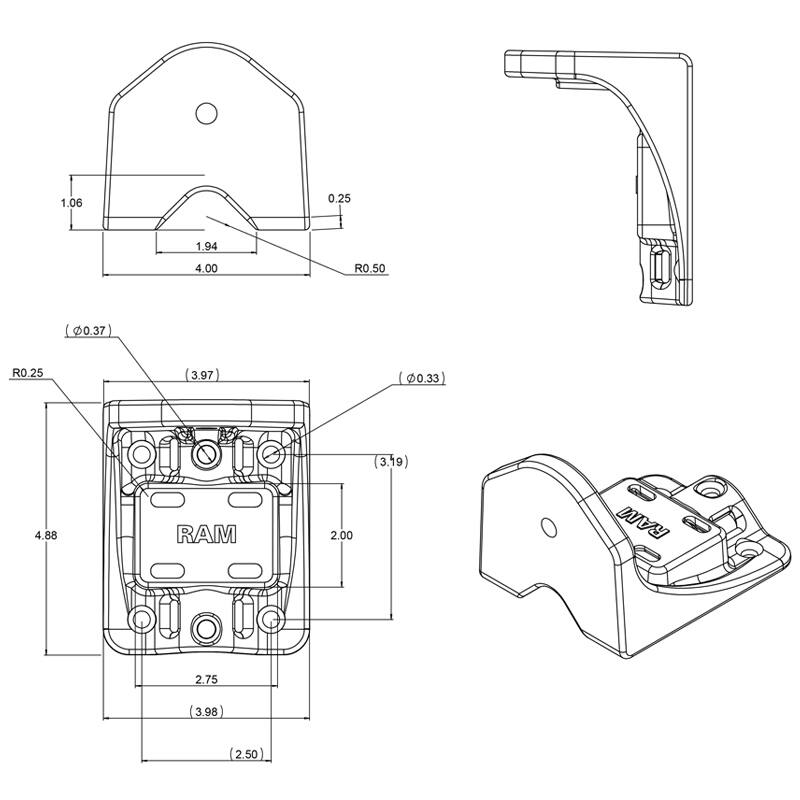

Hole Pattern
See Drawing
Plate Size
100.8mm x 123mm (3.97" x 4.85")
Ball/Socket Size
C Size (1.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Materials
Marine-grade aluminium
High strength composite
Weight
3.62kg (8.0 lbs.)
Components:

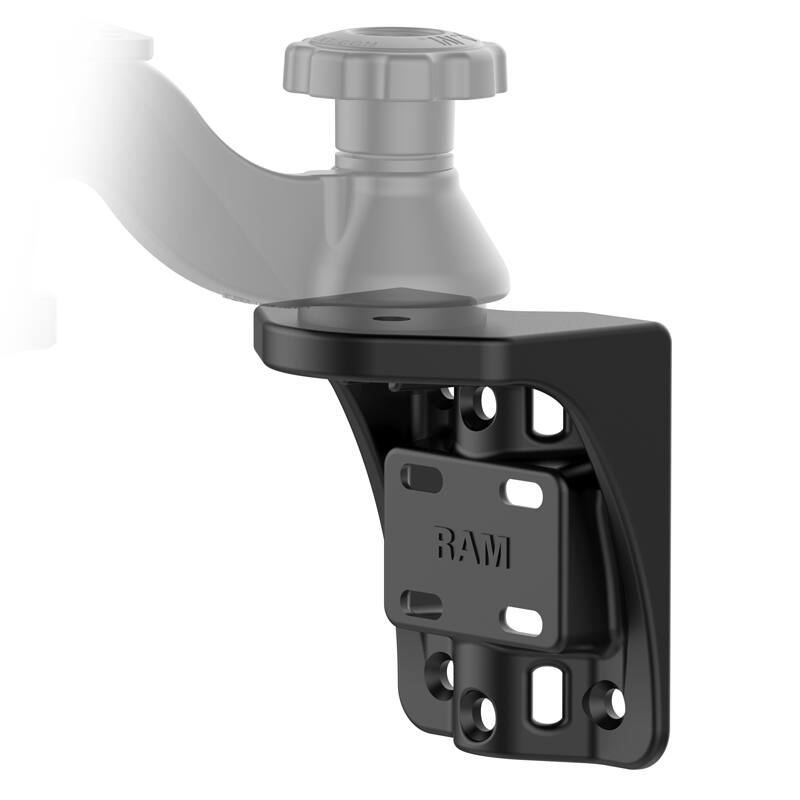

RAM-109V-BU vertical base
RAM-234-3U laptop cradle
RAM-VB-109-3U swing arm extension
RAM-vb-110-5U Swing arm with C-series round plate
