RAM Mounts

RAM Tough-Wedge seat mount - with Long Arm and Diamond + Round Bases

RAM Tough-Wedge seat mount - with Long Arm and Diamond + Round Bases

SKU:RAM-B-407-C-202U-v

Regular price $207.10 NZD
Regular price Sale price $207.10 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

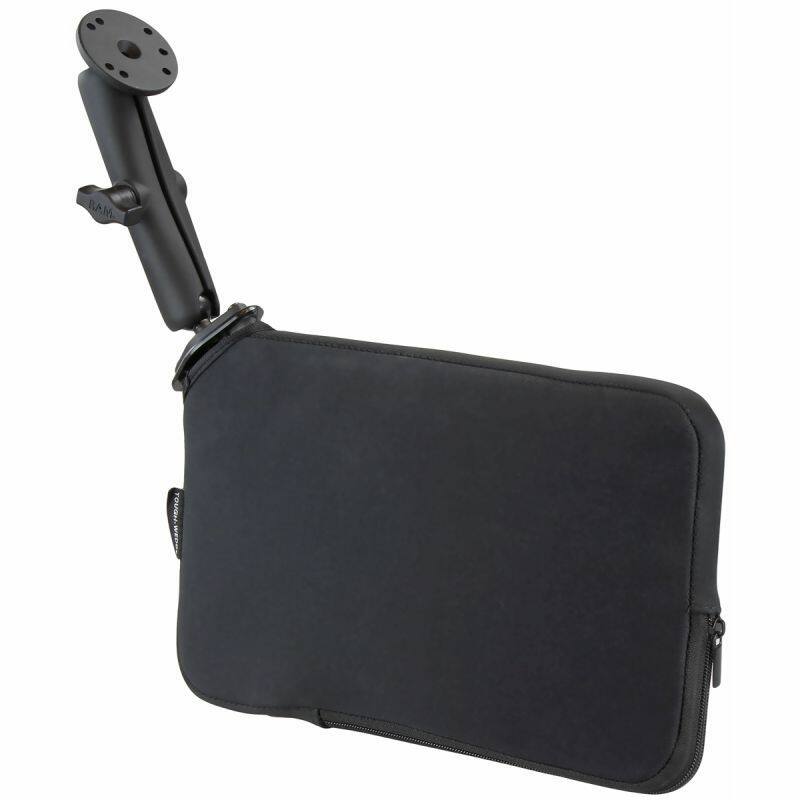

RAM-B-407-C-202U RAM® Tough-Wedge™ with Double Socket Arm and Round Plate


Features

* RAM® Tough-Wedge™ base easily slides down between seat and central console on most vehicles
* Allows for simple, tool free, installation and movement between vehicles
* RAM B series arm with ball and socket technology allows for near-infinite adjustability
* Round plate with AMPS pattern will connect to many RAM cradles
* Made of powder-coated, marine-grade aluminum, High Strength Composite and Neoprene for durability and reliability
* Backed by a lifetime warranty

This provides the ideal base for any RAM device cradle that requires a round (-202U) base.

The Tough-Wedge is a seat wedge mount that fits in the gap between your vehicle seat and the centre console, allowing easy access and operation of your mobile device without the need to drill or glue. It can quickly be moved between vehicles

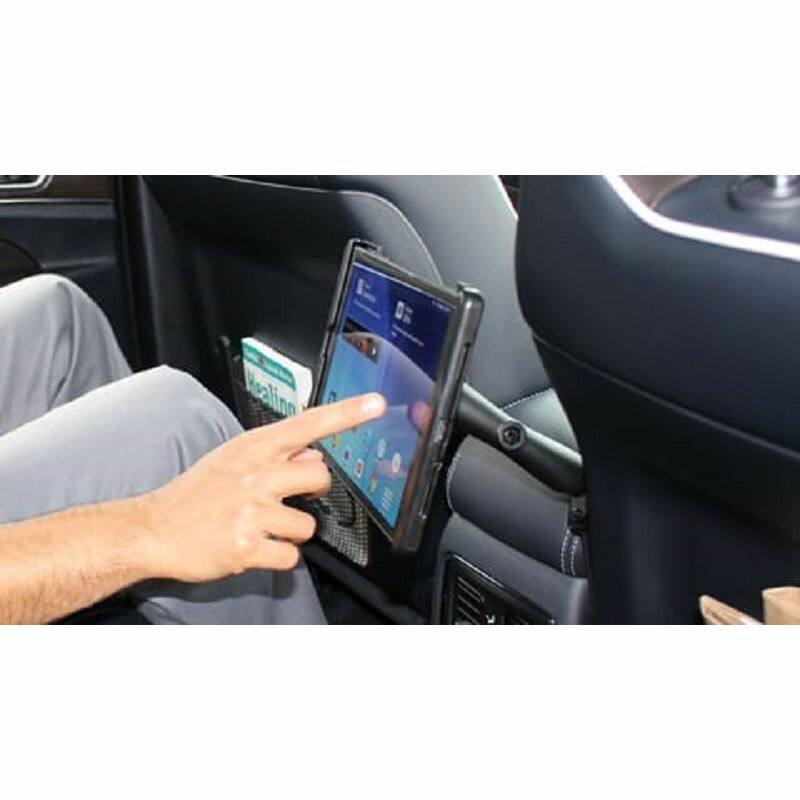

The Tough-Wedge can also be used for back-seat applications by inserting into the pockets located on the back of the front seats.


Specs & Features

Tough-Wedge Dimensions:
Length: 336mm
Height: 209mm
Depth: 25mm
Inside Wedge Depth: 9.5mm - 22mm


Material:
High Strength Composite
Neoprene
Powder coated marine grade aluminium alloy

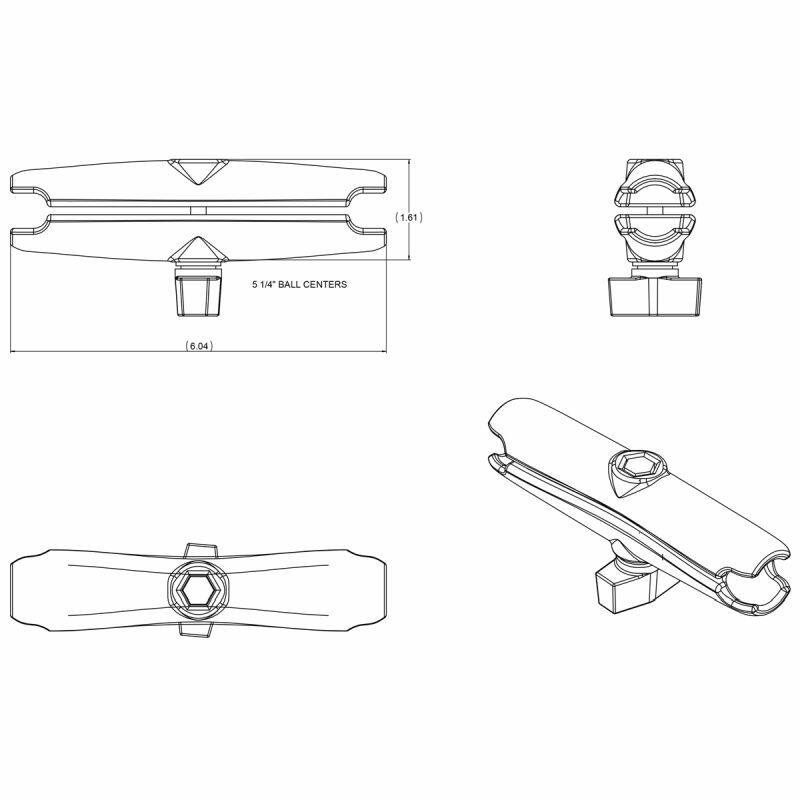

Arm Dimensions:
Overall Length:
152 mm (6 inches)
Socket-To-Socket Length:
134 mm (5.25 inches)


Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS
1.812” (46.0mm)


Components:

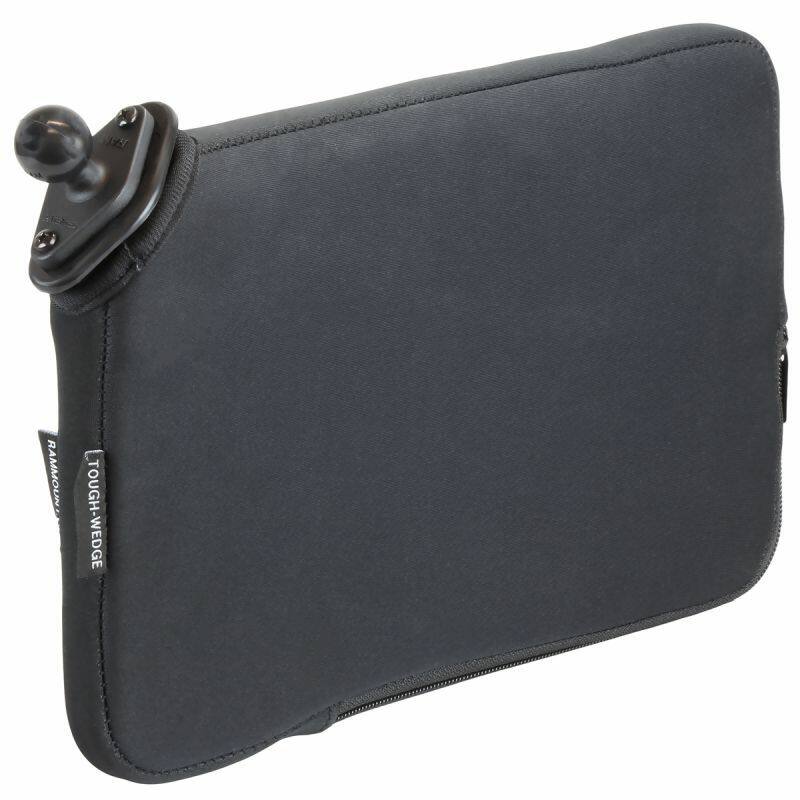

RAP-407BU - tough-wedge
RAM-B-238U - diamond base

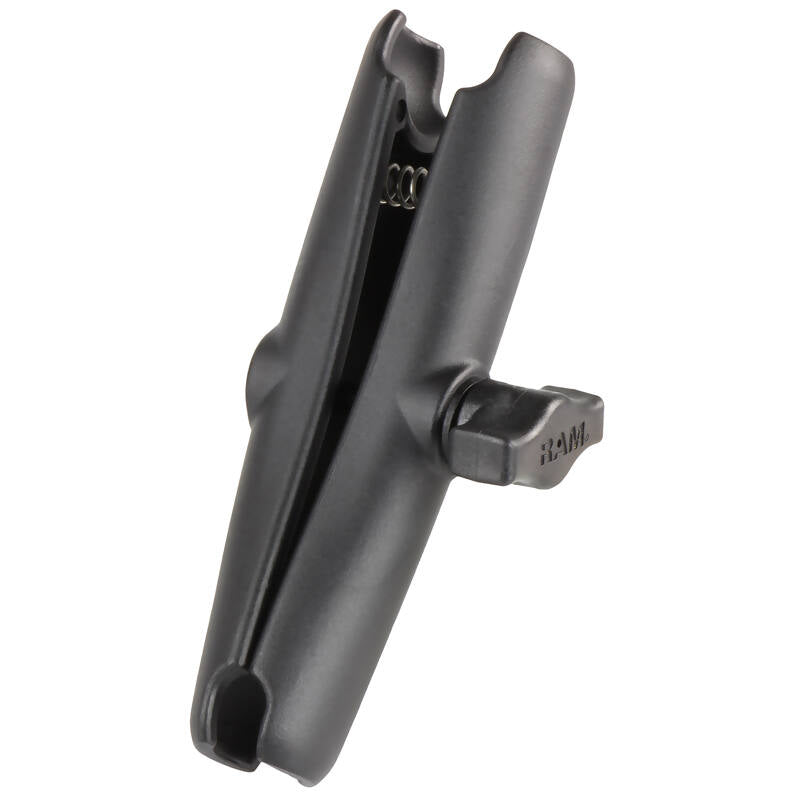

RAM-B-201U-C - long double socket arm
RAM-B-202U - round base

Note: pump accessory also available for trickier spaces.

YouTube:
https://www.youtube.com/watch?v=j7mtswe5pts
https://www.youtube.com/watch?v=tBU_O7MZuE4
