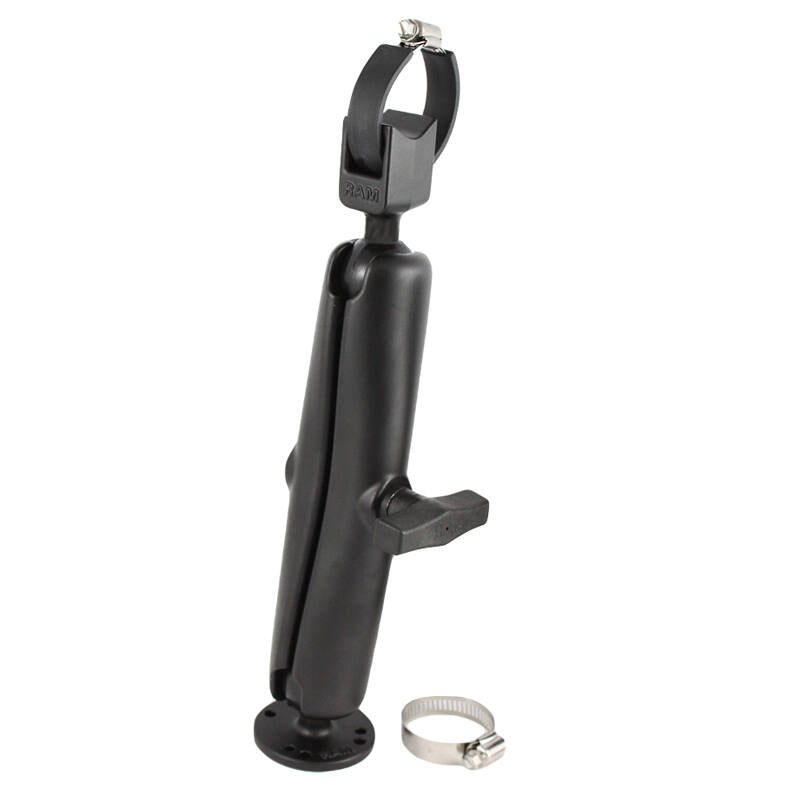

RAM-108-DU RAM® Trolling Motor Stabilizer with Strap Hose Clamp
Features
- Trolling motor stabilizer mount protects the trolling motor and mounting surface from damage; strap hose clamp compatible with rails from 25.4mm - 53.3mm in diameter
- Includes strap hose clamp base with C size 1.5" rubber ball, LONG length C size double socket arm, and 2.5" round plate with C size 1.5" rubber ball
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

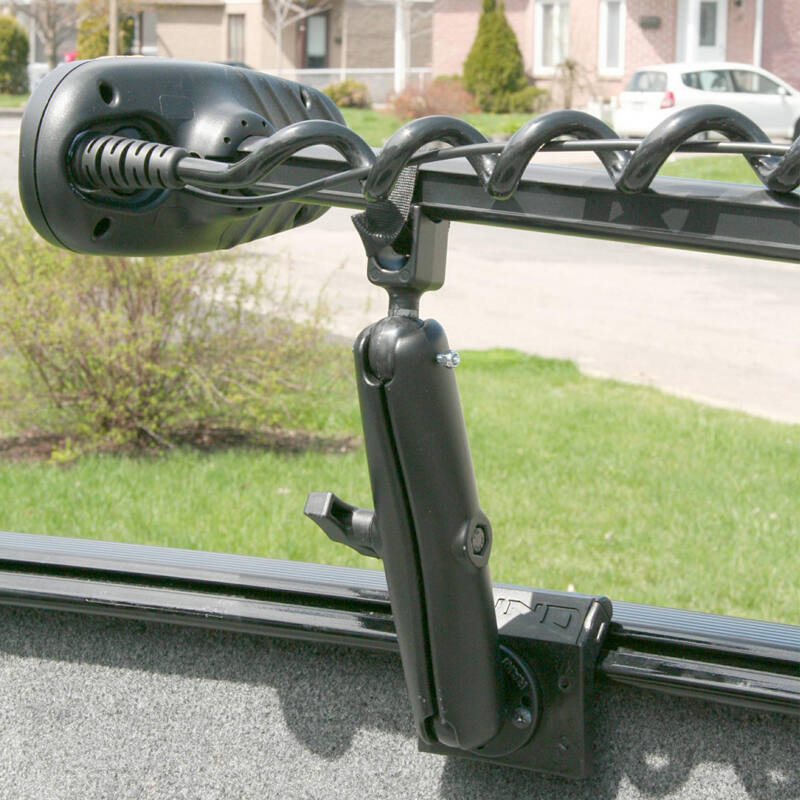

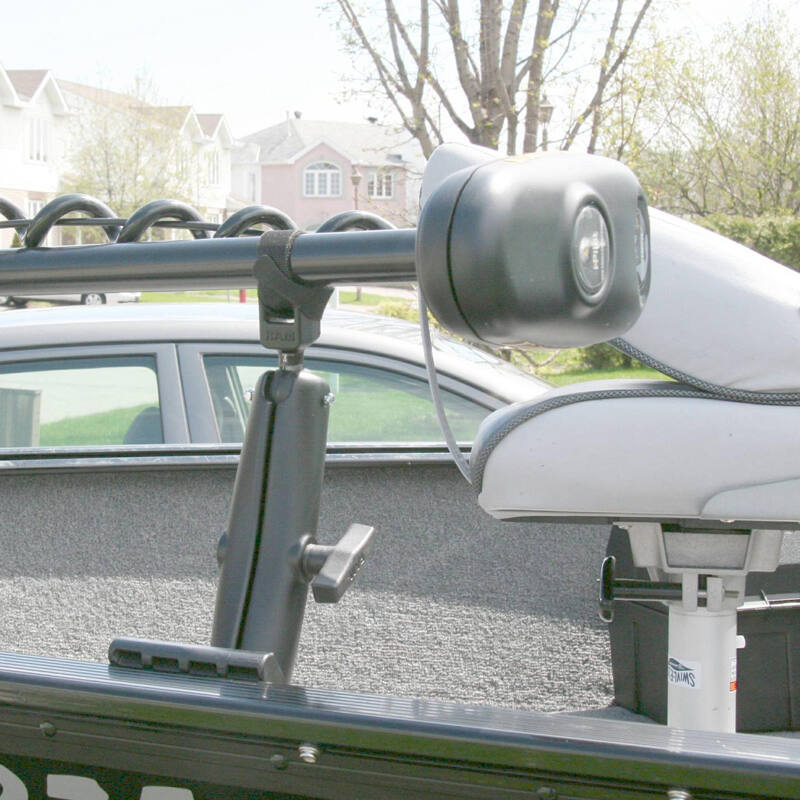

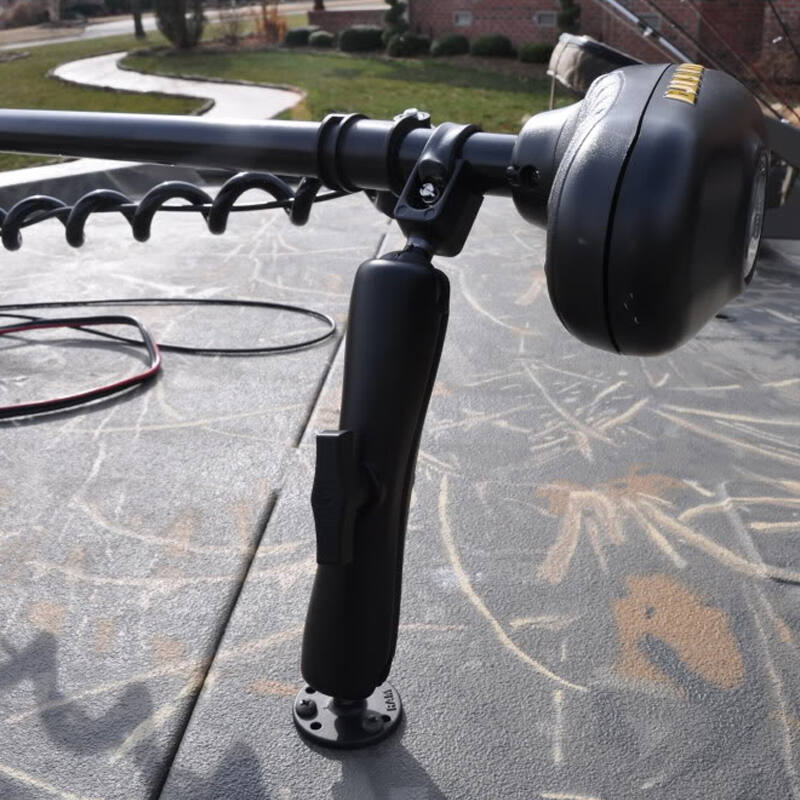

The RAM-108-DU consists of a LONG length double socket arm, 2.5" diameter round base that contains the universal AMPs hole pattern and single strap base. The strap will accommodate rails from 1" to 2.1" in diameter. The trolling motor stabilizer will take every bit of the vibration out of your trolling motor while all the time protecting the head, shaft and mount from damage. A must for any angler with a bow mount trolling motor.
Hardware Included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
Overall Height:
317.5mm (12.5")
Clamp Range
25.4mm - 53.34mm (1" - 2.1") diameter
Socket-to-Socket Length
203mm (8")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Ball/Socket Size
C Size (1.5")
Weight Capacity
1.81kg (4 lbs)
Materials
Marine-grade aluminium
Weight
0.984kg (2.17 lbs.)
Components:

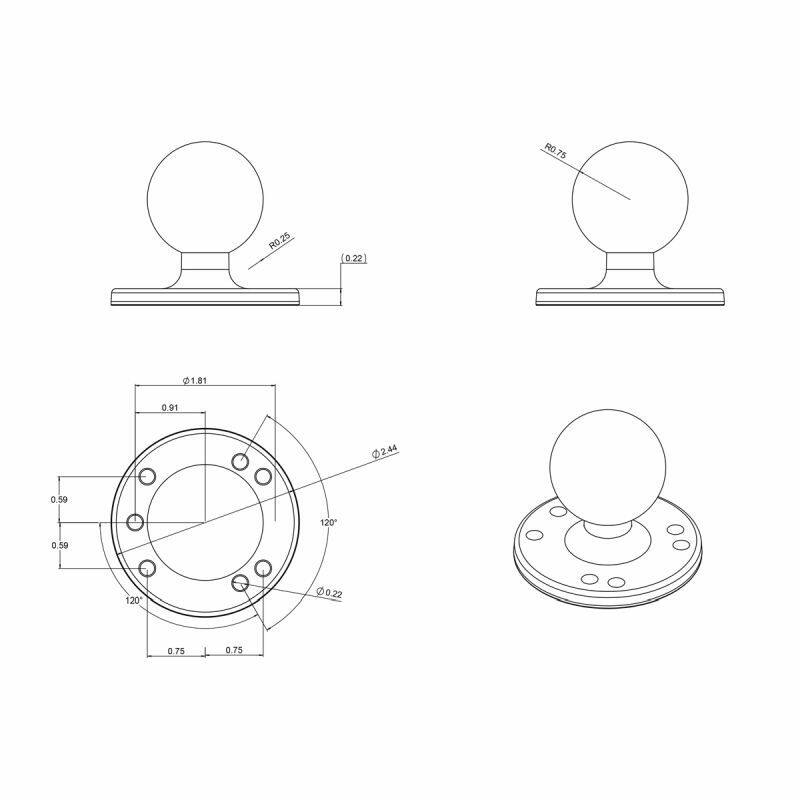

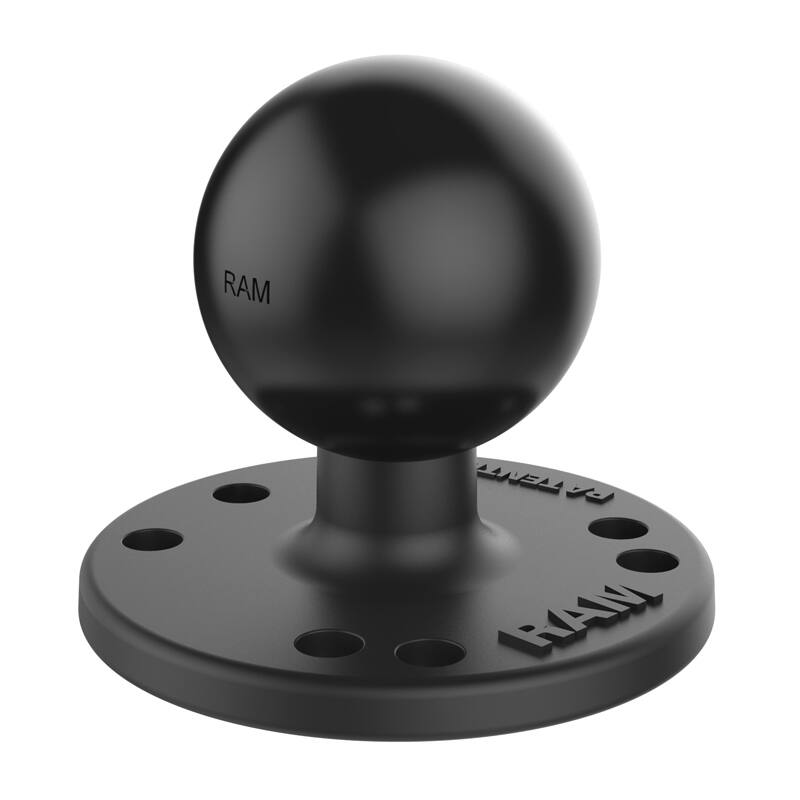

RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

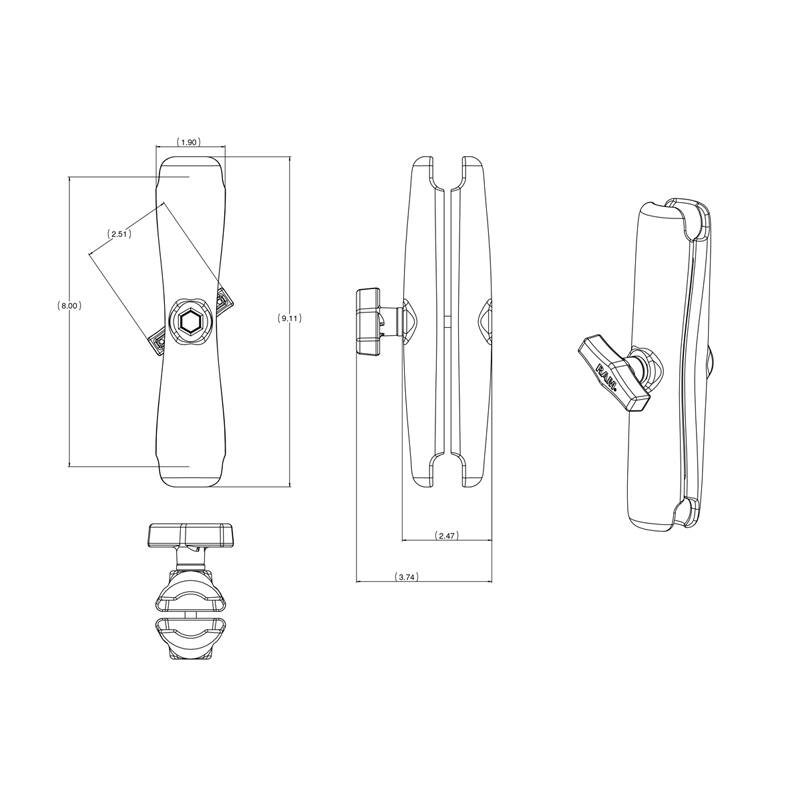

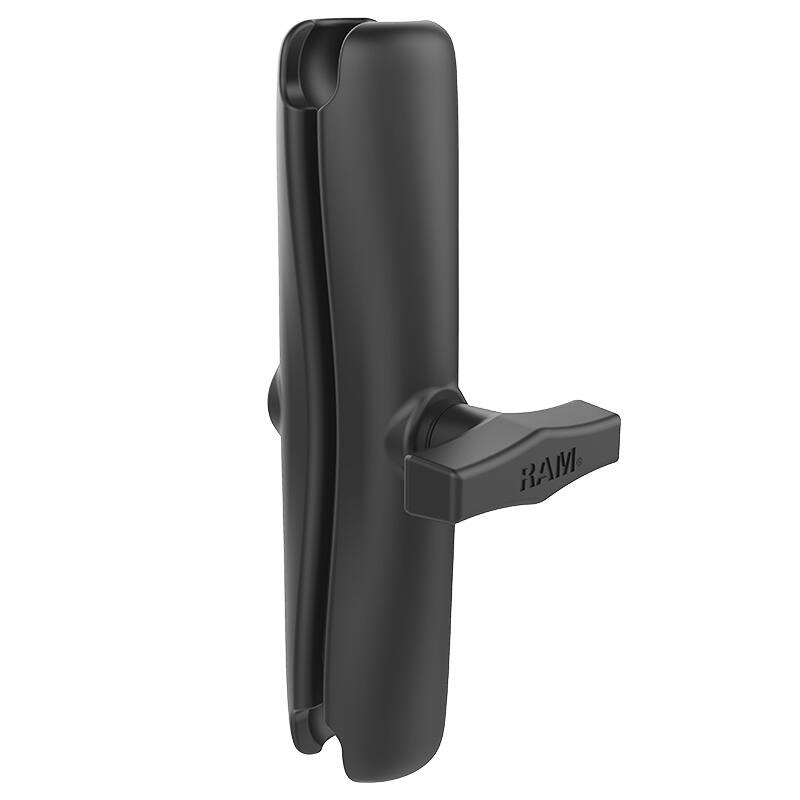

RAM-201U-D DBL SOCKET ARM C BALL D LENGTH

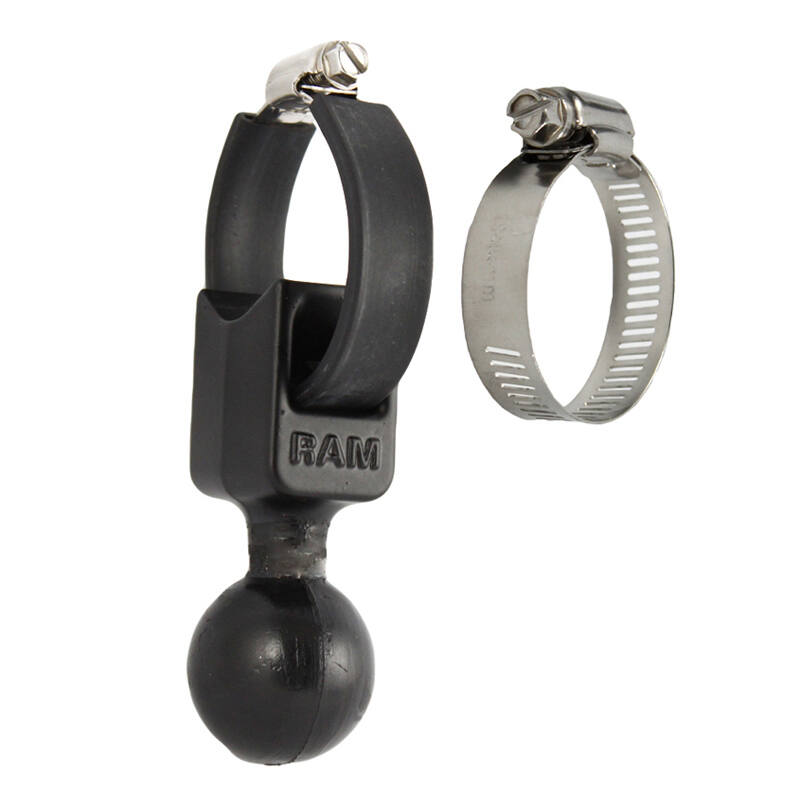

RAM-108BU 1.5" Ball Base with Strap 1" to 2.1" Diameter
