RAM Mounts

RAM Trolling Motor Stabilizer with Strap Hose Clamp - Medium Arm

RAM Trolling Motor Stabilizer with Strap Hose Clamp - Medium Arm

SKU:RAM-108U-v

Regular price $138.57 NZD
Regular price Sale price $138.57 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

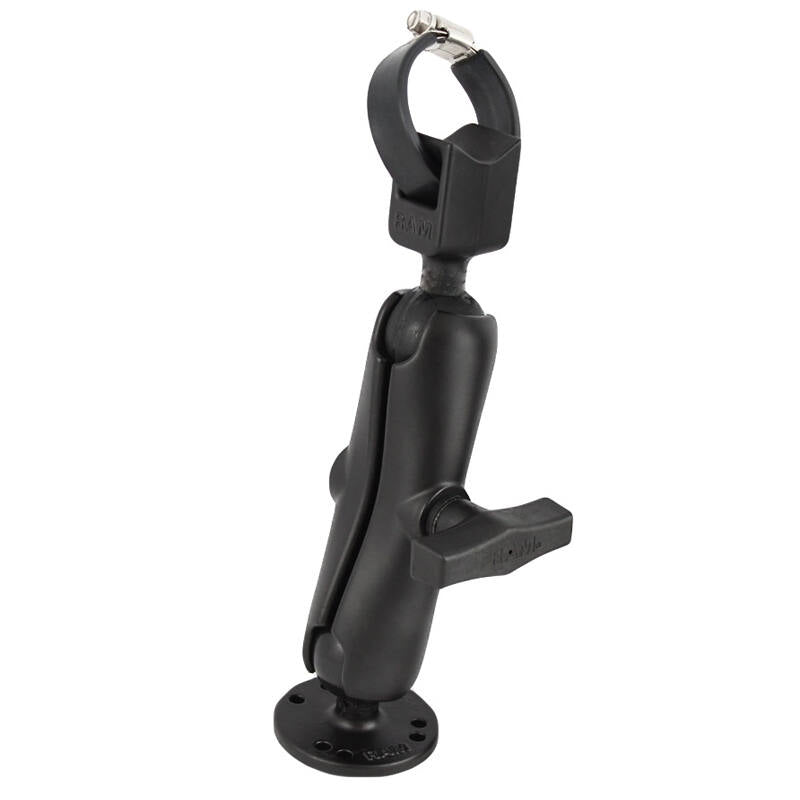

RAM-108U RAM® Trolling Motor Stabilizer with Strap Hose Clamp - Medium Arm

Features

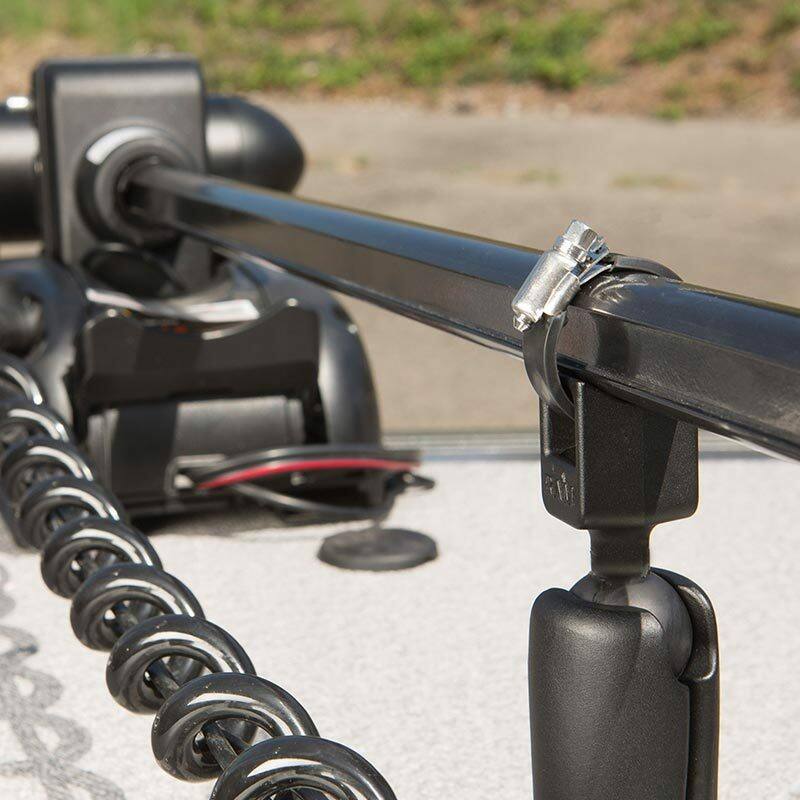

* Trolling motor stabilizer mount protects the trolling motor and mounting surface from damage; strap hose clamp compatible with rails from 25.4mm - 53.3mm in diameter
* Includes strap hose clamp base with C size 1.5" rubber ball, medium length C size double socket arm, and 2.5" round plate with C size 1.5" rubber ball
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

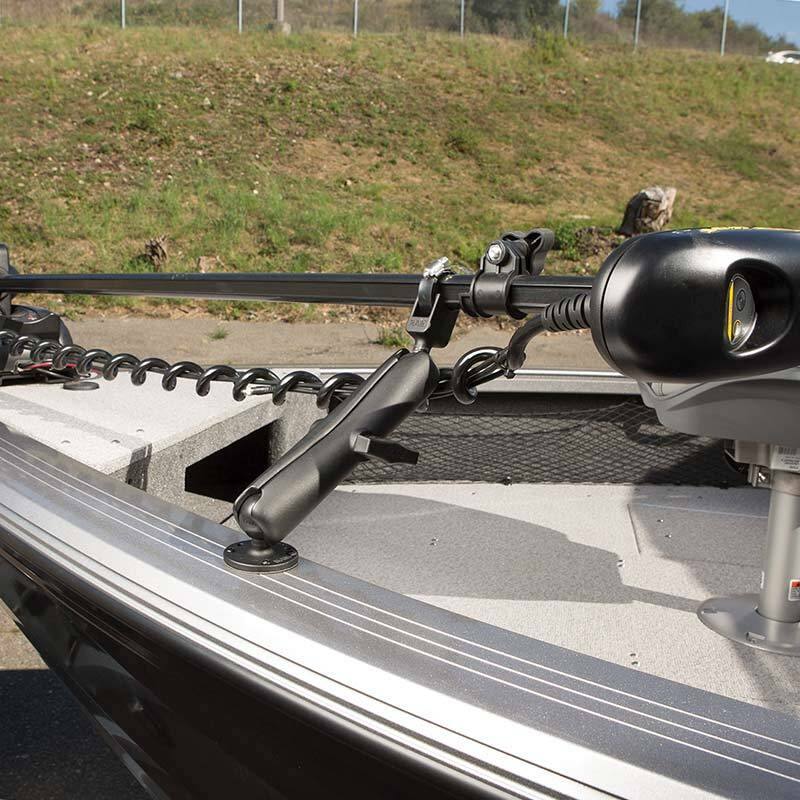

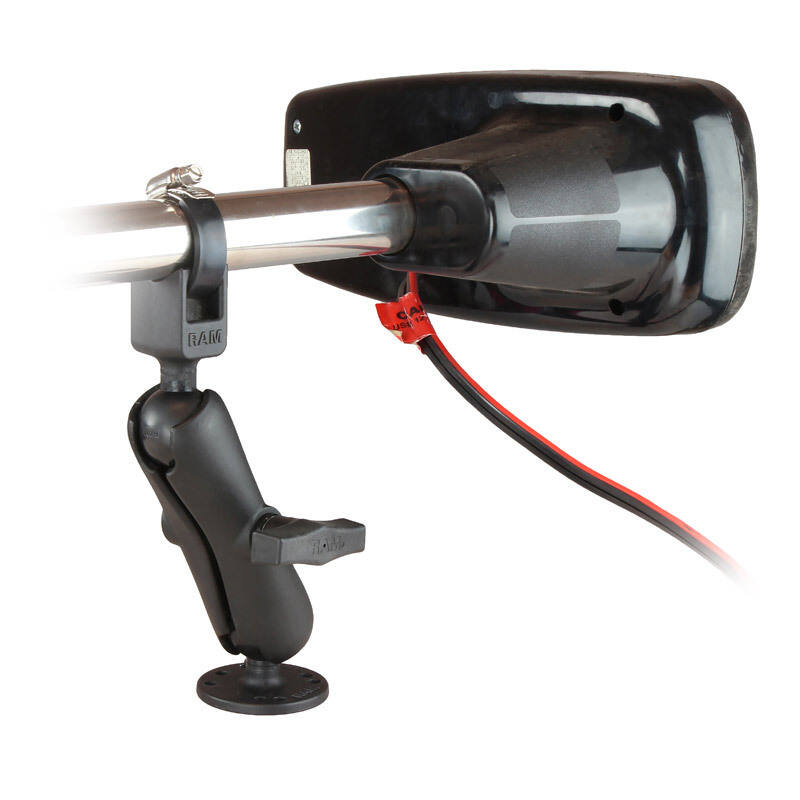

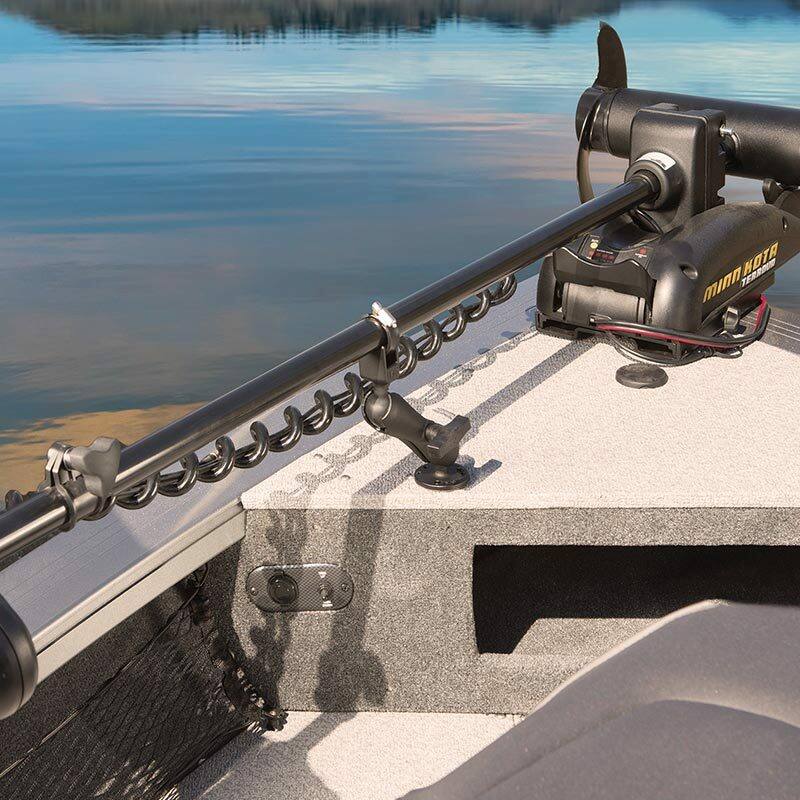

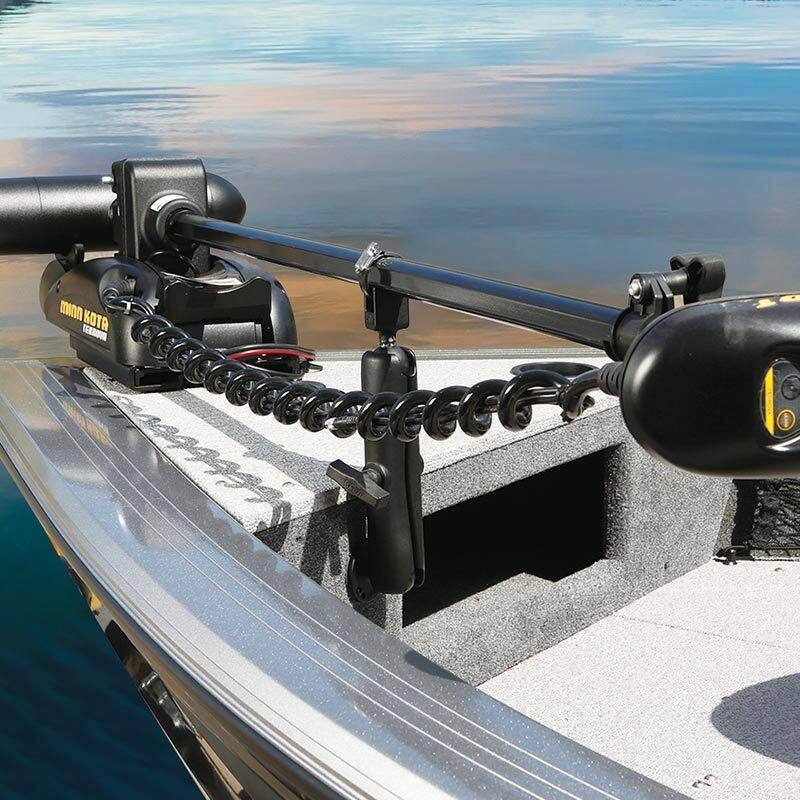

The RAM-108U consists of a MEDIUM length double socket arm, 2.5" diameter round base that contains the universal AMPs hole pattern and single strap base. The strap will accommodate rails from 1" to 2.1" in diameter. The trolling motor stabilizer will take every bit of the vibration out of your trolling motor while all the time protecting the head, shaft and mount from damage. A must for any angler with a bow mount trolling motor.

Hardware Included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip


Overall Height:
229mm (9")

Clamp Range
25.4mm - 53.34mm (1" - 2.1") diameter

Socket-To-Socket Length:
114mm (4.5")

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)


Ball/Socket Size
C Size (1.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Materials
Marine-grade aluminium

Weight
0.531kg (1.17 lbs.)

Components:

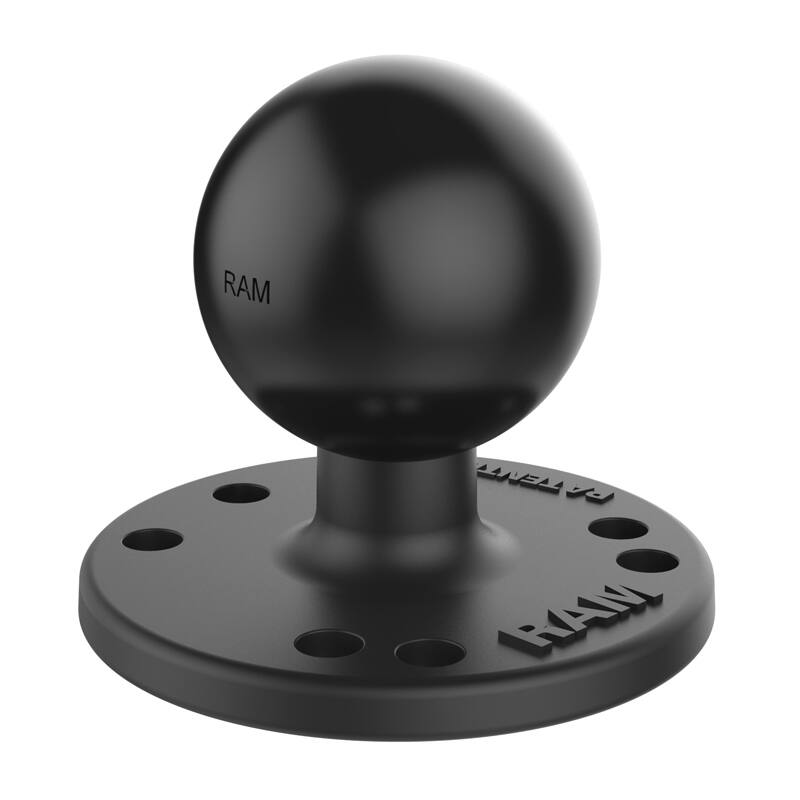

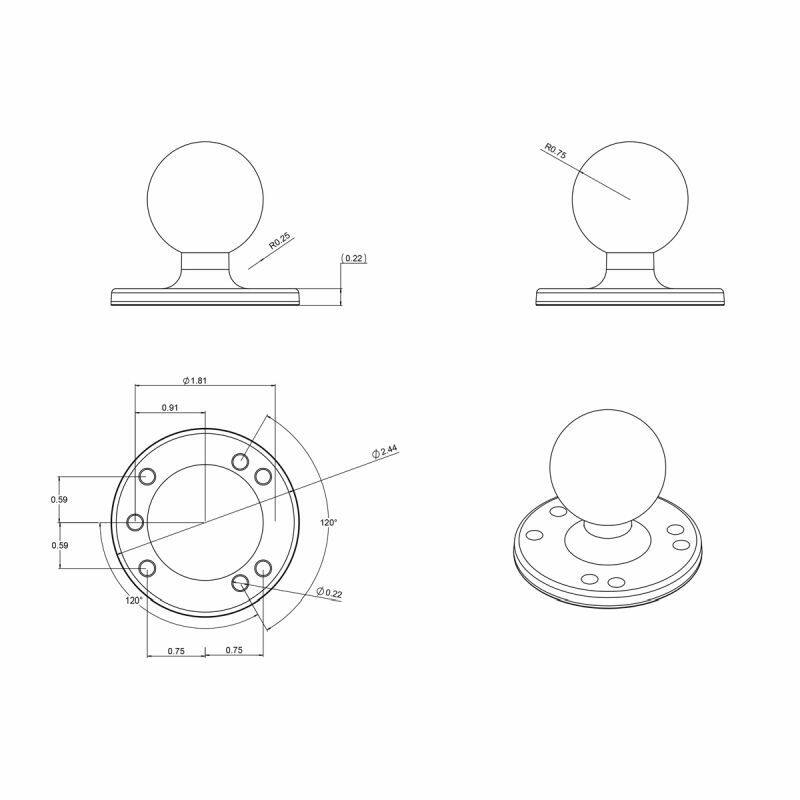

RAM-202U 2.5" / 63mm DIA. BASE

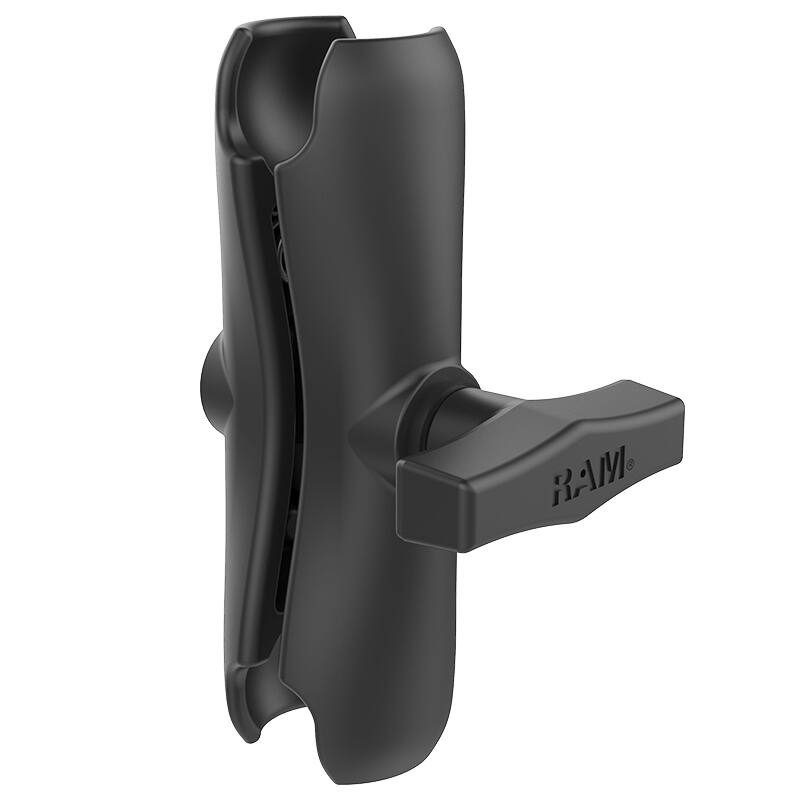

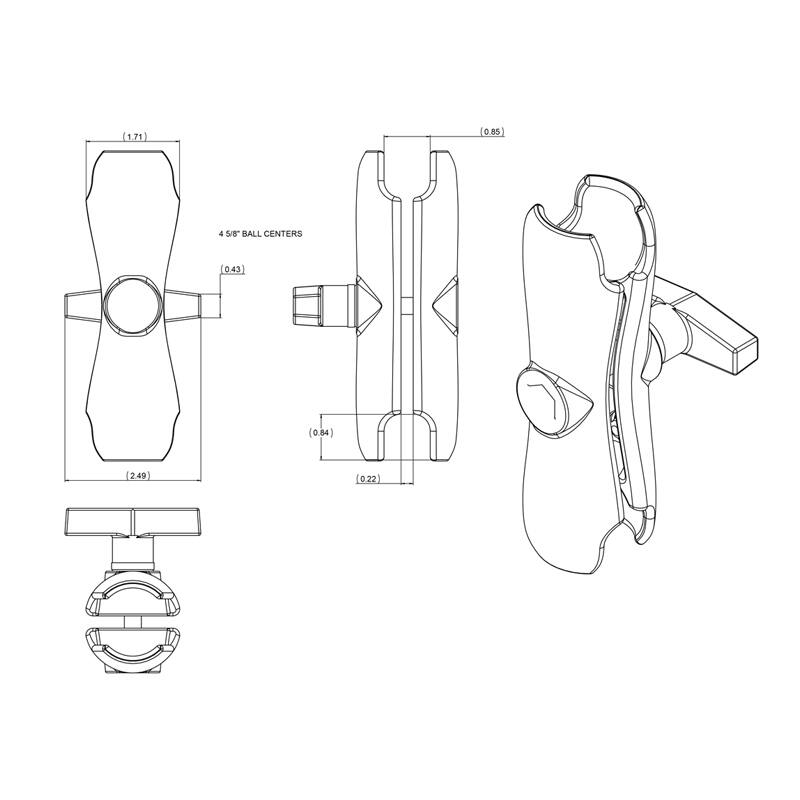

RAM-201U DBL SOCKET ARM
RAM-108BU Ball Base with Strap 1" to 2.1" Diameter
