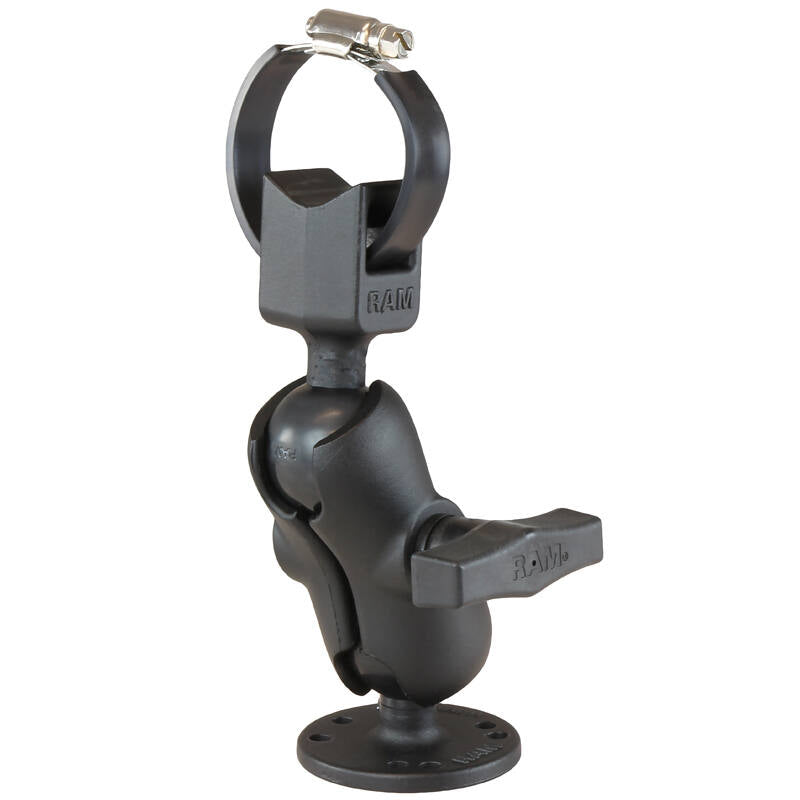

RAM-108-BU RAM® Trolling Motor Stabilizer with Strap Hose Clamp - Short Arm
Features
* Trolling motor stabilizer mount protects the trolling motor and mounting surface from damage; strap hose clamp compatible with rails from 1" to 2.1" in diameter
* Includes strap hose clamp base with C size 1.5" rubber ball, short length C size double socket arm, and 2.5" round plate with C size 1.5" rubber ball
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

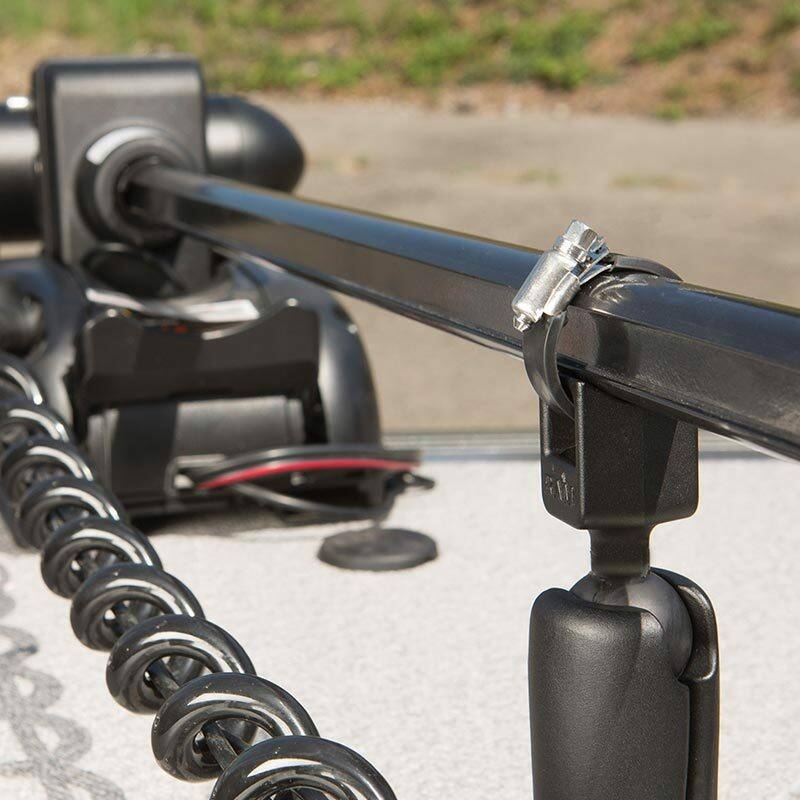

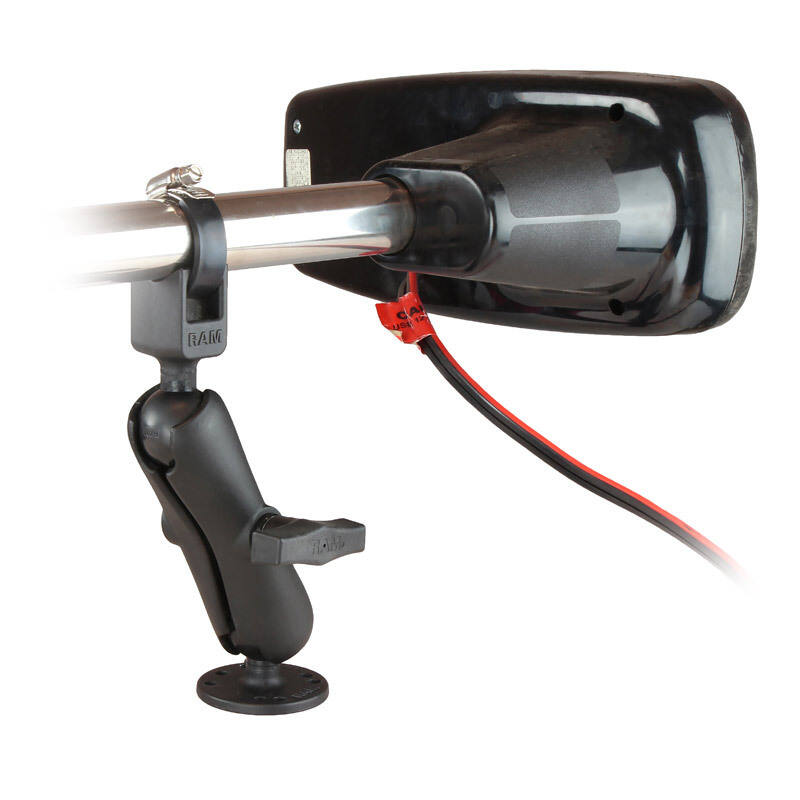

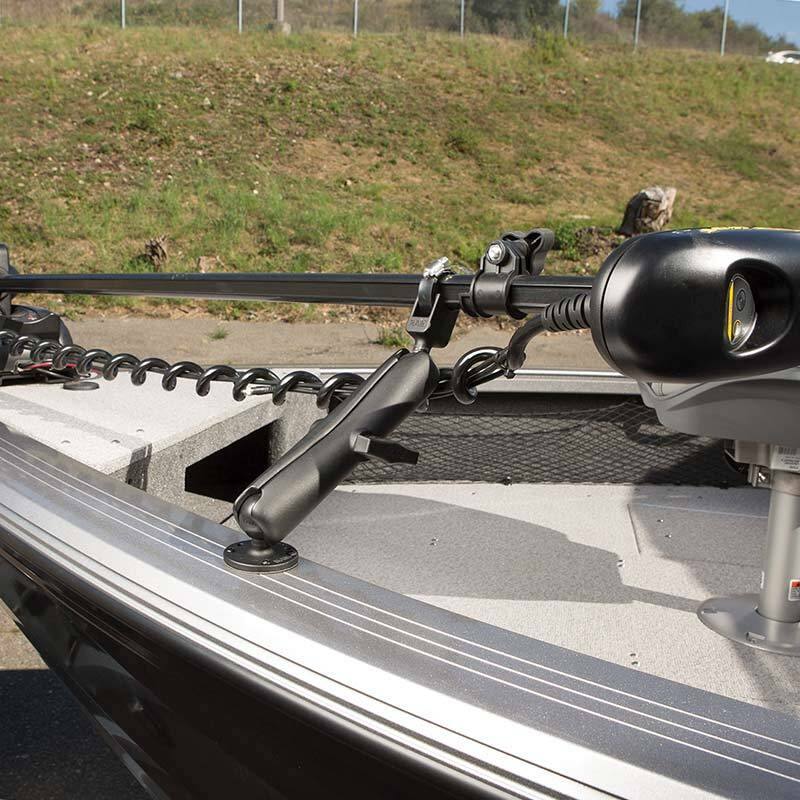

The RAM-108-BU consists of a SHORT length double socket arm, 2.5" diameter round base that contains the universal AMPs hole pattern and single strap base. The strap will accommodate rails from 1" to 2.1" in diameter. The trolling motor stabilizer will take every bit of the vibration out of your trolling motor while all the time protecting the head, shaft and mount from damage. A must for any angler with a trolling motor.
Hardware Included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
Product Dimensions
Overall Height:
175mm (6.875)
Clamp Range
25.4mm - 53.34mm (1" - 2.1") diameter
Socket-To-Socket Length:
57mm (2.25")

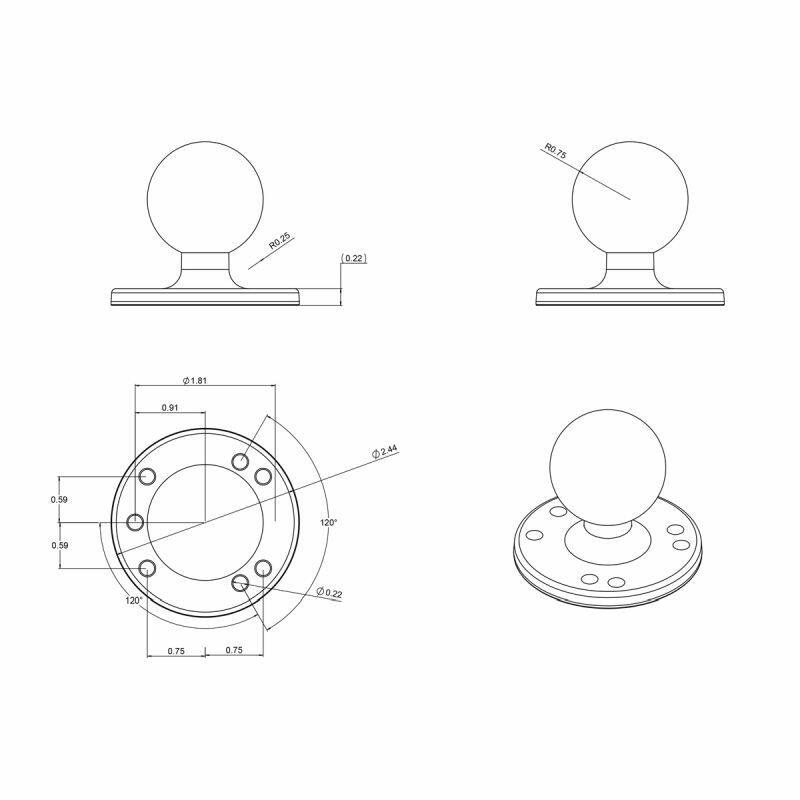

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Ball/Socket Size
C Size (1.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Weight
0.521kg (1.15 lbs.)
Materials
Marine-grade aluminium
Components:

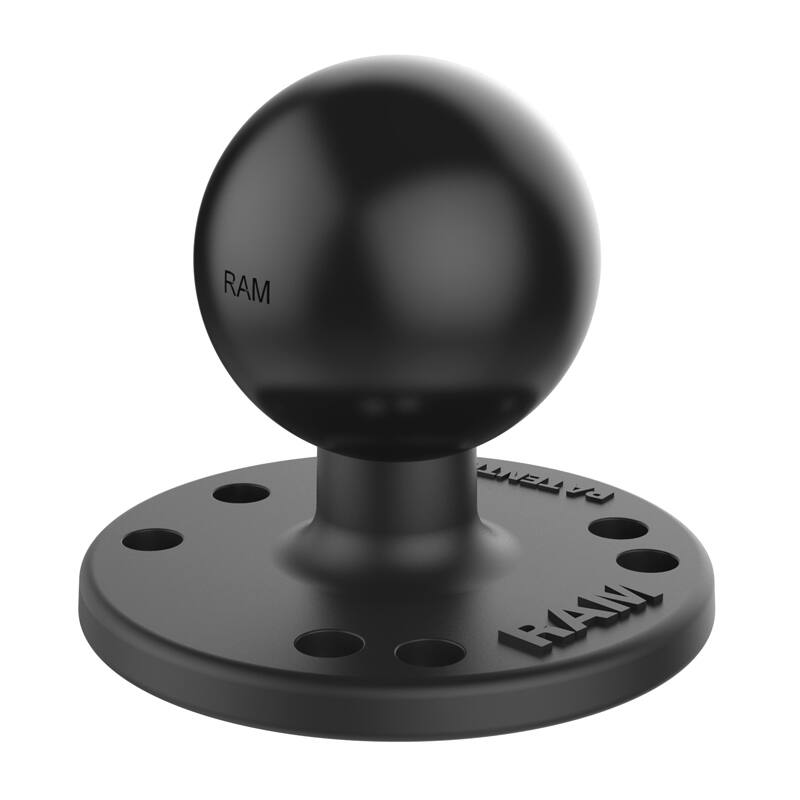

RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

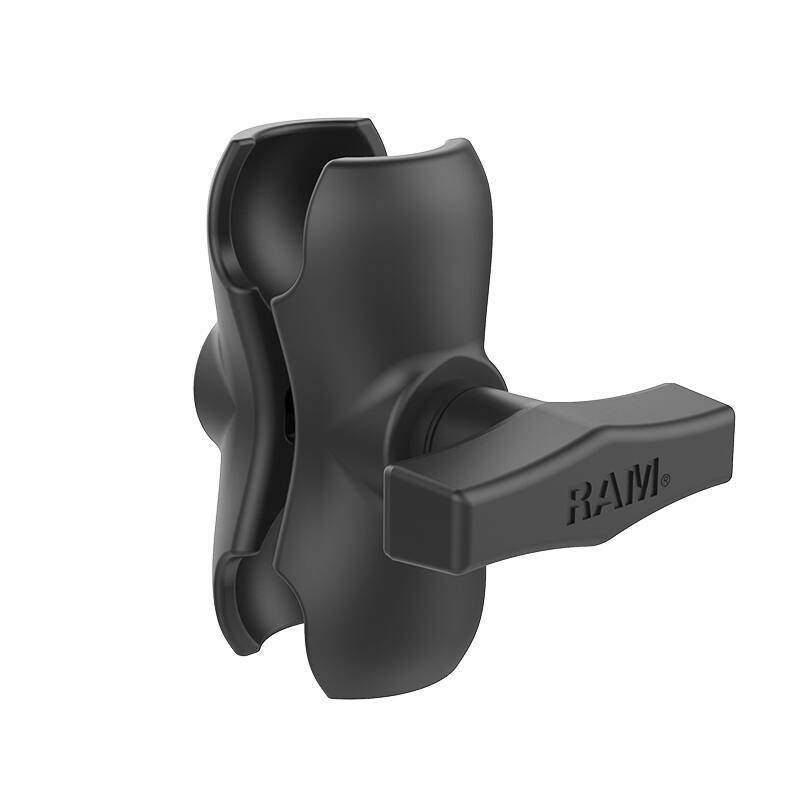

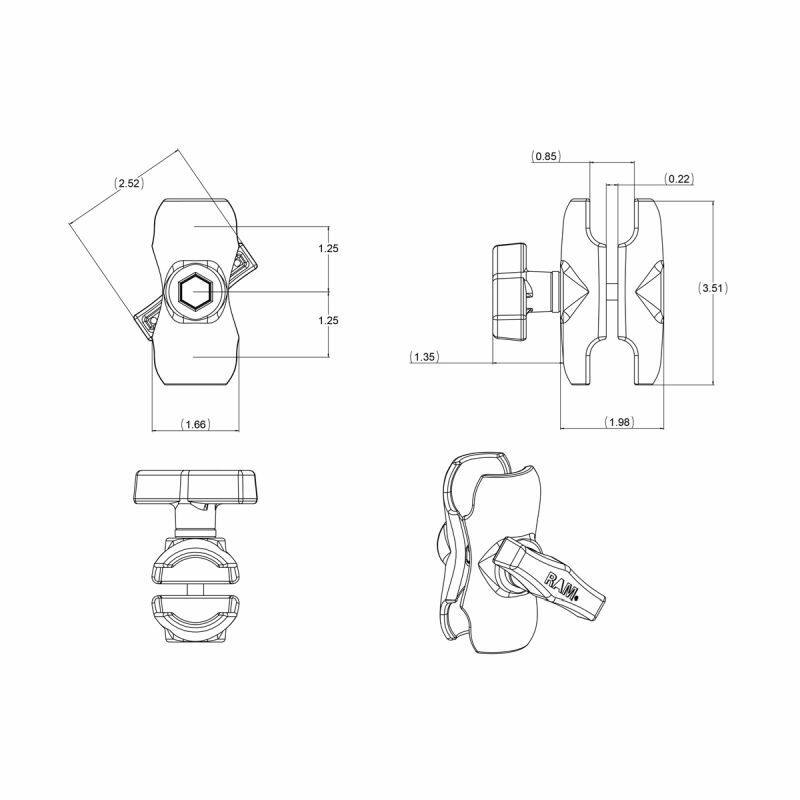

RAM-201U-B Short DBL SOCKET ARM C BALL

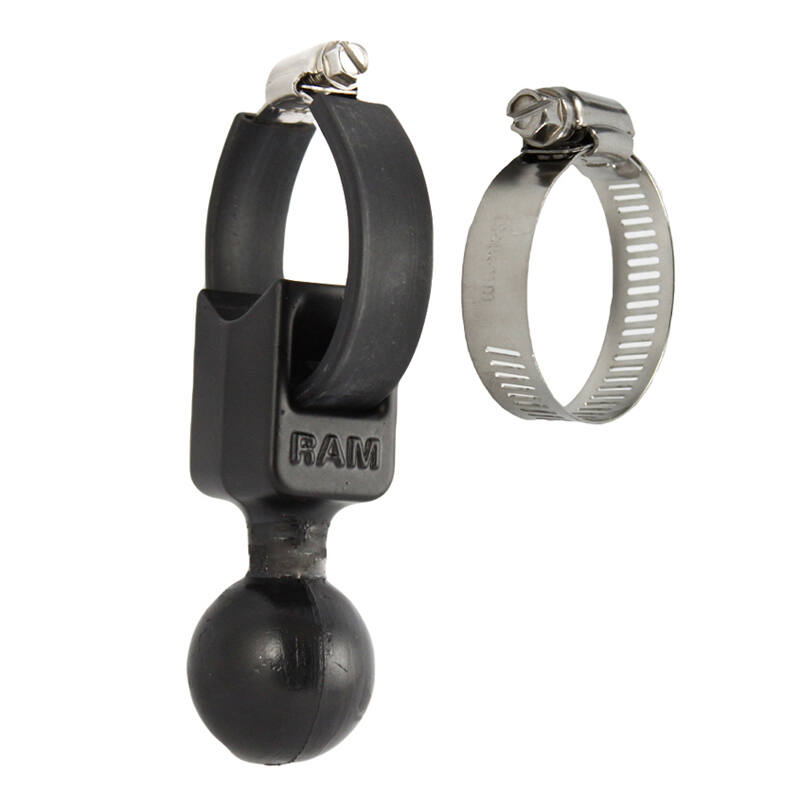

RAM-108BU 1.5" Ball Base with Strap 1" to 2.1" Diameter
