RAM Mounts

RAM U-Bolt Rail Handlebar Base and 9mm Hole Base - Short Arm

RAM U-Bolt Rail Handlebar Base and 9mm Hole Base - Short Arm

SKU:RAM-B-149Z-A-272U-v

Regular price $128.61 NZD
Regular price Sale price $128.61 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-149Z-A-272U RAM® Handlebar U-Bolt Double Ball Mount with 9mm Hole - SHORT ARM

Features

* Includes zinc-coated U-bolt base that accommodates rails from 12.7mm to 31.8mm (.5" to 1.25") for bicycle and motorcycle handlebars and other rails
* Angle plate features a 9mm hole designed to attach to a range of devices
* RAM® short length B size double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

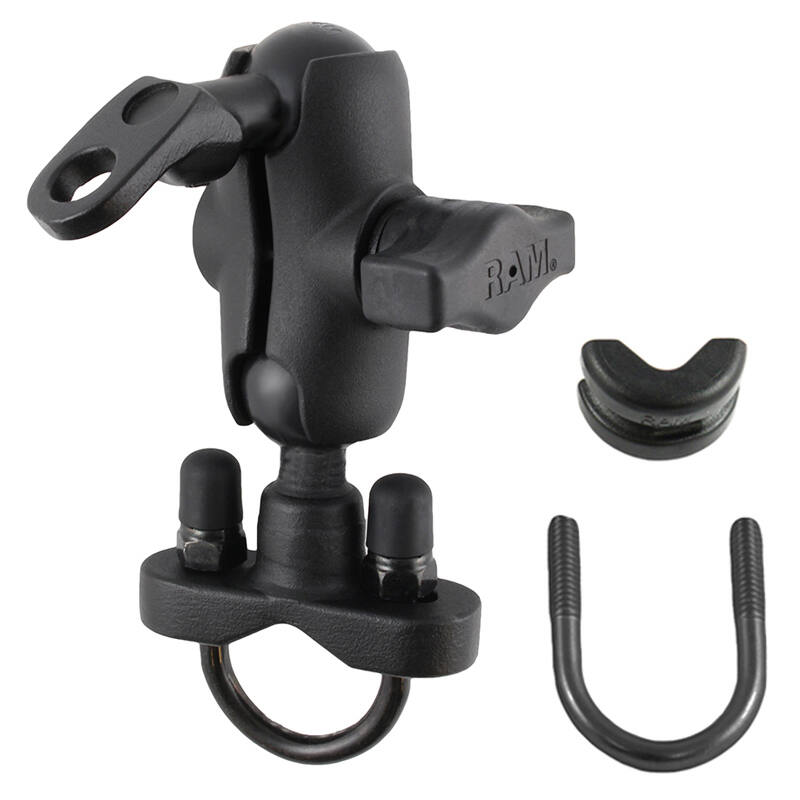

The RAM-B-149Z-A-272U consists of a zinc coated u-bolt base, short length double socket arm and 9mm Angled Bolt Head Adapter Ball Base.

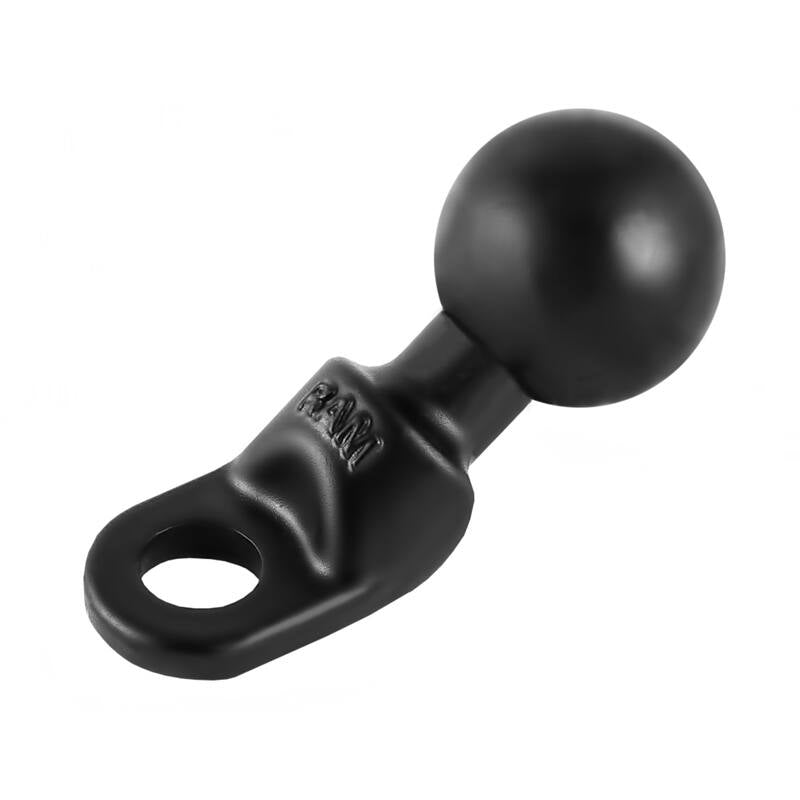

The angled Bolt Head Adapter Ball Base is a B size 1" rubber ball and mounting base measuring 1.18" x .75" x .2" with a 9mm hole.

Included in this package is hardware that will accommodate rails from 1.27cm to 3.18cm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.


The short (60.5mm) double socket alloy arm has a socket at both ends that accommodates 1", B-series ball bases. RAM socket technology allows for almost infinite adjustment and perfect viewing angles.

NOTE
This product does not include the pin spring


Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")

U-Bolt Dimensions:
1.27cm to 3.18cm (0.50" to 1.25" )

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

Weight:
286 grams (0.63 lbs.)


Components:

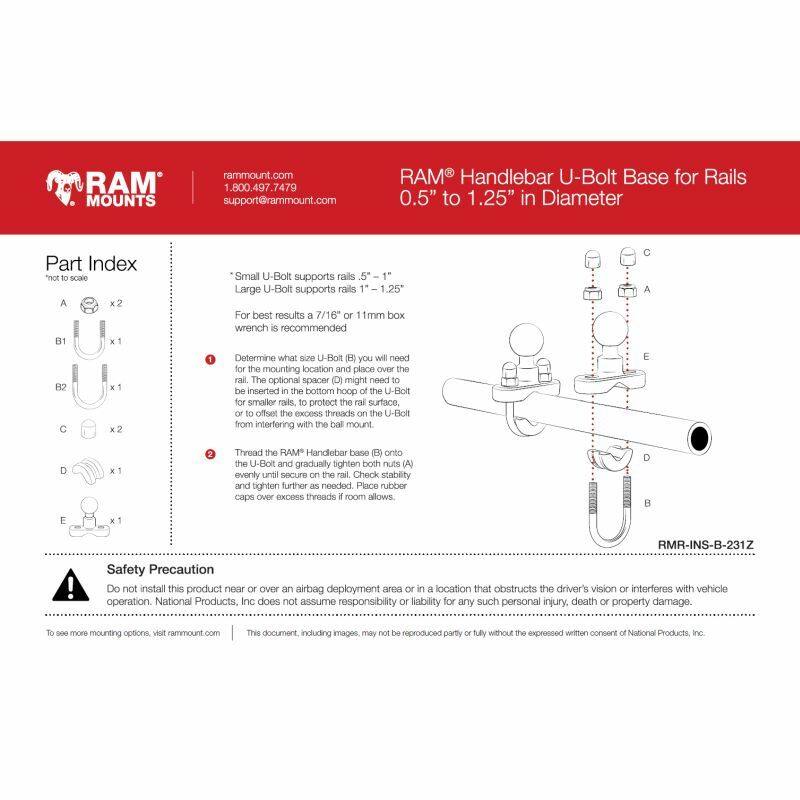

RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U-A DBL SOCKET ARM B BALL A LENGTH
RAM-B-272U MOTORCYCLE BASE WITH 9MM HOLE
