RAM Mounts

RAM U-Bolt Rail Handlebar Base (Double) with 2 Arms & Round Plate

RAM U-Bolt Rail Handlebar Base (Double) with 2 Arms & Round Plate


Regular price $258.16 NZD
Regular price Sale price $258.16 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

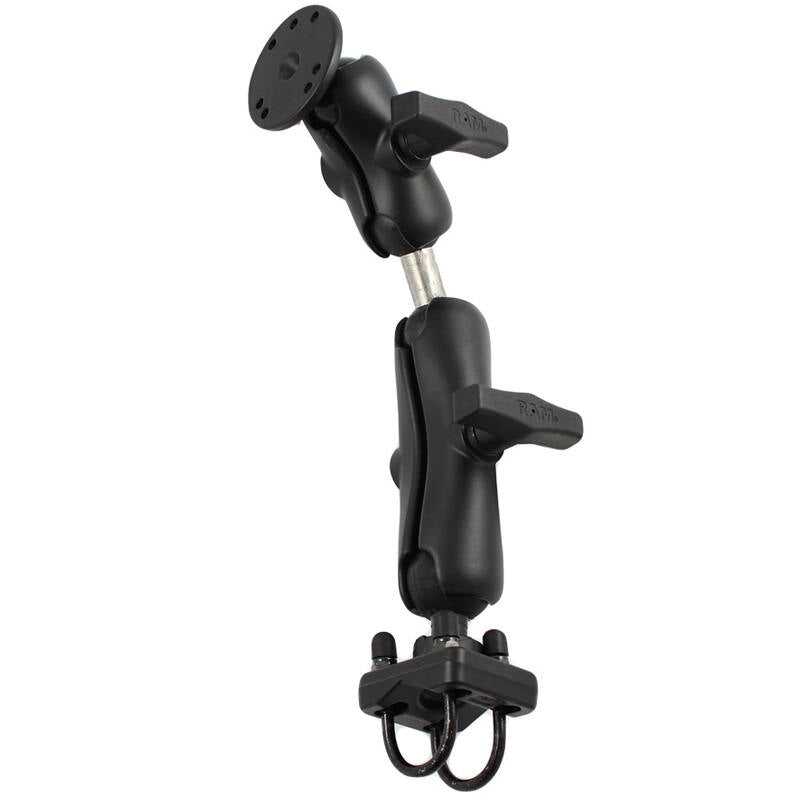

RAM-101U-UK2 RAM® Double U-Bolt Mount with Double Ball Adaptor

Need a little more height and adjustment than a long arm can provide - look no further.

The RAM-101U-UK2 consists of a 147mm standard double socket arm, , double ball adaptor, 89 mm short arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 25-32mm (1" to 1.25") in diameter.

Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Hardware Included
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

Clamp Range
25.4mm to 31.75mm / 1" - 1.25" diameter

Socket-to-Socket Length
Medium Arm: 118mm / 4.66"
Short Arm: 63.5mm / 2.5"

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Ball/Socket Size
C Size (1.5")

Weight Capacity
1.814kg / 4 lbs

Marine-grade aluminium

1.04kg / 2.3 lbs.

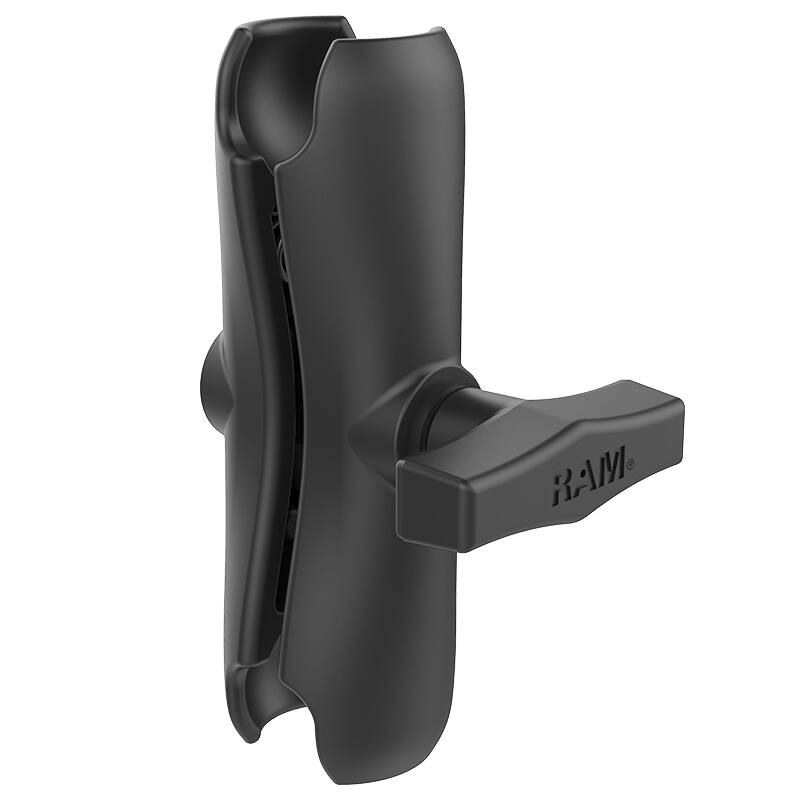

RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
RAM-235U RAM Double U-Bolt Base with 1.5" Ball for Rails from 19mm to 31mm in Diameter

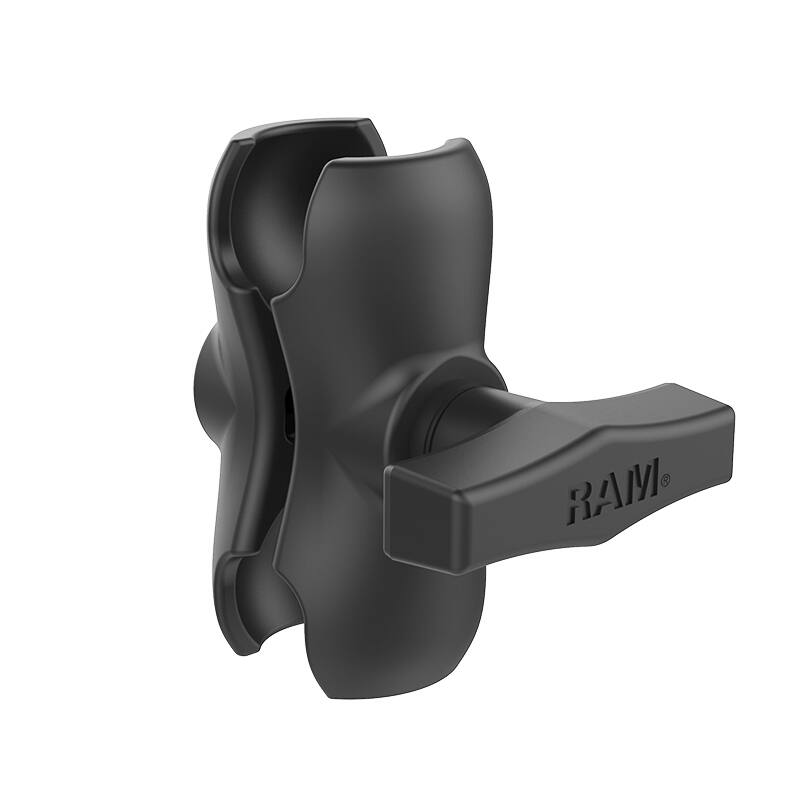

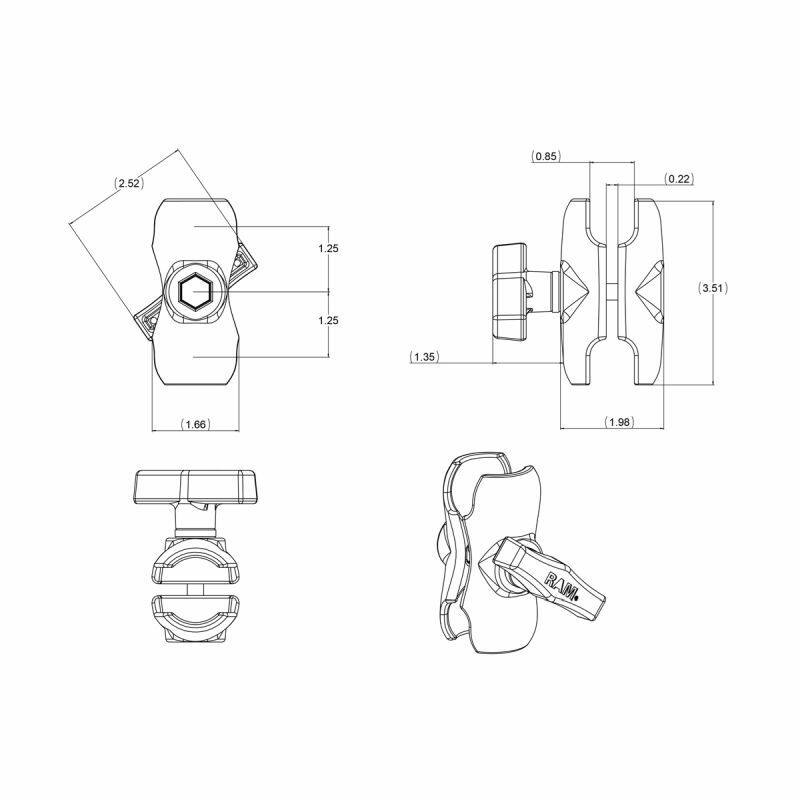

RAM-201U-B RAM short 1.5" (C-Series) Alloy Arm

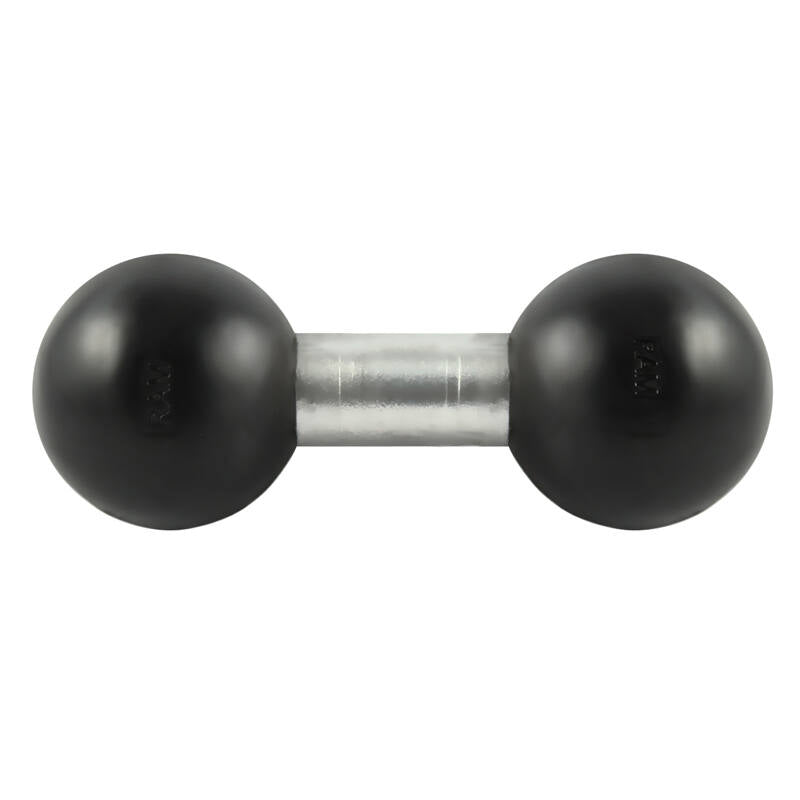

RAM-230U RAM 1.5" Double Ball Adapter
