RAM Mounts

RAM Square 75mm VESA Plate with Double U-Bolt Rail Handlebar Base

RAM Square 75mm VESA Plate with Double U-Bolt Rail Handlebar Base

SKU:RAM-334U-v

Regular price $166.87 NZD
Regular price Sale price $166.87 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

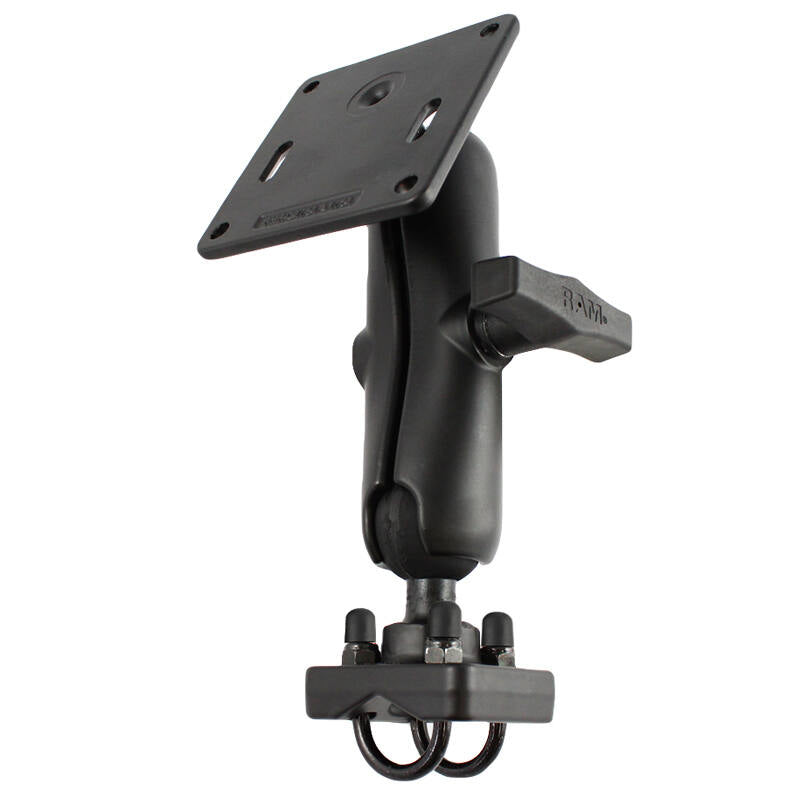

RAM-334U RAM® Double U-Bolt Mount with 75x75mm VESA Plate for 1 - 1.25" Rails

FEATURES
* Square plate features the VESA hole pattern for connection to a wide variety of devices
* Included C size 1.5" RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Double U-bolt provides rock steady mounting to any bar or tube 25.4mm to 31.75mm diameter
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

The RAM-334U consists of a double socket arm, 3.625" square base with the VESA hole pattern and stainless steel double u-bolt base that will fit pipes from 25.4mm to 31.75mm in diameter. The VESA base includes a 75mm X 75mm hole pattern.

Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for .75" - 1" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

U-Bolt Dimensions:
25.4mm to 31.75mm (1 to 1.25")diameter

SOCKET-TO-SOCKET LENGTH
118mm (4.66")

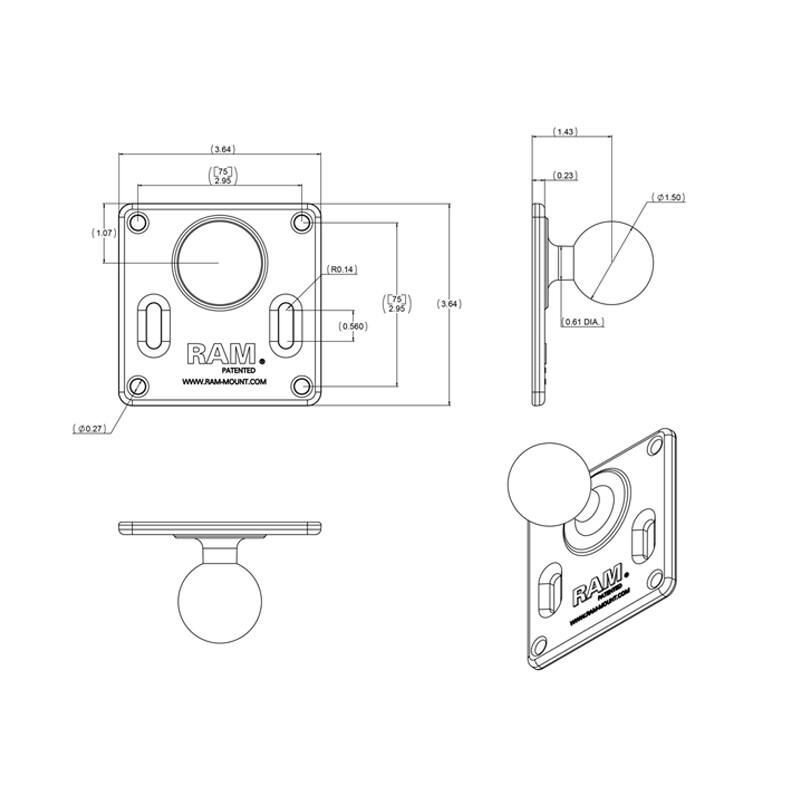

SQUARE PLATE HOLE PATTERN
75 x 75mm VESA

PLATE SIZE
92.1 x 92.1mm (3.625 x 3.625")

BALL/SOCKET SIZE
C Size (1.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)

MATERIALS
Marine-grade aluminium

WEIGHT
726 grams (1.6 lbs.)


Components:
RAM-201U Standard Double Socket Arm for 1.5" Balls

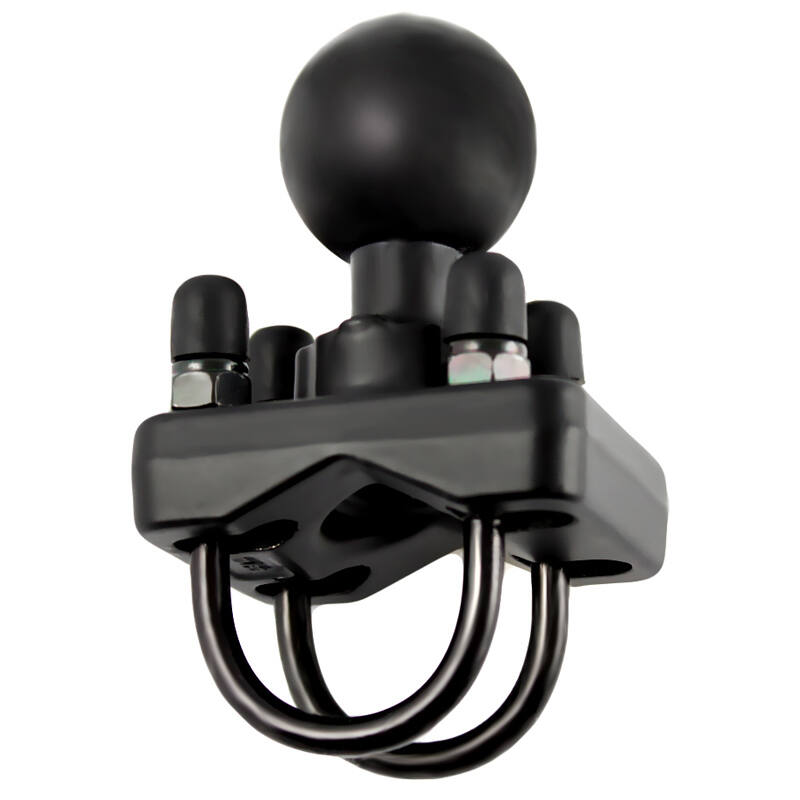

RAM-235U Double U-Bolt Base with 1.5" Ball for Rails from 19mm to 31mm in Diameter

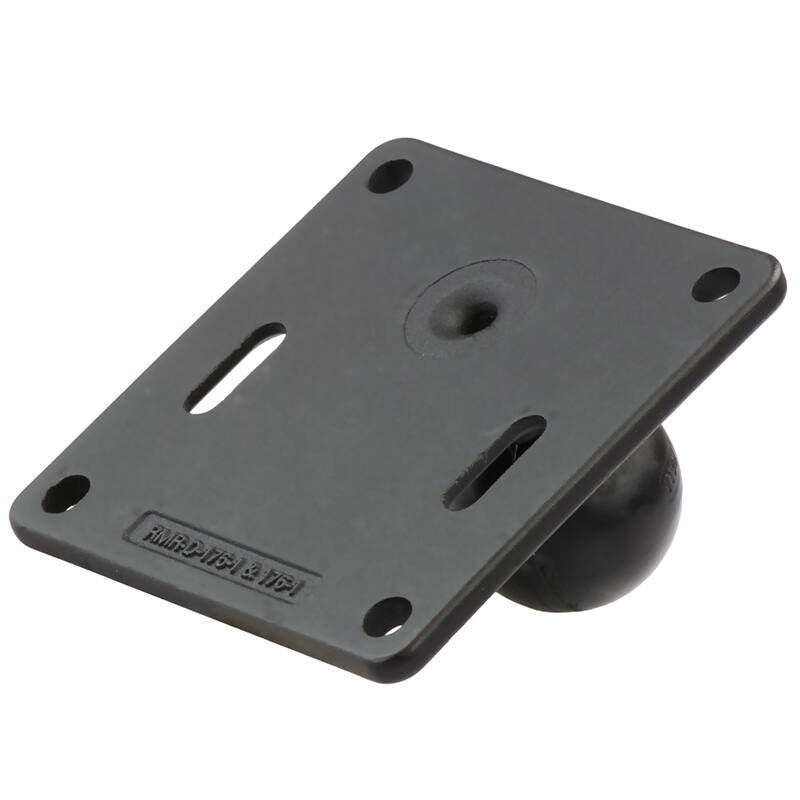

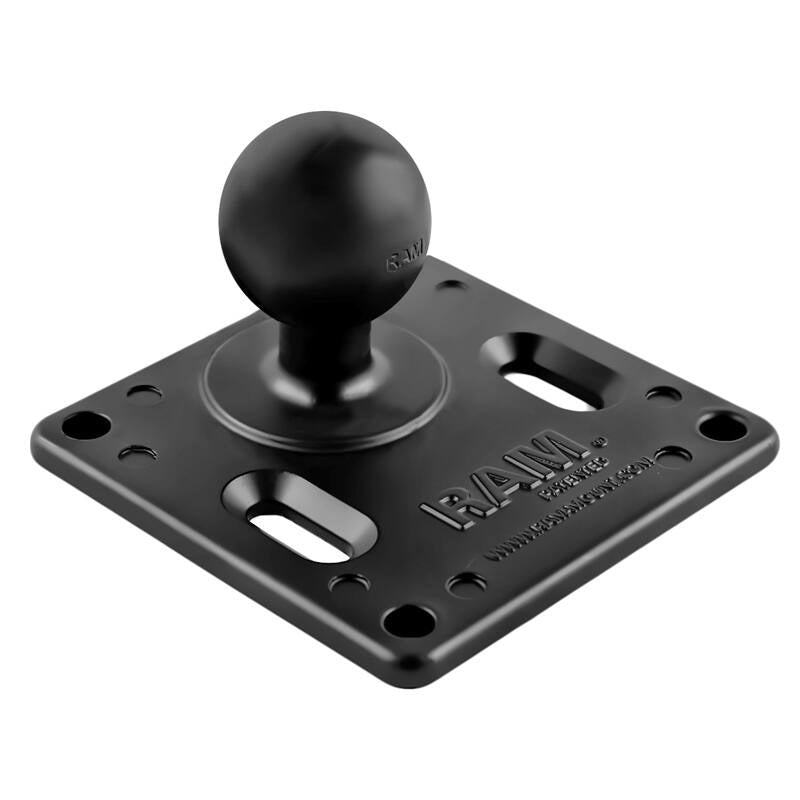

RAM-2461U 90MM VESA PLATE STD BALL
