RAM-B-101-235U RAM® Double U-Bolt Rail Mount for Smaller Rails - B Size Medium
Features
* Double Stainless-Steel U-bolt mount will securely mount to rails / handlebars 25-32mm in diameter
* B size RAM® arm with ball and socket technology allows for near-infinite adjustability
* RAM round base with the universal AMPS hole pattern will connect to most RAM cradles
* Made of powder-coated marine-grade aluminum with stainless steel components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

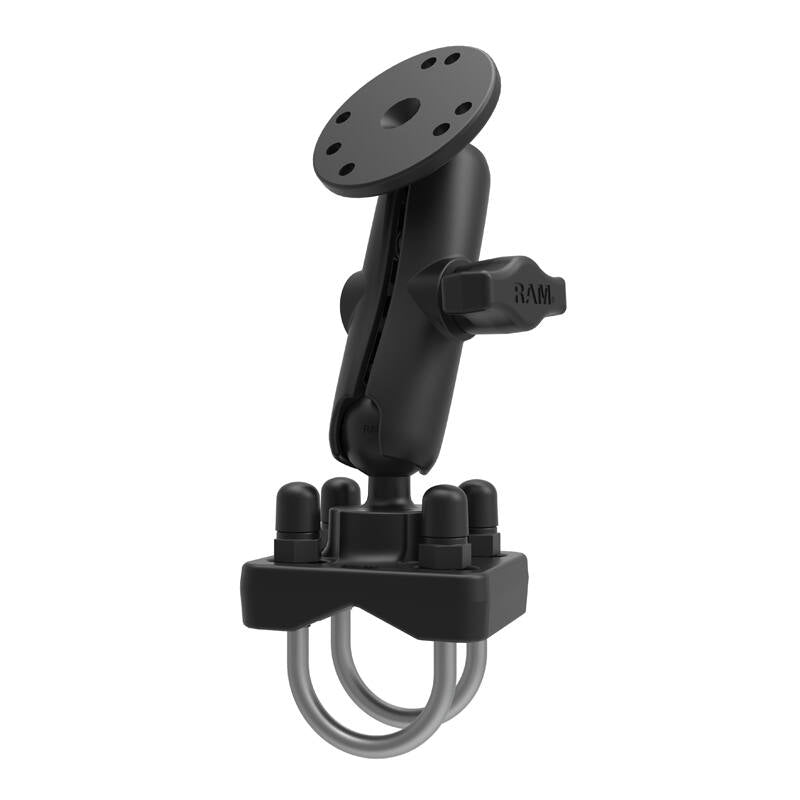

The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 25-32mm in diameter.
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
U Bolt Base Dimensions
25.4mm - 31.75mm (1" to 1.25") diameter
Material:
Powder Coated Marine Grade Aluminium
Round Plate Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Arm Length
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Ball Size:
B Size 1" Rubber Ball
Weight:
394 grams (0.87 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

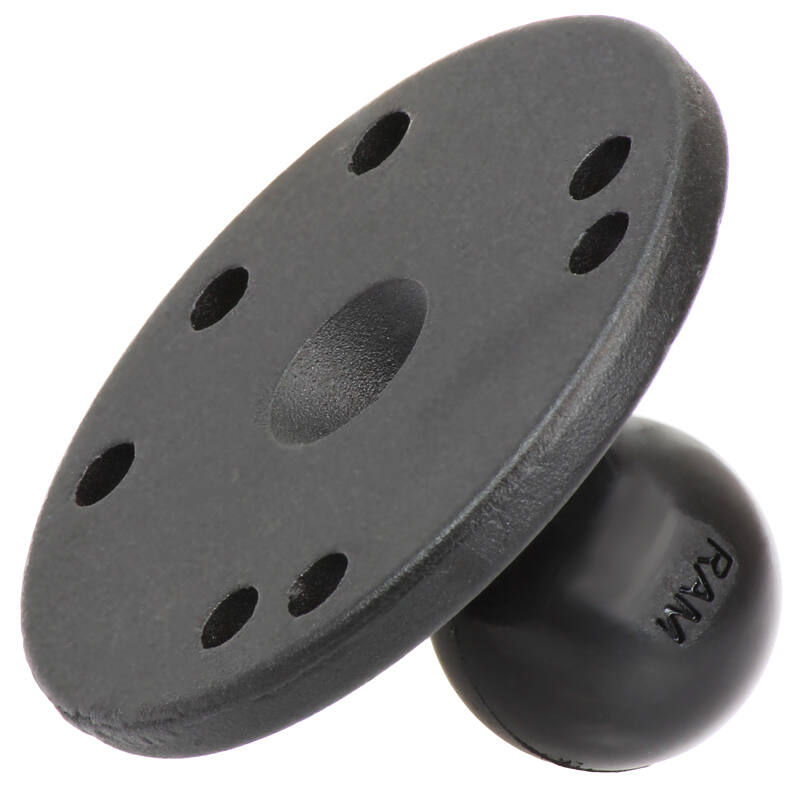

RAM-B-202U - 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball
RAM-B-201U - Double Socket Arm for B Size 1" Balls

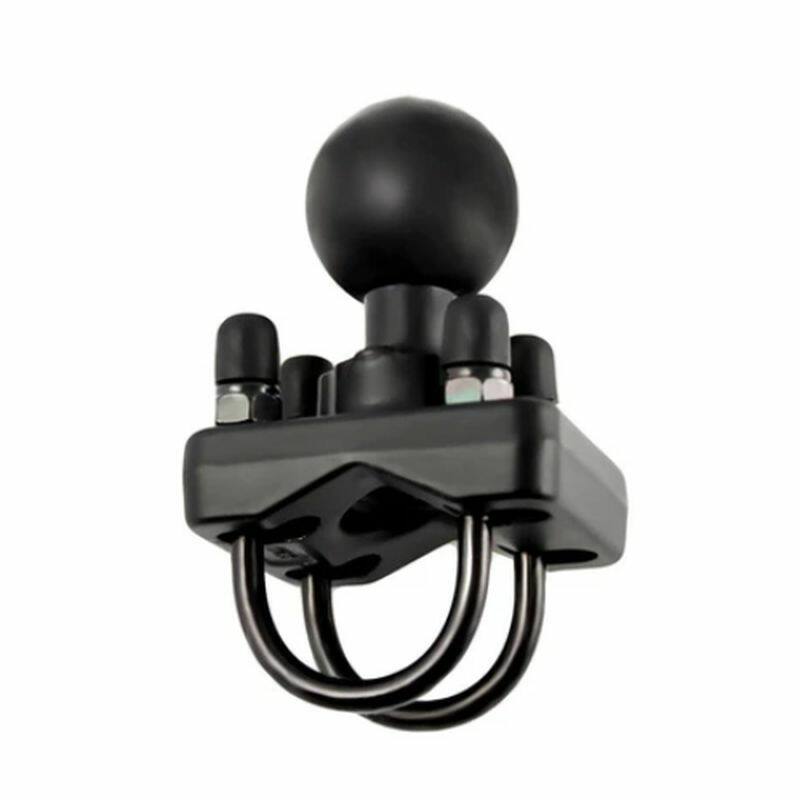

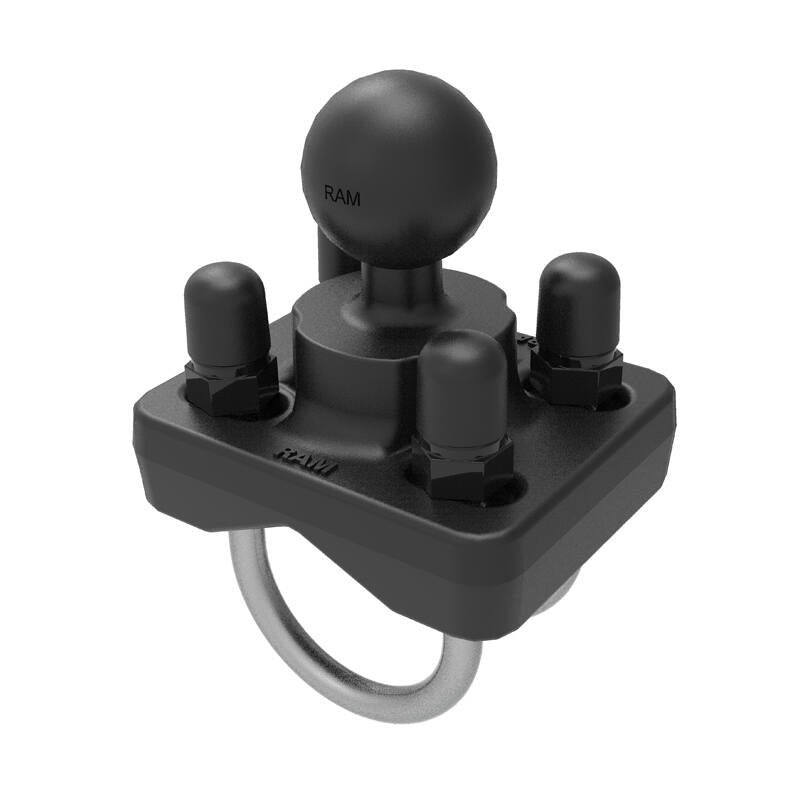

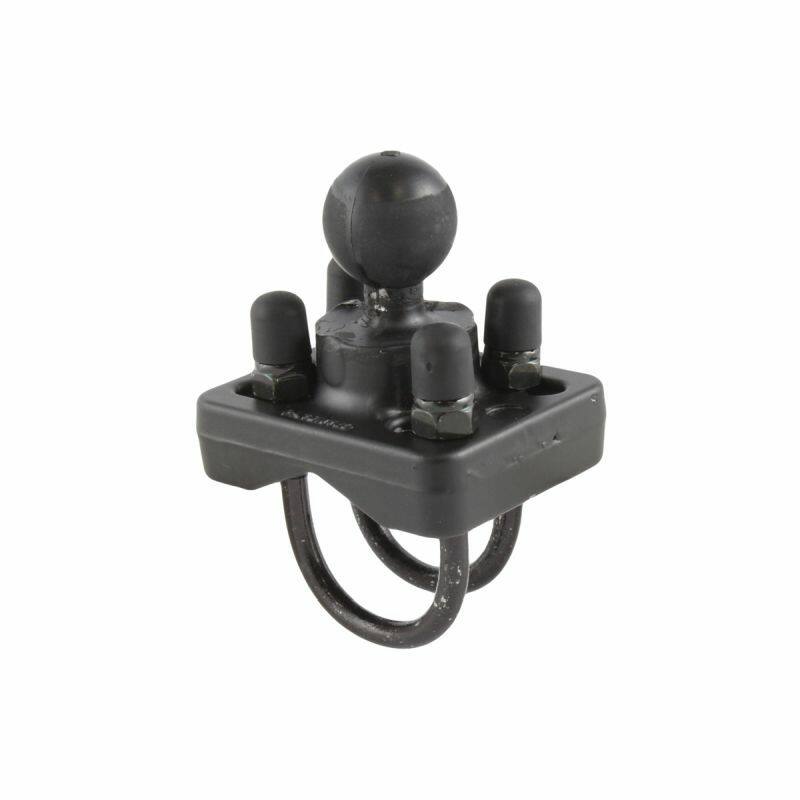

RAM-B-235U - RAM DBL U-BOLT BASE W/ 1" BALL
