RAM Mounts

RAM U-Bolt Rail Handlebar Base (Double) with Arm & Round Plate (C Series)

RAM U-Bolt Rail Handlebar Base (Double) with Arm & Round Plate (C Series)

SKU:RAM-101U-235-v

Regular price $154.21 NZD
Regular price Sale price $154.21 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

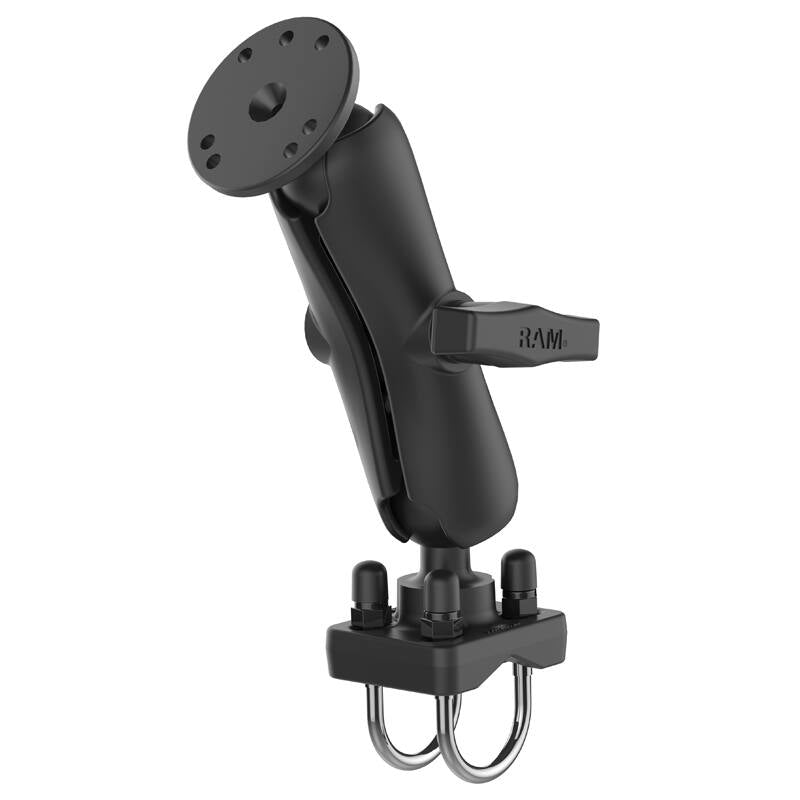

RAM-101U-235 RAM® Double U-Bolt Rail Mount for Smaller Rails

Features

* Stainless steel double U-bolt base accommodates rails from 25.4 to 31.75mm (1 to 1.25") in diameter
* Included RAM® C size RAM® double socket arm is 143mm overall
* Round plate includes 3 and 4 hole AMPs patterns
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder-coated marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

The RAM-101U-235 consists of a 147mm standard double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 25-32mm (1" to 1.25") in diameter. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

U-Bolt Dimensions:
Accommodates rails from 25.4mm - 31.8mm (1" to 1.25") in diameter


Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

3-Hole AMPS 120- Degree
1.812” (46.0mm)


Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")



Material:
Powder Coated Marine Grade Aluminium


Ball Size:
C Size 1.5" Rubber Ball


Weight:
662 grams (1.46 lbs.)

Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)

YouTube:
https://www.youtube.com/watch?v=sihcgjafFI4


Components:
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

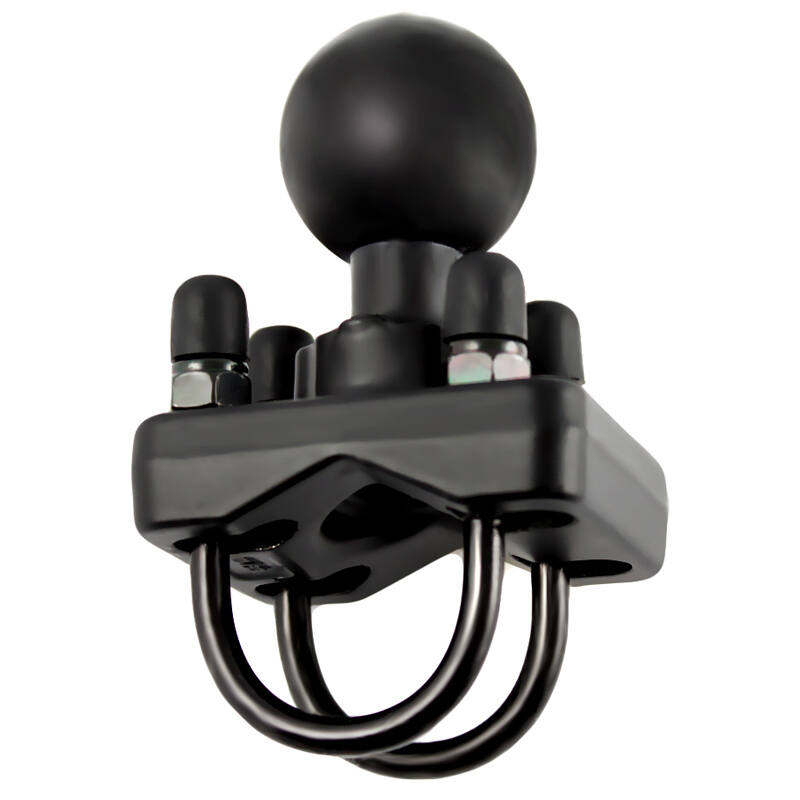

RAM-235U RAM Double U-Bolt Base with 1.5" Ball for Rails from 19mm to 31mm in Diameter
