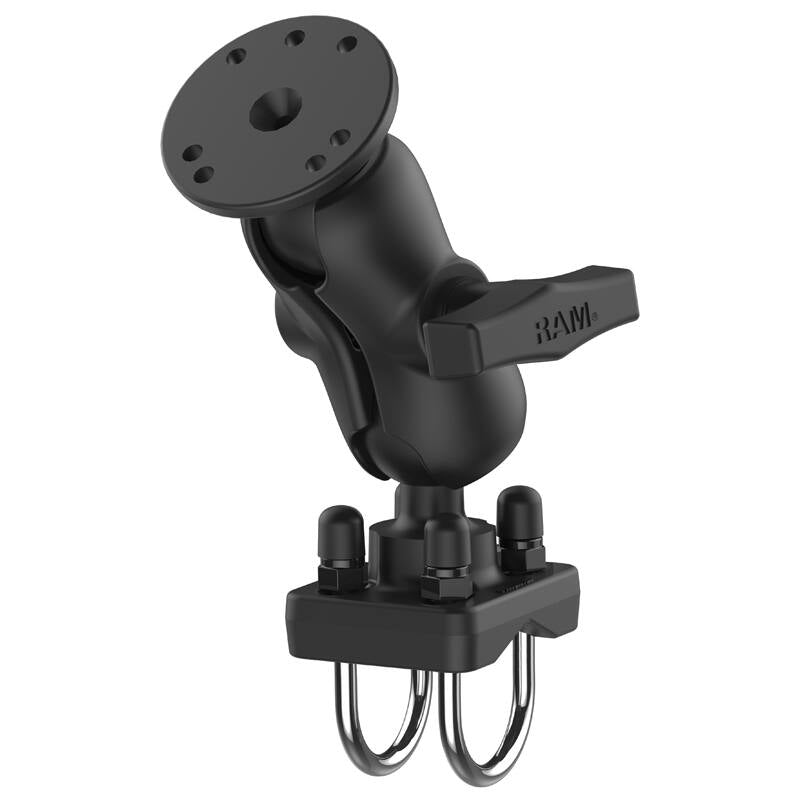

RAM-101U-B-235 RAM® Double U-Bolt Rail Mount with Short Arm & Round AMPS Plate
The RAM-101U-B-235 pairs a stainless steel double U-bolt base for 25.4mm-31.75mm rails with a short double socket arm and a 2.5" round AMPS plate, C size ball throughout.
Key Features

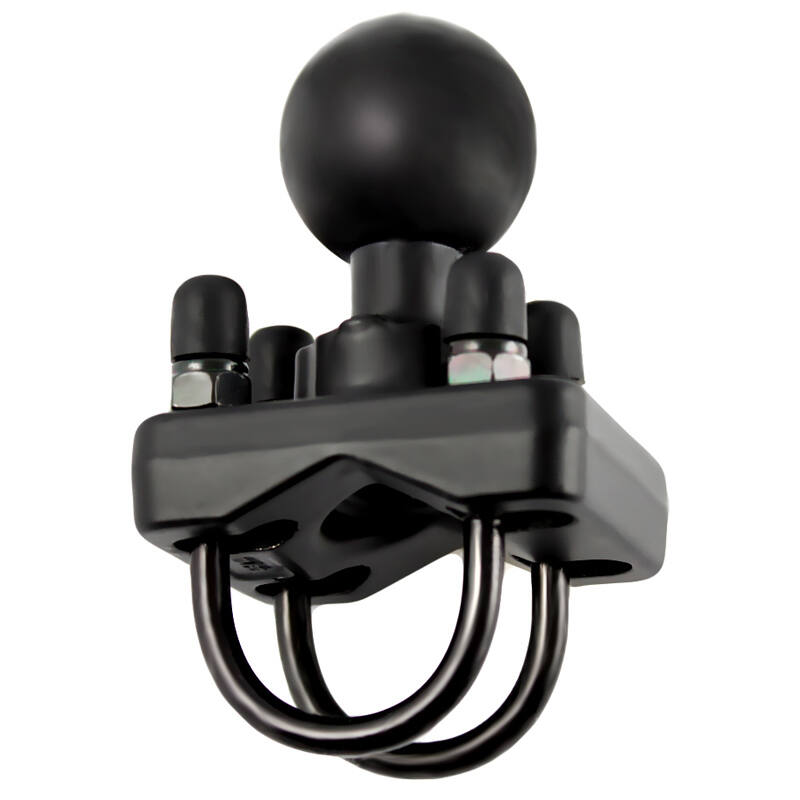

Stainless steel double U-bolt base accommodates rails 25.4-31.75mm (1"-1.25") in diameter
Short C size RAM® double socket arm for a compact fit
63.5mm round plate with universal AMPS hole pattern connects to most RAM® cradles
Stainless steel and powder-coated marine-grade aluminium construction
Backed by a lifetime warranty
Works With
Any RAM® device holder with a 4-hole or 3-hole AMPS pattern. Fits rails and handlebars 25.4mm to 31.75mm (1"-1.25") in diameter.
Dimensions & Specifications
Rail diameter: 25.4mm–31.75mm (1"–1.25")
4-hole AMPS pattern: 1.181" x 1.496" (30mm x 38mm)
3-hole 120° AMPS pattern: 1.812" (46.0mm)

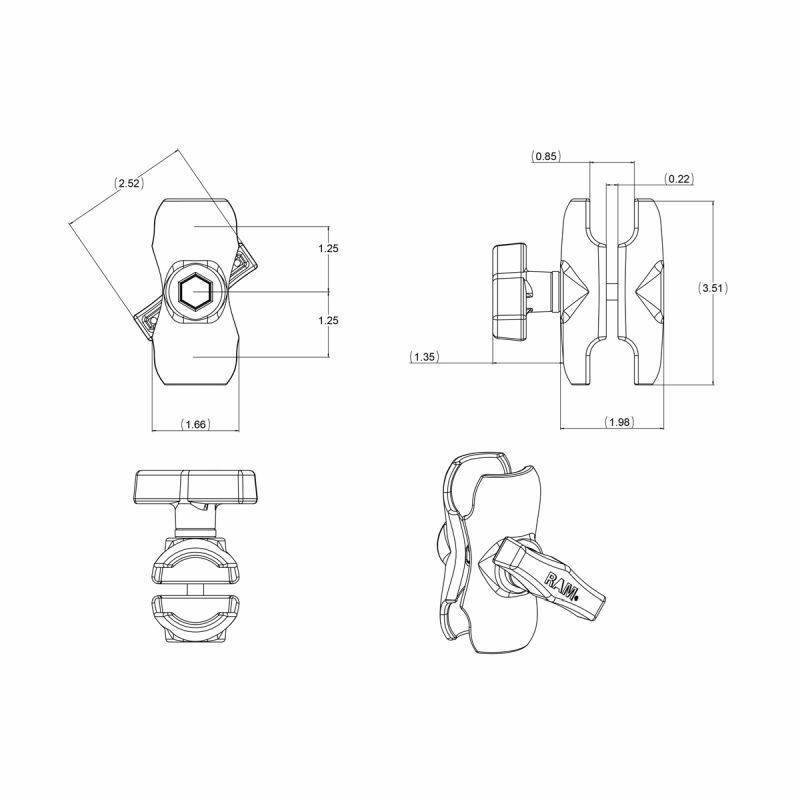

Arm length overall: 90mm (3.56"); socket-to-socket: 63.5mm (2.5")
Ball size: C size (1.5")
Weight: 558g (1.23 lbs)
Weight capacity — standard use: 1.814kg (4 lbs)
Weight capacity — heavy-duty use: 1.36kg (3 lbs)

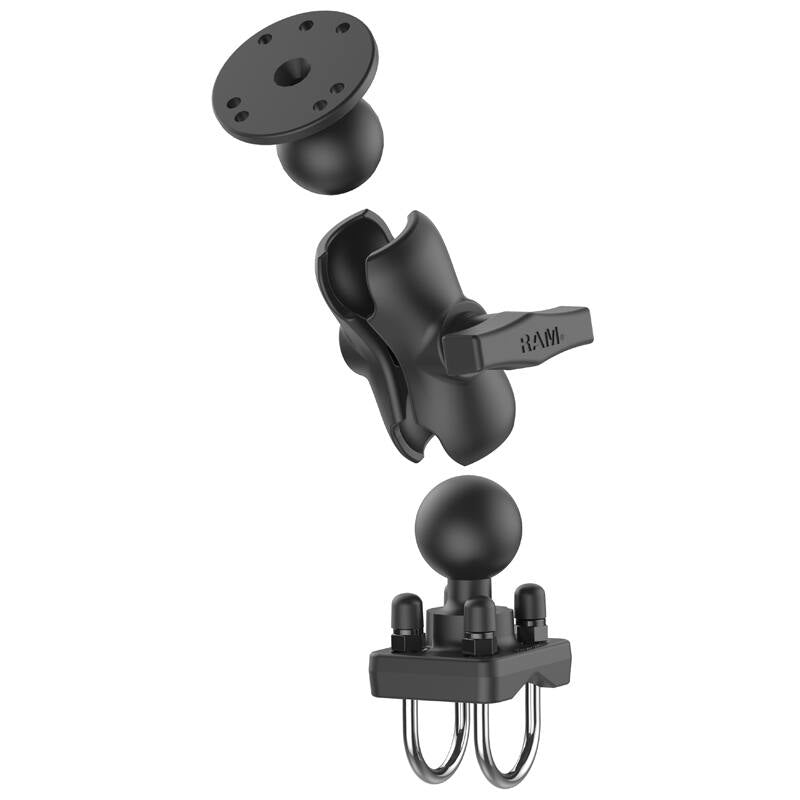

Components: RAM-201U-B short double socket arm (1.5" balls), RAM-202U 2.5"/63mm round base (1.5" ball), RAM-235U double U-bolt base for rails 25.4mm–31.75mm (1"-1.25") in diameter.
FAQs
What's the difference between this and RAM-101U-235? This uses a shorter arm (90mm vs 143mm overall) for a more compact mount — same base, plate, and ball size otherwise.
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
