RAM Mounts

RAM U-Bolt Rail Handlebar Base with C Series Ball (Stainless) - 12.5 to 25mm

RAM U-Bolt Rail Handlebar Base with C Series Ball (Stainless) - 12.5 to 25mm


Regular price $50.82 NZD
Regular price Sale price $50.82 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

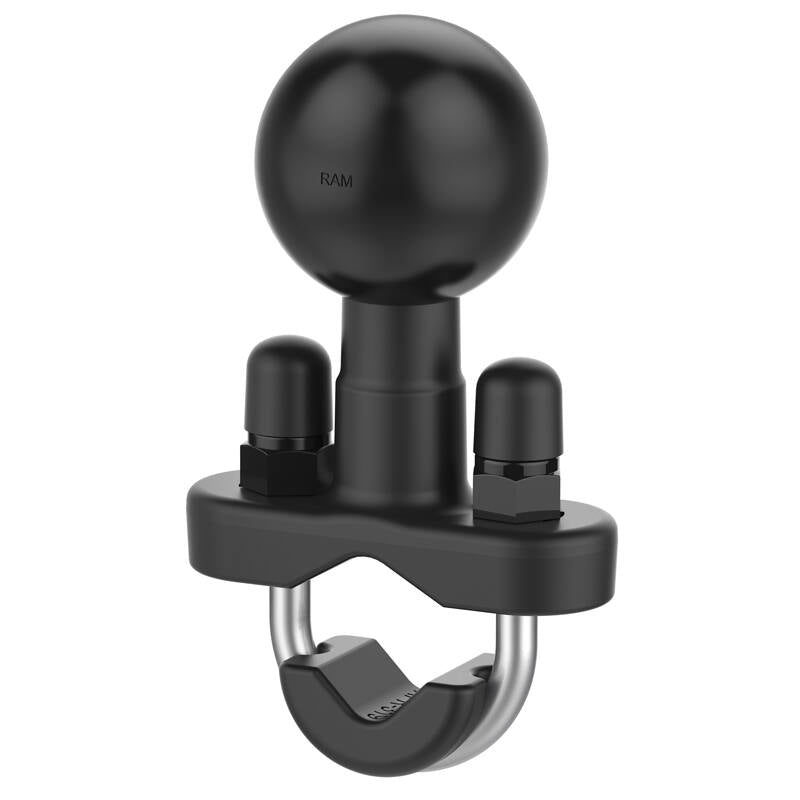

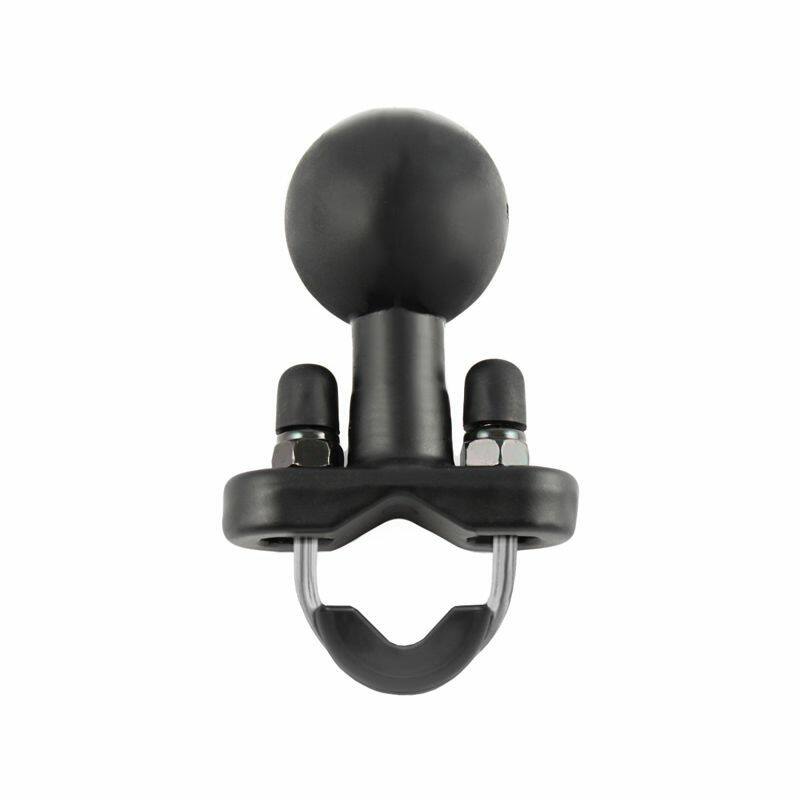

RAM-231U RAM® Handlebar U-Bolt Base for Rails 12.5 to 25mm in Diameter - C Size


* Stainless steel metal U-bolt base with 1.5" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
* Accommodates rails in 12.5mm to 25mm in diameter.
* Compatible with any C size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

The RAM motorcycle handlebar base contains a 1.5" "C-size" rubber ball at right angles to the mounting rail and a stainless steel U-Bolt clamp.

The stainless steel u-bolt accommodates rails in diameter from 12.5 to 25mm in diameter. Also includes black caps to cover the exposed ends of the u-bolt and a composite adaptor that can narrow the rail to a minimum width of 12.5mm.

Specs & Features

U-Bolt Dimensions:
Accommodates rails from 12.5 to 25.2mm (0.5” to 1”) in diameter.

Powder Coated Marine Grade Aluminium

Ball Size:
1.5" Rubber Ball Size

132 grams (0.29 lbs.)

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
