RAM U-Bolt Rail Handlebar Base with Diamond Plate - Medium Arm - Stainless

RAM U-Bolt Rail Handlebar Base with Diamond Plate - Medium Arm - Stainless

SKU:RAM-B-149U-v

Regular price $96.21 NZD
Regular price Sale price $96.21 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

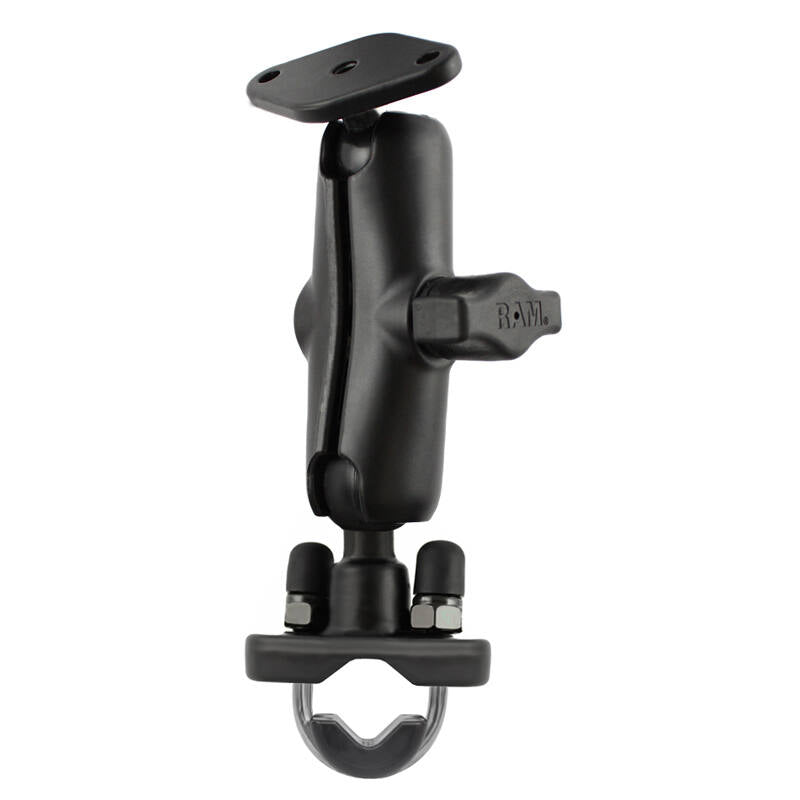

RAM-B-149U RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium Stainless Steel

Features

* Includes U-Bolt base, medium double socket arm and diamond ball base
* Diamond plate features industry-standard AMPS hole pattern and measures 61.7mm x 33.3mm (2.43" x 1.31")
* Compatible with several RAM® device holders and cradles; ball and socket technology allows for near-infinite adjustability
* Stainless steel metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


This consists of a stainless coated u-bolt base, double socket arm and diamond adapter base.

The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

Included in this package is a U-bolt base that will accommodate rails from 12.7mm to 31.8mm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 12.7mm / 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.


Specs & Features

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

U-Bolt Dimensions:
12.7mm to 31.8mm (0.50" to 1.25")

Diamond Plate Hole Pattern
2-Hole AMPS: 1.912" (48.5mm)

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size


Weight:
0.286kg (0.63 lbs.)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Components:
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL

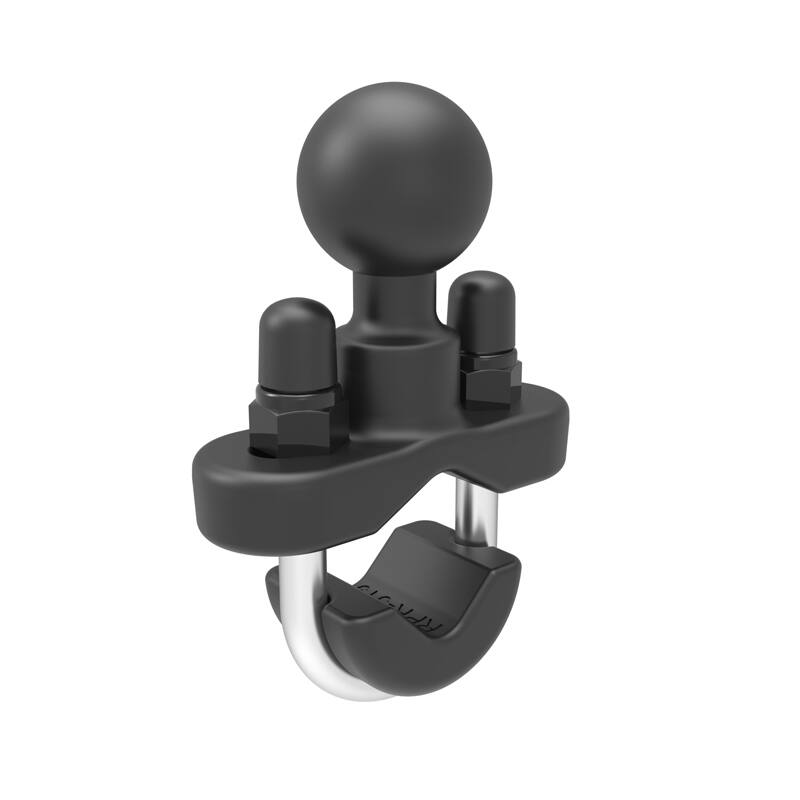

RAM-B-231U RAM Rail Base with Stainless Steel U-Bolt
