RAM U-Bolt Rail Handlebar Base with Medium Arm and Round Base - B series

RAM U-Bolt Rail Handlebar Base with Medium Arm and Round Base - B series

Regular price $95.03 NZD
Regular price Sale price $95.03 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-149Z-202U RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - B Size Medium


Features

* 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
* Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

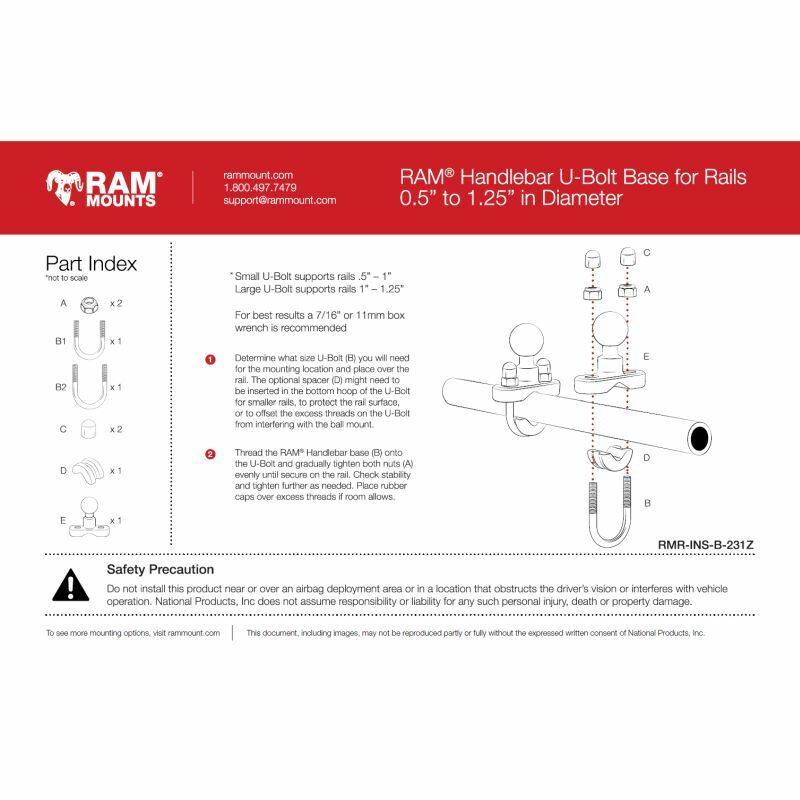

The RAM-B-149Z-202U consists of a zinc coated U-bolt base, MEDIUM double socket arm and round base adapter.

The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

The U-Bolt base accommodate rails from 12.7 to 31.8mm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 12.7mm ( 0.5”). The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.


Specs & Features

Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter

U-Bolt Dimensions:
12.7 to 31.8mm (0.5" to 1.25") in diameter.

Material:
Powder Coated Marine Grade Aluminium

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

Ball Size:
1" Rubber Ball "B" Size

Weight:
295 grams (0.65 lbs.)


Components:
RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
