RAM-B-149Z-C-347U RAM® Handlebar U-Bolt Double Ball Mount with Rectangle AMPS Plate
Features
* Includes zinc-coated U-bolt base that accommodates rails from 12.7mm to 31.8mm in diameter, medium length B size RAM® double socket arm
* RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
* Square plate has 4 hole AMP's pattern which suits devices including Garmin Zumo, TomTom and Magellan
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

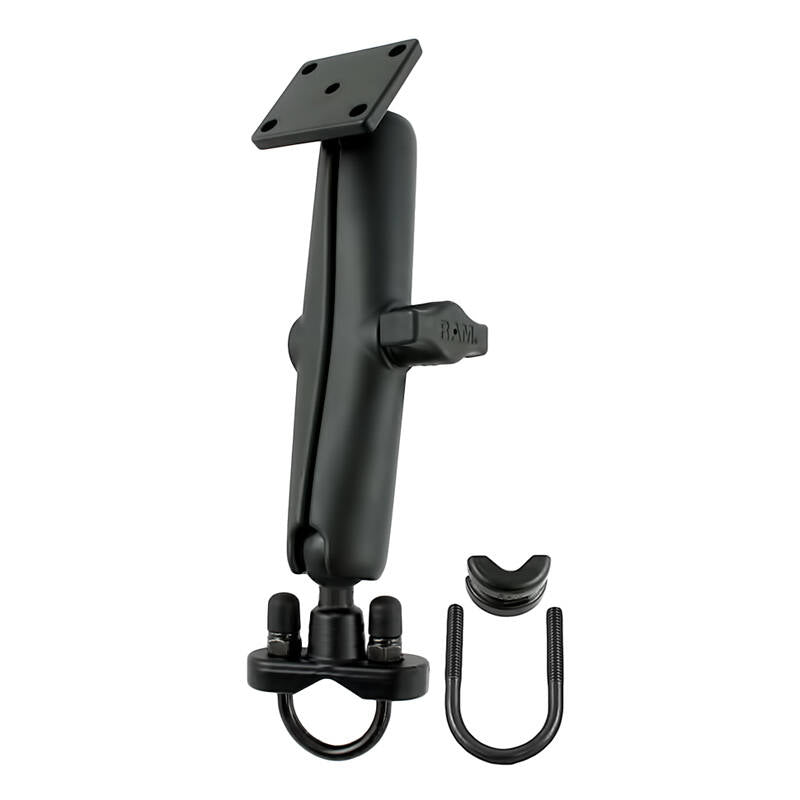

The RAM-B-149Z-C-347U consists of a zinc coated u-bolt base, LONG double socket arm and square adapter base that contains the universal AMPS hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The square adapter base contains four pre-drilled holes at each corner, making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Compatible devices include
Garmin
dezl OTR1000
GPSMAP 276Cx
Tread
zumo 390LM
zumo 396 LMT-S
zumo 400
zumo 450
zumo 500
zumo 550
zumo 590
zumo 595LM
zumo 660
zumo 665
zumo XT
zumo XT2
Magellan
TRX7
TRX7 CS
Road
Tech Zumo 590
Tech Zumo 660
Tech Zumo 665
TomTom
Rider 2
Urban Rider
Trail
Tech Voyager Pro
Square Plate Hole pattern
4-Hole AMPS: 1.181" x 1.496"
U-Bolt Dimensions:
13mm to 32mm in diameter (0.50" to 1.25")
Arm Dimensions:
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)
Material:
Powder Coated Marine Grade Aluminium
WEIGHT CAPACITY
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Ball Size:
1" Rubber Ball "B" Size
Components:

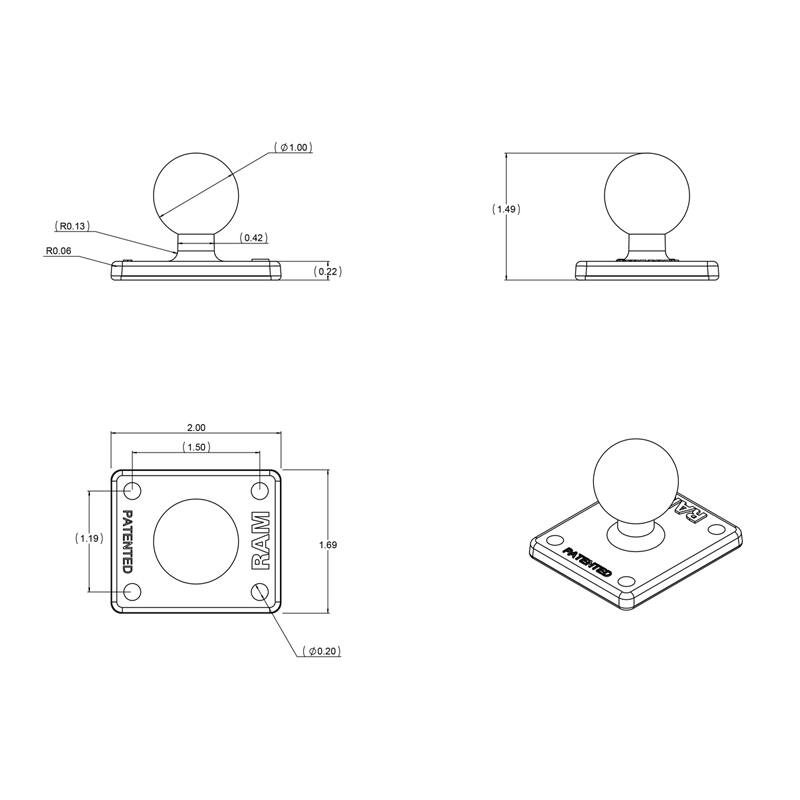

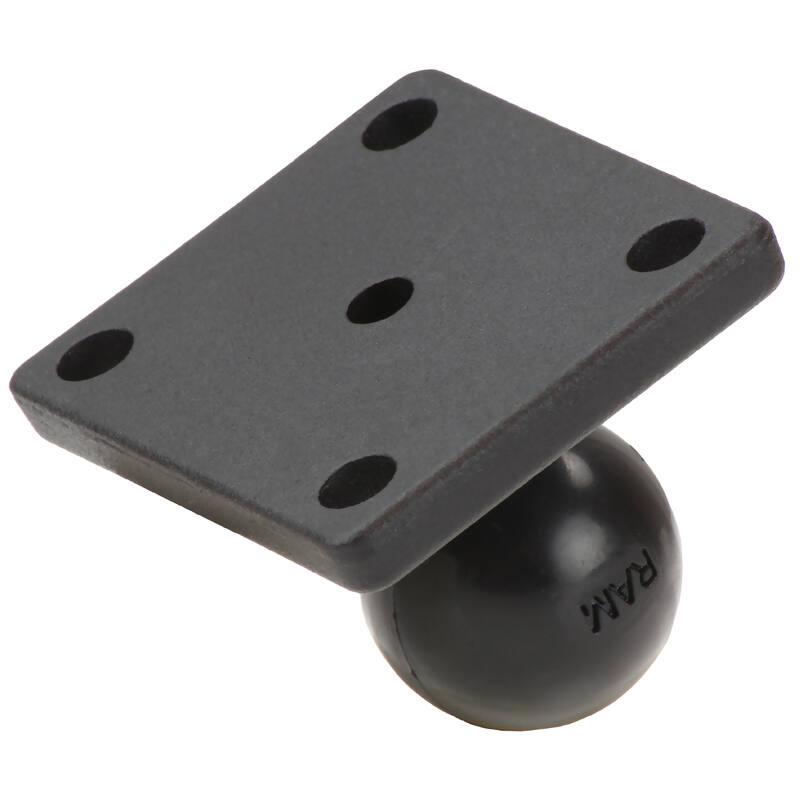

RAM-B-347U RAM 50 x 43mm" Base with 1" Ball that Contains the Universal AMPs Hole Pattern

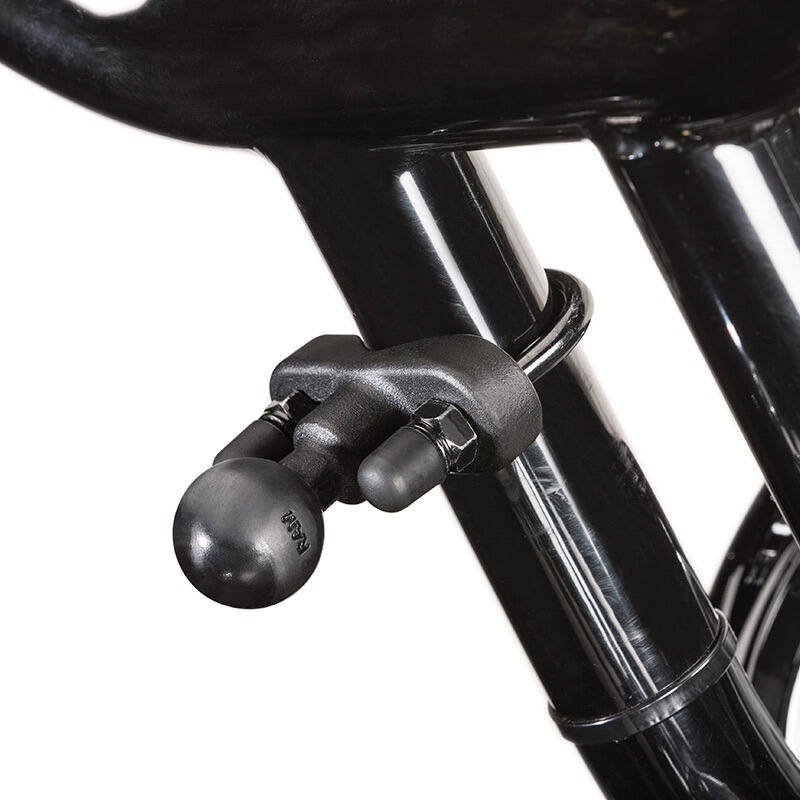

RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U-C LONG DOUBLE SOCKET ARM FOR 1" BALL
