RAM Mounts

RAM U-Bolt Rail Handlebar Base with Round Amps Plate (D Series 2.25" Ball)

RAM U-Bolt Rail Handlebar Base with Round Amps Plate (D Series 2.25" Ball)

SKU:RAM-D-254-C-235U-v

Regular price $284.98 NZD
Regular price Sale price $284.98 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

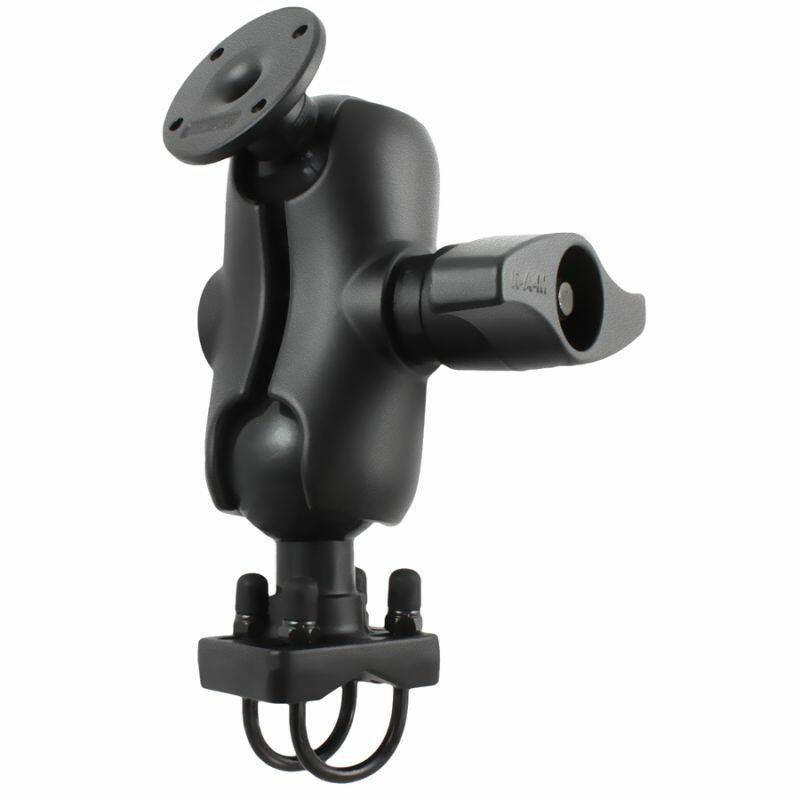

RAM-D-254-C-235U RAM® Double U-Bolt Rail Mount with Round AMPS Plate

Features

* 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
* Double U-Bolt accommodates rails from 25.4 to 31.75mm diameter
* Included D size RAM® double socket arm has ball and socket technology for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


This consists of the double U-Bolt rail mount, with a short arm and a round base plate with AMPS hole pattern.


The rail/post base consists of a double u-bolt base with 2.25" diameter ball and two stainless steel u-bolts. The double u-bolt base will accommodate rails from 25.4 to 31.75mm (1 to 1.25") in diameter.


Note: This mount includes stainless steel u-bolts for preventing rust of the mount and black cover caps to be placed over the exposed ends of the u-bolt.


The short double socket arm, has a socket at both ends that accommodates 2.25" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

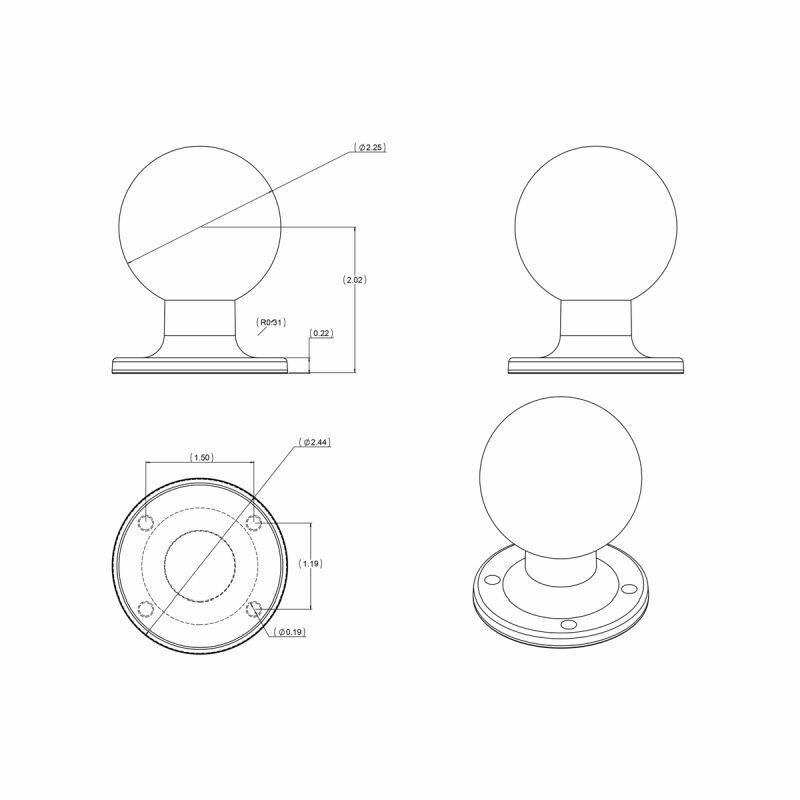

The 61.9mm (2.4375") round plate incorporates the 4-Hole AMPS pattern to connect to most RAM cradles. It also includes two holes at 180 degrees.

Specs & Features


Round Base Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)


U-Bolt Dimensions:
Accommodates rails from 25.4 to 31.75mm (1.0" to 1.25") in diameter


Arm Dimensions:
Overall Length:
128.6mm (5.0625")
Socket-To-Socket Length:
87.0mm (3.1875")


HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps



Ball Size:
D Size 2.25" Rubber Ball


Weight:
390 grams (2.85 lbs)


Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)


Material:
Powder Coated Marine Grade Aluminium


Components:

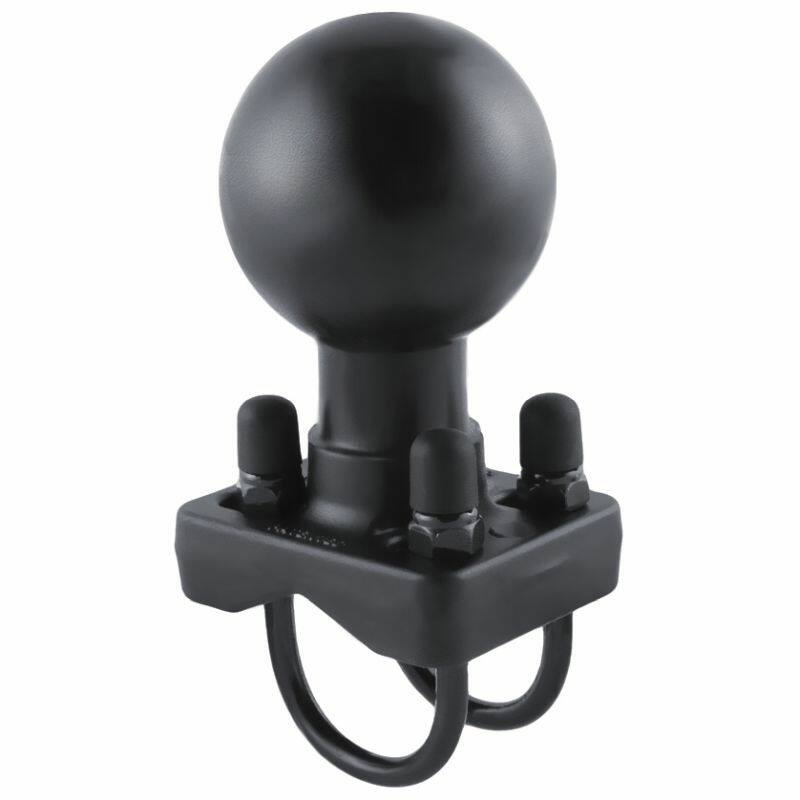

RAM-D-235U RAM W/ 2 U-BOLTS FOR 3/4 TO 1 1/4

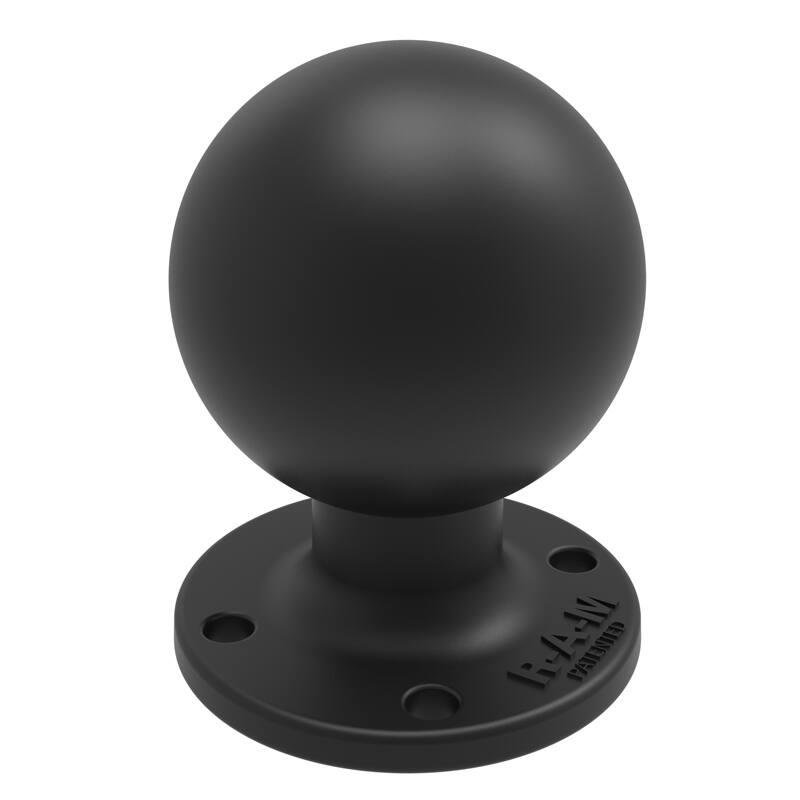

RAM-D-254U Round Plate with 2.25"/57mm D Sized Ball

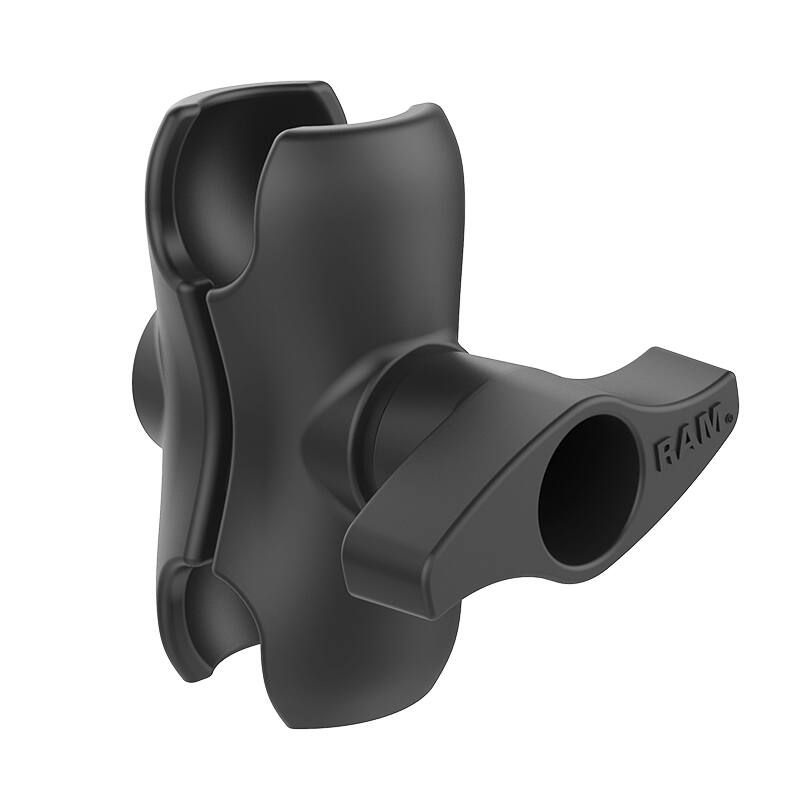

RAM-D-201U-C Short Double Socket Arm D Size 2.25" / 57mm
