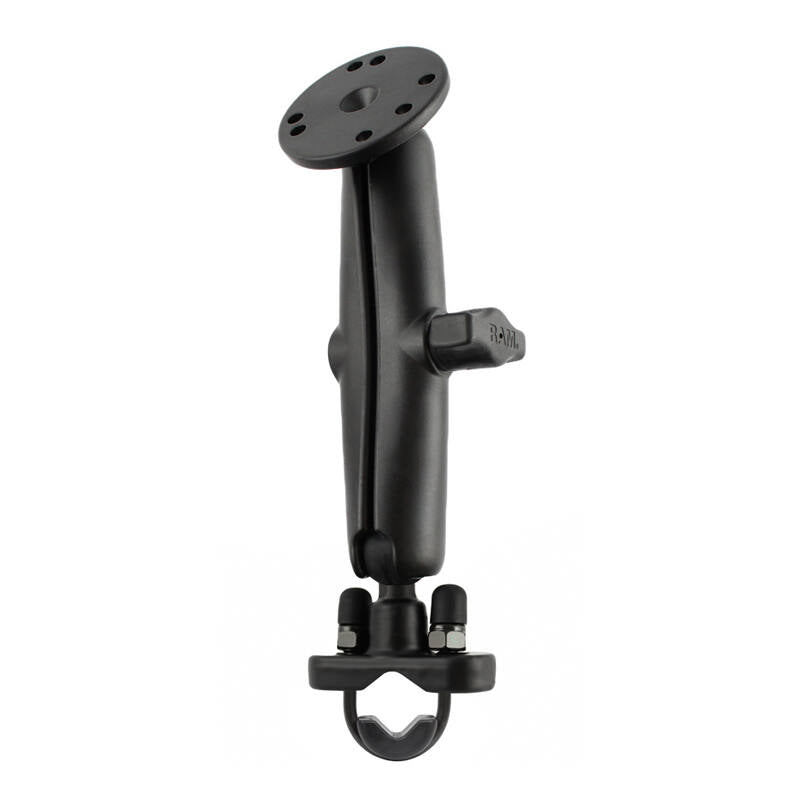

RAM-B-101-C-231ZU RAM® Handlebar U-Bolt Double Ball Mount with Round Plate and Long Arm
Features

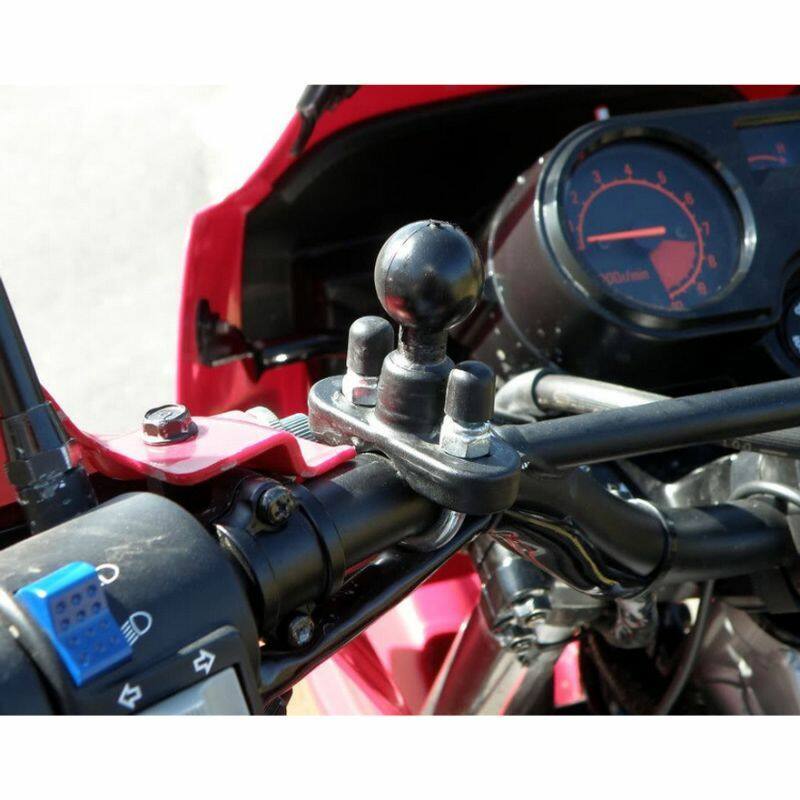

* Includes zinc-coated U-bolt base that accommodates rails from 12.7mm to 31.8mm (.5" to 1.25") for bicycle and motorcycle handlebars and other rails
* 63mm round plate connects to RAM® device holders containing the universal AMPS hole pattern
* RAM® long length B size double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-B-101-C-231ZU consists of a zinc coated u-bolt base, 152mm long double socket arm and 63.5mm diameter round base that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 12.7mm to 31.75mm (0.50" to 1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 12.7mm (0.5".)
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Hardware Included
(1) 1/4"-20 x 1.75" U-Bolt
(1) 1/4"-20 x 2.5" U-Bolt
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
Clamp Range
12.7mm to 31.75mm (.5" - 1.25") diameter
Socket-to-Socket Length
135mm (5.31")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Ball/Socket Size
B Size (1")
Weight Capacity
907 grams (2 lbs)
Materials
Marine-grade aluminium
Weight
456 grams (1.0 lbs.)
Components:
RAM-B-201U-C RAM DBL SOCKET ARM B BALL C LENGTH
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL

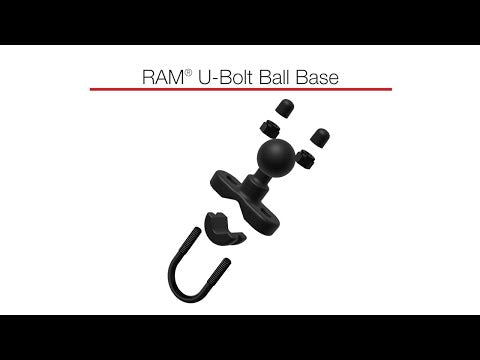

RAM-B-231ZU RAM RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
