RAM Mounts

RAM U-Bolt Rail Handlebar Base with Short Arm and Round Base - C series

RAM U-Bolt Rail Handlebar Base with Short Arm and Round Base - C series

SKU:RAM-149Z-B-202U-v

Regular price $130.74 NZD
Regular price Sale price $130.74 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

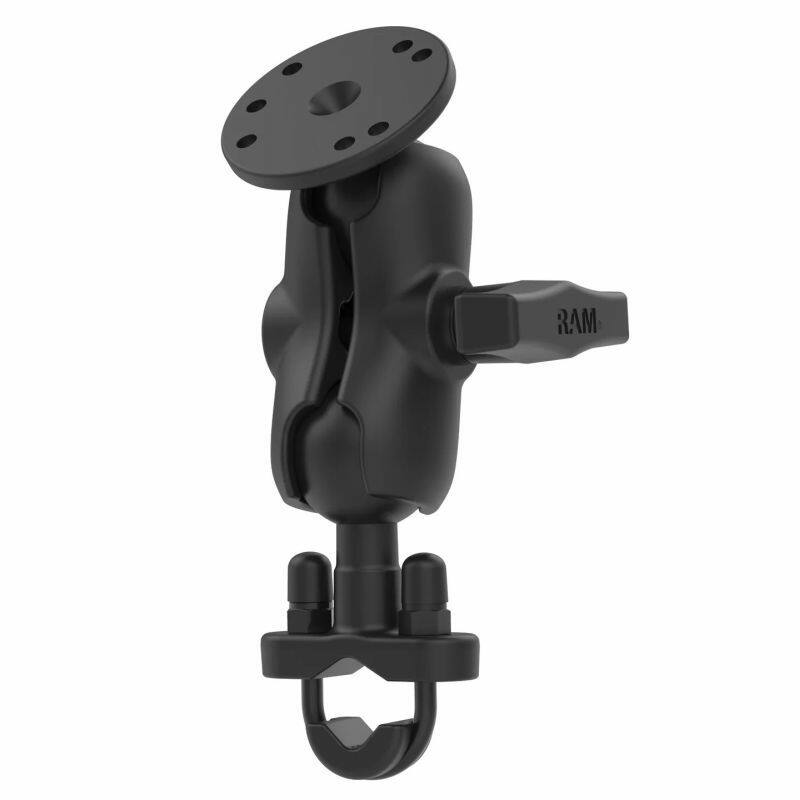

RAM-149Z-B-202U RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short


Features

* Motorcycle or ATV/UTV handlebar/rail mount ideal for attaching a tablet holder
* Includes, C size (1.5") 4-hole round RAM® ball adapter containing the universal AMPS hole pattern and a short length double socket arm
* U-bolt base that accommodates rails from 12.7 to 31.75mm in diameter
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty



Overview
The RAM® Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc coated u-bolt base, short C size double socket arm and C size RAM® round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® Mount and/or third party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 12.7 to 31.75mm (0.50" to 1.25") in diameter.

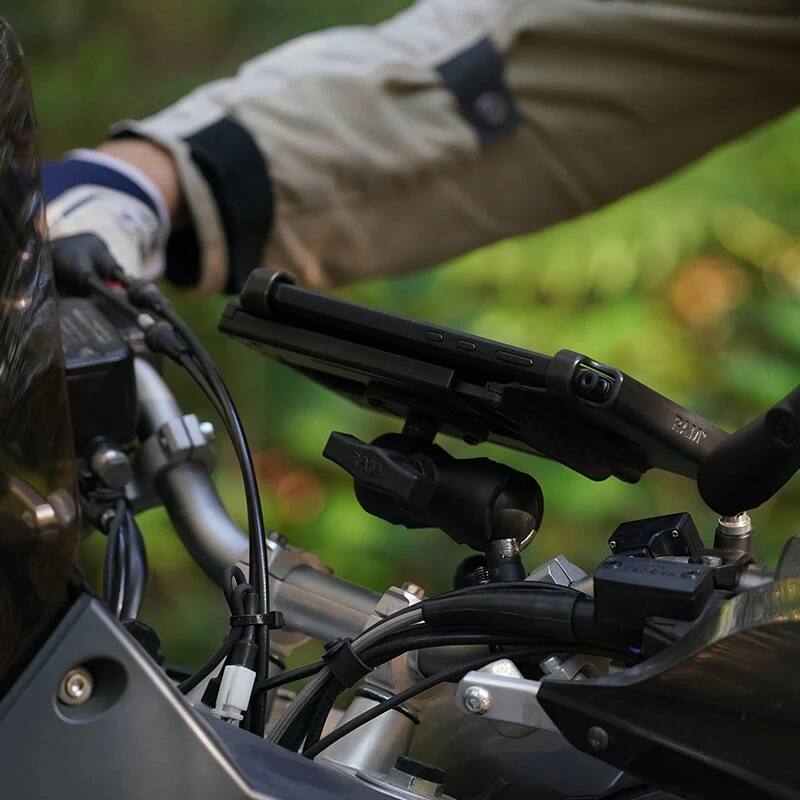

A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM® C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/UTV vehicle.


Hardware included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Clamp range
12.7 to 31.75mm (0.50" to 1.25")diameter

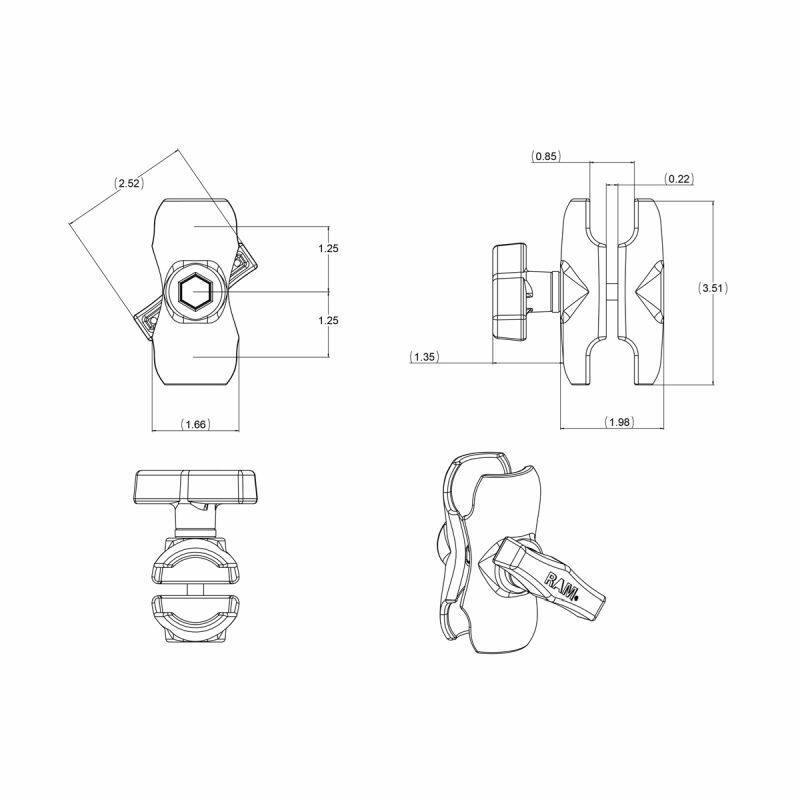

Arm Dimensions
Overall Length:
90 mm (3.56")
Socket-To-Socket Length:
63.5 mm (2.5")


Hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Ball size
C Size (1.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Materials
Marine-grade aluminium

Weight
462 grams (1.02 lb)

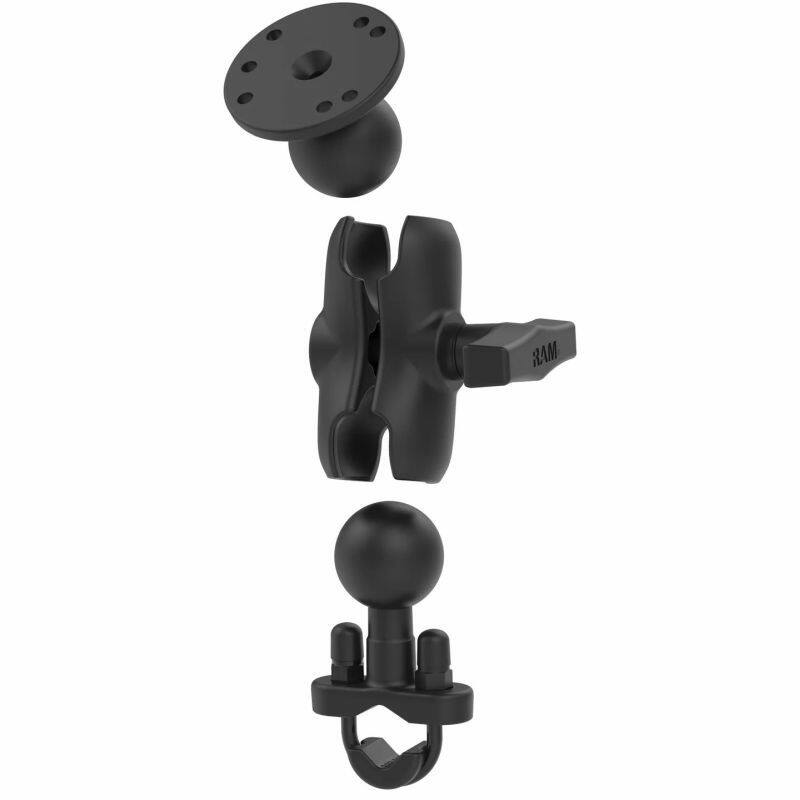

Components:

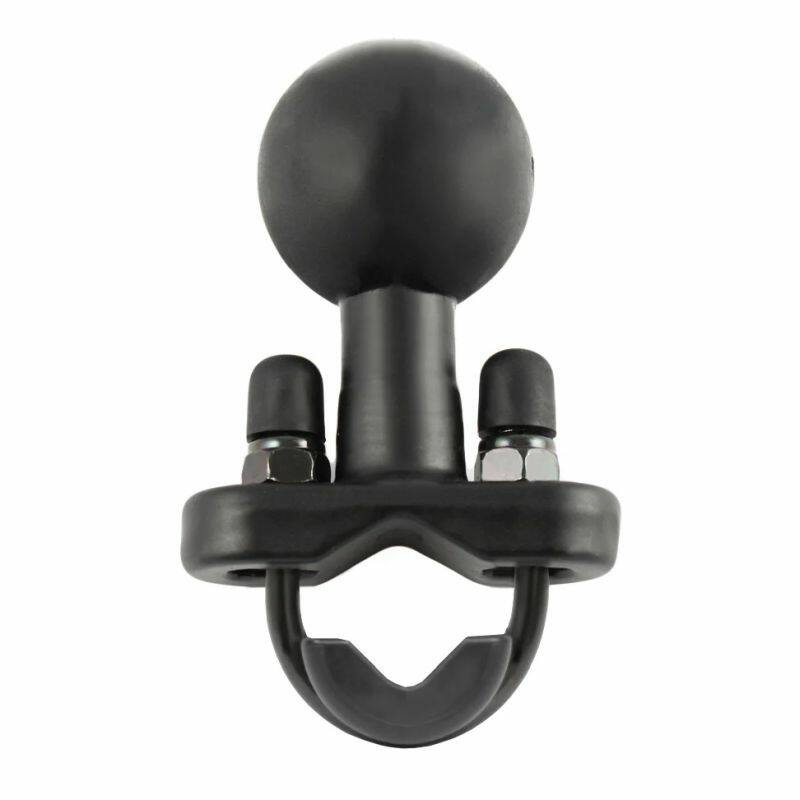

RAM-231ZU RAM Large U-bolt mount with 1.5" Ball

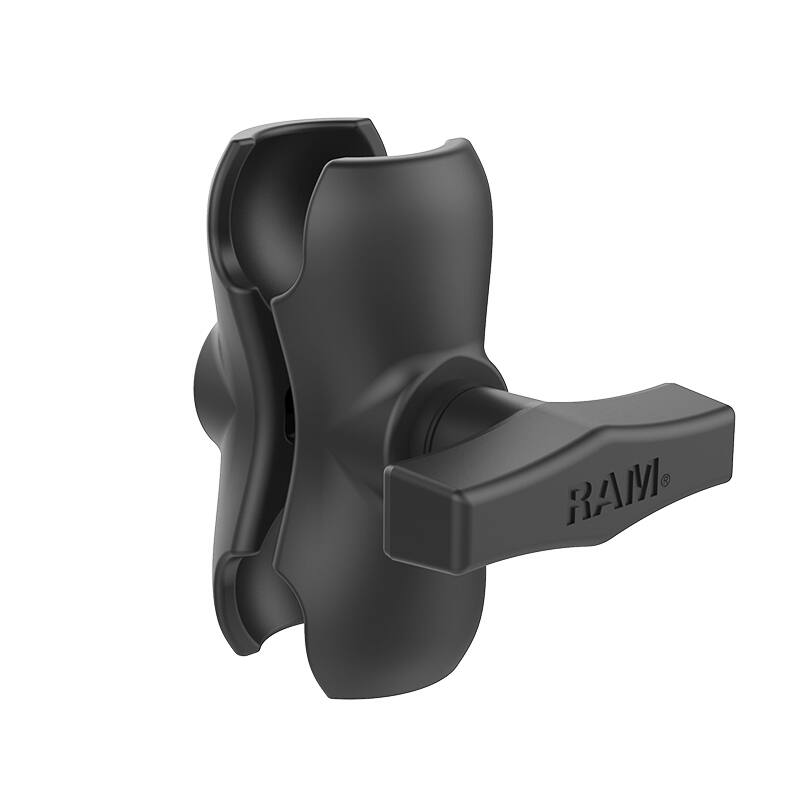

RAM-201U-B RAM short 1.5" (C-Series) Alloy Arm
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

YouTube:
https://www.youtube.com/watch?v=Ip0bJ7nNpLs
