RAM Mounts

RAM Universal Double Ball Mount with Round Plate and 1/2" NPT Thread (Short)

RAM Universal Double Ball Mount with Round Plate and 1/2" NPT Thread (Short)

SKU:RAM-101-B-218-1U-v

Regular price $130.74 NZD
Regular price Sale price $130.74 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

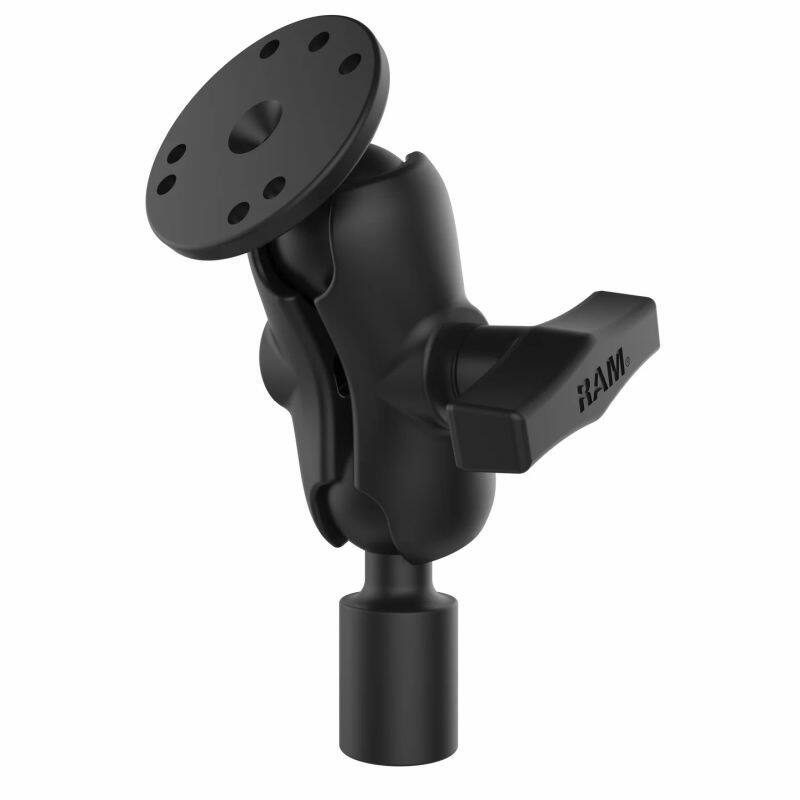

RAM-101-B-218-1U RAM® Short Double Ball Mount with Round Plate and 1/2" NPT Thread


Features

* Double ball mount for attaching to threaded pipes
* Round plate base has the AMPS hole pattern for attachment to compatible device holders and base with 1/2" NPT hole for pipe or pedestal
* Includes one round ball base, one base with 1/2" NPT hole, and C size SHORT length double socket arm;
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


The RAM-101-B-218-1U consists of a short double socket arm mount with one round base and one base with 1/2" NPT hole for pipe or pedestal. The mount is approximately 5.4" tall at maximum extension and is collapsible. This measurement does not include length of pedestal used.

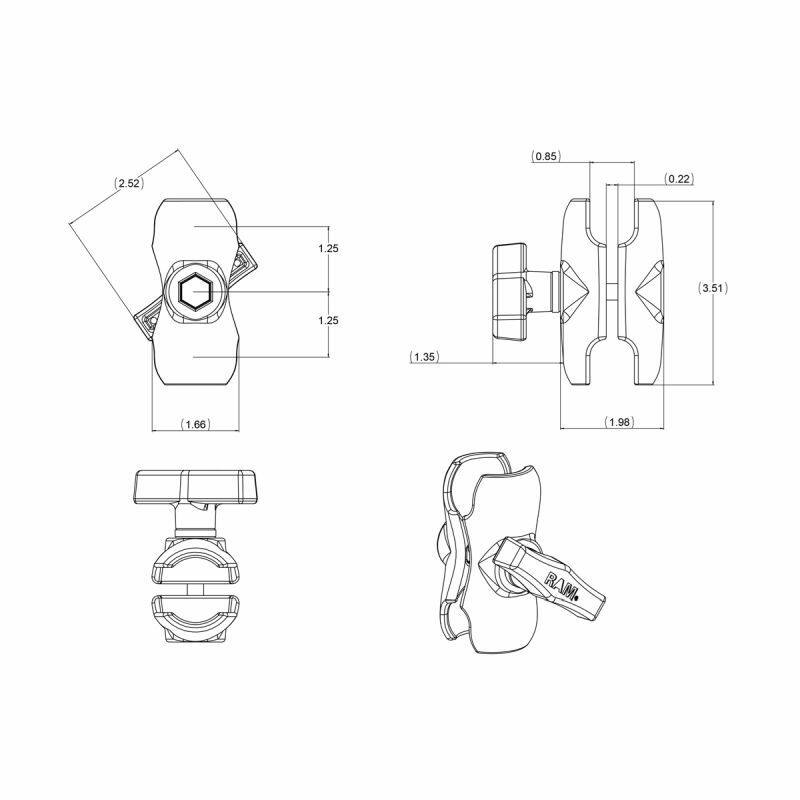

Dimensions
Overall Height:
136.5mm (5.375")
socket to socket length:
63.5mm (2.5")


Round Base Hole pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole 120-Degree:
1.812" Diameter

Plate size
2.5" Diameter

Ball size
C Size (1.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)



Materials
Marine-grade aluminium

Weight
403 grams (0.89 lb)

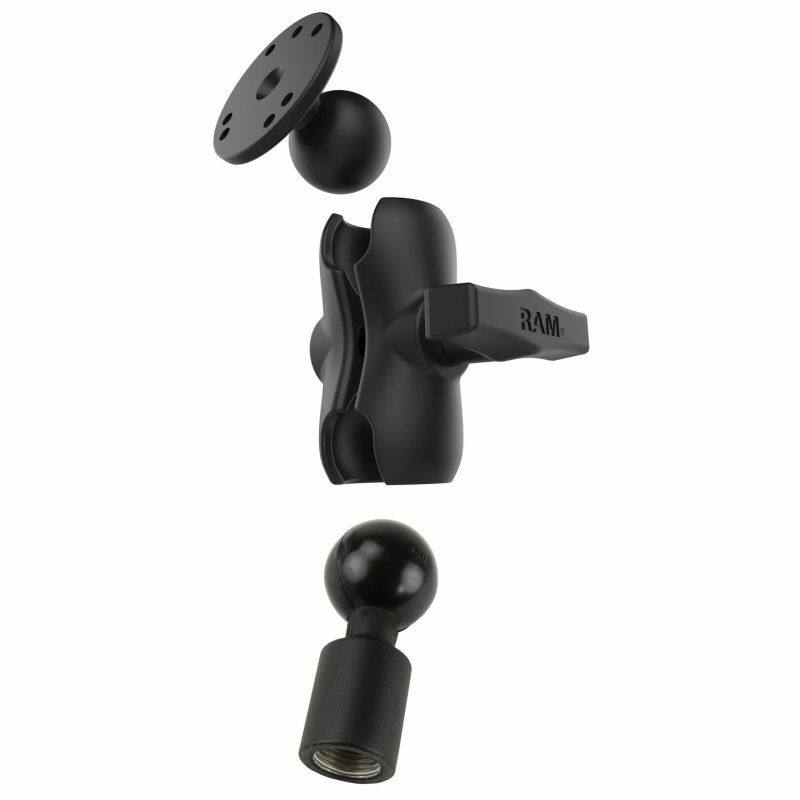

Components:

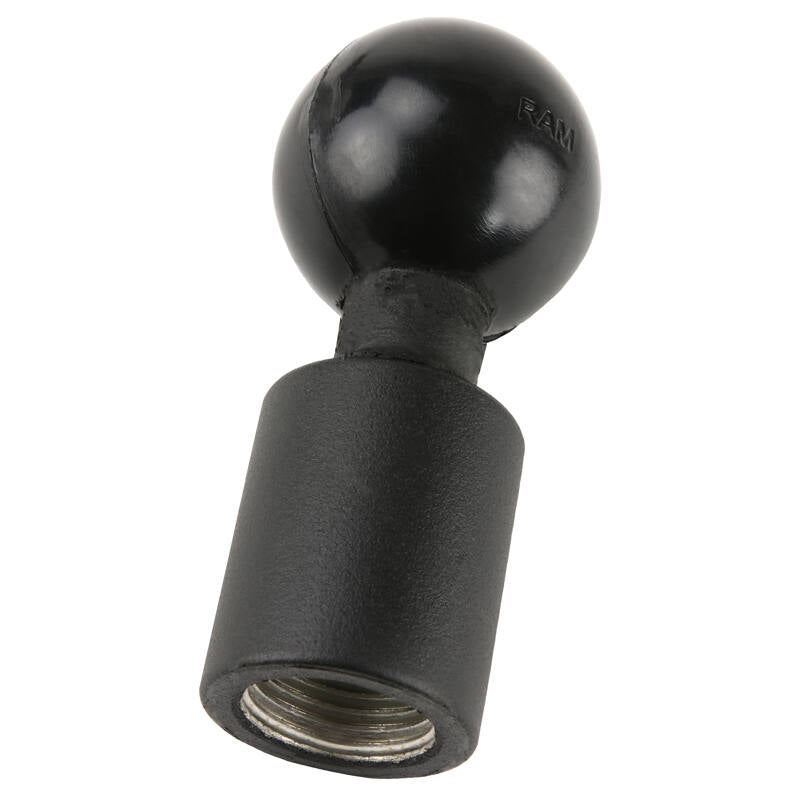

RAM-218-1U RAM BASE WITH 1/2" NPT THREADED HOLE

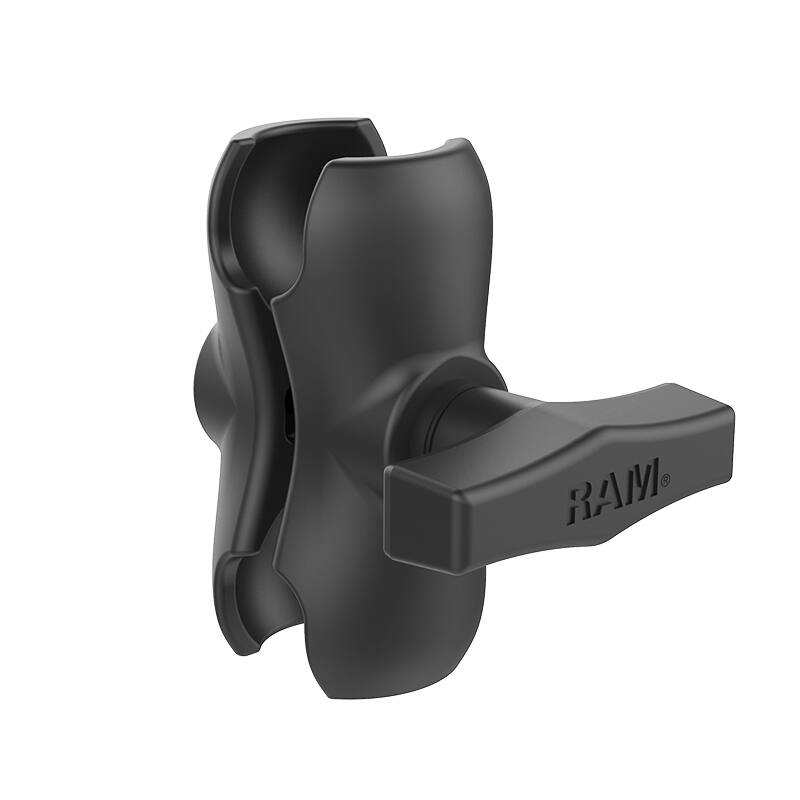

RAM-201U-B RAM Short Double Socket Arm for 1.5" Balls
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
