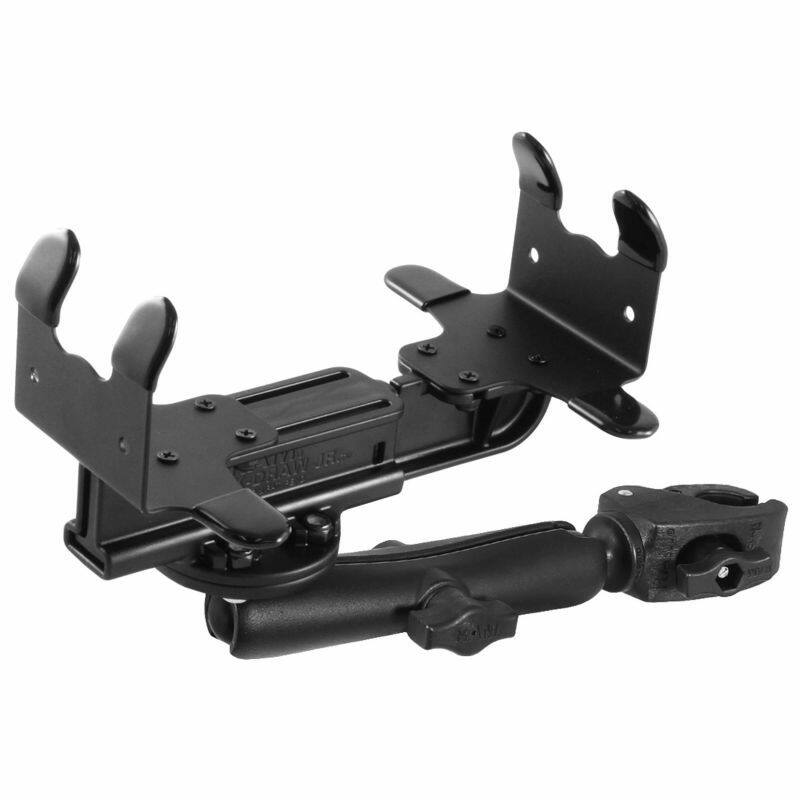

RAM-B-400U-C-VPR-104 RAM® Quick-Draw™ Jr. Small Printer Holder with Tough-Claw™
Features
* Small printer cradle with spring loaded mechanism that holds strong, yet provides easy removal for printer storage
* Small RAM® Tough-Claw™ Small Clamp Base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16 to 38mm in outer diameter
* Manufactured from Powder coated steel and High strength composite for maximum longevity
* Backed by a lifetime warranty
The RAM® Quick-Draw™ Jr. Universal Small Printer Holder for Zebra / Brother / Fujitsu printers is ideal for mounting printers into forklifts / reach trucks and other warehousing equipment.
The RAM® Quick Draw™ Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer.
The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 28mm (0.625" to 1.14") outer diameter. Just place the clamp over the rail or post and then tighten with the attached knob - no tools required.
Compatible Devices
Fujitsu
FP-100
FP-1000
Datamax-O’Neil
RL3E
RL4e
Bixolon
SPP-R400
Brother
Mobile RuggedJet 3050
Zebra
QLn220
QLn320
QLn420
RW-420
ZQ510
ZQ511
ZQ520
ZQ521
ZQ610
ZQ620
ZQ630
Clamping Range (Rail/Tube Surfaces):
16mm to 28mm (0.625" to 1.14")
Clamping Range (Flat Surfaces):
0 to 29mm (1.14")
Arm Dimensions:
Overall Length: 152 mm (6")
Socket-To-Socket Length: 134 mm (5.25")
Hardware Included
Assembly Hardware
Holder Dimensions
Max Height: 44.45mm / 1.75"
Width Range: 142.9mm - 241.3mm / 5.625" - 9.5"
Materials
Marine-grade aluminum
High strength composite
Powder coated steel
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
Components:

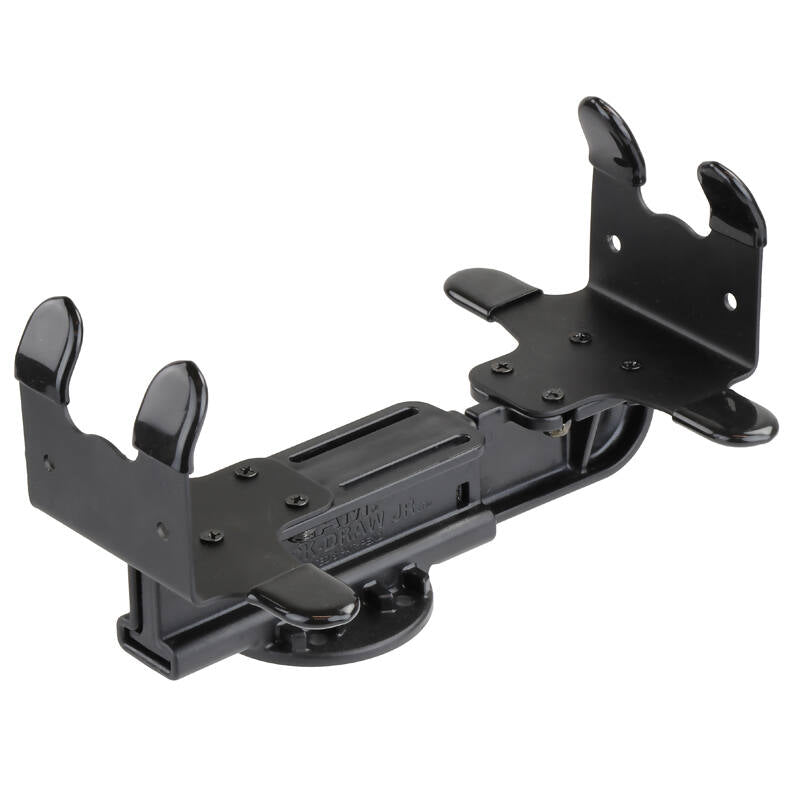

RAM-VPR-104 RAM Quick-Draw Jr. Small Universal Printer Holder

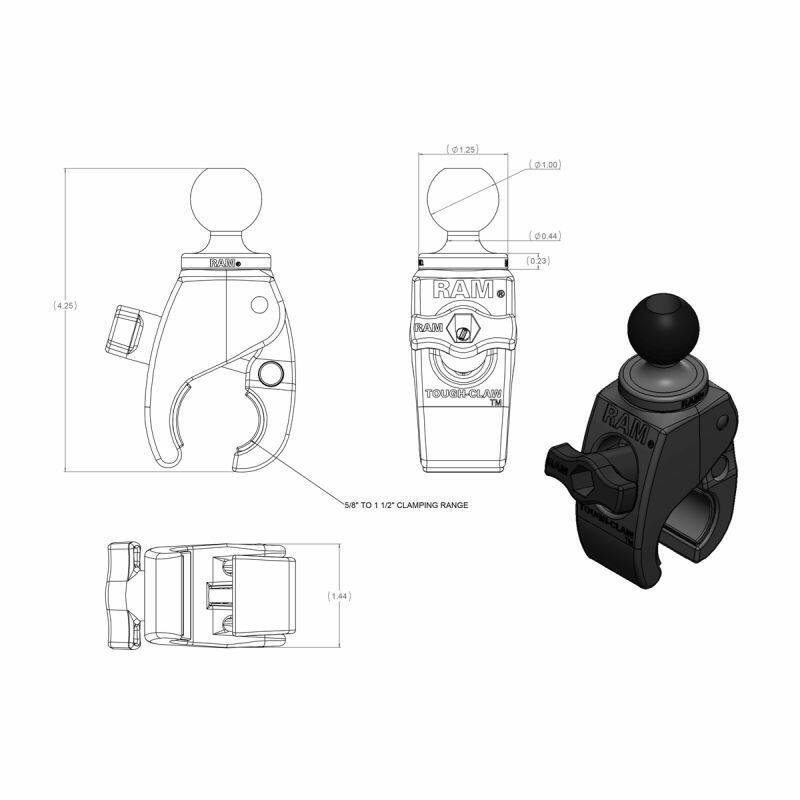

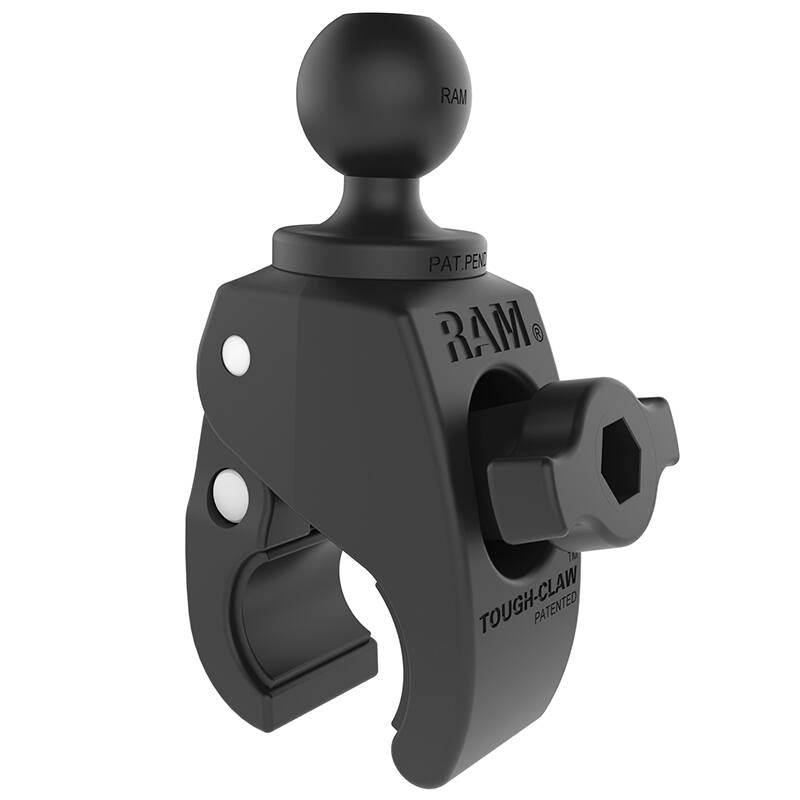

RAP-B-400U SMALL TOUGH CLAW WITH 1" BALL
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
