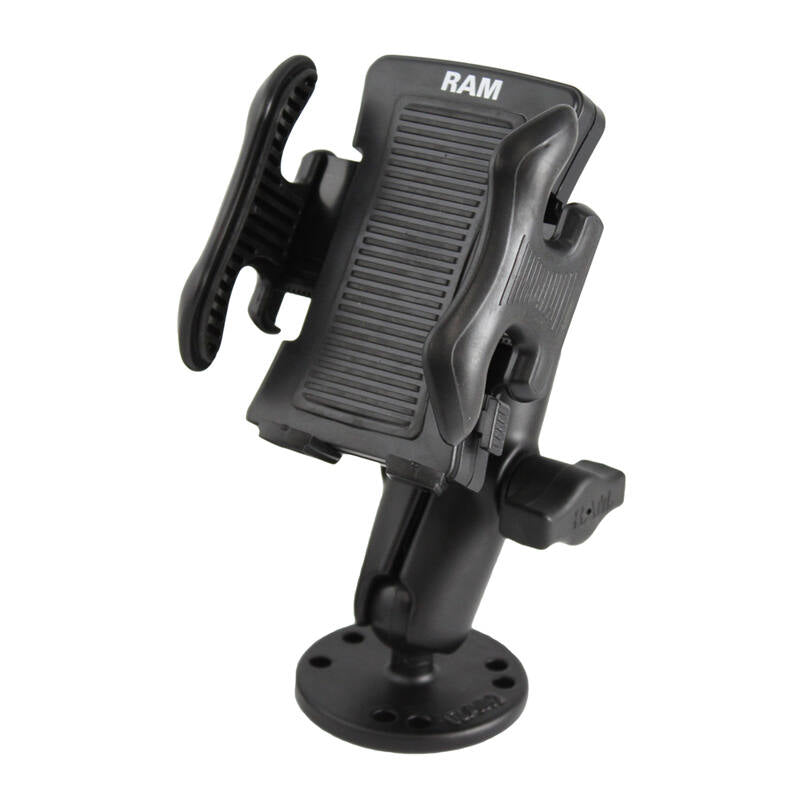

RAM-B-138-UN5U RAM® Drill-Down Mount with Spring-Loaded Phone Holder
Features
* RAM-HOL-UN5U cradle is compatible with most large phones
* Drill-down mounting solution includes a diamond ball base, and B size medium length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

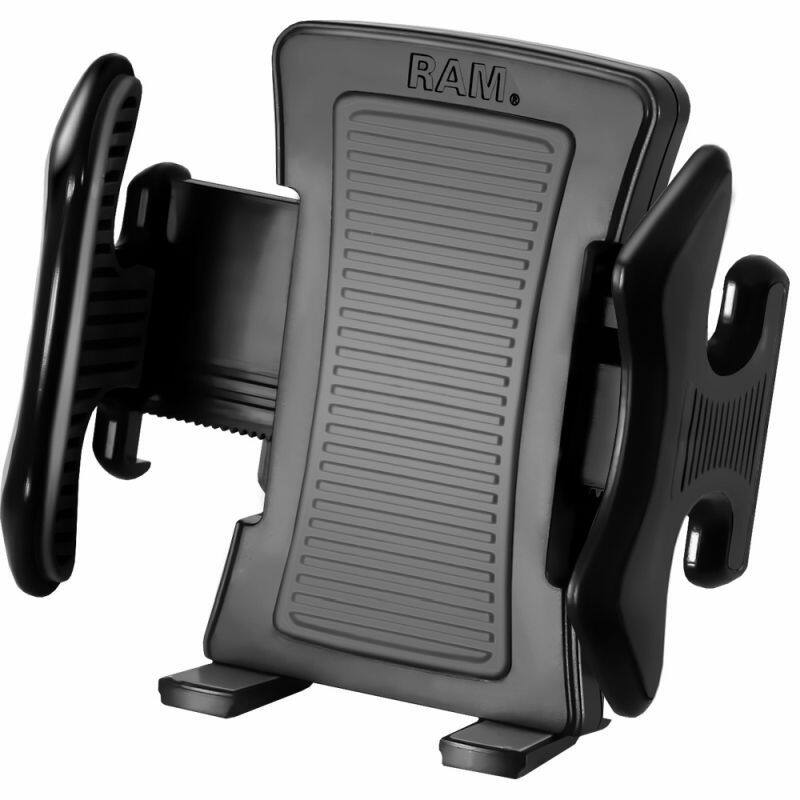

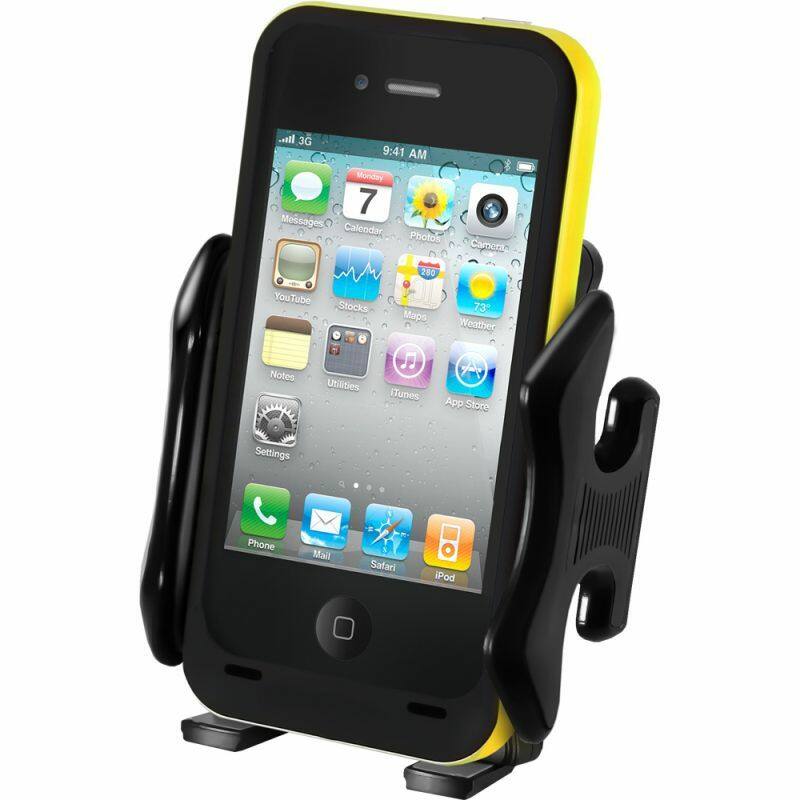

The RAM universal spring loading clamping cradle includes side clamps with rubber bumpers that adjust accordingly to the width of your device, securing your device in the cradle. The feet at the base of the cradle can pivot and slide, creating an opening for larger devices to be attached. A release button, located on the bottom right side of the cradle, allows for quick release of your device. Also included are two threaded inserts and a set of two nuts/bolts to connect the cradle to any of the RAM compatible mounts. Primary mounting applications for the clamping cradle is in LOW VIBRATION environments including cars, trucks and fleet vehicles.

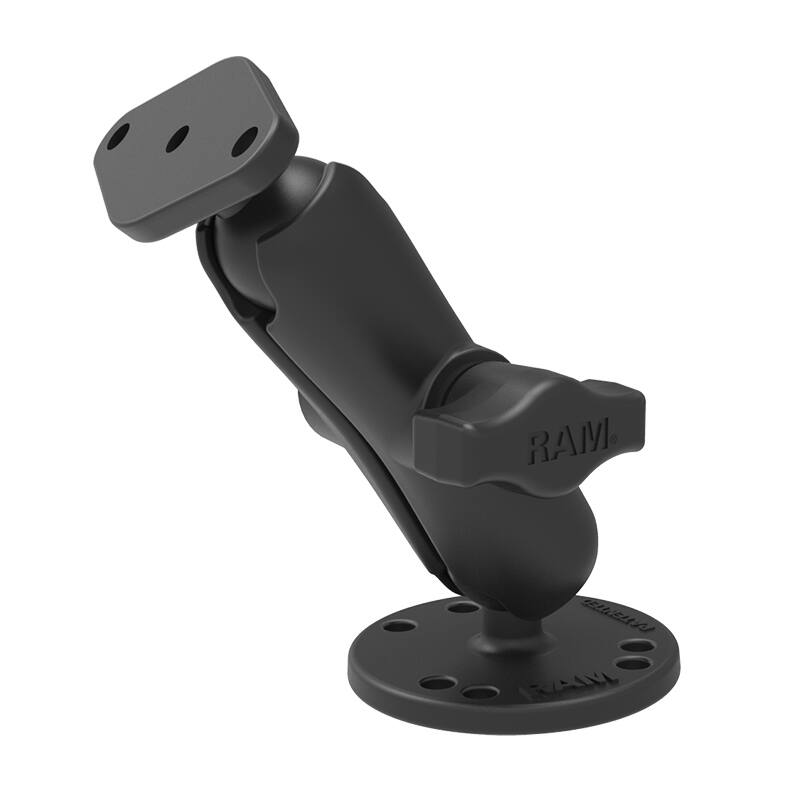

The base is a 2.5" (63.5mm) diameter round base that contains the universal AMPs hole pattern, 94mm double socket arm and diamond base adapter.
Compatible Devices
Most Large Cell Phones
HARDWARE INCLUDED
(2) M4 x 16mm Machine Screws
HOLDER DIMENSIONS
Width Range: 44.45mm to 88.9mm (1.75" - 3.5")
HOLE PATTERN (Diamond Plate)
2-Hole AMPs:
1.912” (48.5mm)
Hole Pattern (Round Plate)
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
MATERIALS
High strength composite
WEIGHT
118 grams (0.26 lbs.)
Weight Capacity
907 grams (2 lbs)
Suction Size
83mm (3.3" Diameter)
Arm Socket-to-Socket Length
76mm (3")
Ball/Socket Size
B Size (1")
Overall Height:
93.7mm (6.69")
Material:
Powder Coated Marine Grade Aluminium
High strength composite
Ball Size:
1" Rubber Ball "B" Size

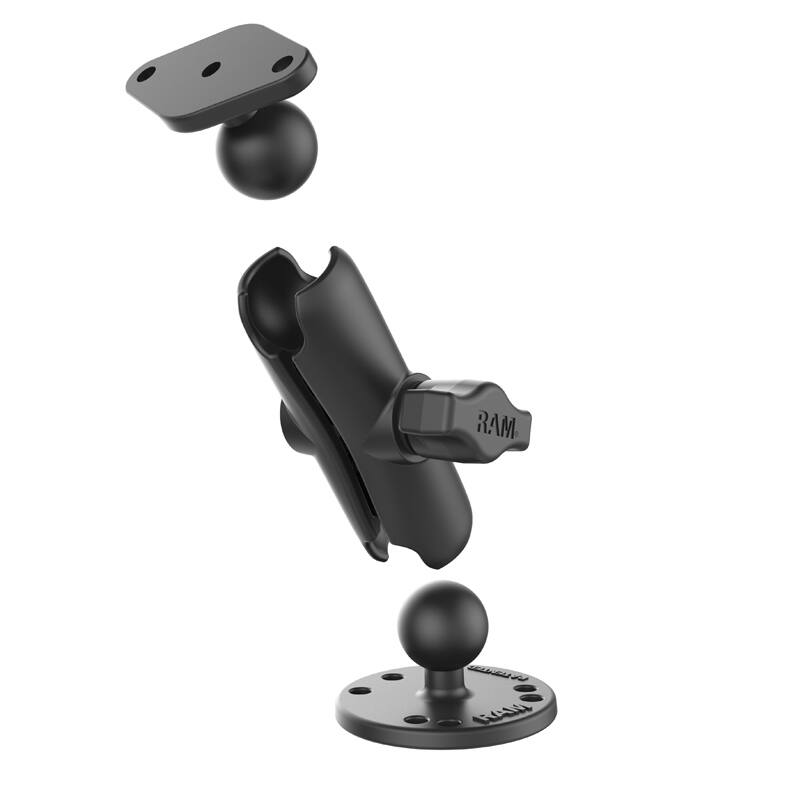

Components
RAM-HOL-UN5U Universal Large Phone Holder
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL

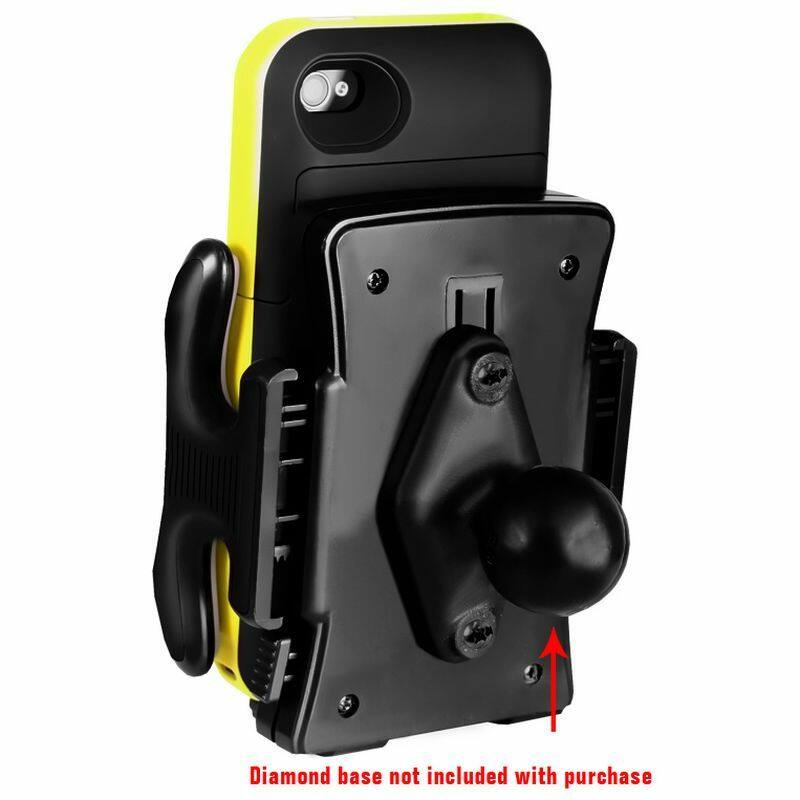

RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
