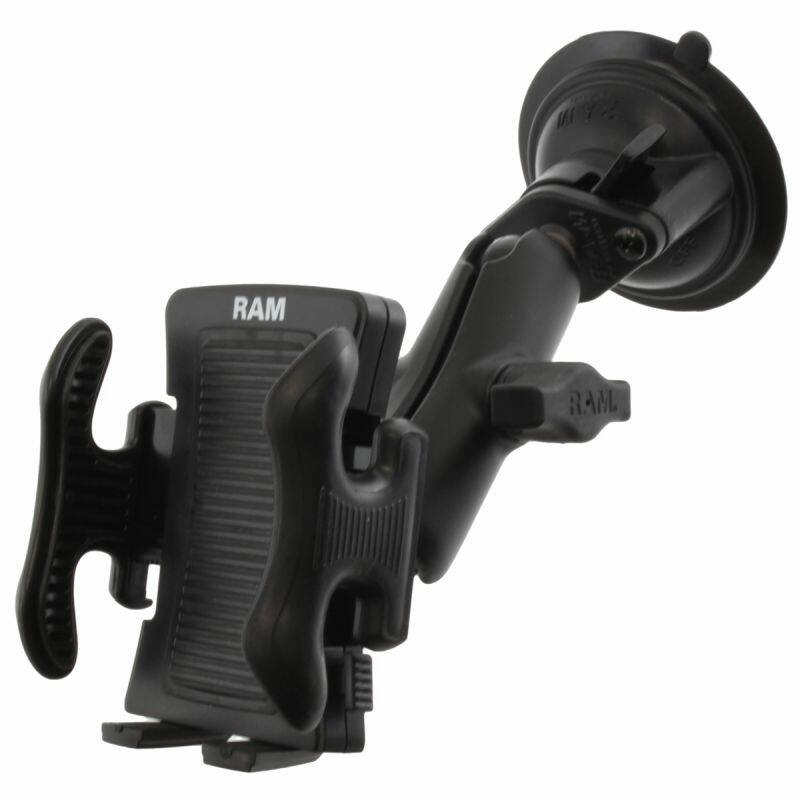

RAM-B-166-UN5U RAM® Twist-Lock™ Suction Cup Mount with Spring-Loaded Phone Holder
Features
* Suits most large smartphones
* Universal spring loading clamping cradle that adjusts accordingly to the width of your device
* The feet at the base of the cradle can pivot and slide, creating an opening for larger devices to be attached
* Release button allows for quick release of your device.
* Includes 2 Hole AMPs hole pattern which will attach to the RAM Diamond plate (B or C series)
* Suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces
* RAM ball and socket system allows for almost infinite adjustment
* Made of High Strength Composite for durability and reliability in the most demanding marine environments

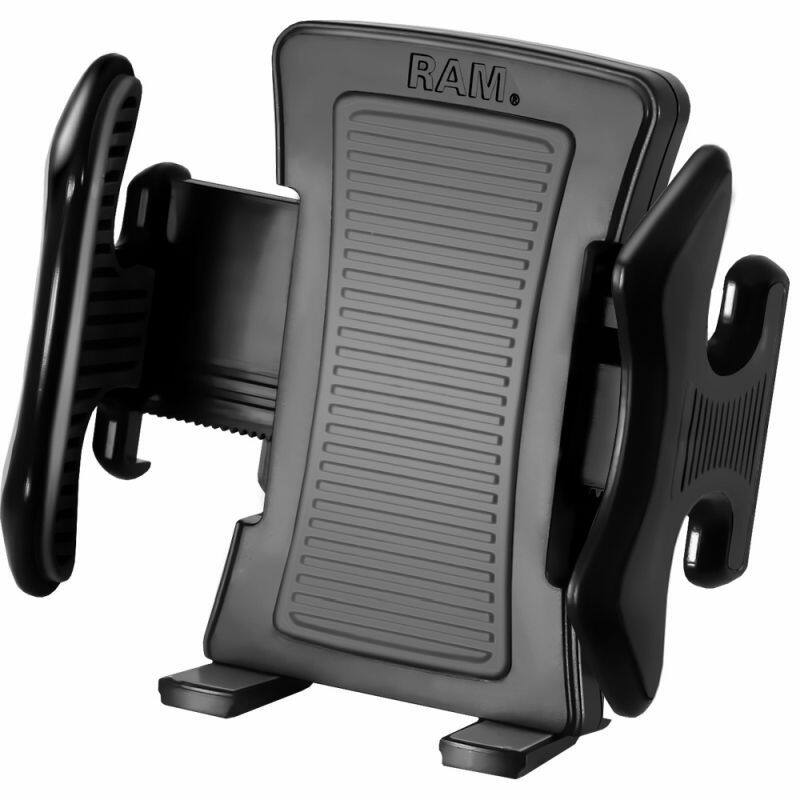

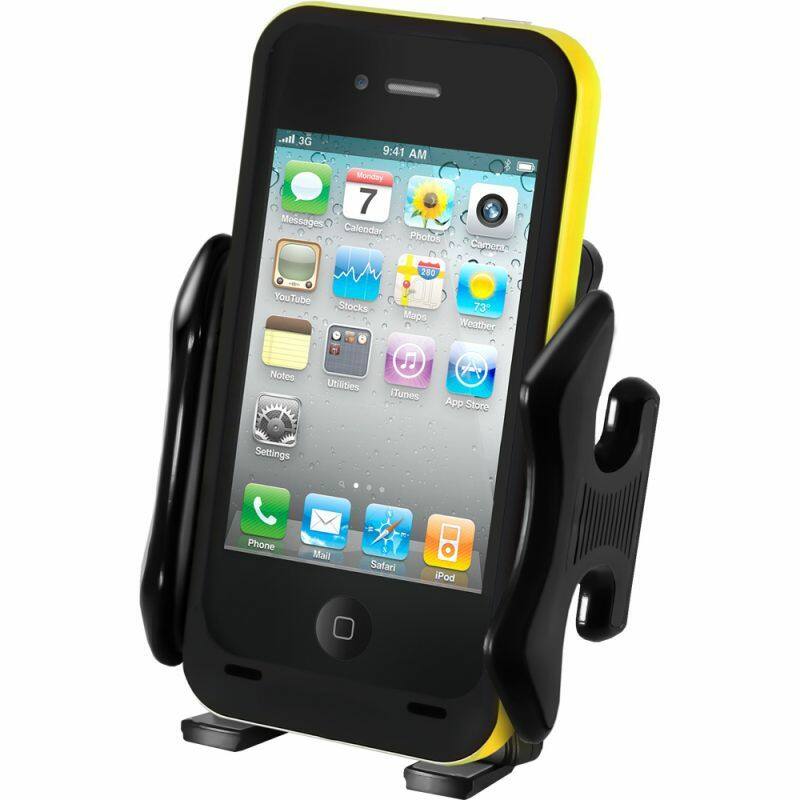

The RAM universal spring loading clamping cradle includes side clamps with rubber bumpers that adjust accordingly to the width of your device, securing your device in the cradle. The feet at the base of the cradle can pivot and slide, creating an opening for larger devices to be attached. A release button, located on the bottom right side of the cradle, allows for quick release of your device. Also included are two threaded inserts and a set of two nuts/bolts to connect the cradle to any of the RAM compatible mounts. Primary mounting applications for the clamping cradle is in LOW VIBRATION environments including cars, trucks and fleet vehicles.

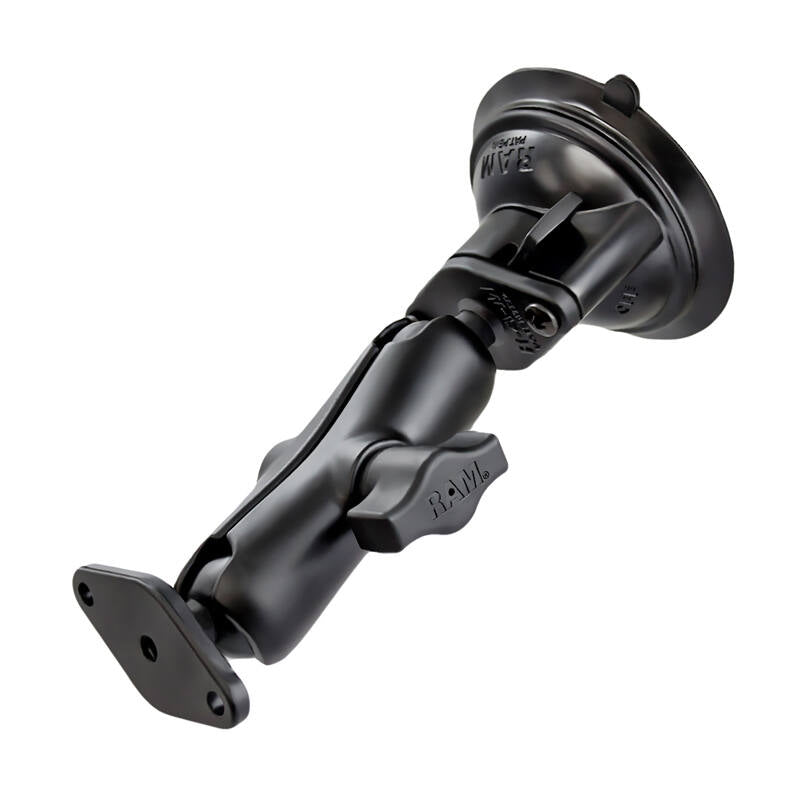

The base is a 83MM / 3.3" diameter suction cup twist lock base, standard (96mm) double socket arm and diamond base adaptor. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Compatible Devices
Most Cell Phones
HOLDER DIMENSIONS
Width Range: 44.45mm to 88.9mm (1.75" - 3.5")
That's most smartphones such as Apple iPhone 12 , OnePlus 9 / 9 Pro, Samsung Galaxy S20 / S20 Plus / S21 / Note 20, Xiaomi Mi 11 / Mi Note 10, Oppo Find X3 Pro ...
WEIGHT
376 grams (0.83 lbs.)
Weight Capacity
907 grams (2 lbs)
Suction Size
83mm (3.3" Diameter)
Socket-to-Socket Length
76mm (3")
Overall Height:
93.7mm (6.69")
Material:
Marine-grade aluminium
High strength composite
Ball Size:
1" Rubber Ball "B" Size
Assembly Hardware Included

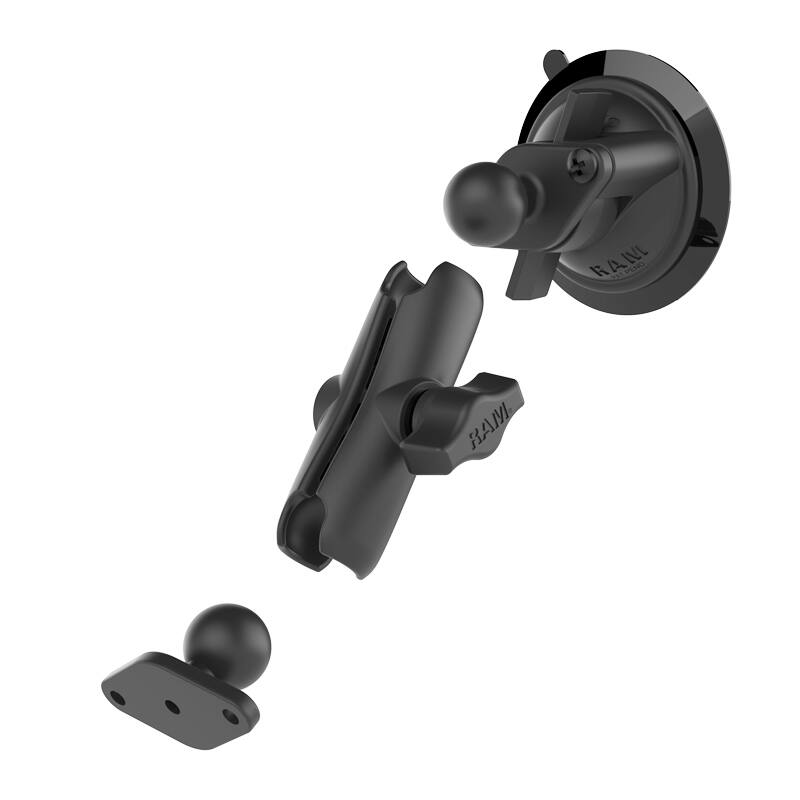

Components
RAM-HOL-UN5U Universal Large Phone Holder
RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
