RAM Mounts

RAM Universal Spring Loaded Holder for Small Phones with Drill Down Mount

RAM Universal Spring Loaded Holder for Small Phones with Drill Down Mount

SKU:RAM-B-102-UN1U-v

Regular price $150.83 NZD
Regular price Sale price $150.83 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

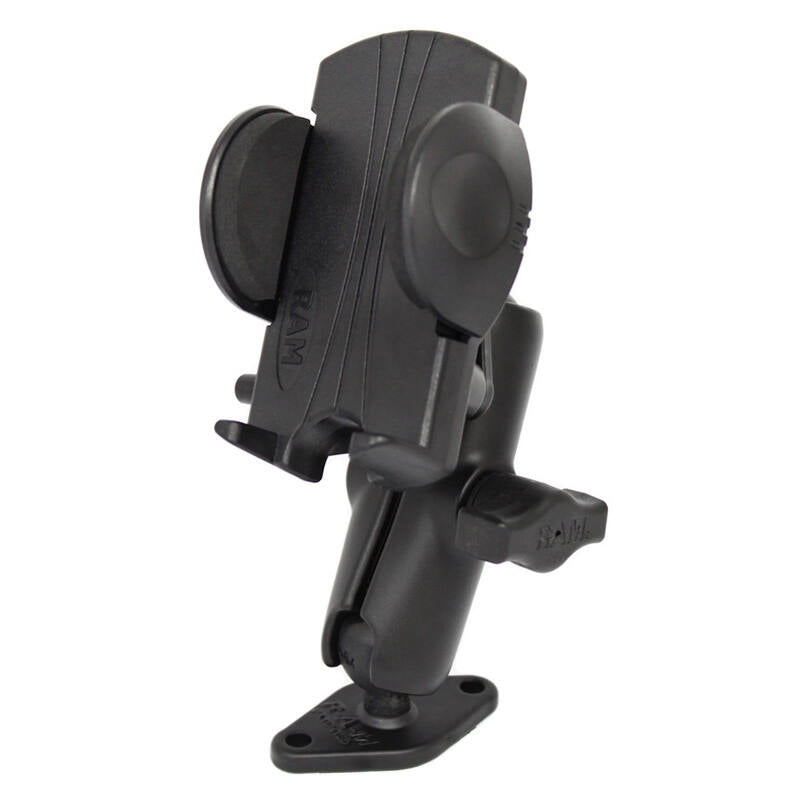

RAM-B-102-UN1U RAM® Universal Phone Mount with Diamond Base

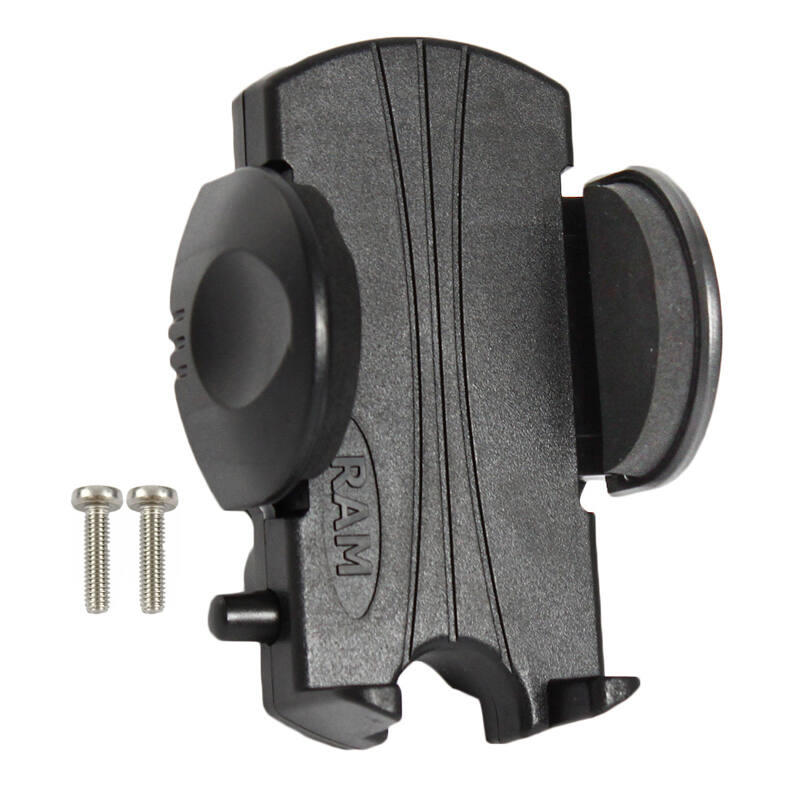

The RAM-HOL_UN1U is designed to hold a large amount of different kinds of cell phones and small electronic devices. This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle.

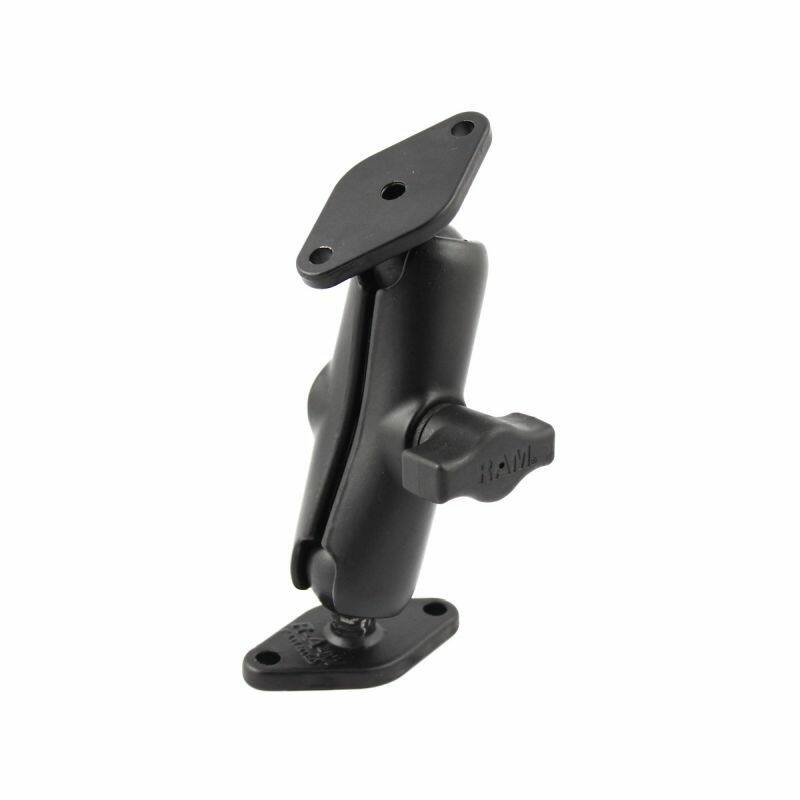

The base consists of a standard double socket arm and two RAM-B-238U diamond bases.


The diamond bases measure 61.7mm x 33.3mm (2.43" x 1.31") and contain two holes 48.6mm (1.912") from centre to centre, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern.


The double socket arm for B-Series 1" balls (RAM-B-201u) has a socket at both ends and is 94mm long overall (76mm from socket to socket). A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection for almost infinite adjustment and perfect viewing angles.


COMPATIBLE DEVICES
Most Cell Phones up to 63.5mm wide

HARDWARE INCLUDED
(2) M4 x 16mm Machine Screws


HOLDER DIMENSIONS
Width Range: 38.1mm to 63.5mm / 1.5" - 2.5"
Depth Range: 28.70mm / 1.13" max

HOLE PATTERN
2-Hole AMPS: 48.6mm / 1.912"

MATERIALS
Marine-grade aluminium
High strength composite

Overall Height:
127mm / 5"

Socket-to-Socket Length
76.2mm / 3"

WEIGHT
286 grams / 0.63 lbs.

Weight Capacity
907 grams / 2 lbs

Components:
RAM-HOL-UN1U Universal Spring Loaded Holder for Small Phones
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL 8
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
