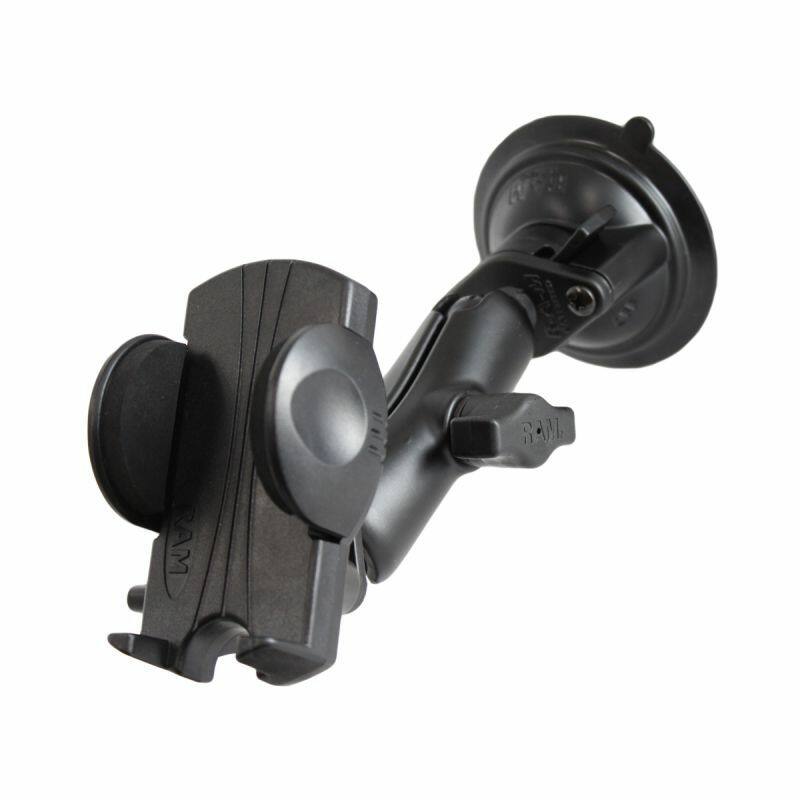

RAM-B-166-UN1U RAM® Twist-Lock Suction Cup Mount with Universal Phone Holder
The RAM-B-166-UN1U, twist lock suction cup mount consists of a 3.3" suction cup locking base, diamond base end and universal cell phone cradle. The mount is designed with a RAM 1" patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The cradle is designed to hold a large amount of different kinds of cell phones and small electronic devices. This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your handheld device in your vehicle. High quality materials ensure your electronic device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.
COMPATIBLE DEVICES
Most Cell Phones up to 63.5mm wide
HARDWARE INCLUDED
(2) M4 x 16mm Machine Screws
Suction Cup Diameter
83mm / 3.3"
HOLDER DIMENSIONS
Width Range: 38.1mm to 63.5mm / 1.5" - 2.5"
Depth Range: 28.70mm / 1.13" max
HOLE PATTERN (Diamond Plate)
2-Hole AMPS: 48.6mm / 1.912"
MATERIALS
Marine-grade aluminium
High strength composite

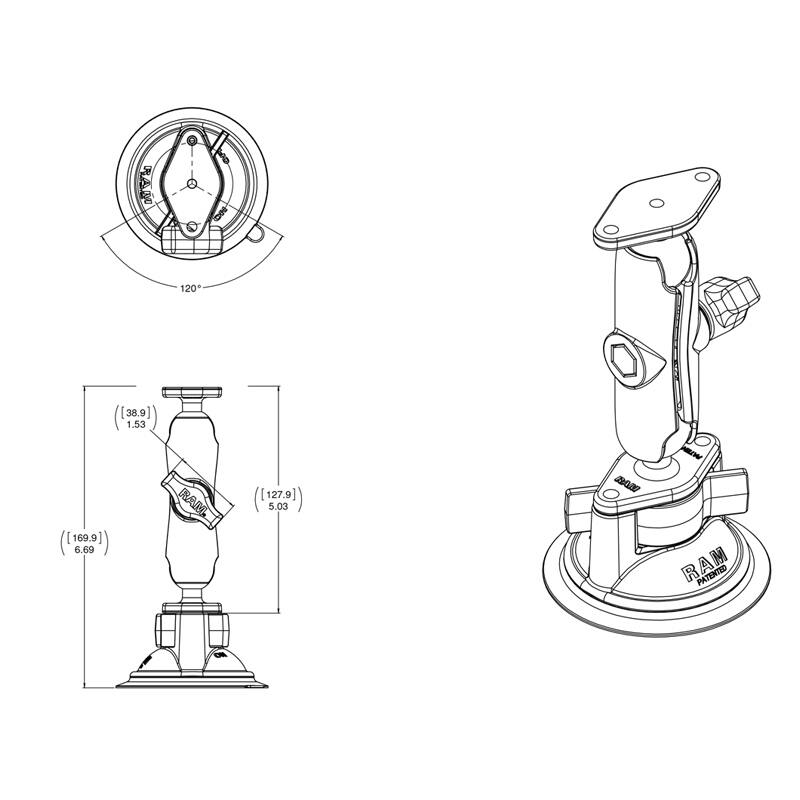

Overall Height:
127mm / 5"
Socket-to-Socket Length
76.2mm / 3"
Weight
467 grams / 1.03 lbs
Weight Capacity
907 grams / 2 lbs
Components:

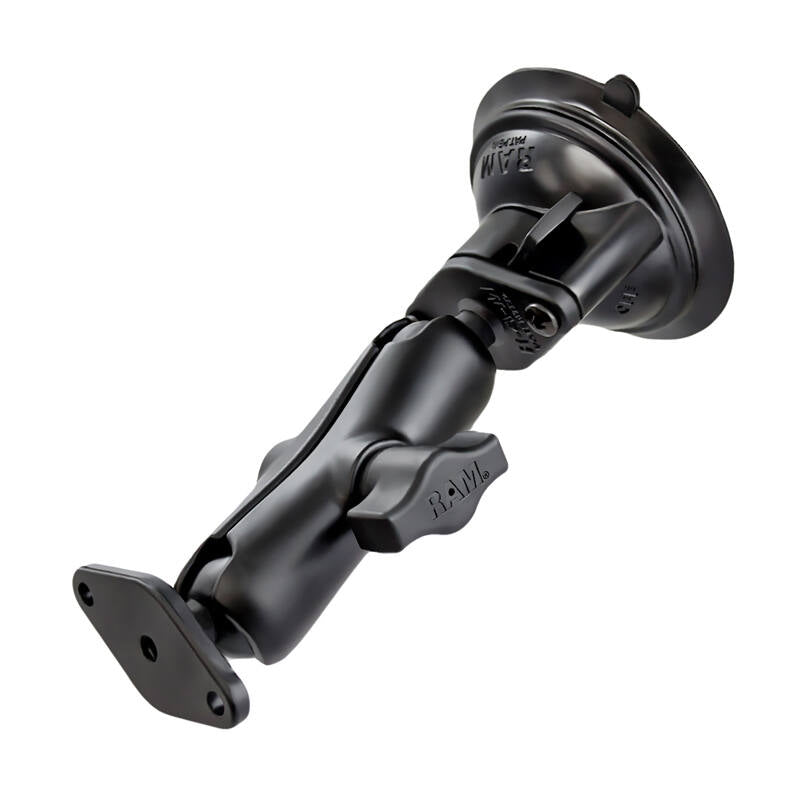

RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL

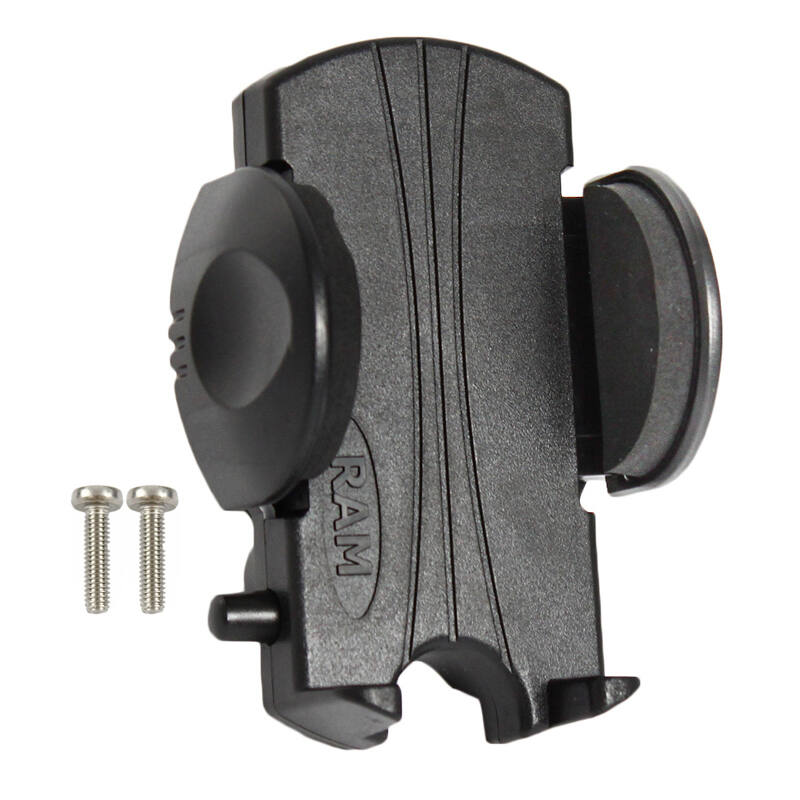

RAM-HOL-UN1U Universal Spring Loaded Holder for Small Phones
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
