RAM-VB-196-1-SW2 RAM® No-Drill™ Universal Vehicle Floor Mount for right-hand drive vehicles
Features
* Custom RAM® low profile No-Drill™ mounting base
* Universal adjustable base accommodates a wide range of vehicles (see Additional Information)
* Patented ball and socket mounting system provides a degree of shock and vibration damping

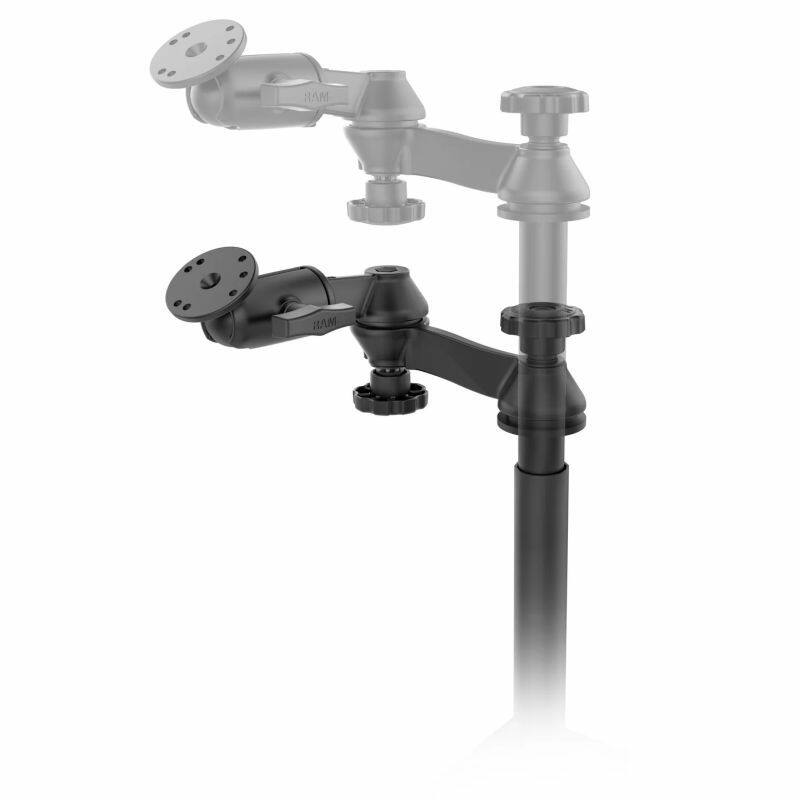

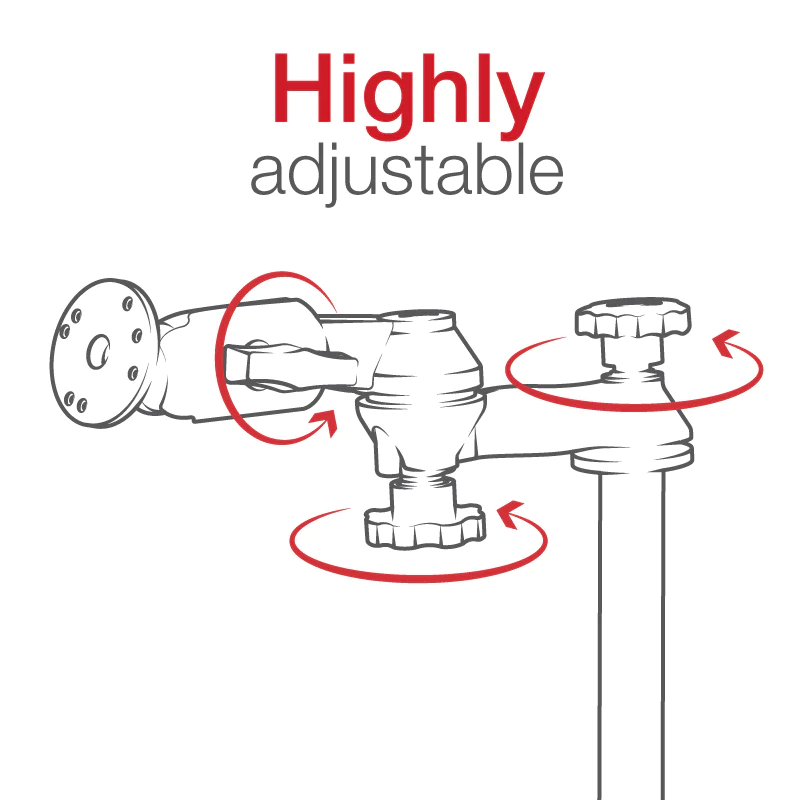

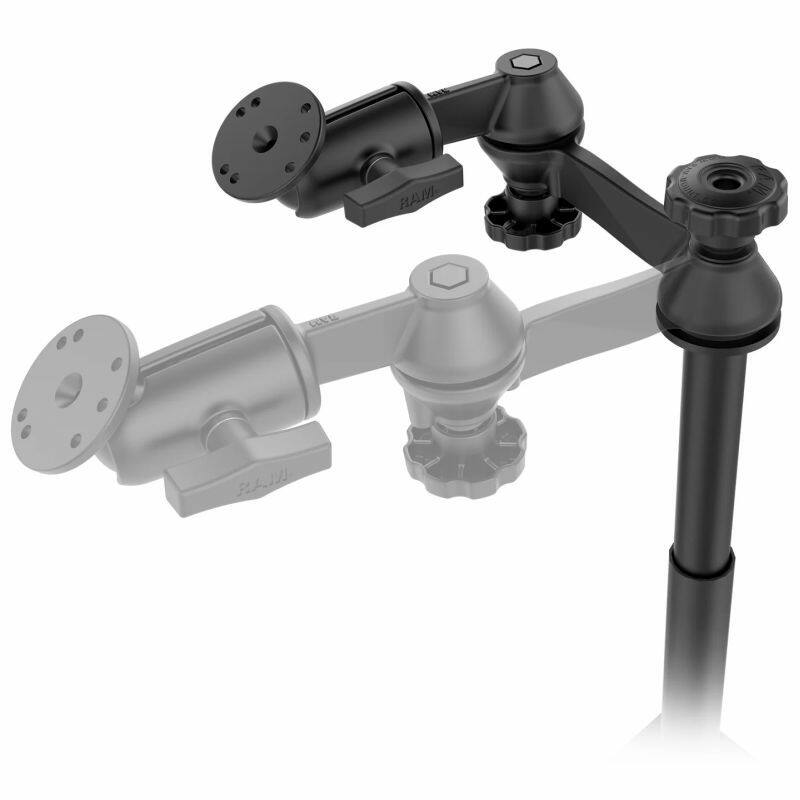

* Dual articulating swing arm for simple and comfortable adjustment
* Backed by a lifetime warranty

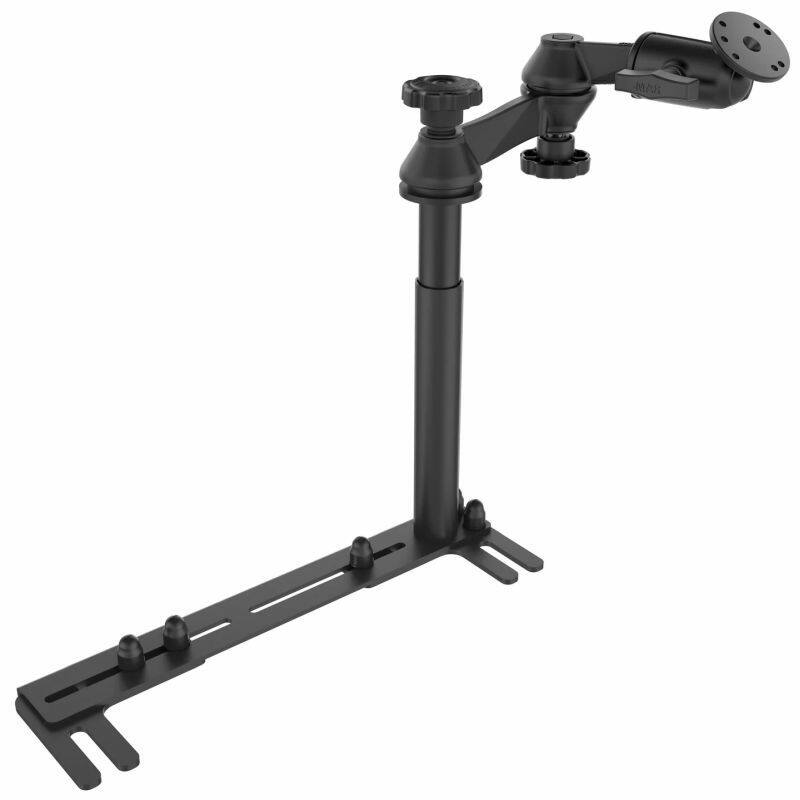

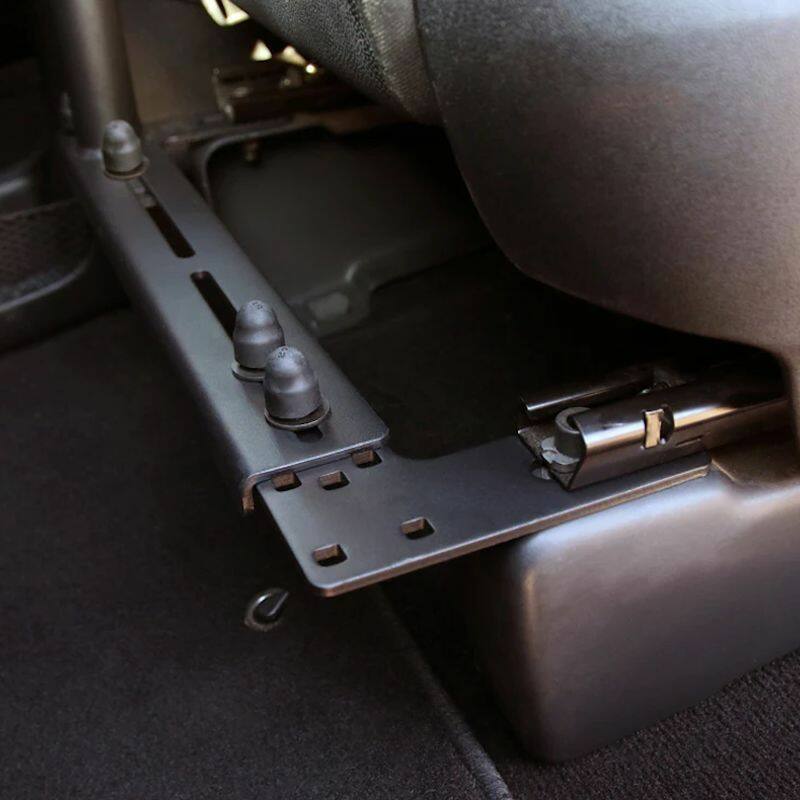

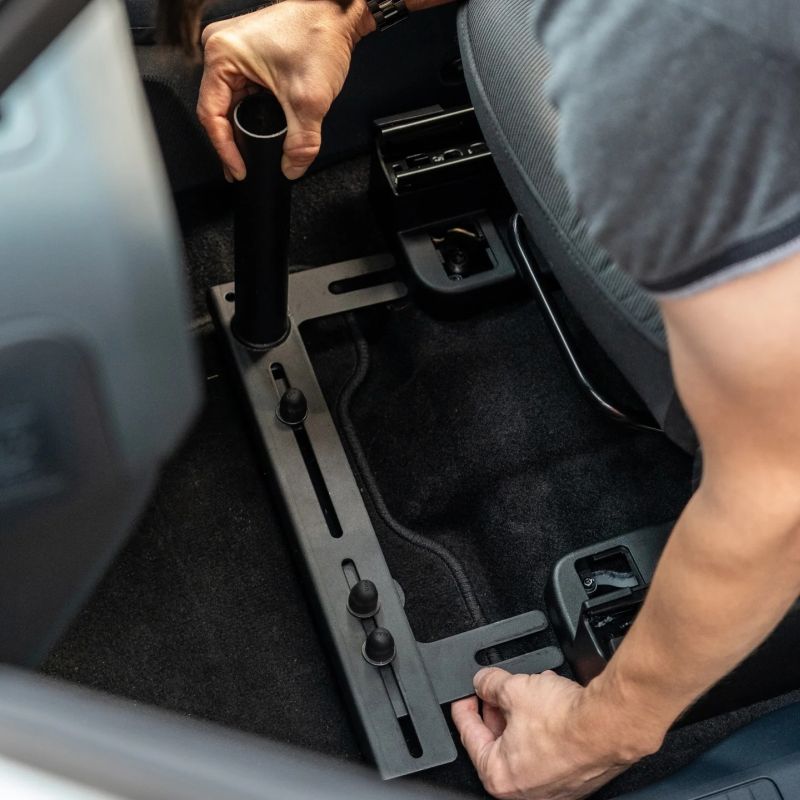

The RAM® Right-hand-drive Configuration Universal No-Drill™ Vehicle Mount features a heavy-duty steel mounting base designed to fit a variety of vehicles. Existing vehicle hardware is used to secure the laptop mount base in the vehicle using the front bench or passenger side seat rail bolts as attachment points.
The mount terminates in a round C-series plate adapter with the industry standard AMPS hole pattern - suitable to add laptop mounts, VESA screen mounts or tablet cradles.
HARDWARE INCLUDED
Assembly Hardware
Stabilizer Foot
PRODUCT DIMENSIONS
Height Range: 464 to 610mm (18.25" - 24")
Base HOLE PATTERN
Seat Bolt Distance: 229 to 479mm (9" - 18.875") centre to centre
Round Base Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
BALL/SOCKET SIZE
C Size (1.5")
MATERIALS
Powder coated steel
Marine grade-aluminium
High strength composite
