RAM-B-126 RAM® Glare Shield Clamp Mount with Rear View Mirror
Features

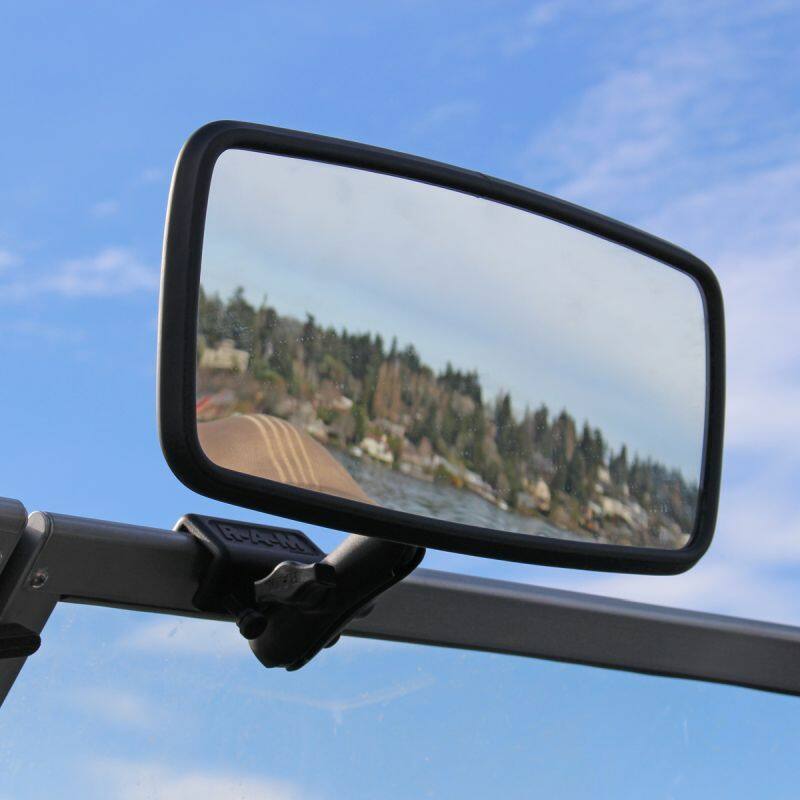

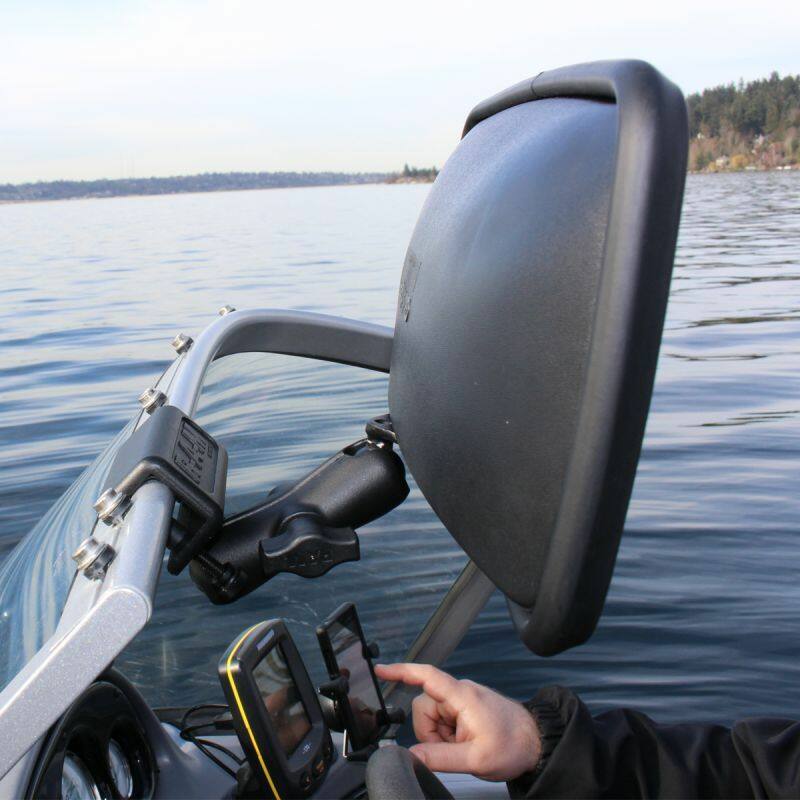

* Mirror is ideal for mounting on ski-boat to give you a wide angle of view

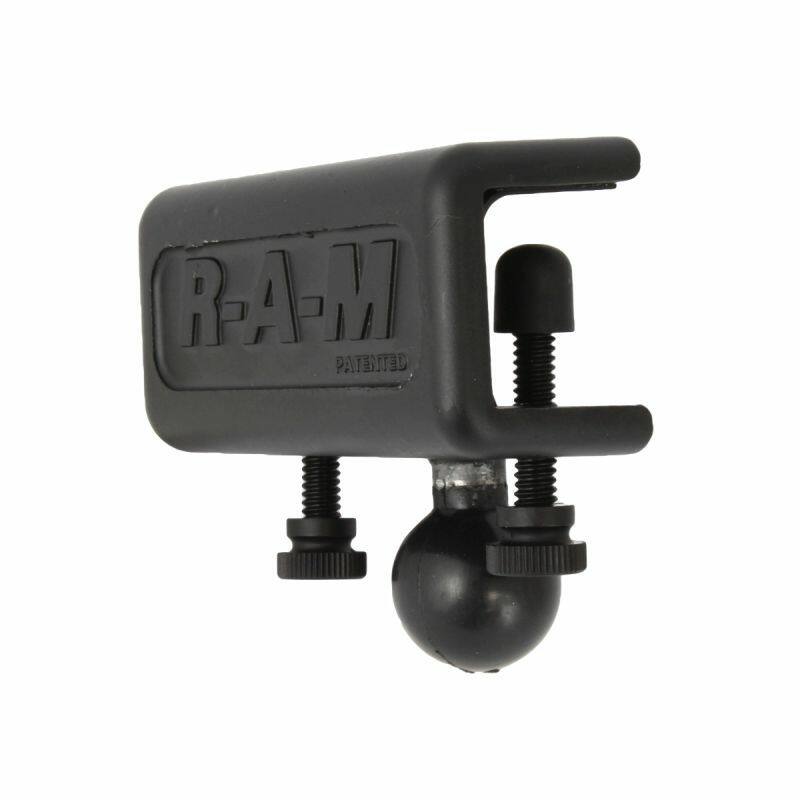

* Flat surface clamp provides stable base on surfaces such as aircraft glare shields, boat windscreen frames etc.
* This product will attach to flat surfaces from 0 - 15.9mm thick
* B size RAM® ball and socket system allows for almost infinite adjustment
* Powder Coated Marine Grade Aluminium construction for maximum longevity

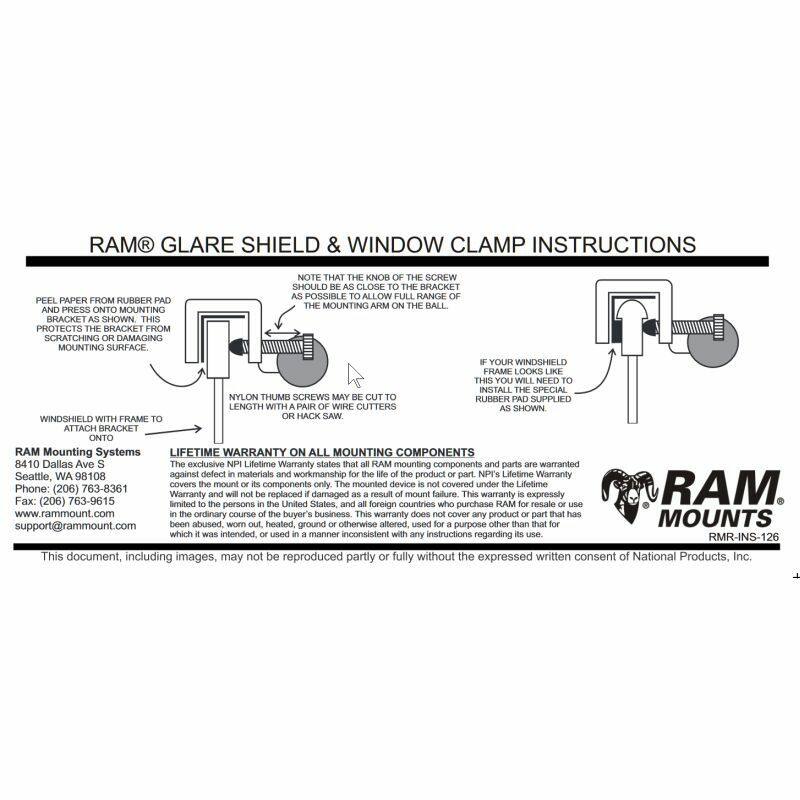

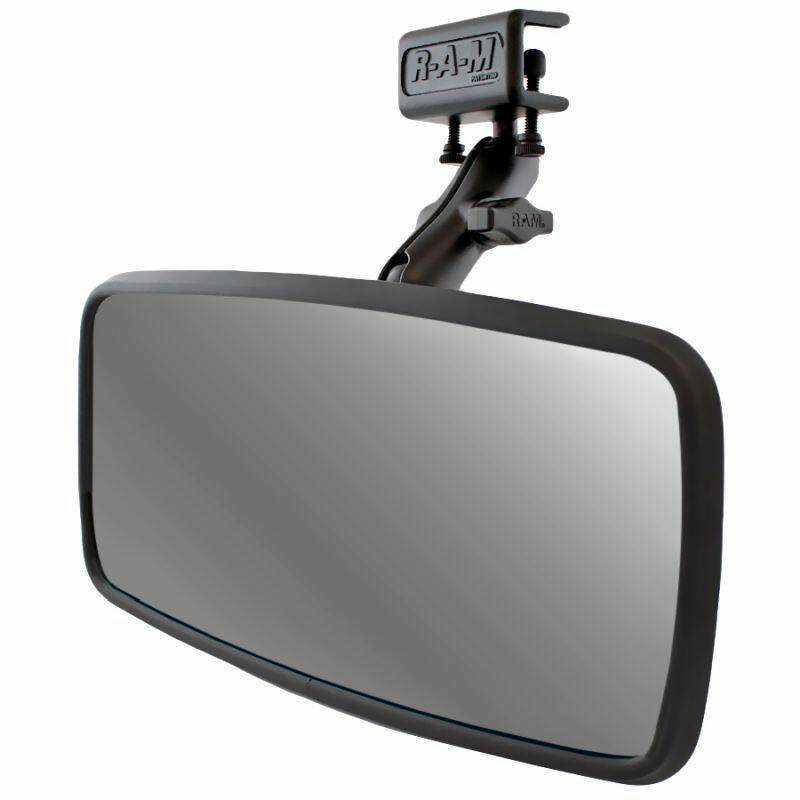

The RAM-B-126 consists of a glare shield clamp base, double socket arm and 7" x 14" mirror. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
hardware included:
Assembly Hardware
Clamp range:
0 mm - 15.875mm (0 to 0.625" / 5/8 inch)
Arm Dimensions
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminium
Packaging type:
Retail Box
Weight:
1.45 kg / 3.2 lb
