RAM-238-WCT-2-MS2 Wheelchair Arm Mount for Xbox Adaptive Controller
Features
* Includes medium length C size RAM® double socket arm with diamond plates
* Diamond plate features industry-standard AMPS pattern and measures 2.43" x 1.31"
* Features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter
* Rubber pads provide stable gripping and protection of mounting surface
* Made of high-strength composite, Powder Coated Marine Grade Aluminium and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

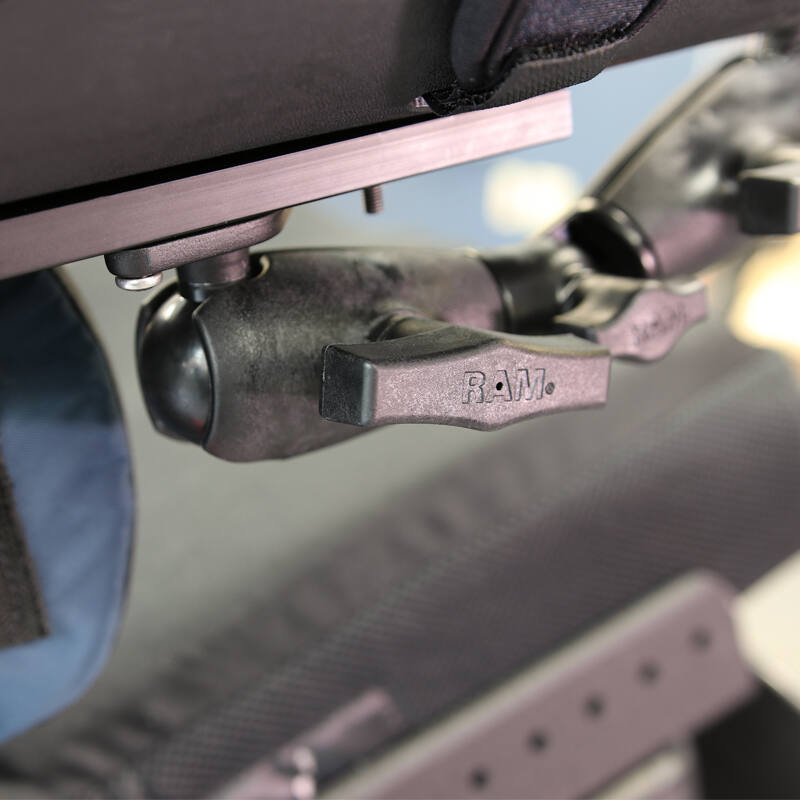

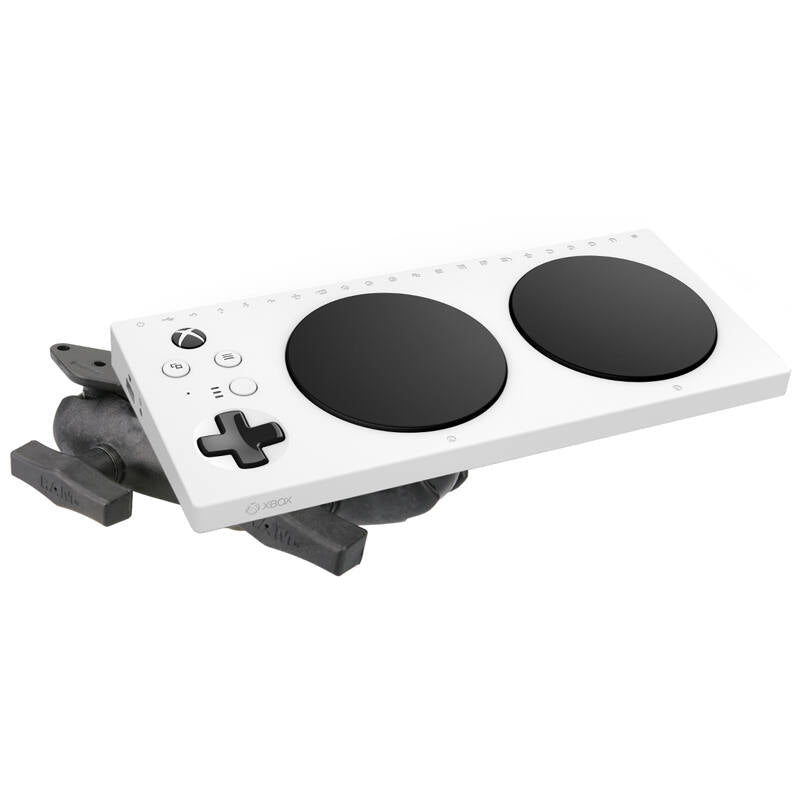

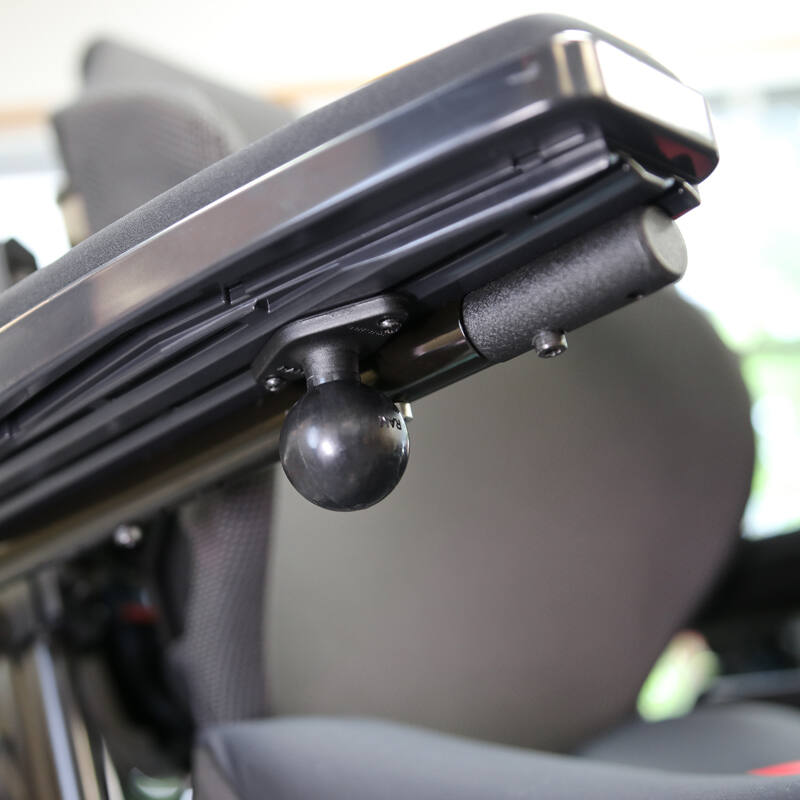

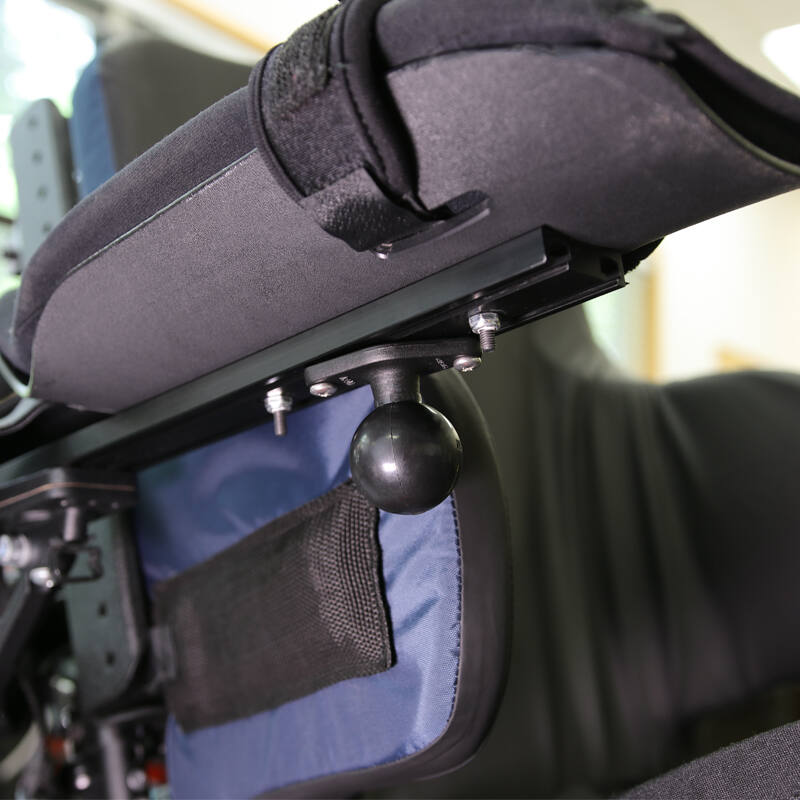

Attach this wheelchair arm track mount directly to your wheelchair’s arm track system to enable use of the Microsoft Xbox Adaptive Controller. The controller attaches to the included RAM® diamond base adapter with 1.5” ball and double socket swivel arm, allowing for a 90-degree tilt so you can angle the adaptive controller exactly where you need it. On the opposite end of the arm, another diamond base adapter with 1.5” ball attaches to most wheelchair arm track systems with the included universal hardware pack. When you’re not using the Xbox Adaptive Controller, swap it out with any compatible RAM® 1.5” ball base, such as the RAM® X-Grip® cradle for phones and tablets.
This inclusive gaming kit includes hardware and a hex wrench for mounting an Xbox Adaptive Controller.

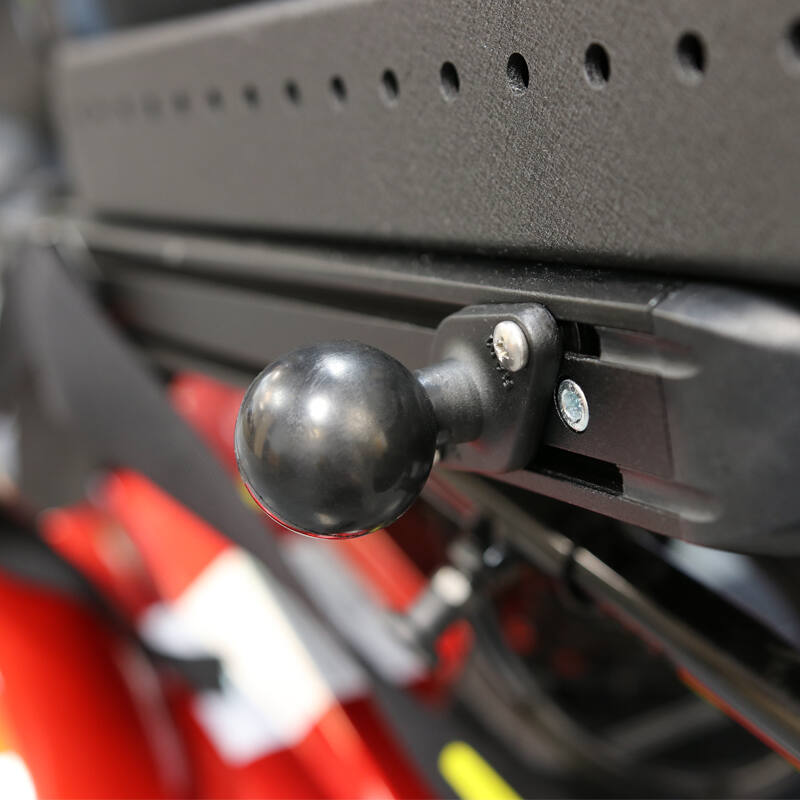

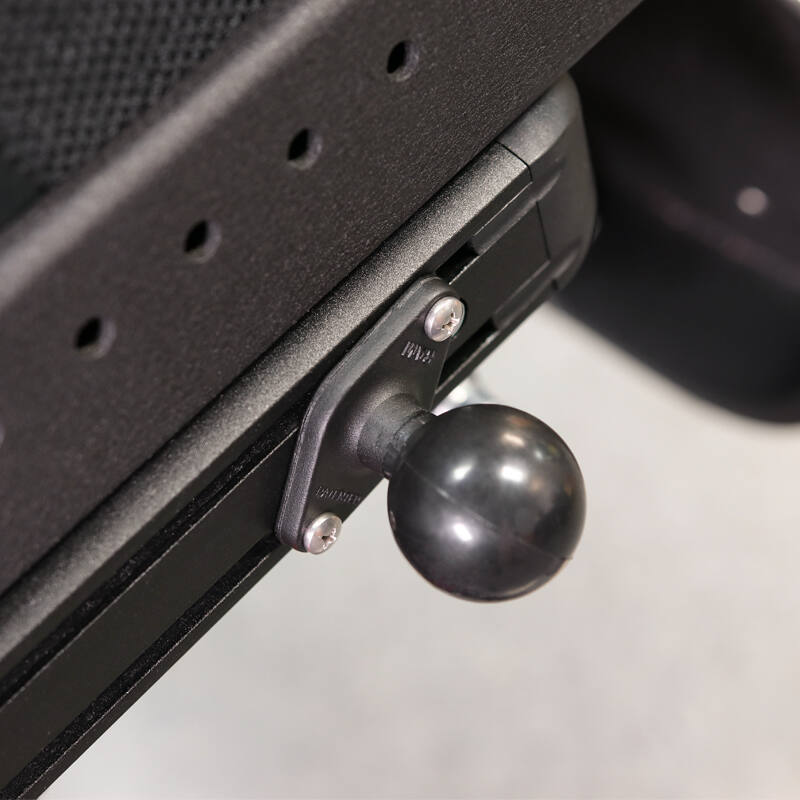

RAM® ball base features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands, as well as any other universal mounting point.
Compatible Wheelchair Brands:
Invacare
Permobil
Quickie
Most Powered Wheelchairs

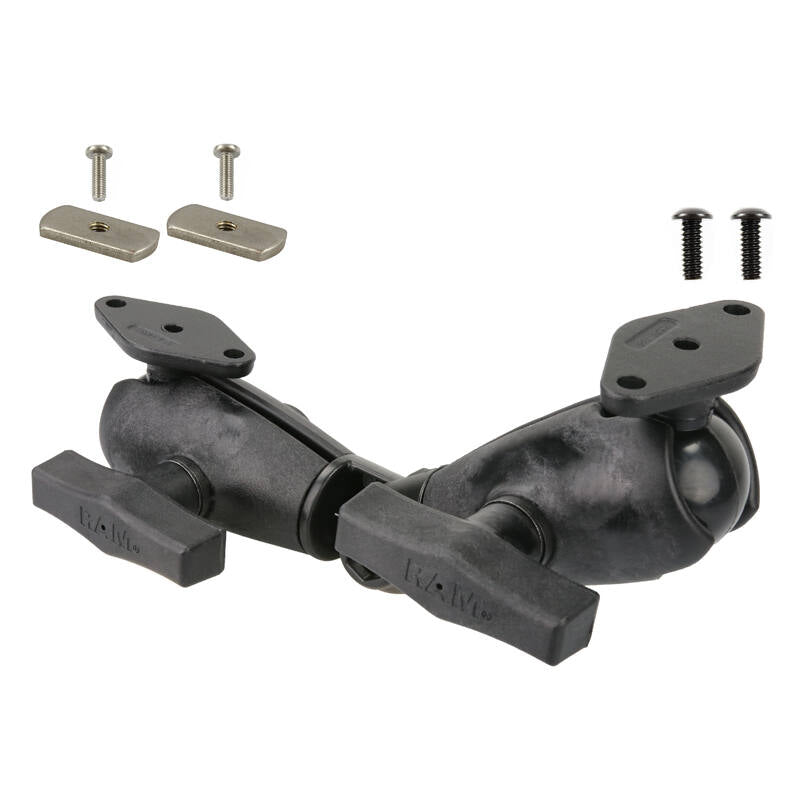

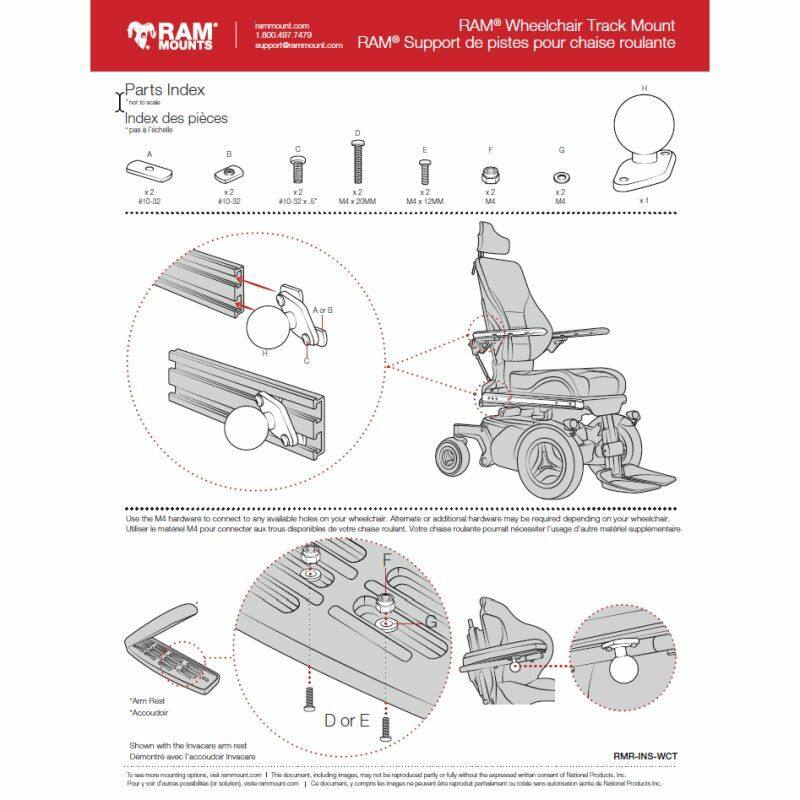

Included Hardware:
Qty. 2 #10-32 x 1/2" Machine Screw
Qty. 2 #10-32 T-Nut (3/8" x 5/8")
Qty. 2 #10-32 T-Nut (1/2" x 1")
Qty. 2 M4 x 12mm Machine Screw
Qty. 2 M4 x 20mm Machine Screw
Qty. 2 M4 Stainless Steel Washer
Qty. 2 M4 Nylock Nut
Ball Size:
1.5" Rubber Ball Size
Weight:
476 grams (1.05 lbs.)
Weight Capacity
1.814 kg (4 lbs)
Material:
Powder Coated Marine Grade Aluminium
High-strength composite
Stainless steel hardware
Components:

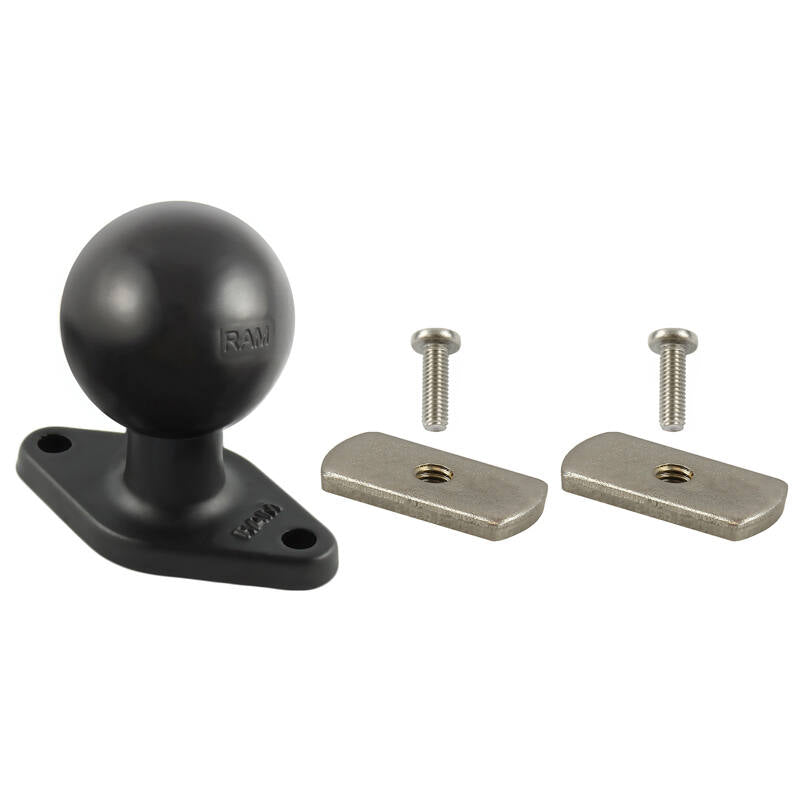

RAM-238-WCT Universal Wheelchair Ball Base

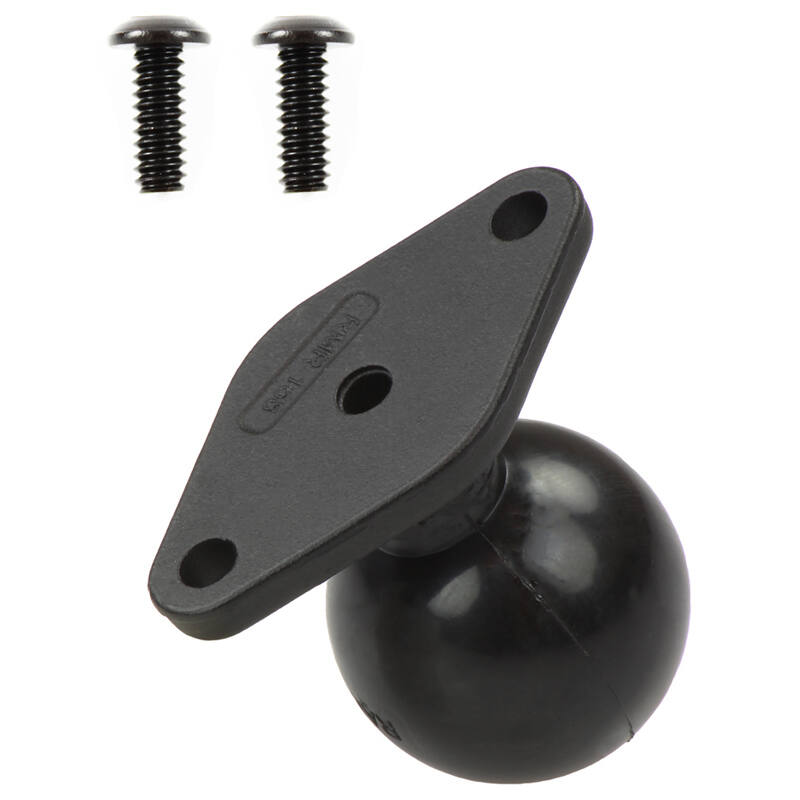

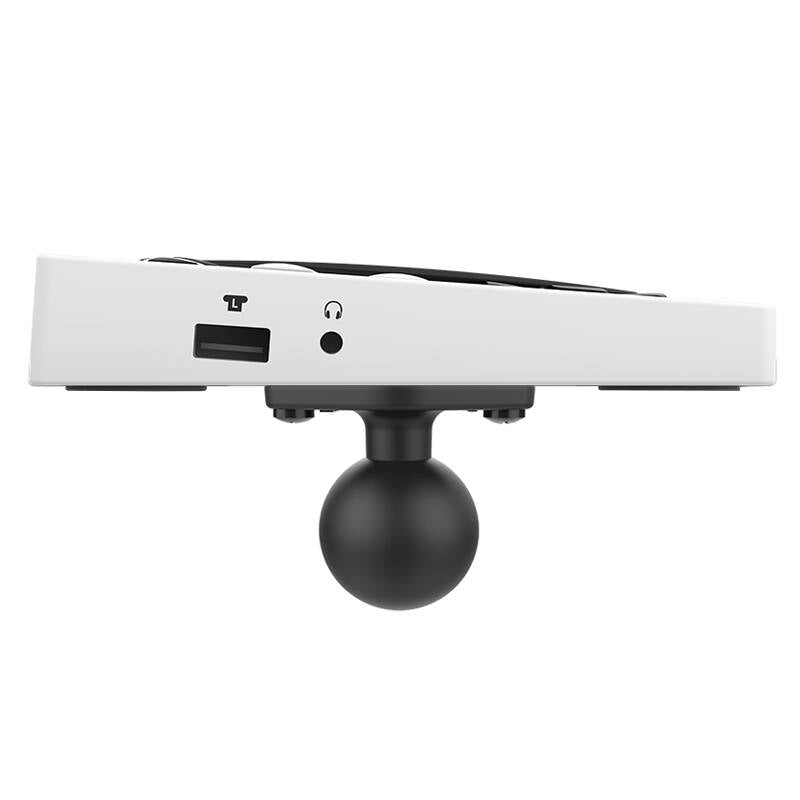

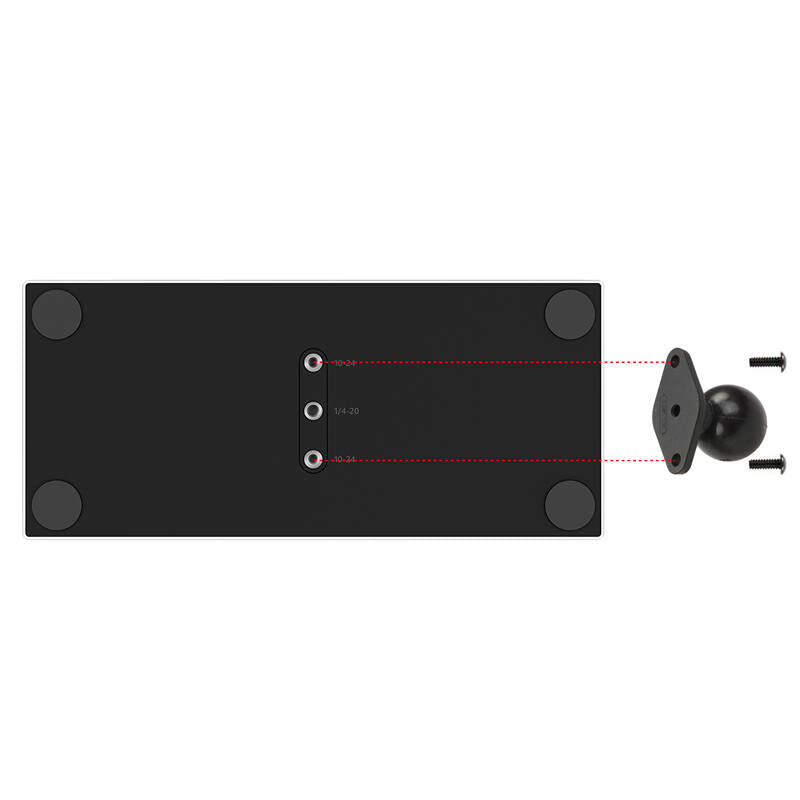

RAM-238-MS2 Ball Adapter for Xbox Adaptive Controller
RAP-200-2U Composite Double Socket Swivel Arm for C Size 1.5" Balls
