RAM Wheelchair Ball Base - B Series 1" ball

RAM Wheelchair Ball Base - B Series 1" ball

SKU:RAM-B-238-WCT

Regular price $44.05 NZD
Regular price Sale price $44.05 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-238-WCT Universal Wheelchair Ball Base

Features


* Diamond plate 61.7mm x 33.3mm is compatible with RAM® B Series arms
* Includes universal hardware pack that accommodates the armrest and seat tracks on most major wheelchair brands
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

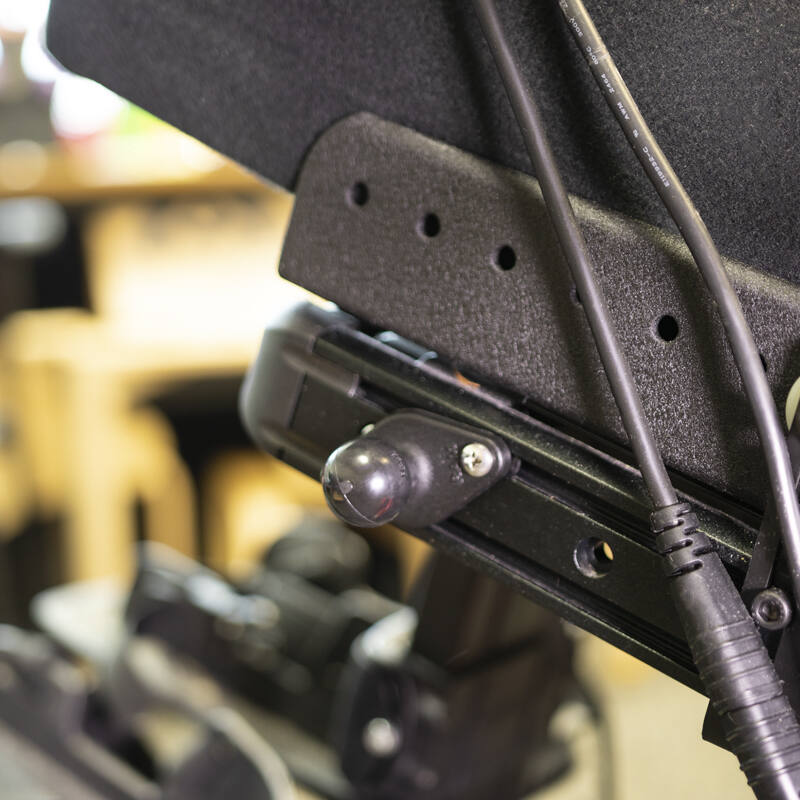

This B size RAM® diamond ball base features a universal hardware pack that accommodates the armrest and seat tracks on most major wheelchair brands, including Invacare, Permobil, and Quickie. Pair with a variety of compatible RAM® double socket arms and device holders to build a custom mount to meet your specific needs.

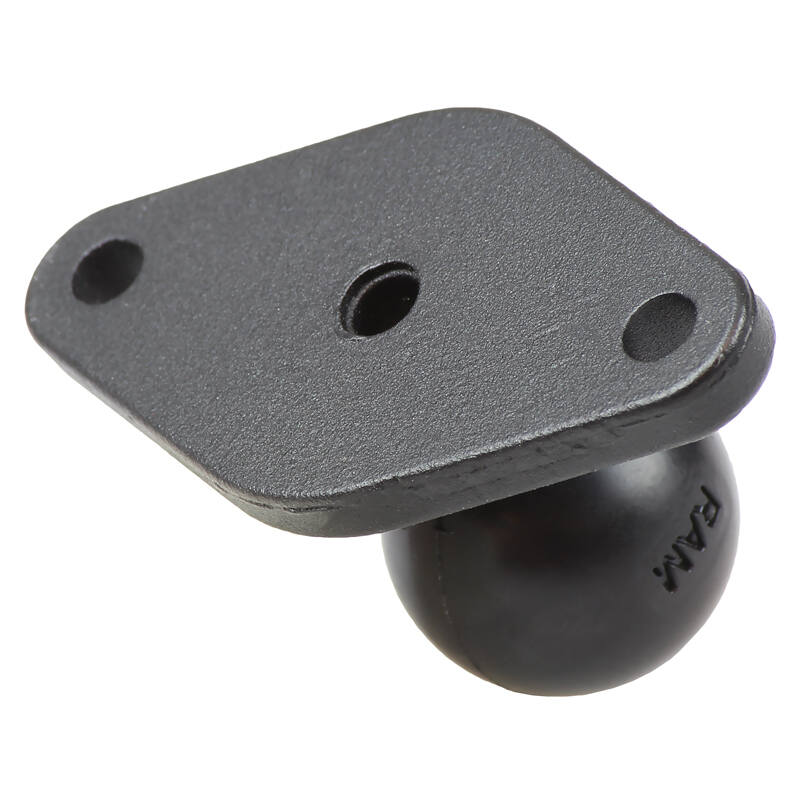

The 1" diameter rubber ball is connected to a 61.7mm x 33.3mm (2.43" x 1.31") diamond base. The base has two holes 48.5mm from centre to centre, matching the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.


Specs & Features

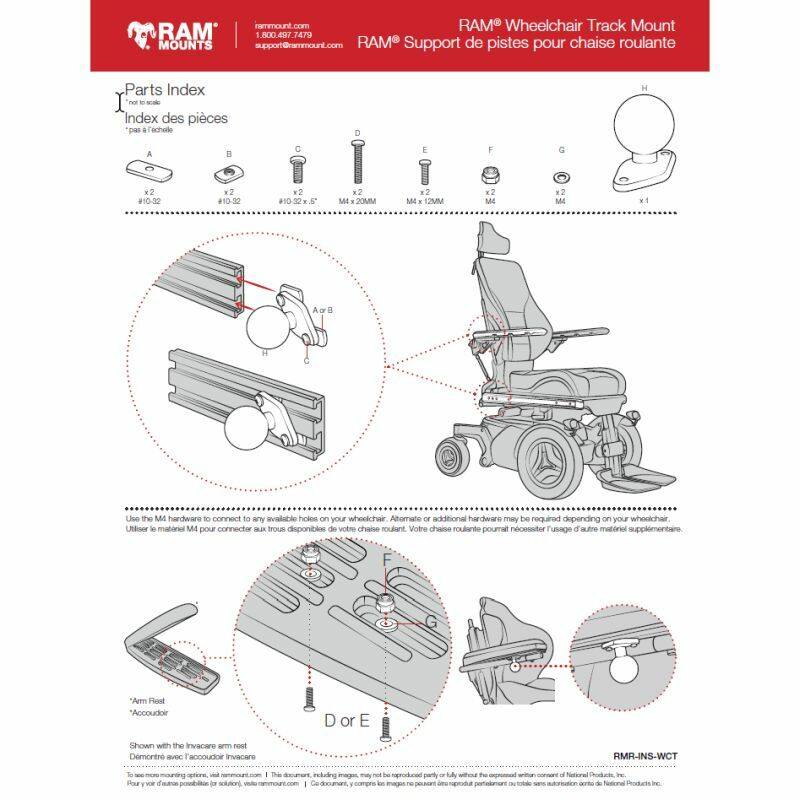

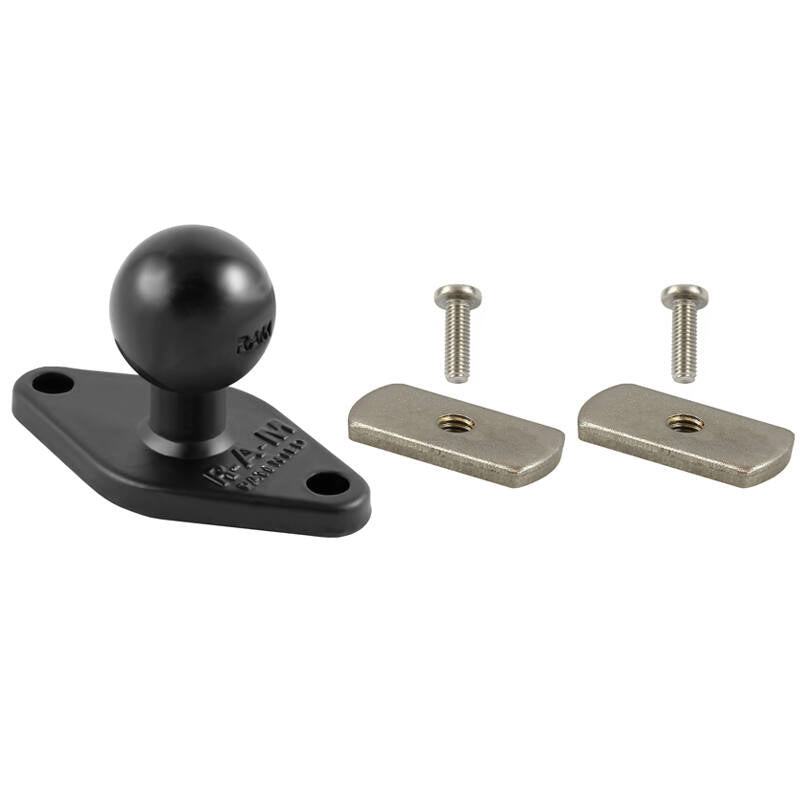

Hardware Included
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts



T-Bolt Dimensions
Large: 12.19mm x 24.13mm (.48" x .95")
Small: 9.52mm x 15.06mm (.375" x .593")

Hole Pattern (Diamond Base)
2-Hole AMPS: 1.912"

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size


Weight:
100 grams (0.22 lbs.)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
