RAM Mounts

RAM Wheelchair Ball Base - C Series 1.5" ball

RAM Wheelchair Ball Base - C Series 1.5" ball

SKU:RAM-238-WCT

Regular price $60.56 NZD
Regular price Sale price $60.56 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-238-WCT RAM Universal Wheelchair Ball Base


Features

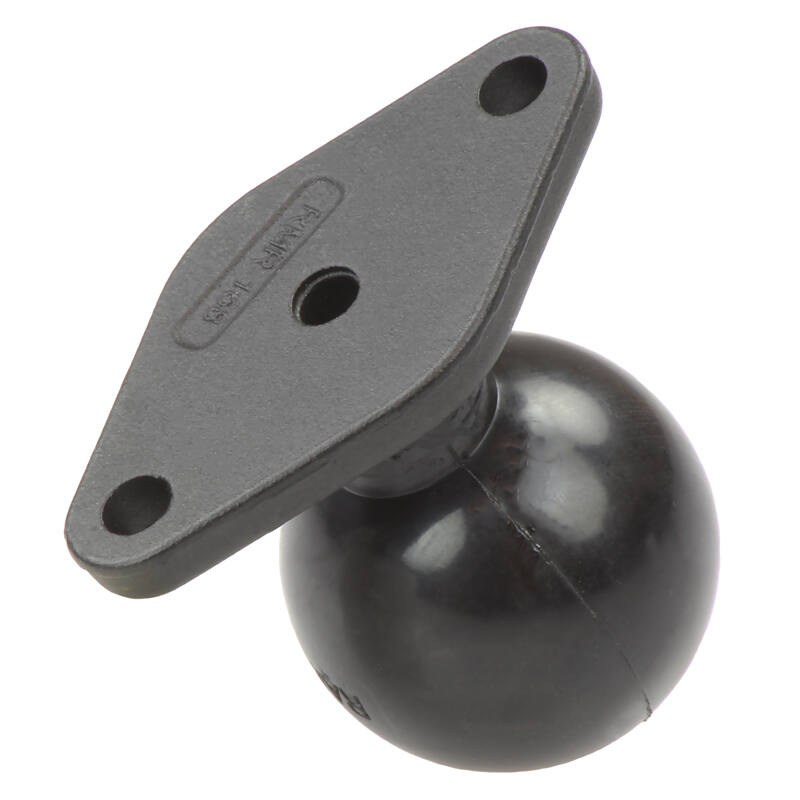

* Diamond plate features industry-standard AMPS hole pattern and measures 2.43" x 1.31"
* Features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands
* Incorporates a C size 1.5" Ball to connect to a variety of RAM C series arms
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

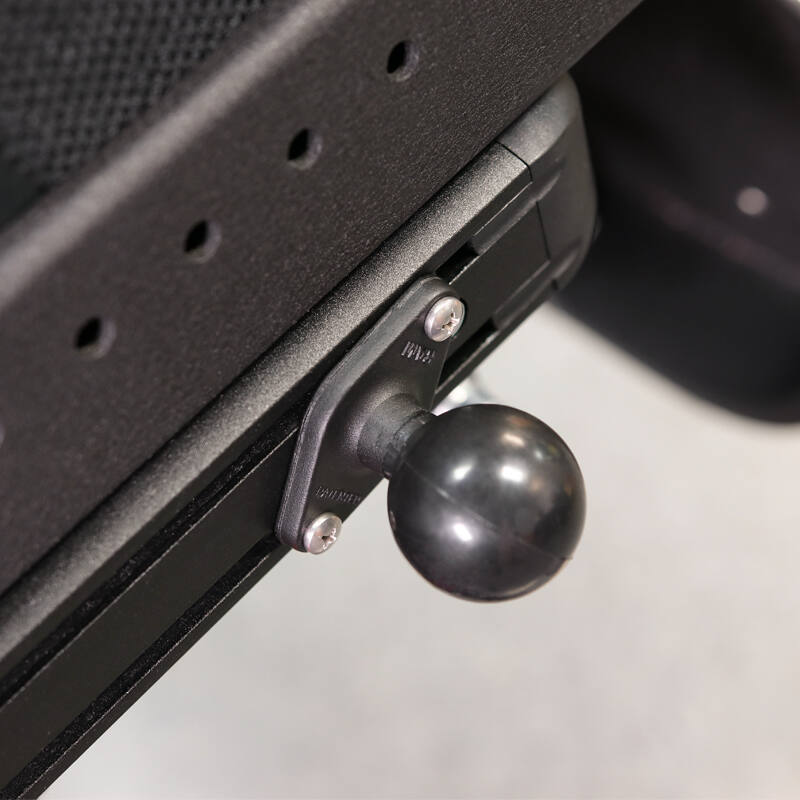

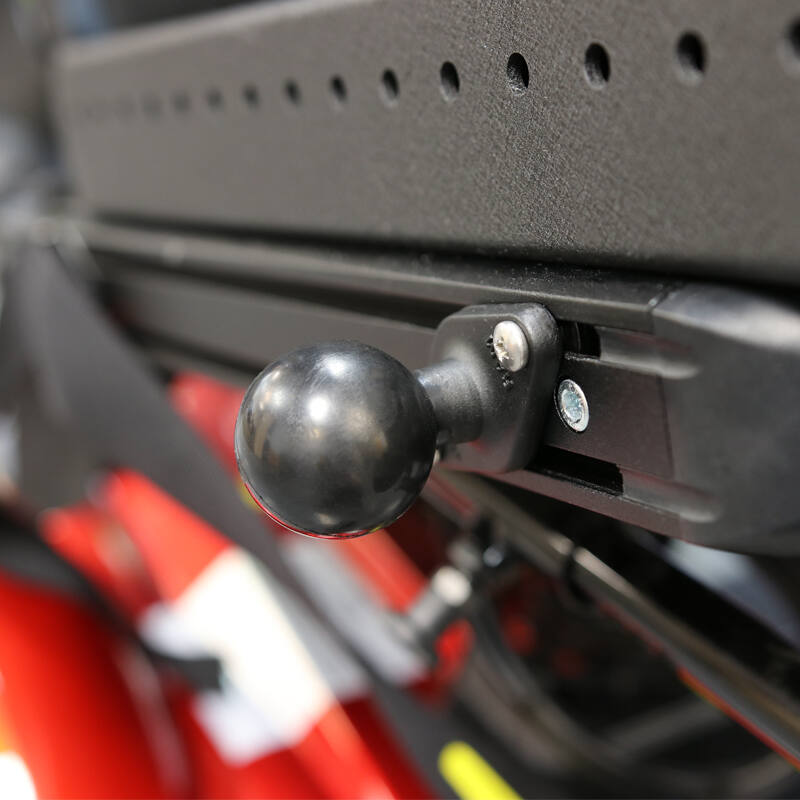

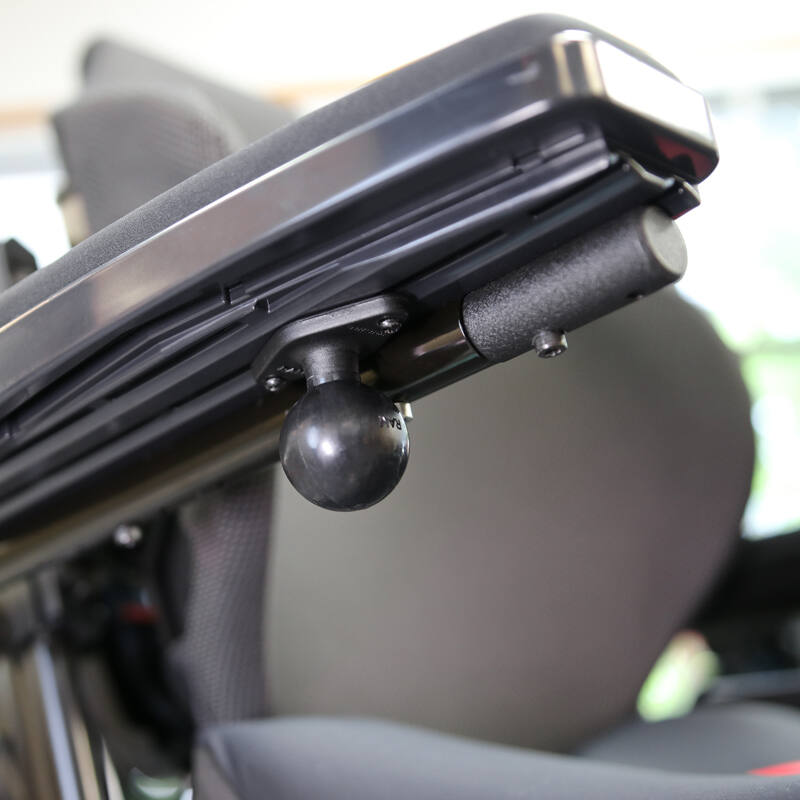

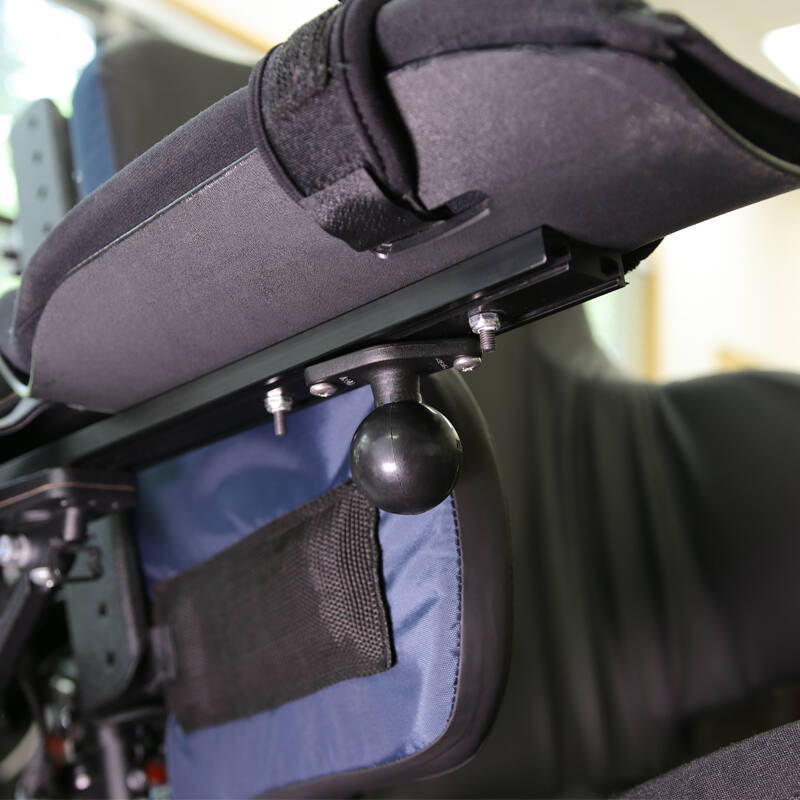

This RAM® ball base features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands, as well as any other universal mounting point. Pair with a variety of compatible RAM® arms and extensions to build a custom mount to meet your specific needs.

Compatible Wheelchair Brands:
Invacare
Permobil
Quickie
Most Powered Wheelchairs


Specs & Features

Hole Pattern
2-Hole AMPS 1.912"

T-Bolt Dimensions
Large: 12.19mm x 24.13mm (.48" x .95")
Small: 9.52mm x 15.06mm (.375" x .593")


Material:
Powder Coated Marine Grade Aluminium

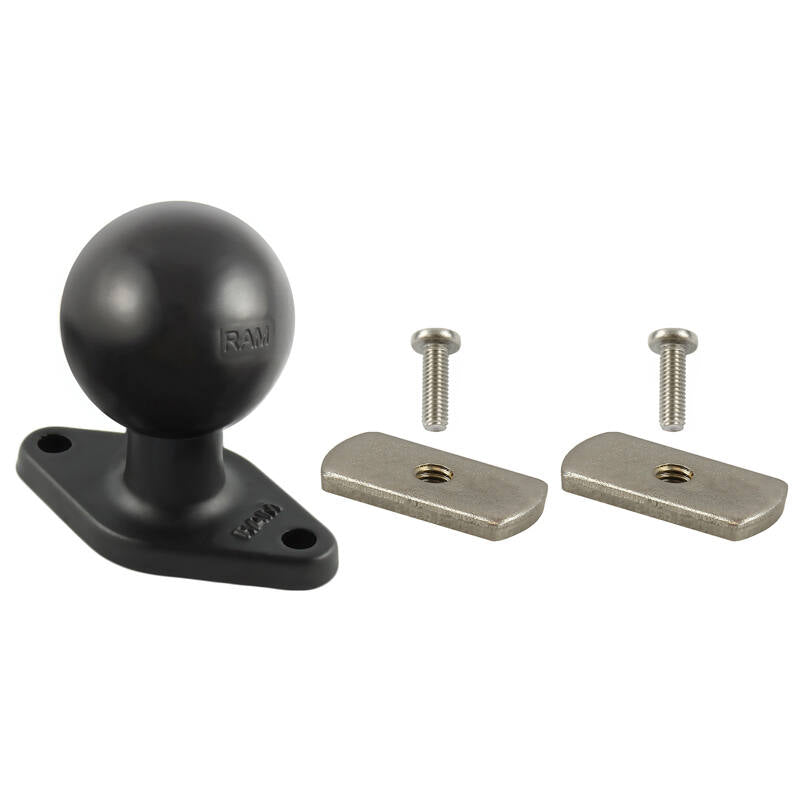

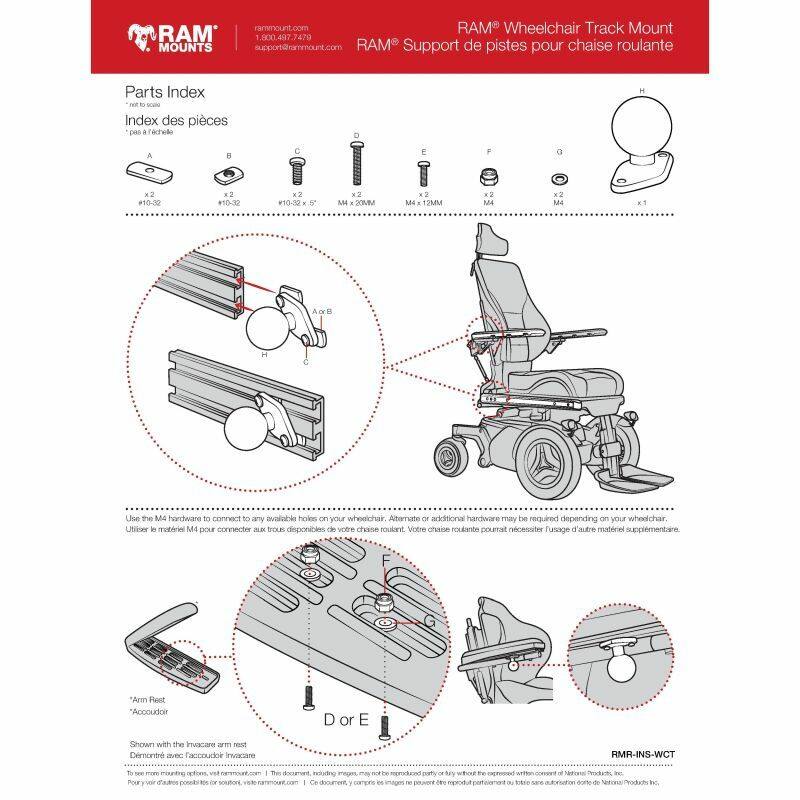

Included Hardware:
Qty. 2 #10-32 x 1/2" Machine Screw
Qty. 2 #10-32 T-Nut (3/8" x 5/8")
Qty. 2 #10-32 T-Nut (1/2" x 1")
Qty. 2 M4 x 12mm Machine Screw
Qty. 2 M4 x 20mm Machine Screw
Qty. 2 M4 Stainless Steel Washer
Qty. 2 M4 Nylock Nut

Ball Size:
1.5" Rubber Ball Size


Weight:
136 grams (0.3 lbs.)

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
