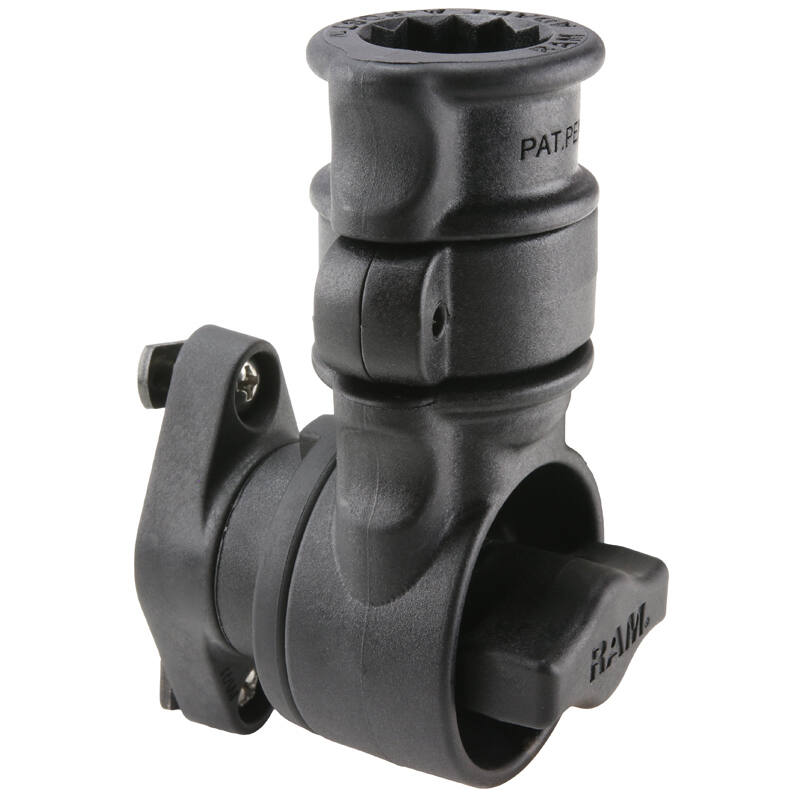

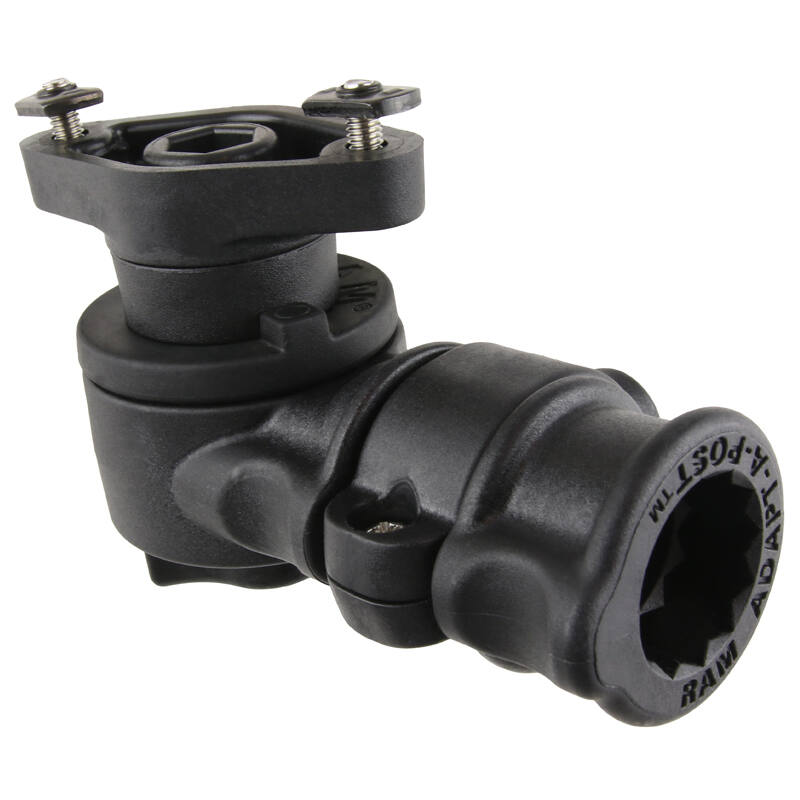

RAP-AAPR-WCT RAM® Universal Wheelchair Base with Quick Release & Swivel Feature
Features
* Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

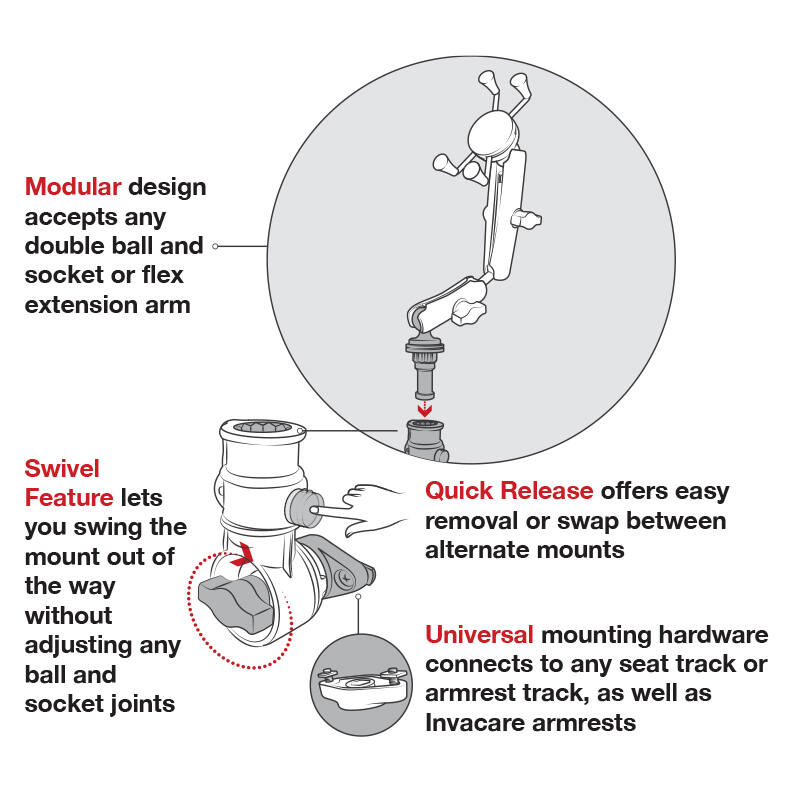

* Easy swivel and quick release capabilities without changing ball and socket positioning

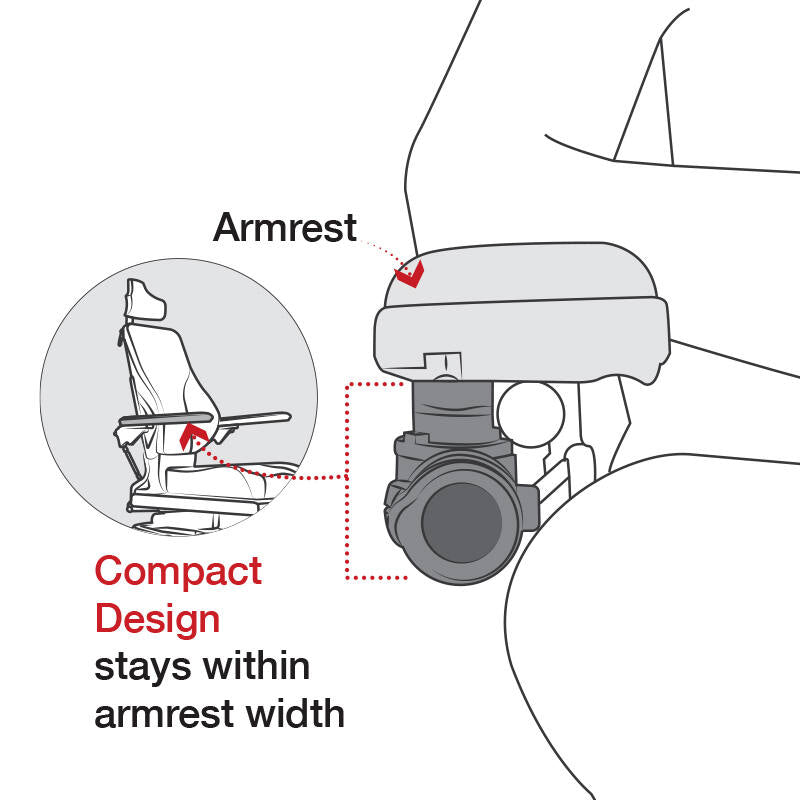

* Compact design keeps mount within armrest width
* Durable components support any phone or tablet mount with a short or long extension
* Backed by a lifetime warranty
The RAM® Universal Wheelchair Base is a feature-rich mounting platform supporting any phone, tablet or cup holder for any wheelchair armrest or seat track. With the turn of a single knob the user can swivel the entire mounting system in and out of position without having to adjust any other mounting components. A quick release button is integrated into the base which allows the user to easily remove or insert the mount from the chair; also a great option for swapping out one device mount for another. The compact design of the RAM® Universal Wheelchair base keeps the mounting system within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting compontents are backed by a lifetime warranty.

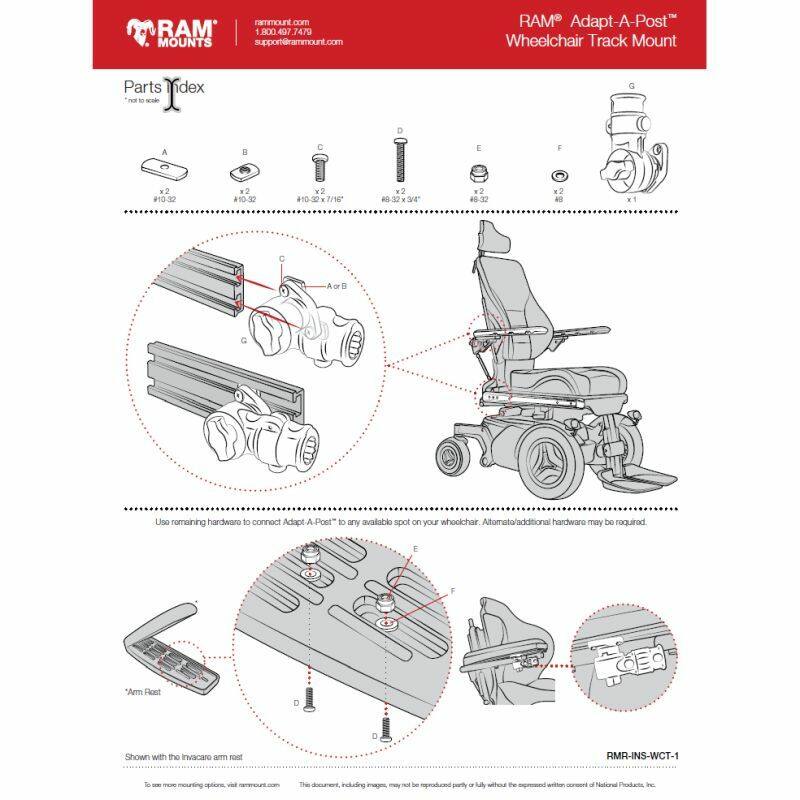

Hardware Included
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 7/16" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(2) #8 Washers
T-Bolt Dimensions
Large: 12.2mm x 24.1mm (.48" x .95")
Small: 9.53mm x 15.06mm (.375" x .593")
Hole Pattern
2-Hole AMPS: 48.5mm (1.912")
Materials
High strength composite
Weight
186mm (0.41 lbs.)
