RAP-400-18-B-201 RAM® Tough-Claw® with RAM® Flex-Rod™ 18" Extension Arm for Wheelchairs
Features
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface

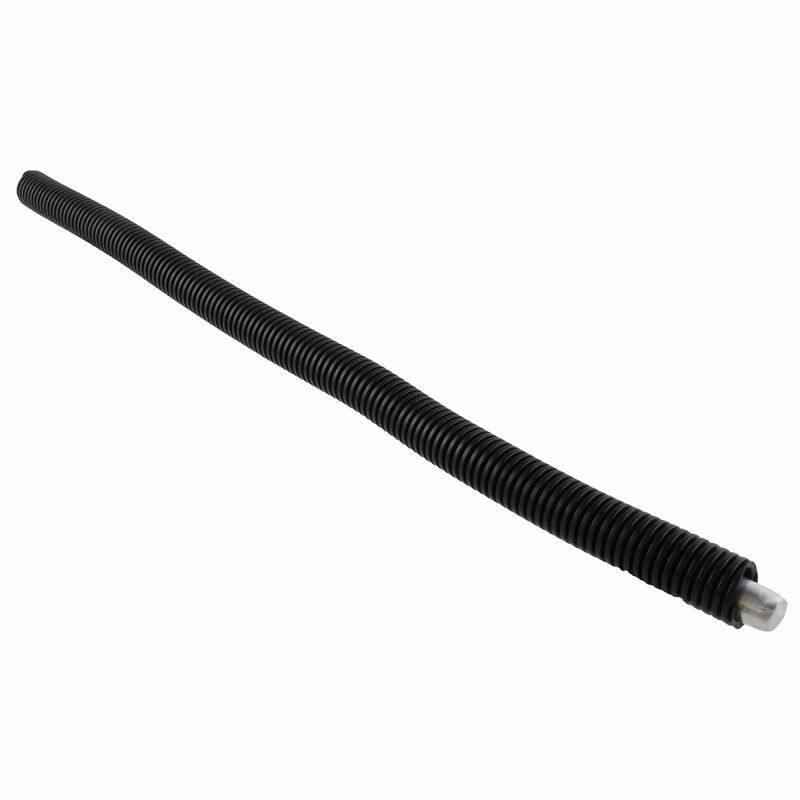

* 457mm RAM® Flex-Rod™ and medium RAM double socket arm allows connection to any 1" B series RAM base
* Made of Marine-grade aluminium, high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

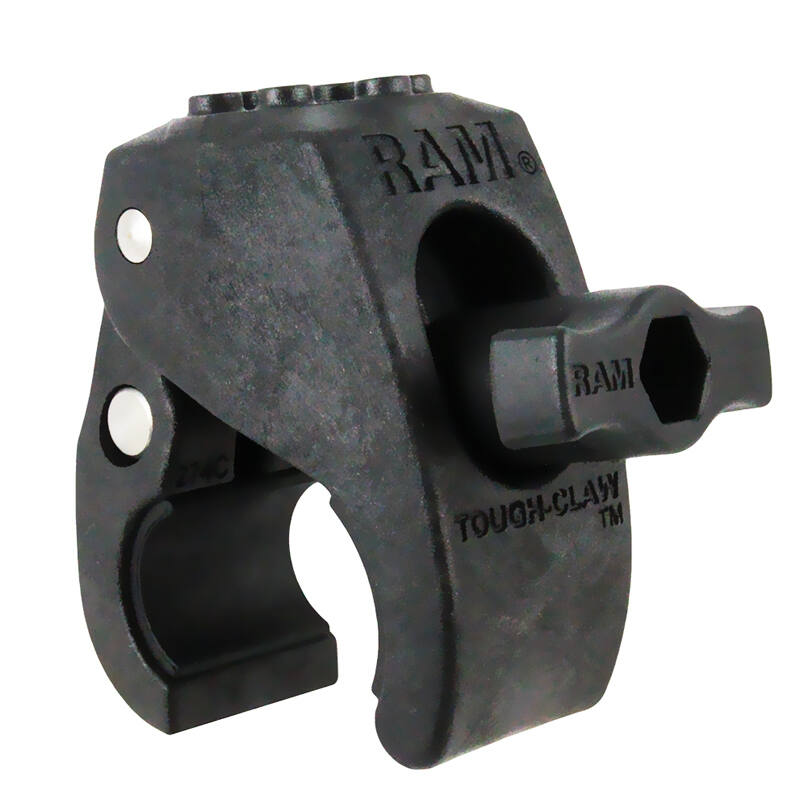

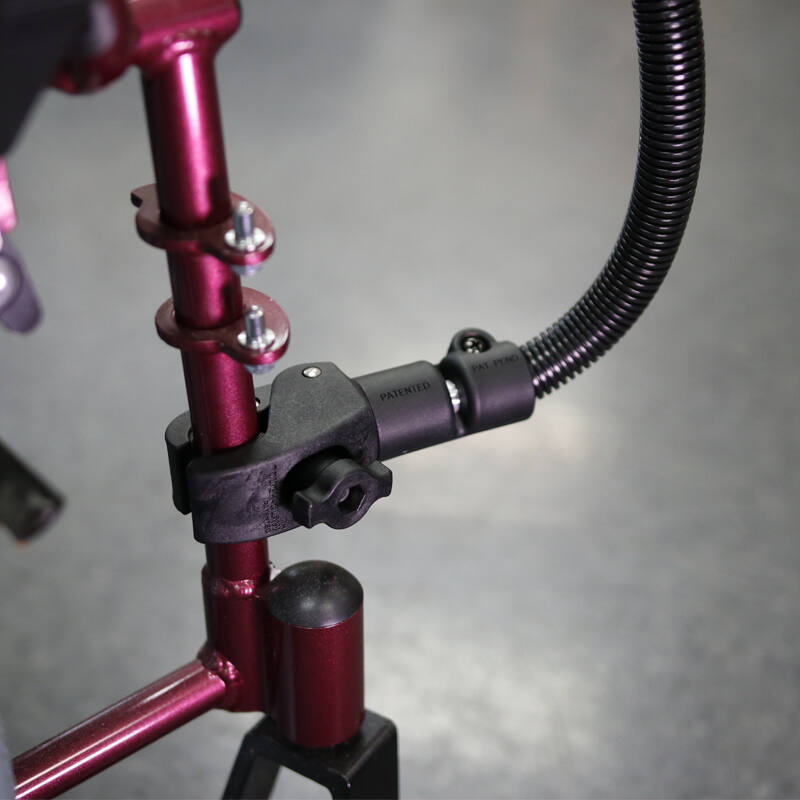

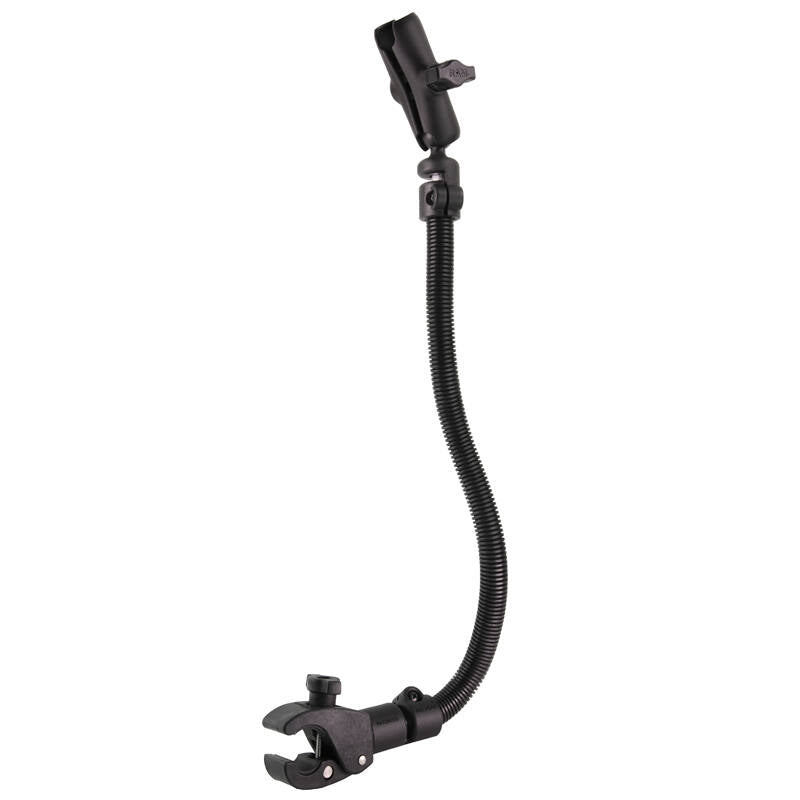

This kit includes a small RAM® Tough-Claw™ clamp base connected to a 457mm (26") RAM® Flex-Rod™ and medium double socket arm. The RAM® Tough-Claw™ can be clamped to 16-28mm diameter rails.

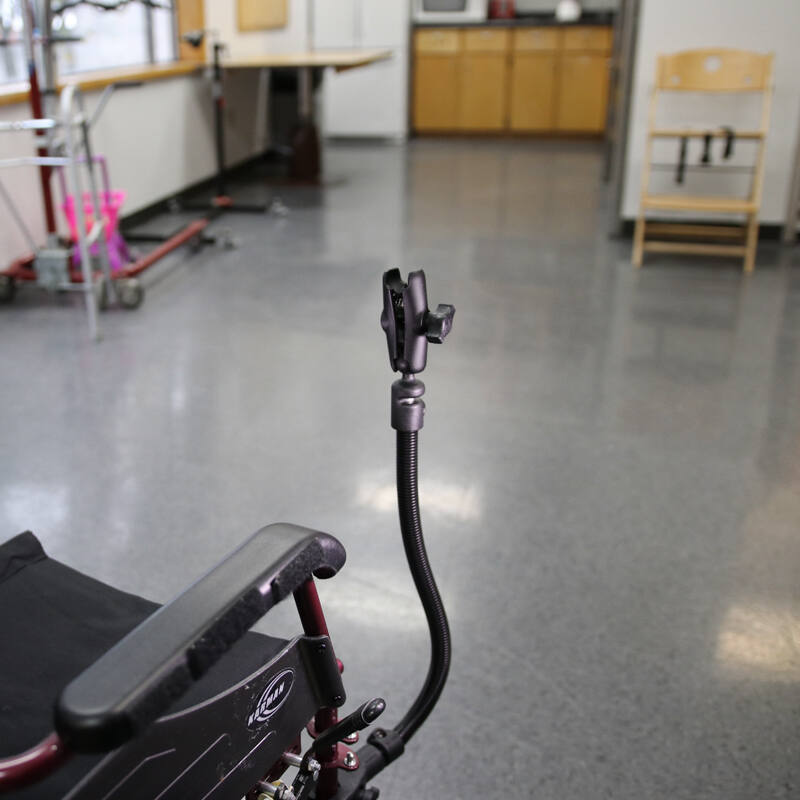

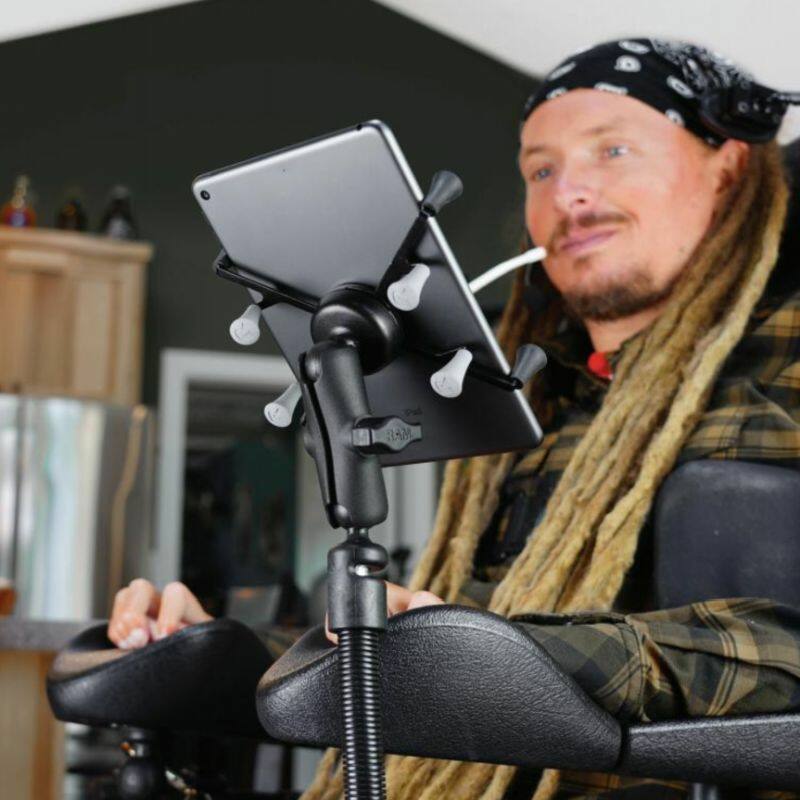

Designed for use with popular wheelchair brands, clamp the RAM® Tough-Claw™ in place and pair with your preferred B size device holder.
HARDWARE INCLUDED
Assembly Hardware
PRODUCT DIMENSIONS
Overall Height: 660mm (26")
CLAMP RANGE
Clamping Range (Rail/Tube Surfaces):
16mm to 38mm (0.625" to 1.5")
Clamping Range (Flat Surfaces):
0 to 29mm (0" to 1.14")
Double Socket Arm Dimensions
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
BALL/SOCKET SIZE
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
MATERIALS
Marine-grade aluminium
High strength composite
WEIGHT
603 grams (1.33 lbs.)
Wheelchair Compatibility Guide:
https://www.rammount.com/files/pdf/wheelchair-compatibility.pdf
