RAM-B-238-WCT-2-UN10 RAM® X-Grip® Phablet Mount for Wheelchair Armrests
Features
* Large Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone
* RAM® diamond ball base with a universal hardware pack accommodates the armrest on most major wheelchair brands
* RAM B size RAM® Mounts double socket arms with double ball adaptor allow for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This kit includes a RAM® diamond ball base with a universal hardware pack that accommodates the armrest on most major wheelchair brands, including Invacare, Permobil, and Quickie. The 1" rubber ball is connected to a 61.7mm x 33.3mm diamond base which has two holes 48.5mm from centre to centre (standard AMPS hole pattern).
Medium and long double socket arms are connected by a double ball adaptor allowing for almost infinite adjustment and perfect viewing angles.

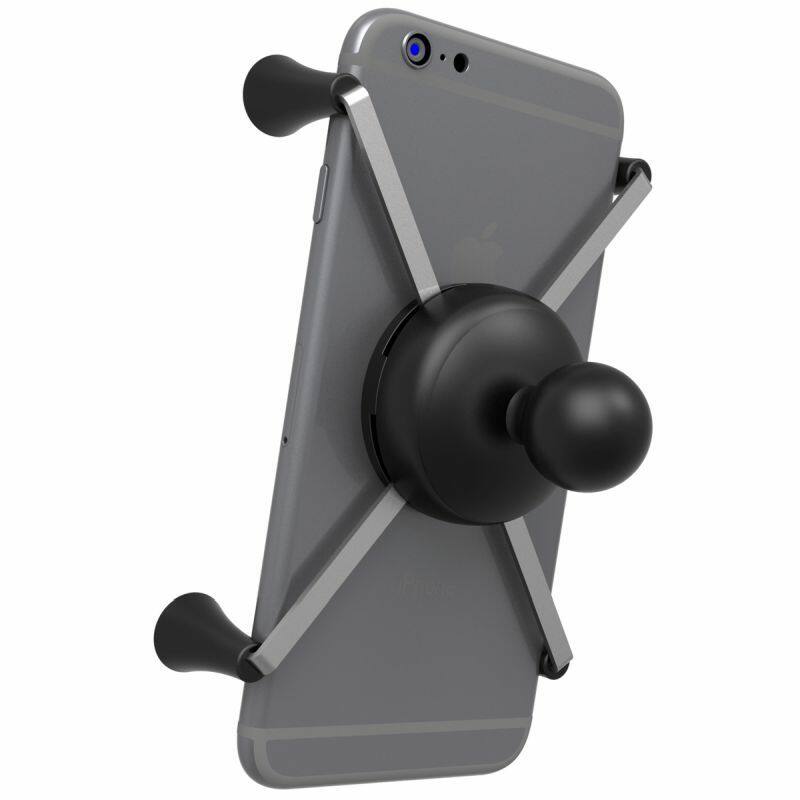

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your phone / phablet. It is the cell phone holder evolved and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 44.45mm (1.75”) – (if it is min width then the min height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if it is max width then the min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU
T-Bolt Dimensions
Large: 12.19 x 24.13mm (.48" x .95")
Small: 9.52 x 15.06mm (.375" x .593")
Hole Pattern (Diamond Base)
2-Hole AMPs:
1.912” (48.5mm)
Overall Arm Length:
271mm (10.65")
Medium Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Long Arm Dimensions:
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)
Materials
Marine-grade aluminium
High strength composite
Stainless steel
Components:
RAM-B-238-WCT Universal Wheelchair Ball Base
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAM-B-230U DOUBLE 1" BALL ADAPTER
RAM-HOL-UN10BU X-GRIP UNIVERSAL HOLDER W/ 1" BALL
YouTube:
https://www.youtube.com/watch?v=gSplxuUrtmQ
https://www.youtube.com/watch?v=SLBI1a15ahg
NOTE - Images may show this configuration with the smaller -UN7 X-Grip
