RAP-AAPR-WCT-114P-18-UN9U RAM® Tablet Mount for Wheelchairs with Quick Release & Swivel Feature
Features
* Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

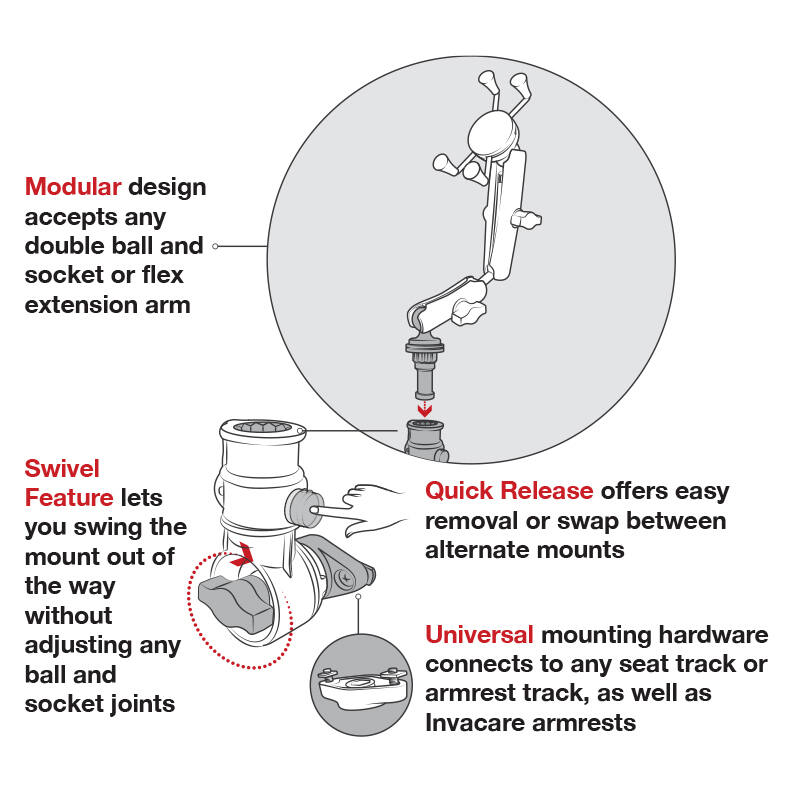

* Easy swivel and quick release capabilities without changing ball and socket positioning

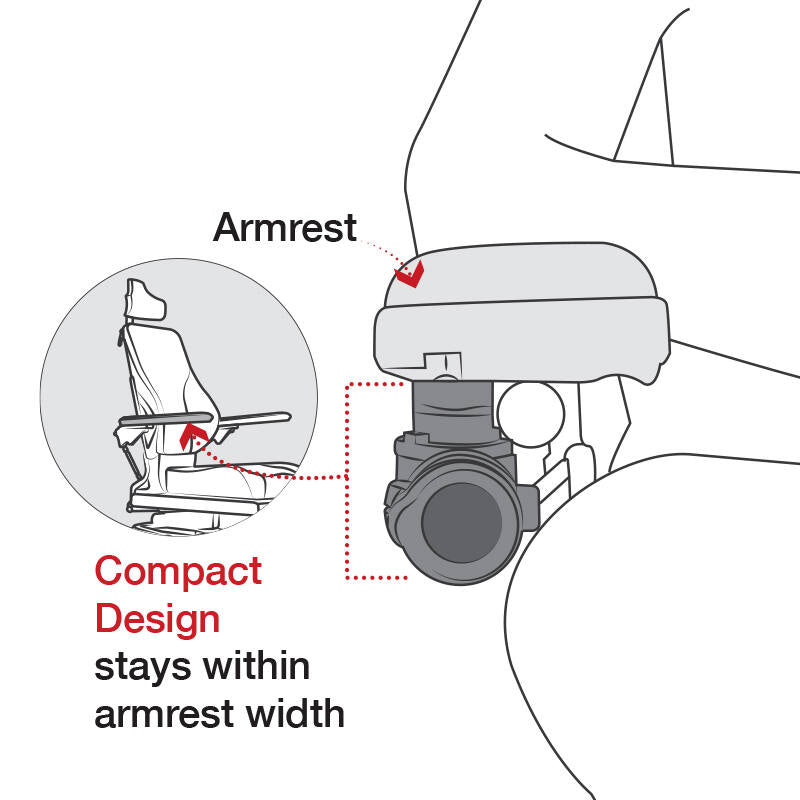

* Compact design keeps mount within armrest width
* Supports most 9"-10.5" tablet with or without a case at virtually any angle
* Backed by a lifetime warranty

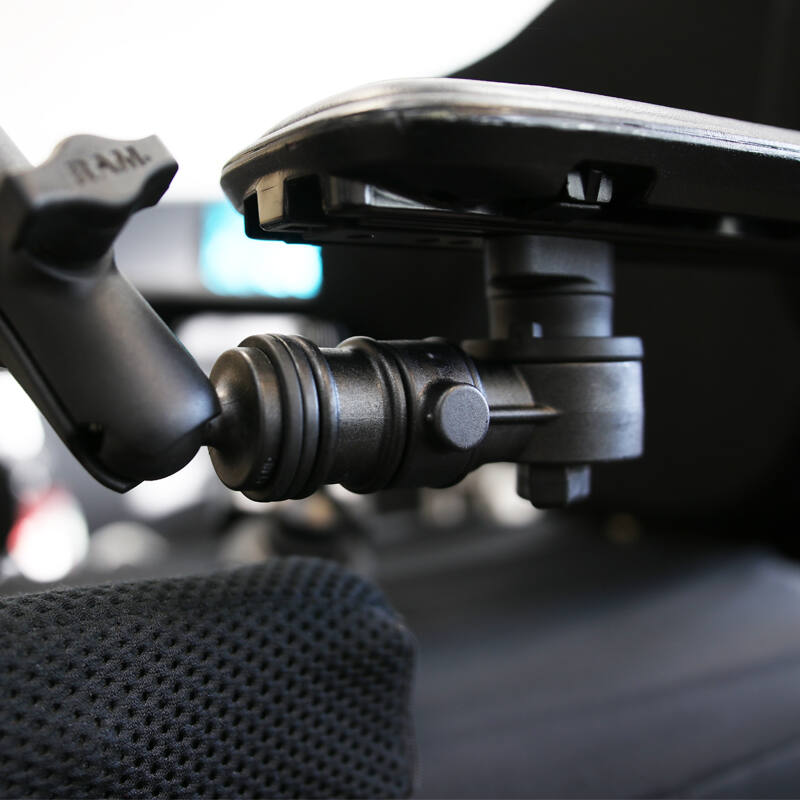

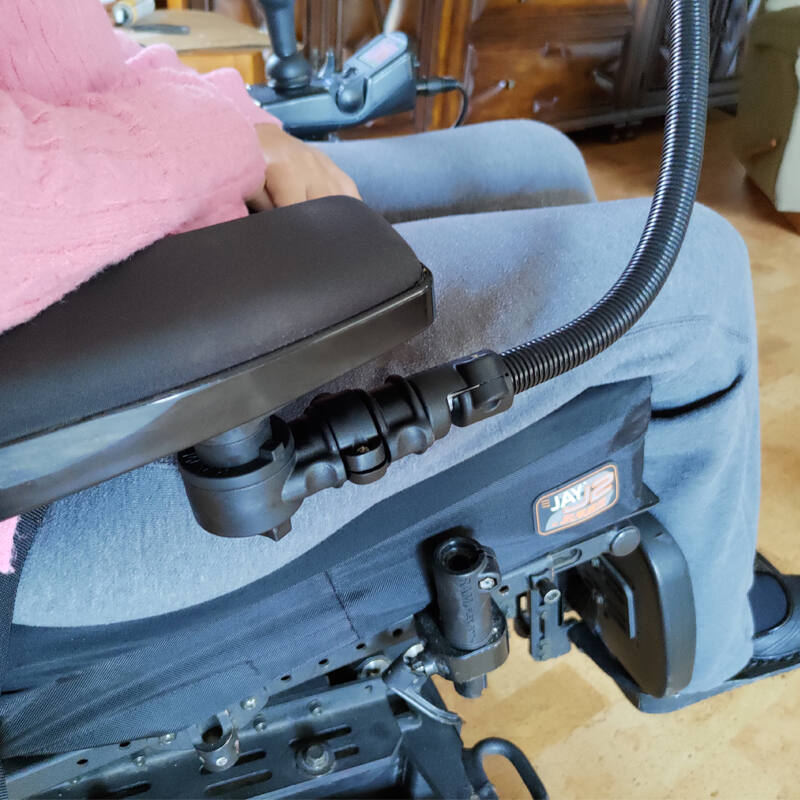

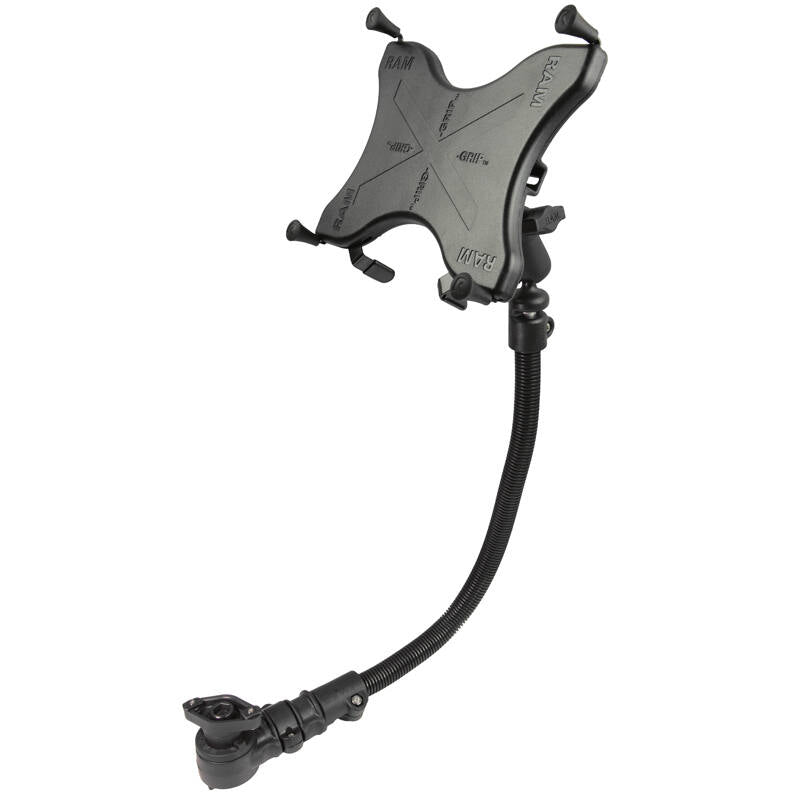

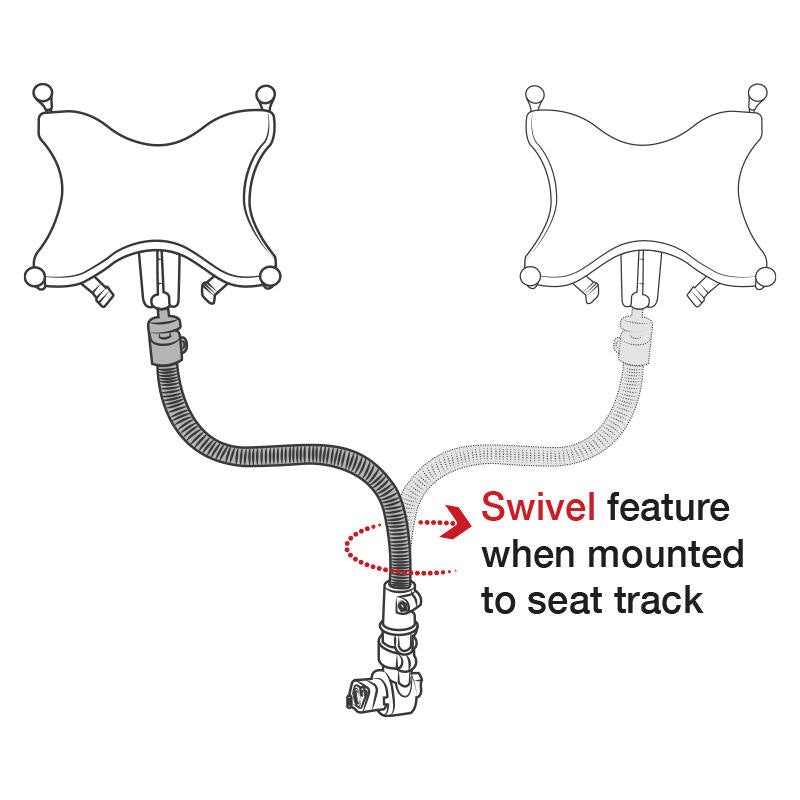

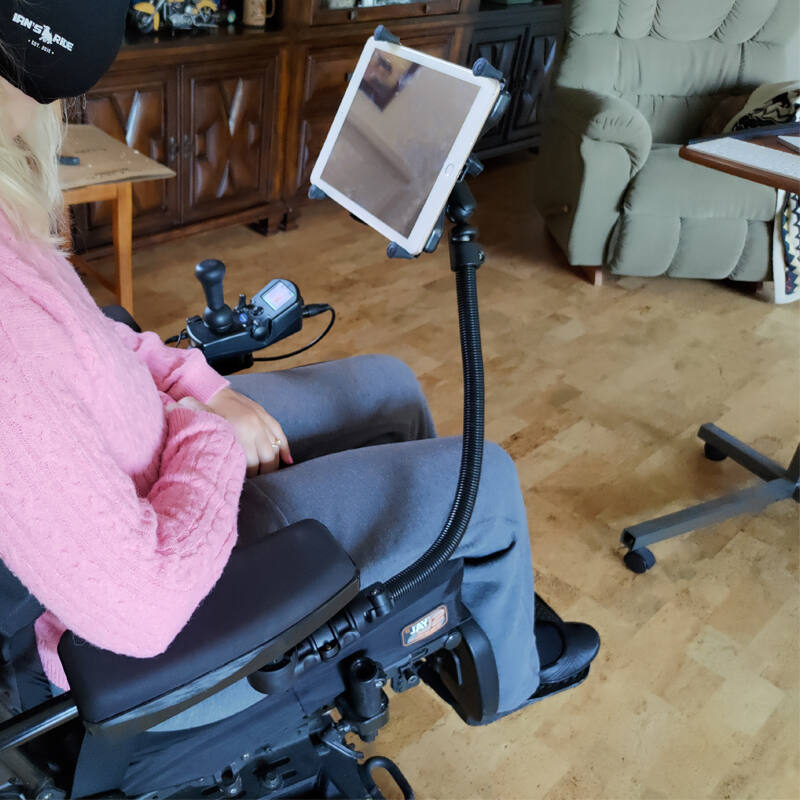

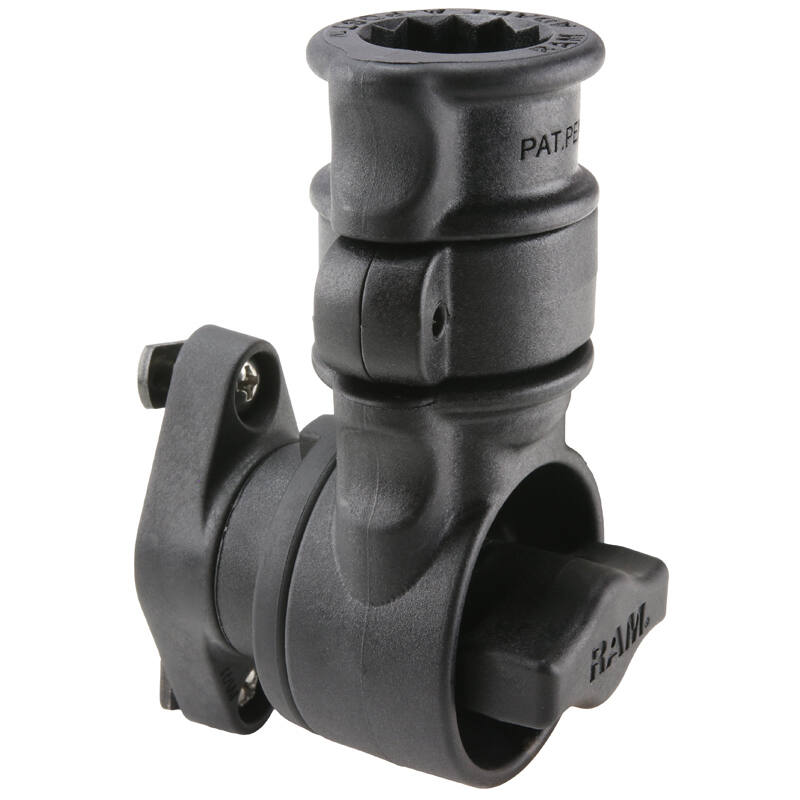

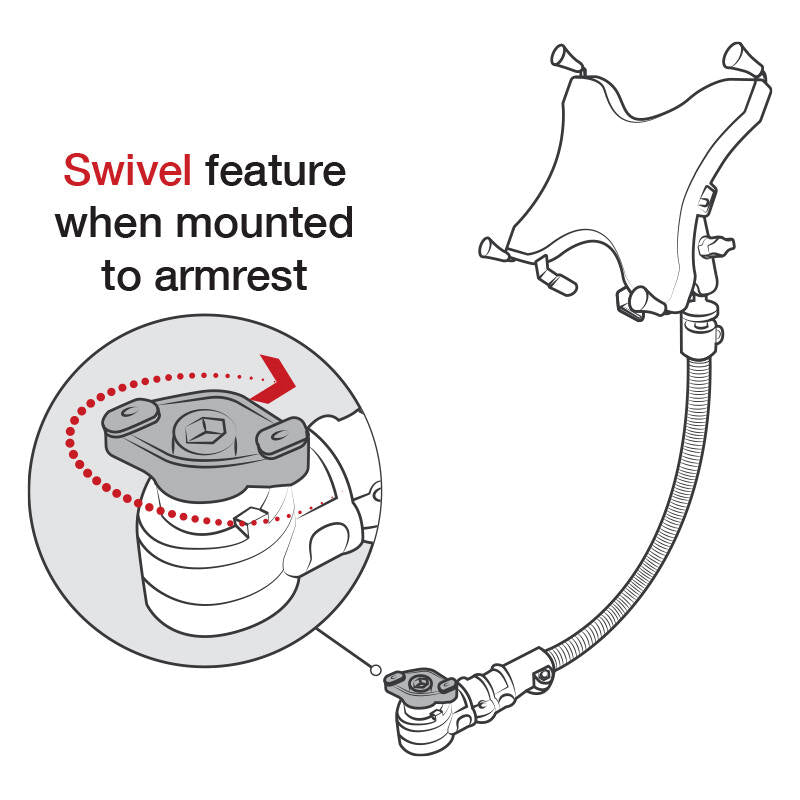

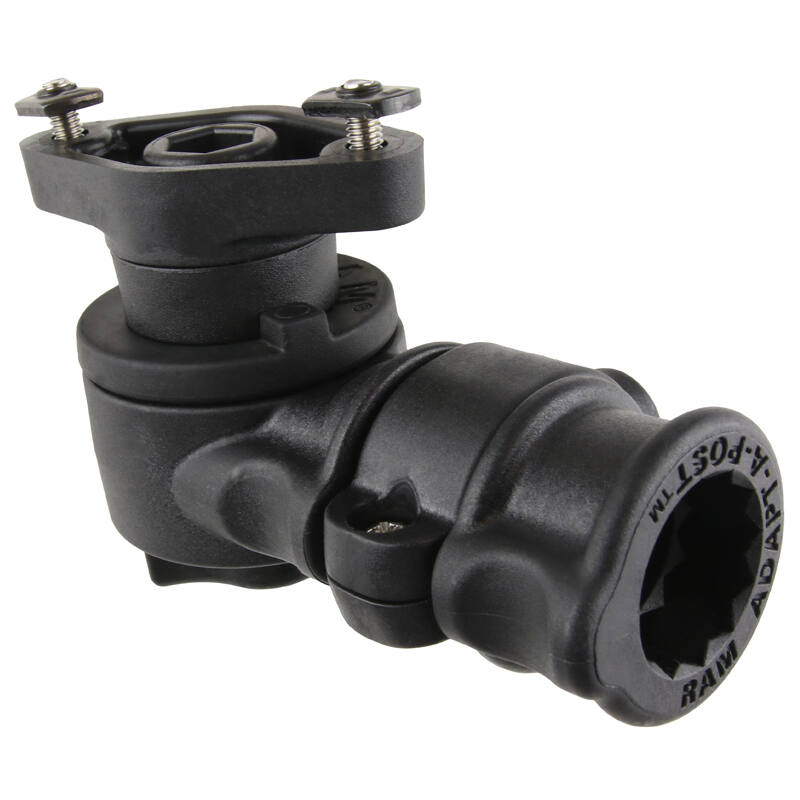

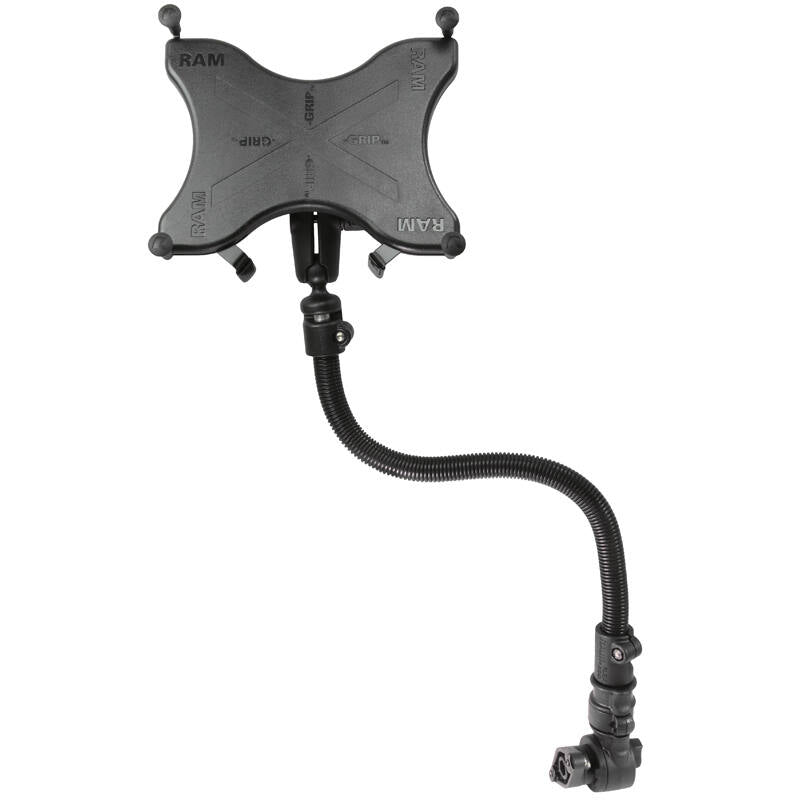

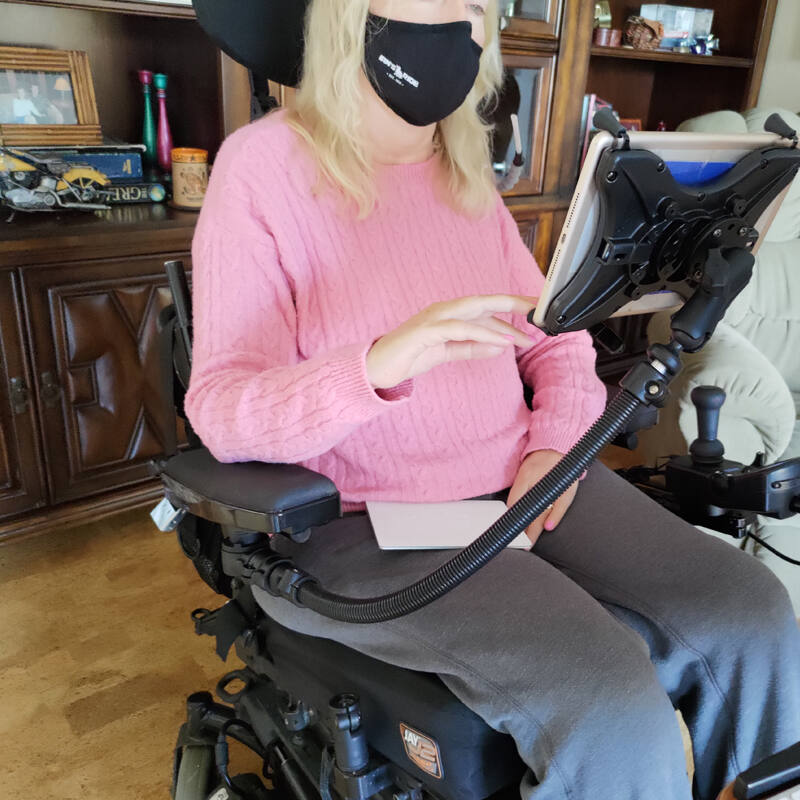

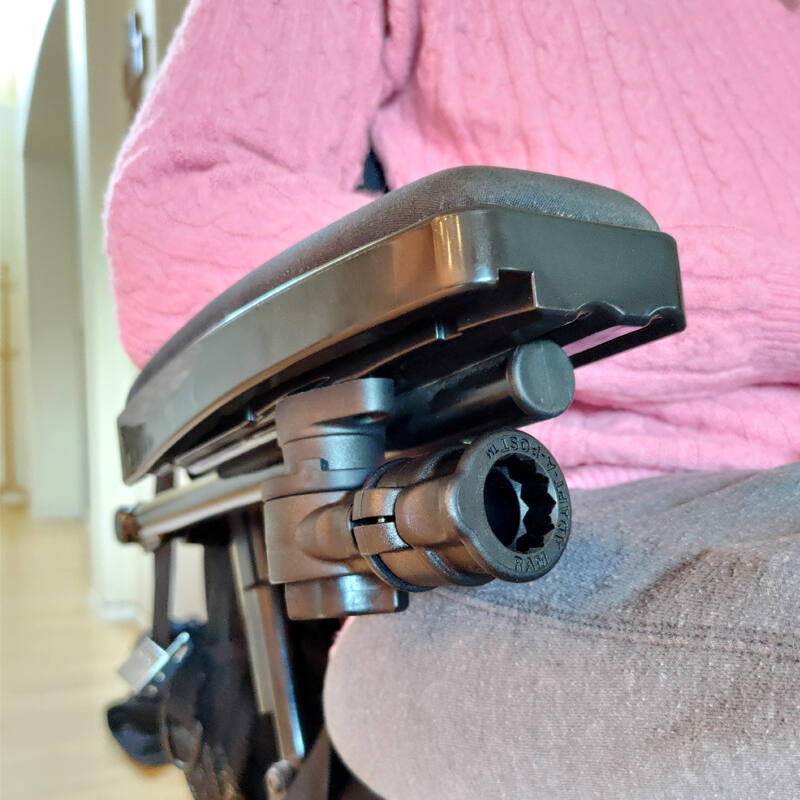

The RAM® Tablet Mount with Quick Release & Swivel is the perfect solution for mounting virtually any 9"-10.5" tablet to any wheelchair armrest track, Invacare armrest, or wheelchair seat track. The system consists of the RAM® X-Grip® tablet holder, B size double socket arm, an 18" long rigid aluminum rod with post adapter, and the RAM® Universal Wheelchair Base. The universal base offers a quick disconnect feature of the entire mount without having to adjust any ball and socket components. The base also features an adjustable knob that lets you swivel the mount in and out of position with ease. When mounted to a seat track, the aluminum rod can be left loose to achieve the same swivel feature. The compact design of the RAM® Universal Wheelchair mounting system stays within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting compontents are backed by a lifetime warranty.

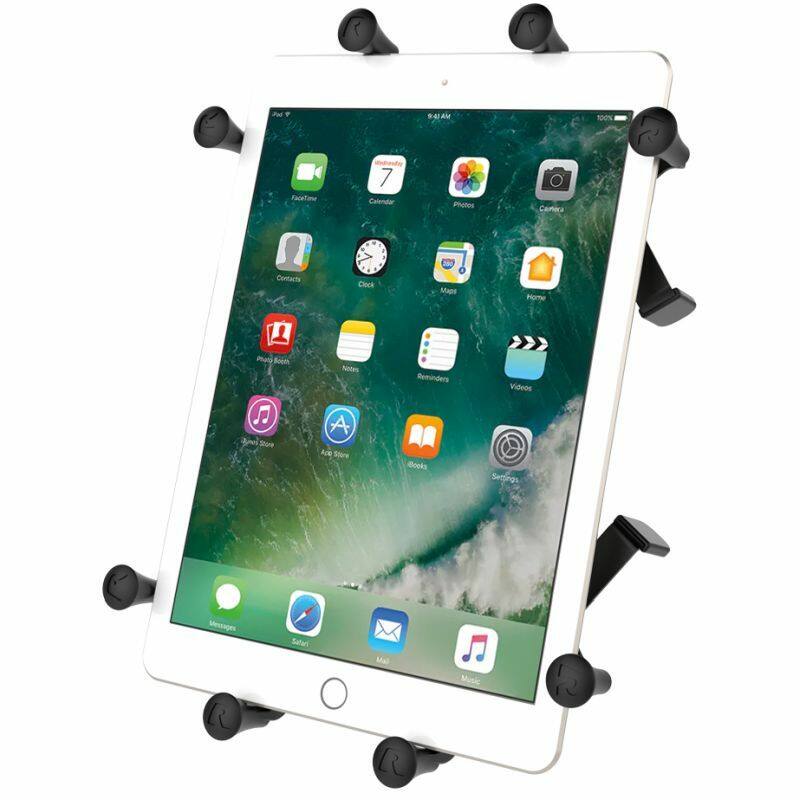

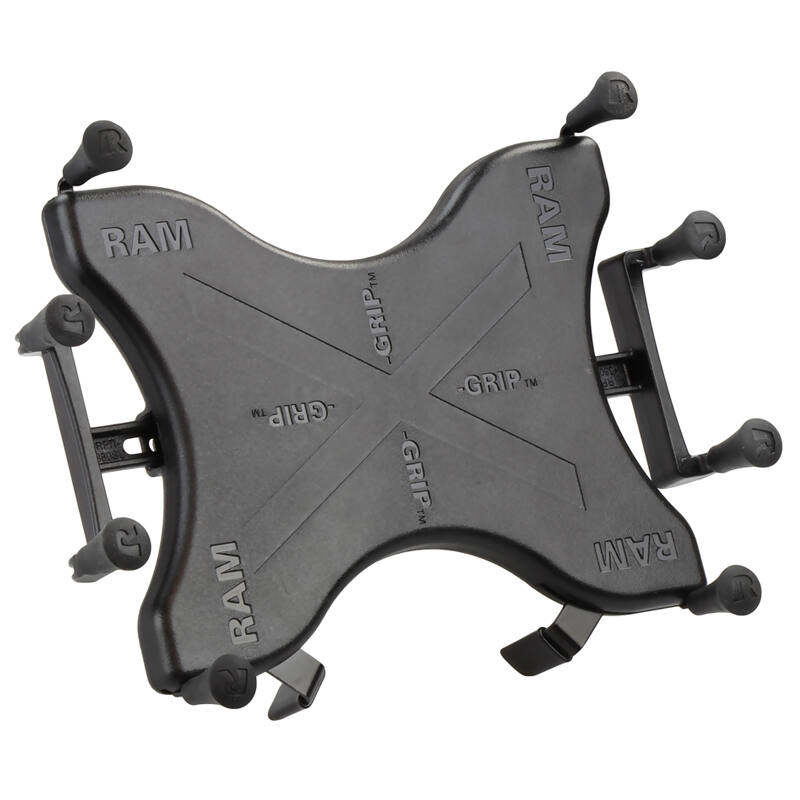

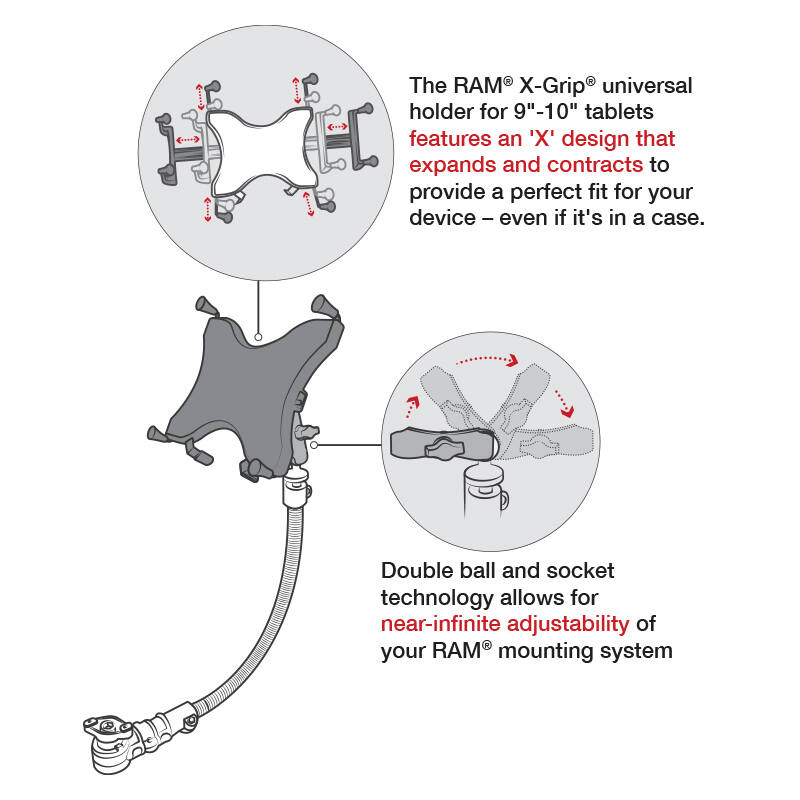

The included -UN9 X-Grip spring loaded cradle expands and contracts for perfect fit of your tablet. Rubber coated tips will hold your tablet firm and stable. Easy access grip knobs, located on the back of the cradle for quick release of your tablet anfd there are multiple mounting access points on the back of the cradle allowing for full access to all ports. Additional support keeper at the bottom of the cradle
The cradle is compatible with most 10" tablets with or without sleeves, as well as some smaller tablets that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Minimum Width = 158.75mm (6.25”)
Maximum Width = 205.7mm (8.1”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Maximum Thickness = 22.2mm (0.875")
Compatible Devices:
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U
T-Bolt Dimensions
Large: 12.2mm x 24.1mm (.48" x .95")
Small: 9.53mm x 15.06mm (.375" x .593")
