RAP-AAPR-WCT-419-UN7U RAM® Phone Mount for Wheelchair Armrests with Quick Release & Swivel
Features

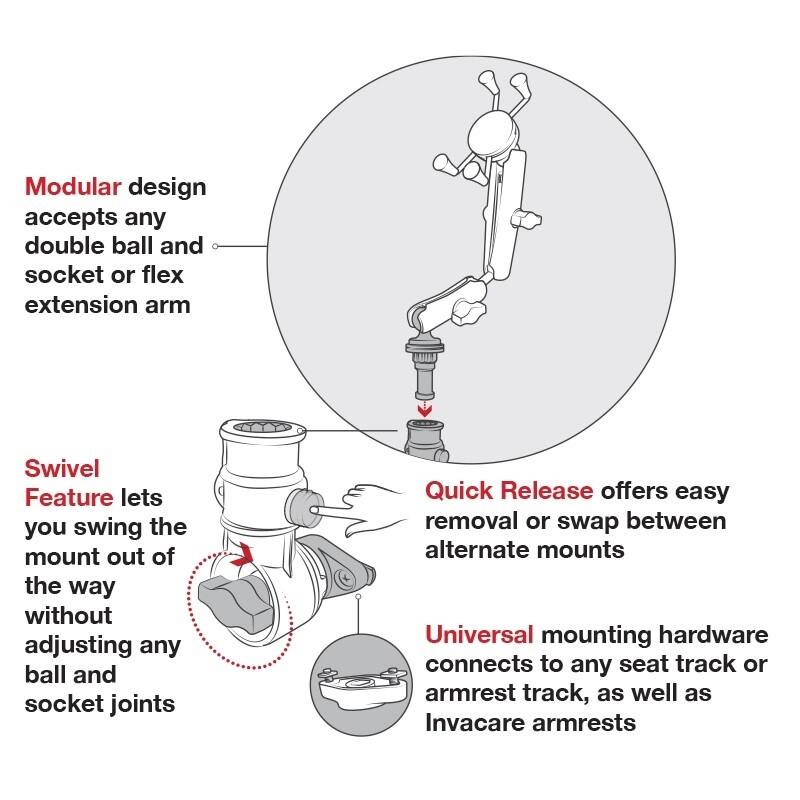

* Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests
* Easy swivel and quick release capabilities without changing ball and socket positioning
* Compact design keeps mount within armrest width
* Supports most any phone with or without a case at virtually any angle with optional ball extension
* Backed by a lifetime warranty

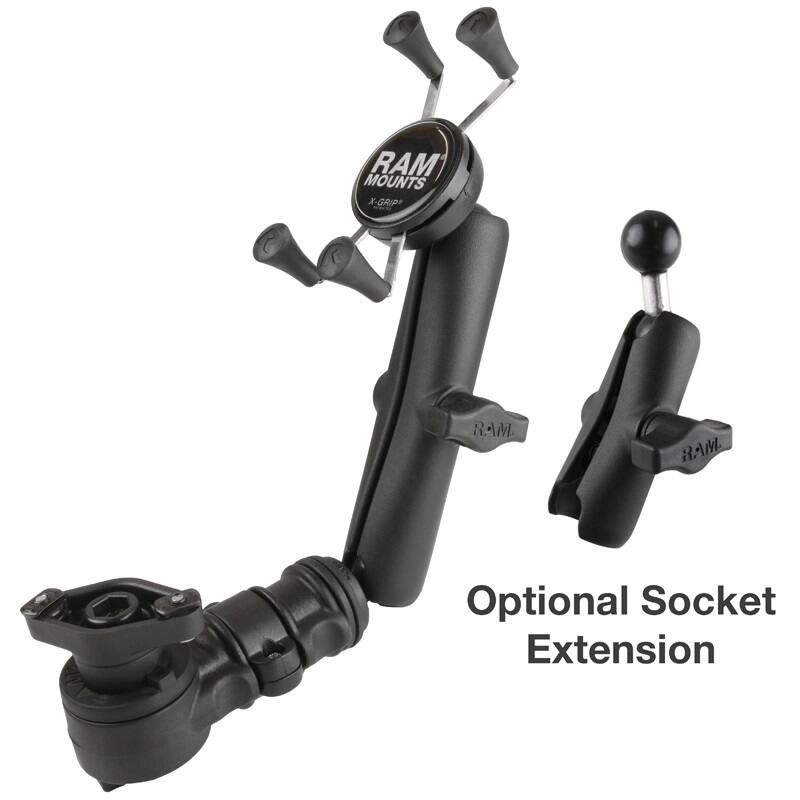

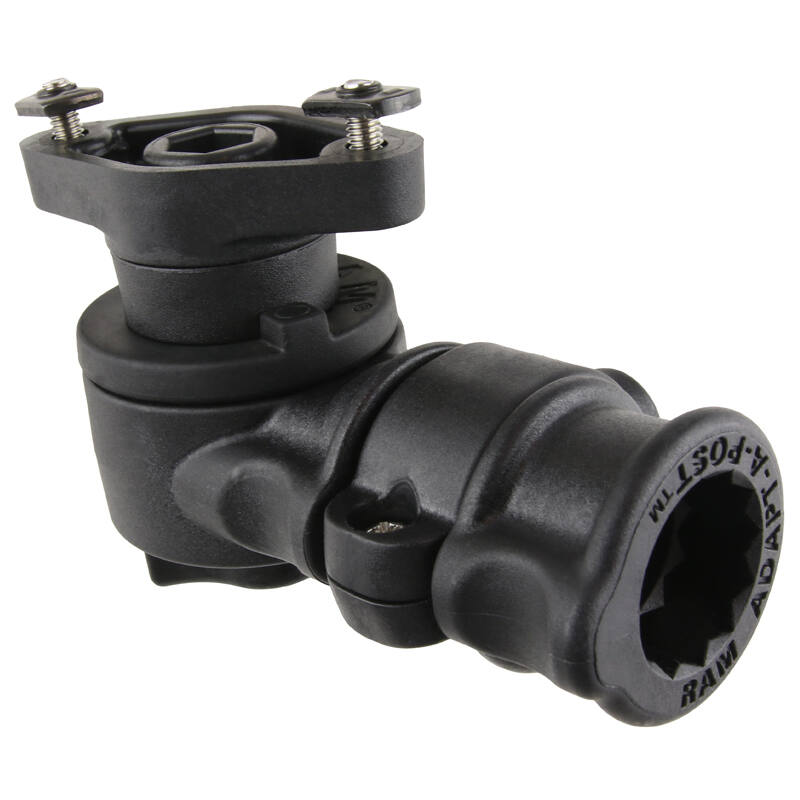

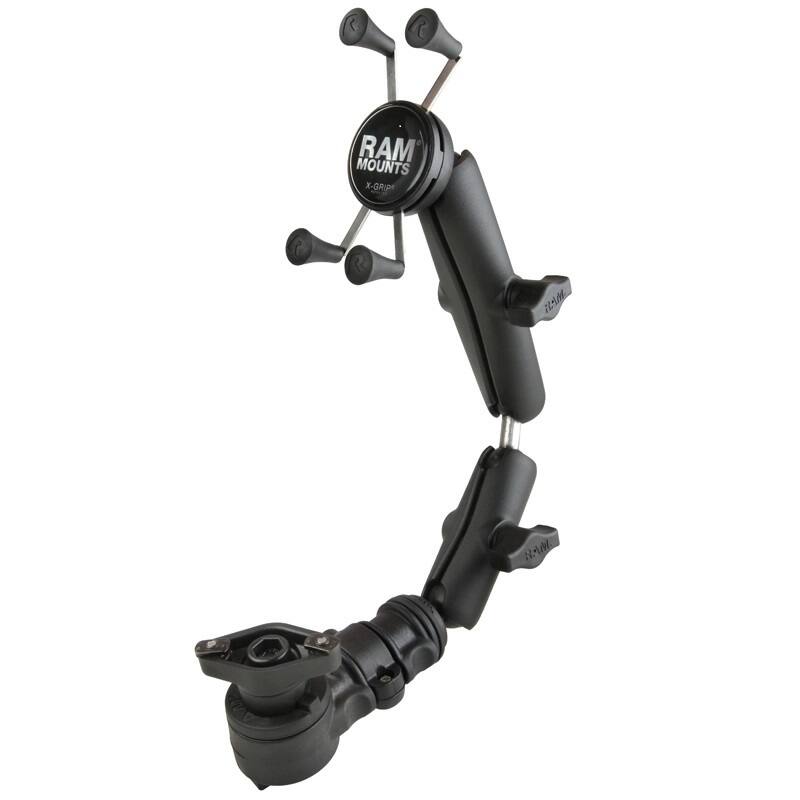

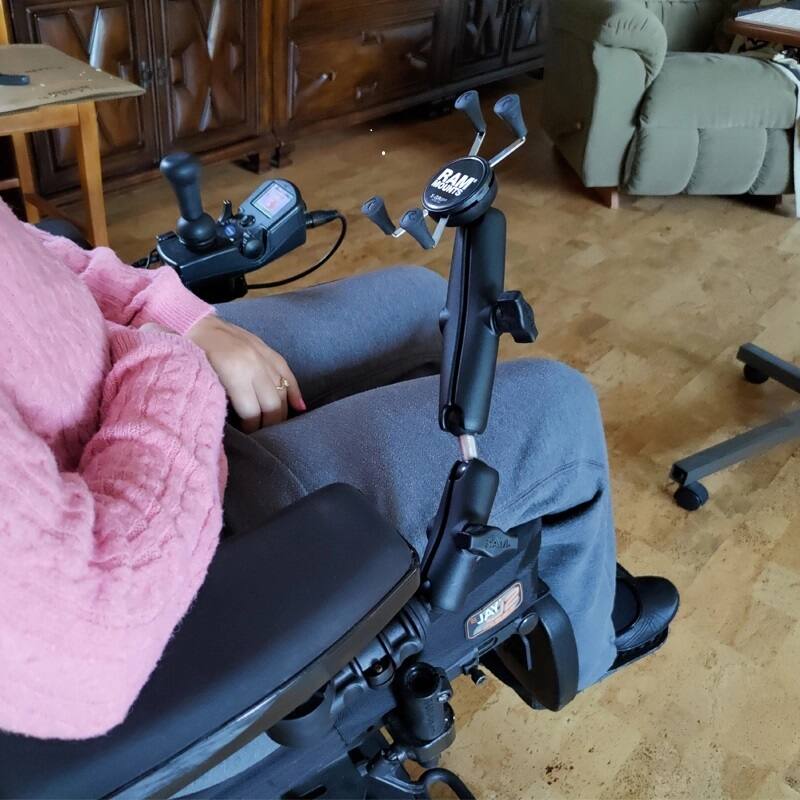

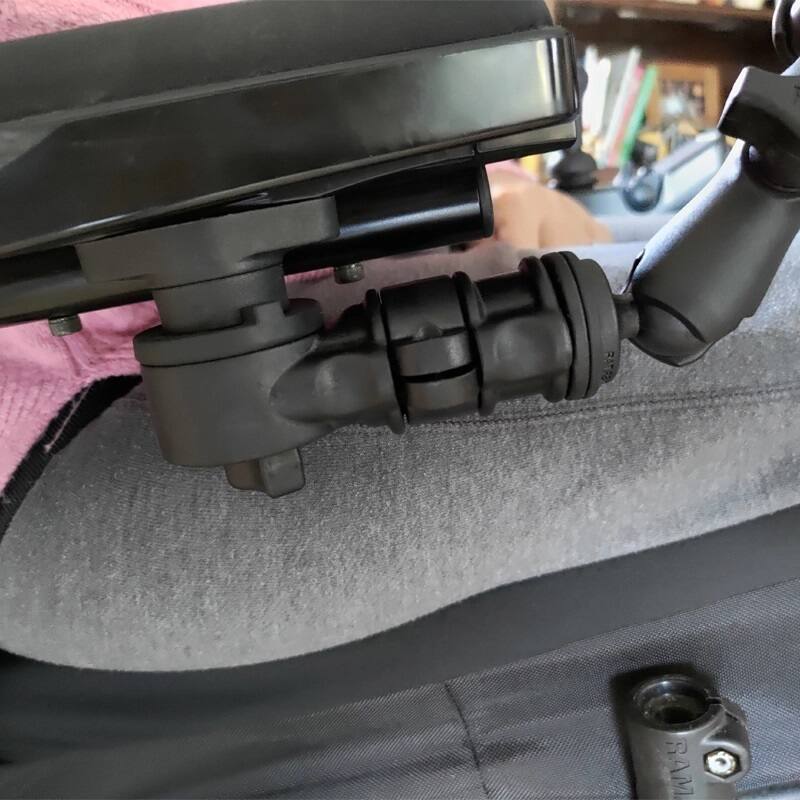

The RAM® Phone Mount with Quick Release & Swivel is the perfect solution for mounting virtually any phone to a wheelchair armrest track or Invacare armrest. The system consists of the RAM® X-Grip® phone holder, double ball & socket extension arms, ball post adapter, and the RAM® Universal Wheelchair Base. The universal base offers a quick disconnect feature of the entire mount without having to adjust any ball and socket components. The base also features an adjustable knob that lets you swivel the mount in and out of position with ease. The compact design of the RAM® Universal Wheelchair mounting system stays within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting compontents are backed by a lifetime warranty.
The included -UN7 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.
The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 47.6mm (1.875”) – (if min width then the min height = 108mm / 4.25")
Max Width = 82.6mm (3.25") – (if max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU but includes iPhone 8, X, 11Pro and Samsung Galaxy S7, S9+, S10+ and other similar sized smart-phones.
Hardware Included
Assembly Hardware
T-Bolt Dimensions
Large: 12.2mm x 24.1mm (.48" x .95")
Small: 9.53mm x 15.06mm (.375" x .593")
Hole Pattern
2-Hole AMPS: (48.5mm) 1.912"
Ball Size
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite
