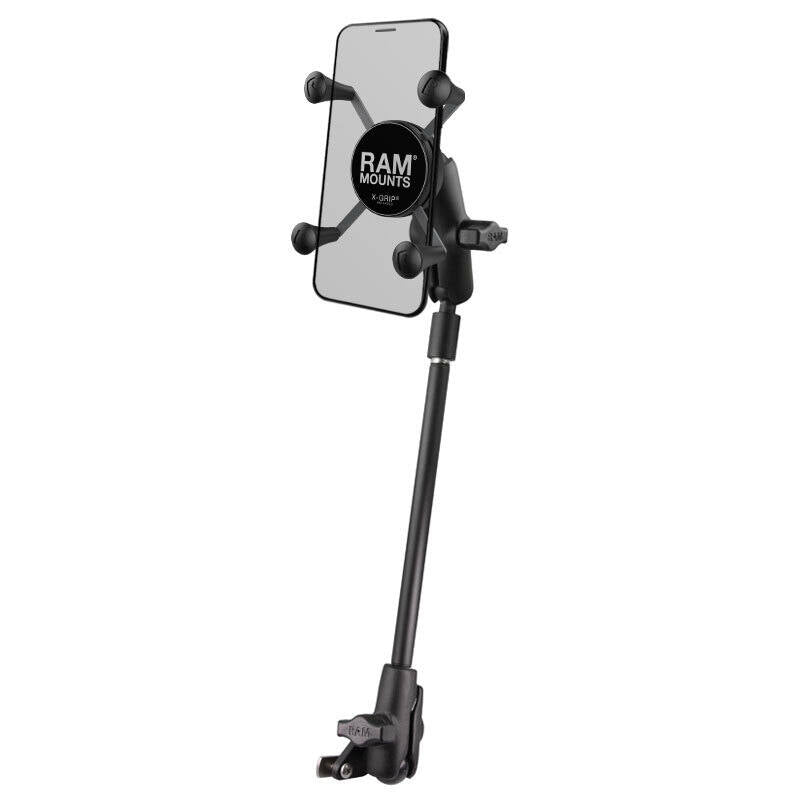

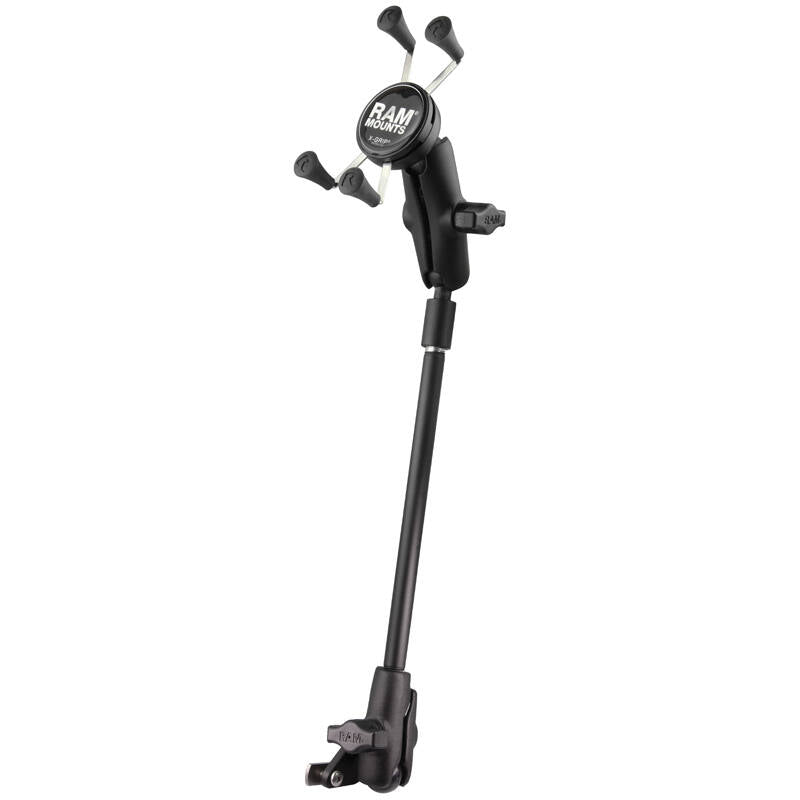

RAM-B-238-WCT-9-UN7 RAM® X-Grip® Phone Mount for Wheelchair Seat Tracks
Features
* Complete phone mount with track base for wheelchair arms
* Other sizes and designs available to suit your needs - please get in touch
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone
* Wheelchair base and arms all included
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

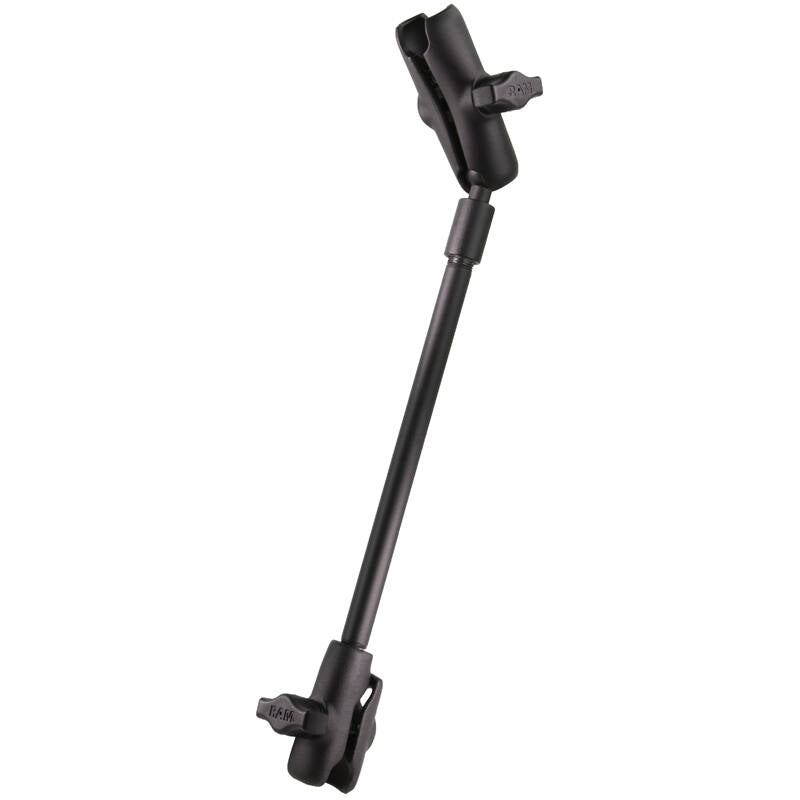

This kit includes a B size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands. With the included short single socket arm, 228mm (9") pipe extension, and medium double socket arm, connect and adjust the RAM® X-Grip® universal phone holder to your ideal position. The popular, spring-loaded RAM® X-Grip® provides a perfect fit for a wide variety of phones.

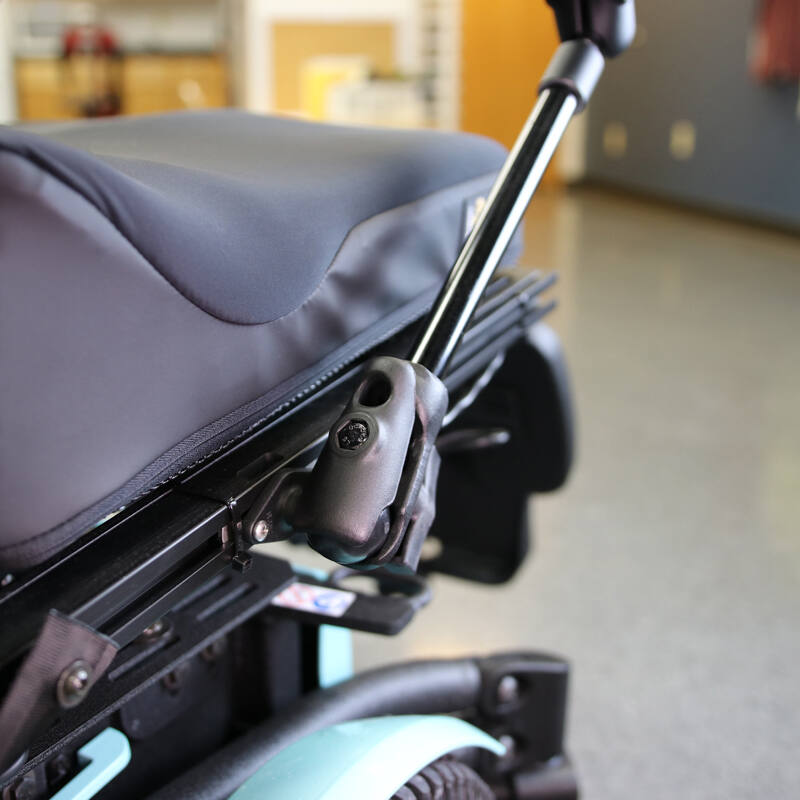

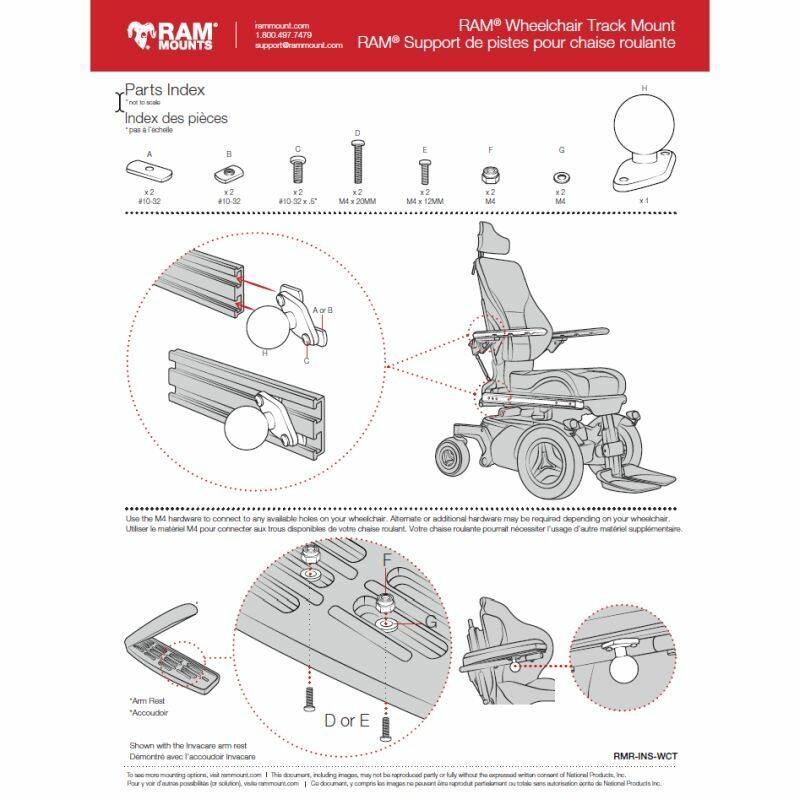

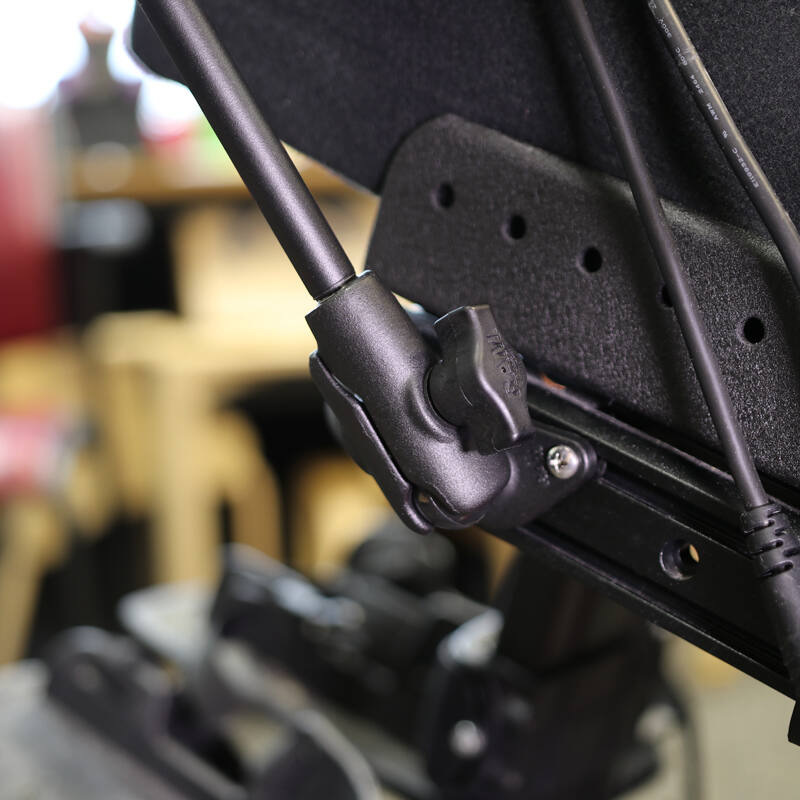

The B size RAM® diamond ball base features a universal hardware pack that accommodates the armrest and seat tracks on most major wheelchair brands, including Invacare, Permobil, and Quickie.

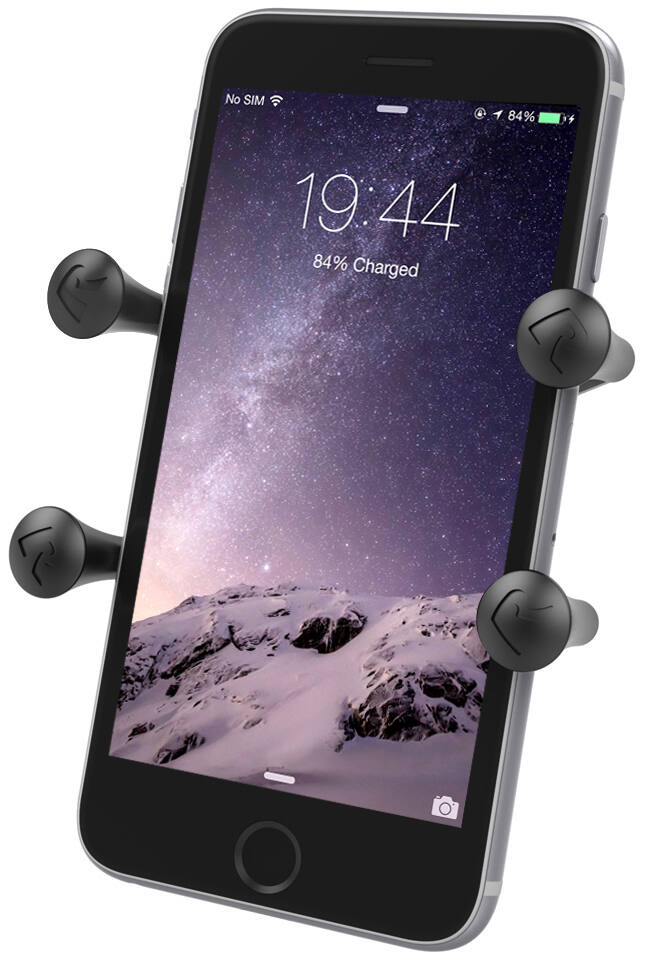

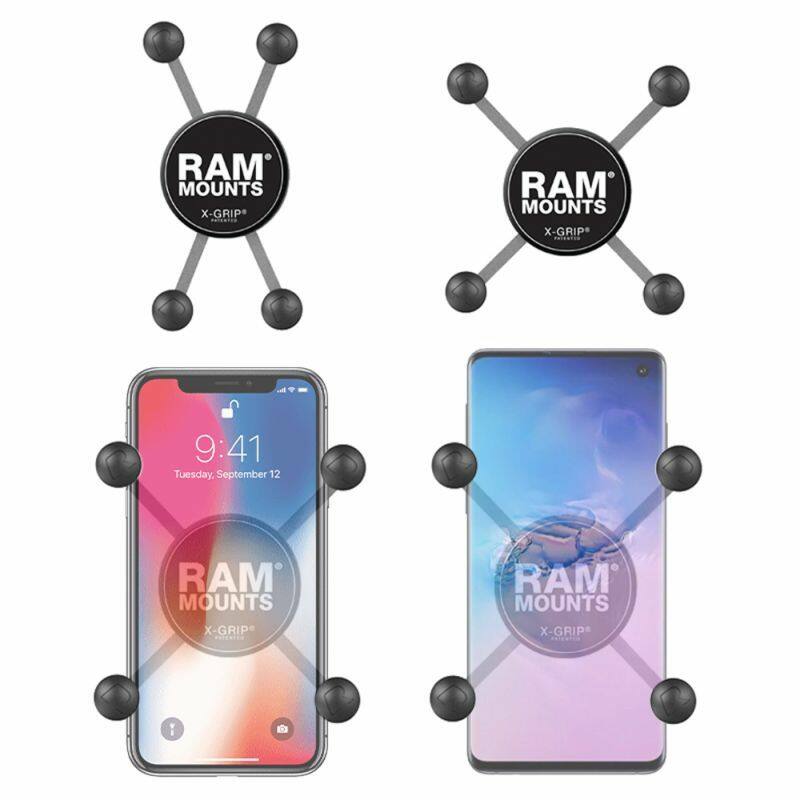

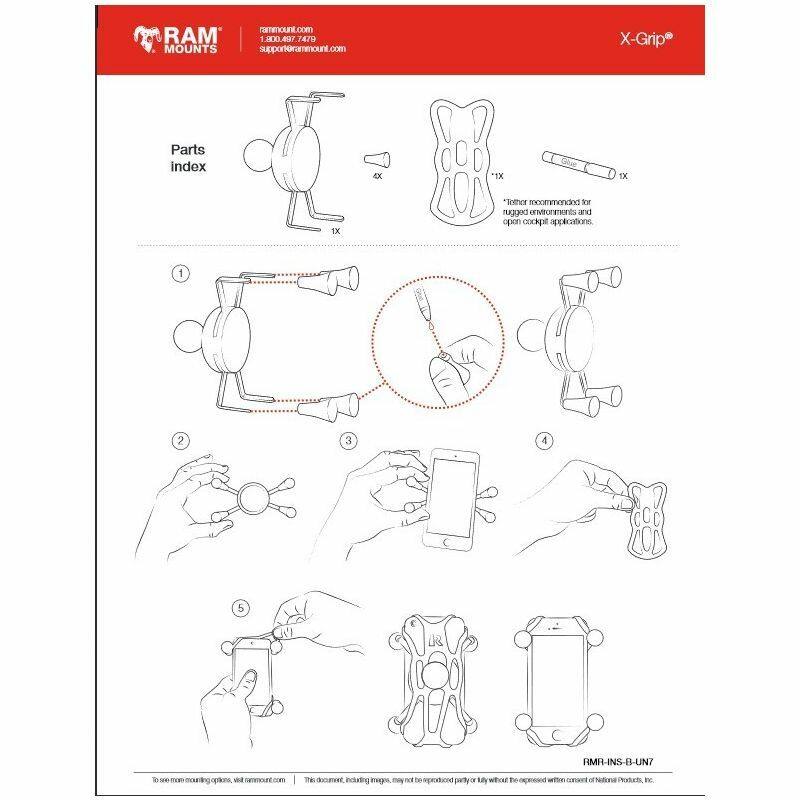

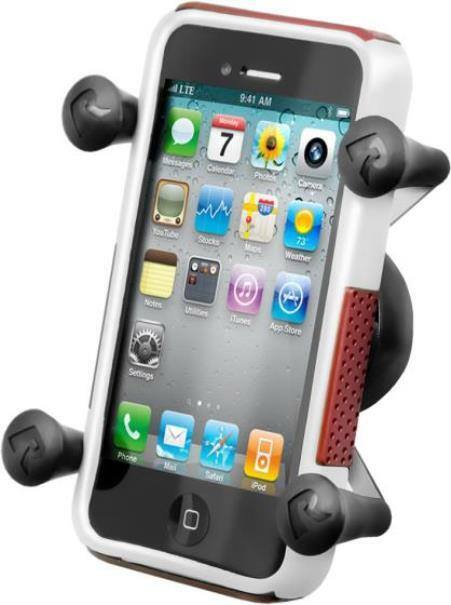

The included -UN7 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 47.6mm (1.875”) – (if it is min width then the min height = 108mm / 4.25")
Max Width = 82.6mm (3.25") – (if it is max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle look at the specs for the RAM-HOL-UN7BU but includes iPhone 14, 14Pro and Samsung Galaxy S22+, S23 and other similar sized smart-phones.
T-Bolt Dimensions
Large: 12.19mm x 24.13mm (.48" x .95")
Small: 9.575mm x 14.8mm (.375" x .593")
Height:
Approx 355 mm (14")
BALL/SOCKET SIZE
Bottom of Arm: B Size (1")
Top of Arm: B Size (1")
LOAD CAPACITY
900g (2 lbs)
Weight:
498 grams (1.1 lbs)
MATERIALS
Marine-grade aluminium
High strength composite
Wheelchair Compatibility Guide:
https://www.rammount.com/files/pdf/wheelchair-compatibility.pdf
Components:

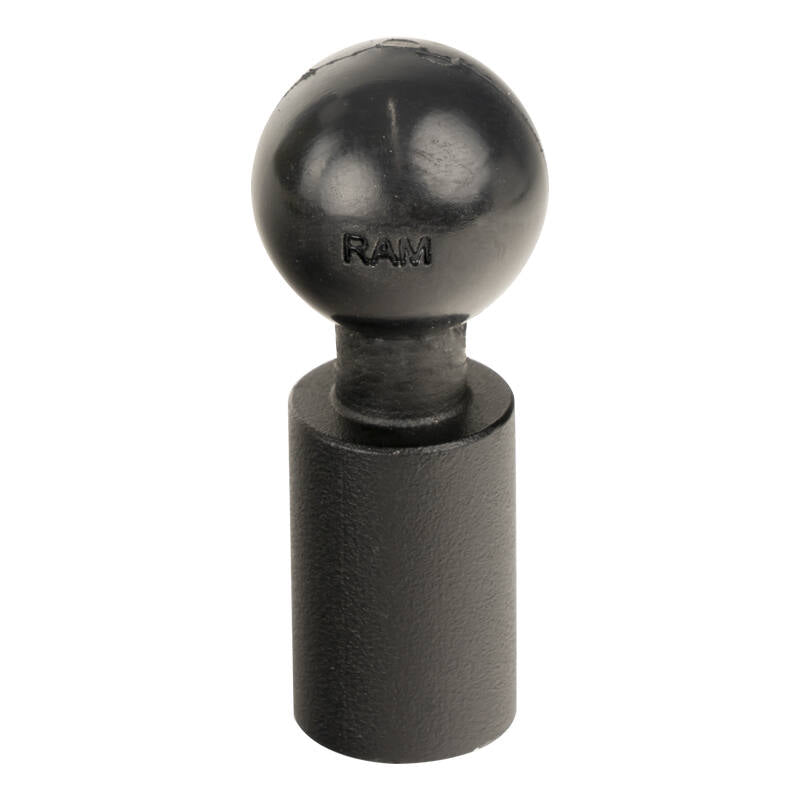

RAM-B-218-1U BASE WITH 1/4" NPT THREADED HOLE

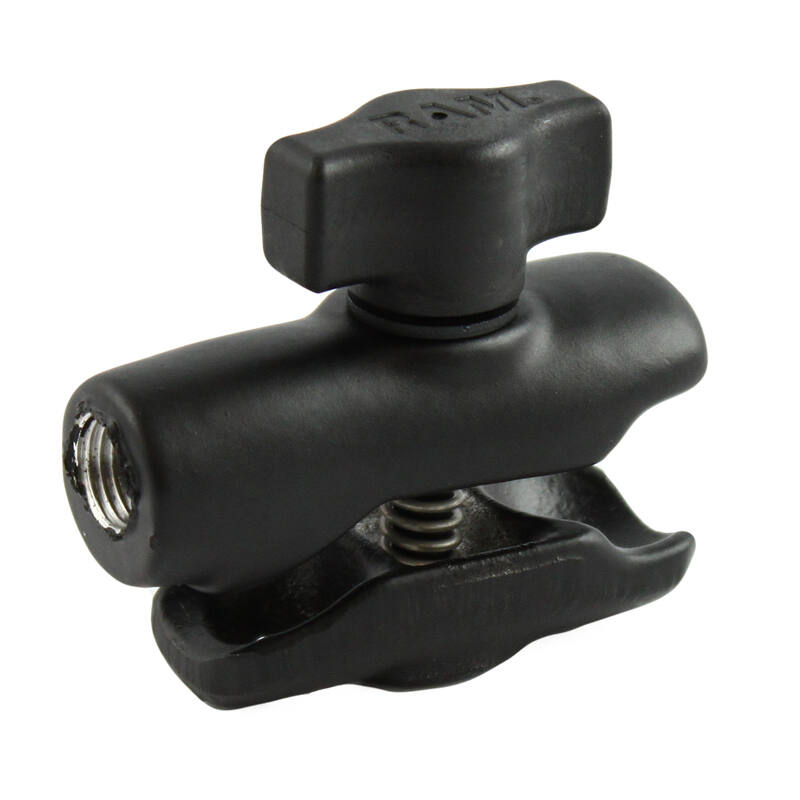

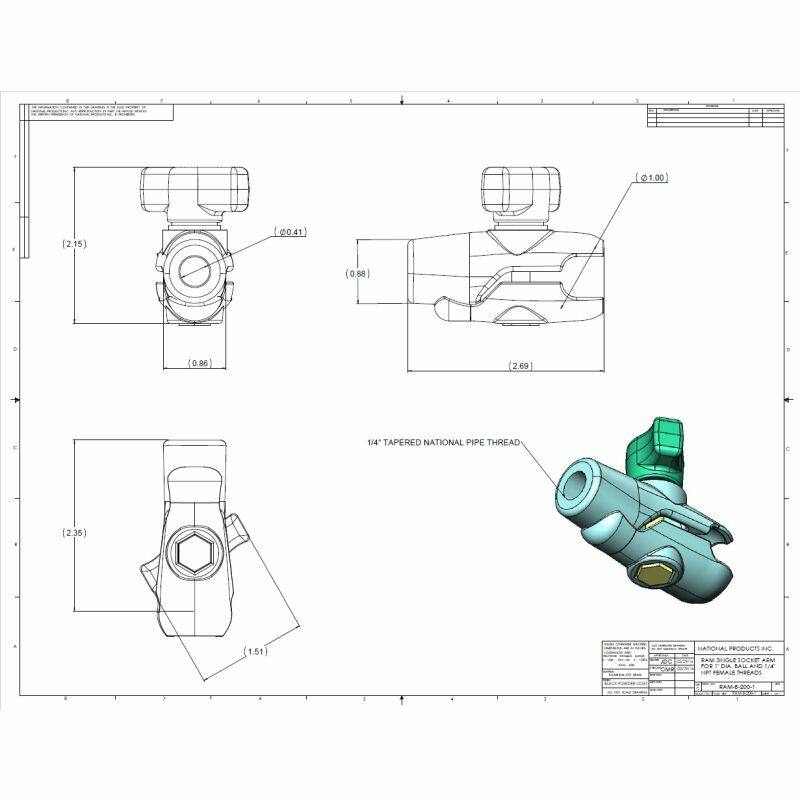

RAM-B-200-1U BALL SOCKET ARM FOR 1" BALLS
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL

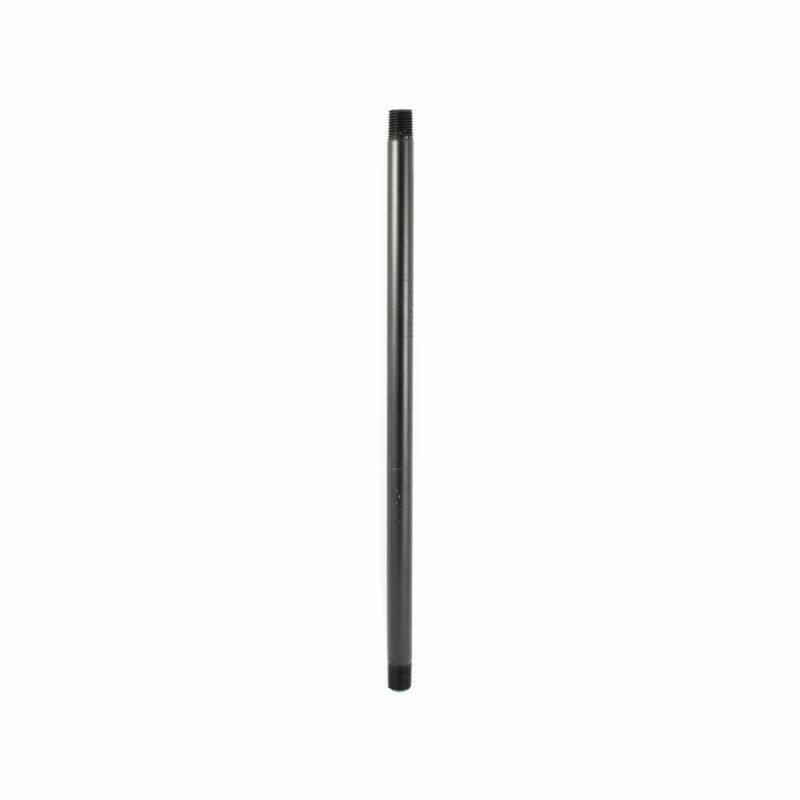

RAM-PA8209 1/4" X 9" LONG PIPE NIPPLE aluminium

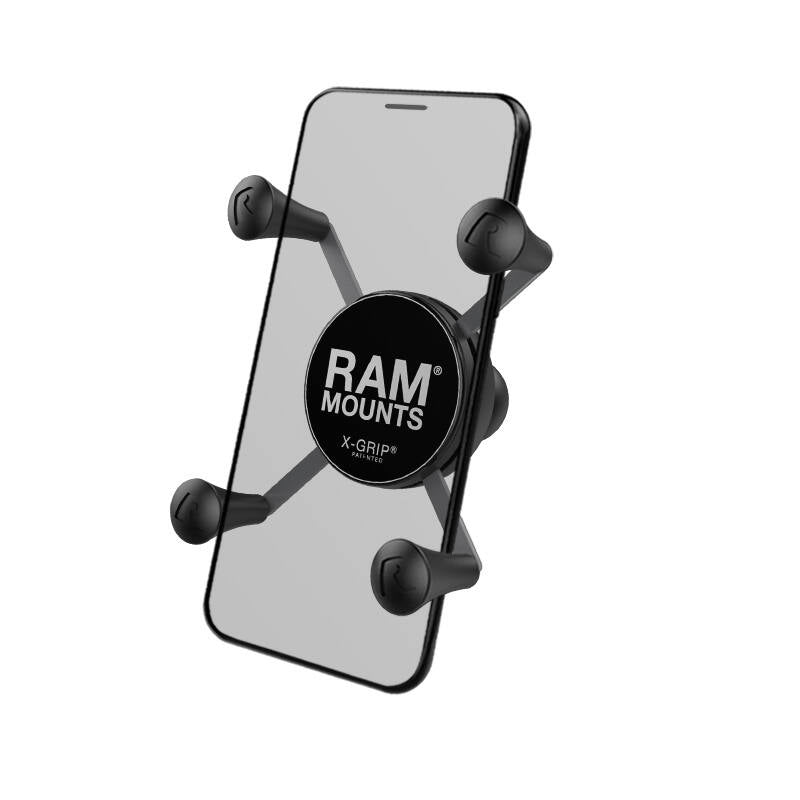

RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER W/ 1" BALL

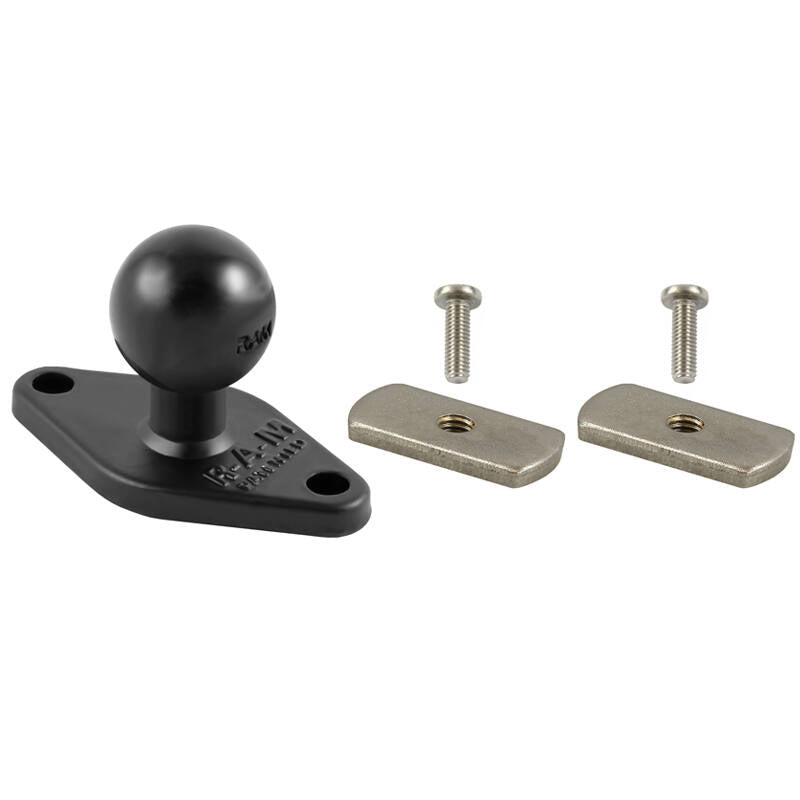

RAM-B-238-WCT Universal Wheelchair Ball Base
YouTube:
https://www.youtube.com/watch?v=gSplxuUrtmQ
