RAM X-Grip "Tough-Charge" Universal Waterproof Charging Cradle - 10W

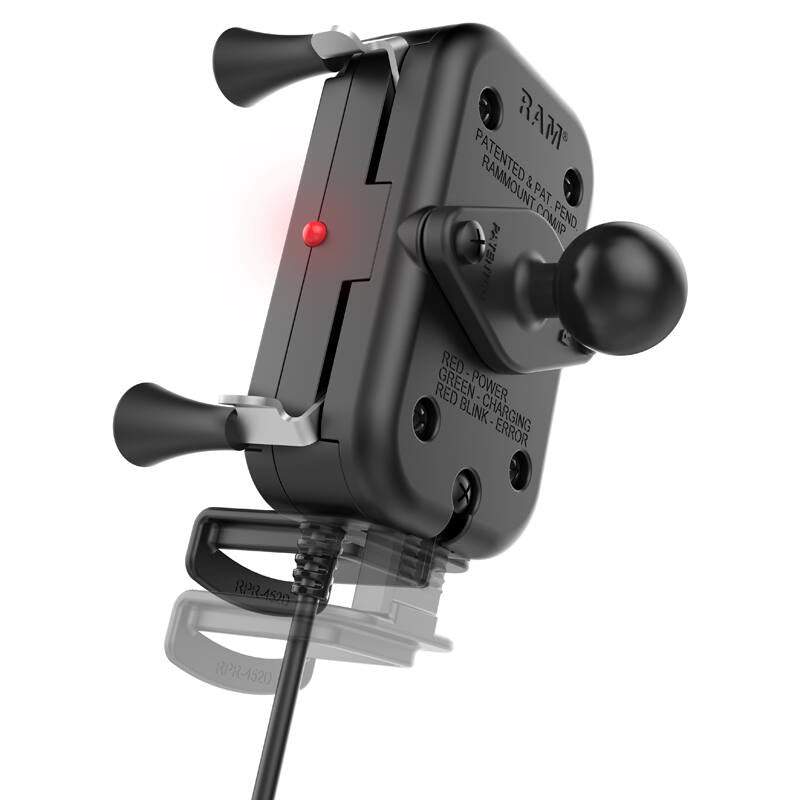

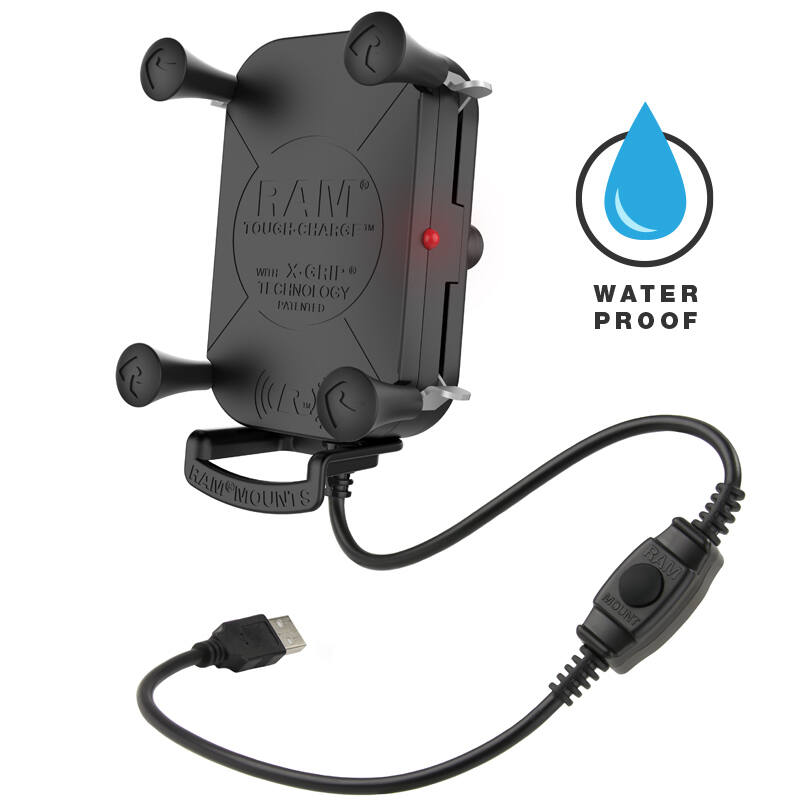

RAM-HOL-UN12WB – RAM® Tough-Charge™ with X-Grip® 10W Waterproof Wireless Charging Holder

The RAM-HOL-UN12WB is RAM's patented waterproof Qi wireless charging cradle built into a spring-loaded X-Grip®, with up to 10W output. The X design expands and contracts to hold nearly any phone while charging it wirelessly, and it's supplied with a diamond ball base to bolt onto any B-size RAM® double socket arm.

Key Features

• Waterproof Qi wireless charging cradle with up to 10W output and spring-loaded X-Grip® arms

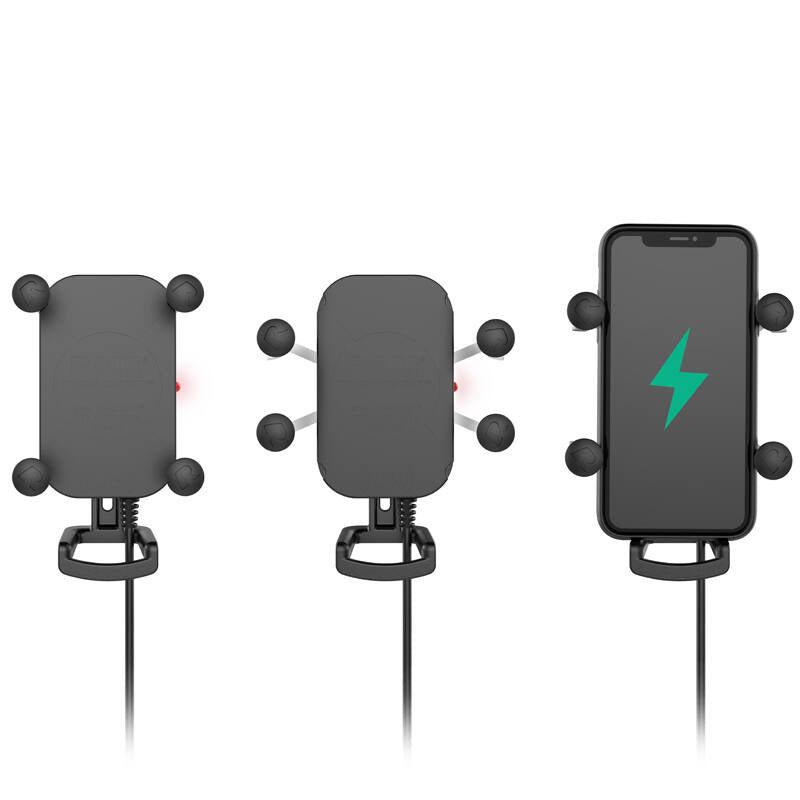

• Squeeze one side to insert or release the phone one-handed; charges in any orientation
• Rubber-coated caps hold the phone firmly and keep side buttons accessible
• In-line switch on the Type-A pigtail turns charging off when not needed; 1.2m extension cable included for in-vehicle wiring
• Includes a B-size diamond base with 1" ball; adjustable/removable support leg and device tether included
• Powder-coated marine-grade aluminium, stainless steel and high-strength composite; RAM hardware lifetime warranty, electronics 1-year warranty

Works With

Most Qi-enabled phones that fit the cradle dimensions below, with a case up to 6mm thick. The included diamond base attaches to any B-size RAM® double socket arm.

Dimensions & Specifications

• Cradle width range: 60.3mm to 82.6mm (2.375" to 3.25")
• Cradle maximum depth: 22.2mm (0.875")
• Maximum case thickness for charging: 6mm
• Input power: 5V at 2A, or 9V at 1.67A; compatible with QC2.0/QC3.0 supplies
• Output: 5W / 7.5W / 10W; conversion efficiency up to 85%; working frequency 110–205kHz; WPC v1.2.4 / Qi compatible
• Ball size: B size, 1" ball (on the included diamond base)
• Weight capacity: 907g (2 lb); unit weight 322g (0.71 lb)
• Materials: high-strength composite, stainless steel

Compatible Devices

What's Included

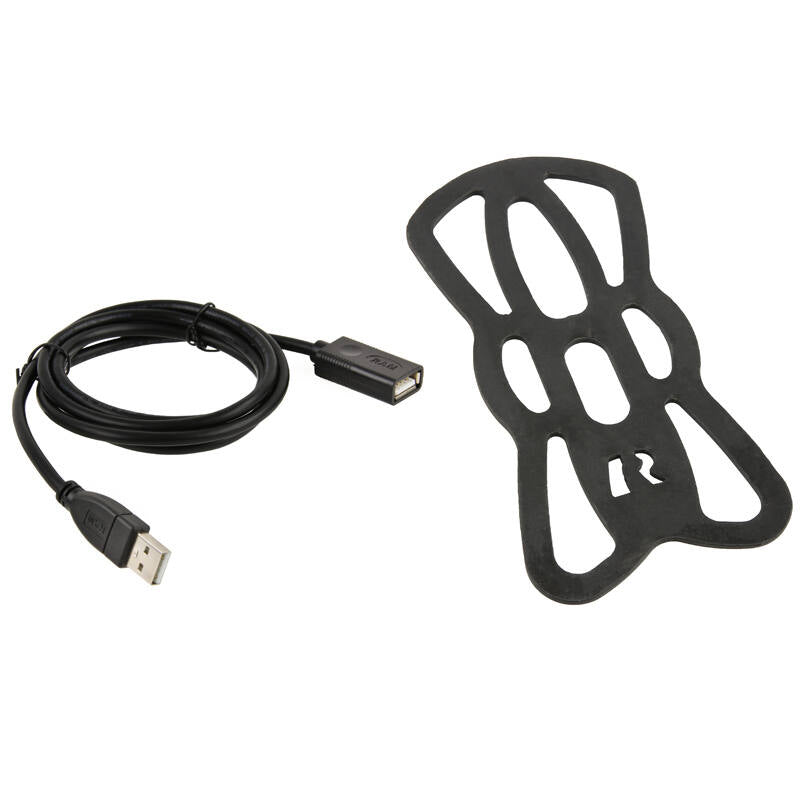

• Safety tether, glue tube for rubber caps, cradle leg and cover, silicone sleeve for the waterproof USB connection, 1.2m USB extension cable

FAQs

Does it come with a mount? It includes a diamond ball base only, which fits any B-size RAM double socket arm — so it suits adding to a base you already own.

Is it really waterproof? Yes — the charging module is sealed, with a silicone sleeve for the USB connection, so it suits open-cab and motorcycle use. The phone still needs to be Qi-compatible, with a case no thicker than 6mm.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
