RAM X-Grip "Tough-Charge" Universal Waterproof Charging Cradle - 15W

RAM-HOL-UN12WB-1 – RAM® Tough-Charge™ 15W Waterproof Wireless Charging X-Grip® Cradle

The RAM-HOL-UN12WB-1 is RAM's patented waterproof Qi wireless charging cradle on its own, with up to 15W output — the world's first universal waterproof wireless charger built into a spring-loaded X-Grip®. It charges most Qi phones while holding them securely, with all four arms keeping side buttons and switches clear. Supplied with a diamond ball base, it bolts onto any B size RAM® double socket arm, so you can build it onto a base you already run.

Key Features

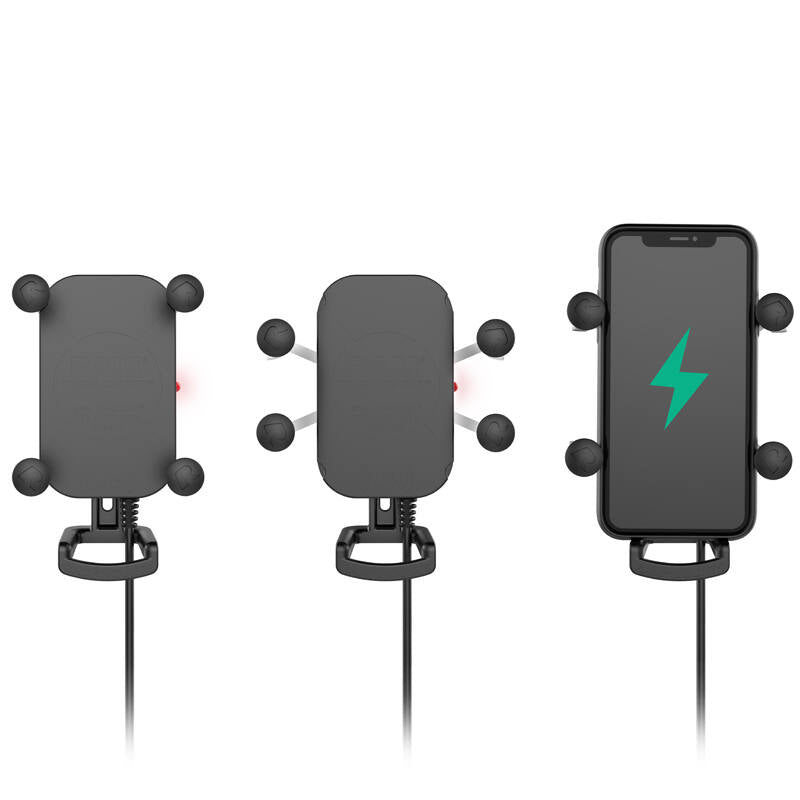

• Waterproof Qi wireless charging cradle with selectable 5W / 7.5W / 15W output and spring-loaded X-Grip® arms; squeeze one side to insert or release the phone one-handed
• Charges in any orientation; rubber-coated caps hold the phone firmly and keep buttons accessible

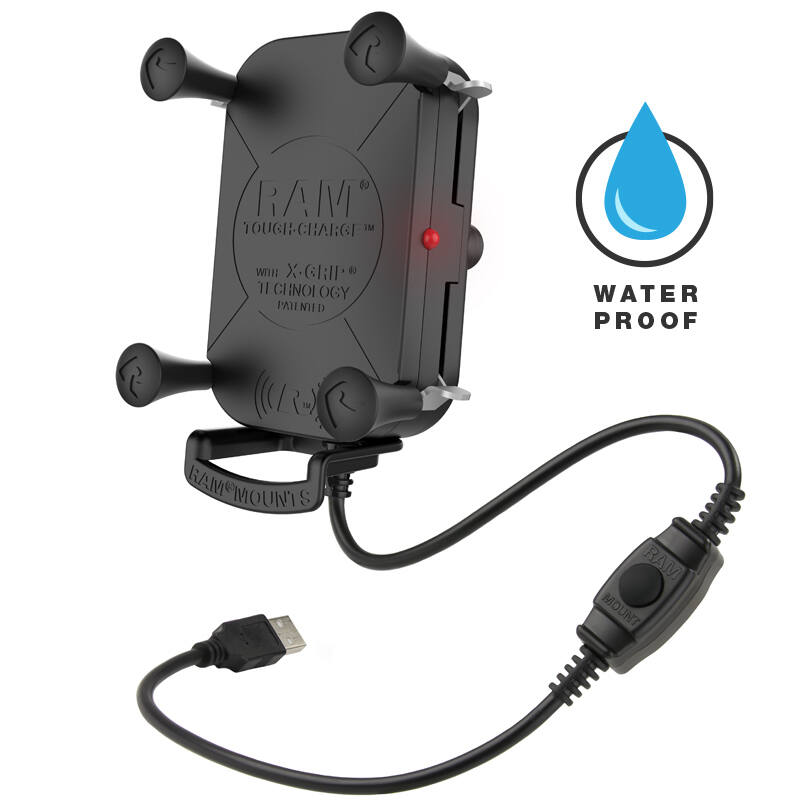

• In-line switch on the Type-A pigtail turns the charger off when not in use; includes a 1.2m Type-A extension cable for in-vehicle wiring

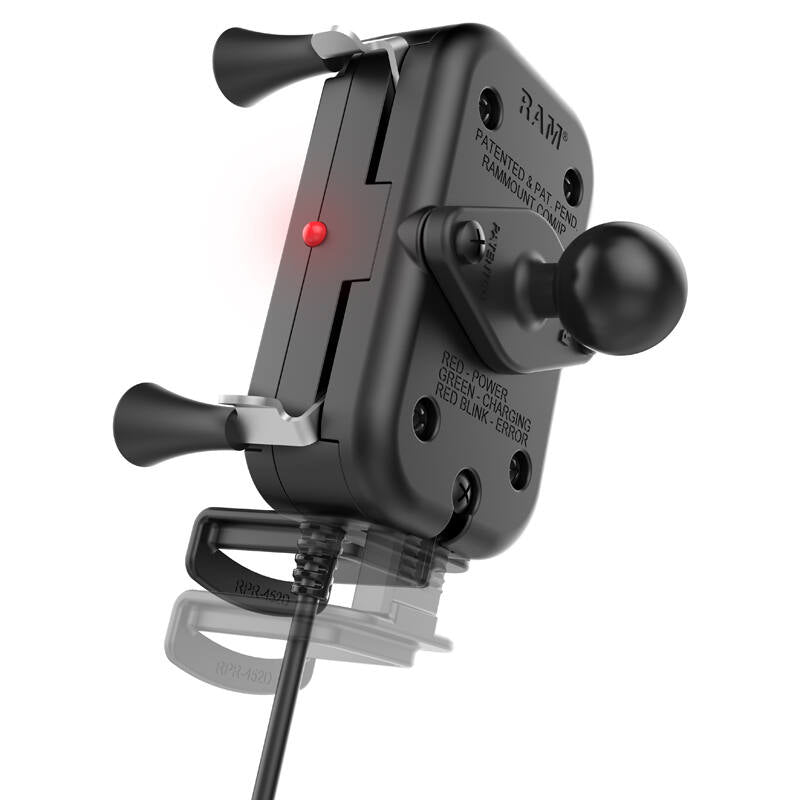

• Includes a B size diamond base with 1" ball to attach to any B size RAM double socket arm; adjustable, removable support leg and a device tether included
• Powder-coated marine-grade aluminium, stainless steel and high-strength composite; RAM hardware lifetime warranty, electronics 1-year warranty

Works With

Most Qi-enabled phones that fit the cradle dimensions below, with a case up to 6mm thick. The included diamond base attaches to any B size RAM double socket arm. For a complete windscreen kit with suction base and arm, see the RAM-B-166-UN12W-1.

Dimensions & Specifications

• Cradle width range: 60.3mm to 82.6mm (2.375" to 3.25")
• Cradle maximum depth: 22.2mm (0.875")
• Maximum case thickness for charging: 6mm
• Input power: 5V at 2A, or 9V at 1.67A; compatible with QC2.0/QC3.0 supplies
• Output: selectable 5W / 7.5W / 15W; conversion efficiency up to 85%; working frequency 110–205kHz; WPC v1.2.4 / Qi compatible
• Ball size: B size, 1" ball (on the included diamond base)
• Weight capacity: 907g (2 lb); unit weight 322g (0.71 lb)
• Materials: high-strength composite, stainless steel

Compatible Devices

What's Included

• RAM-HOL-UN12WB-1 Tough-Charge™ 15W waterproof Qi wireless charging X-Grip® cradle
• RAM-B-238U diamond base with 1" ball

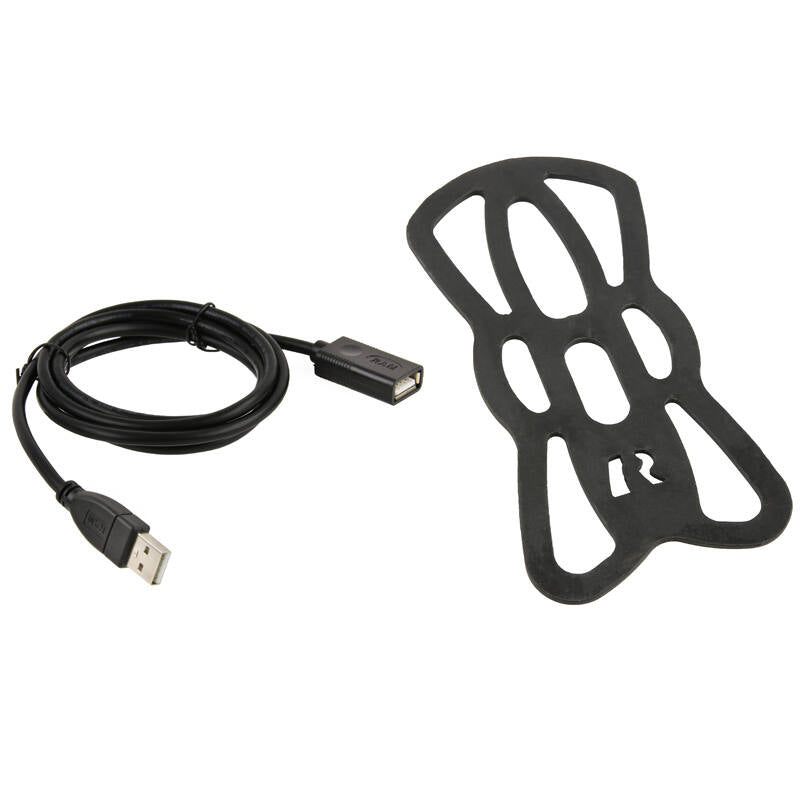

• Safety tether, spare rubber caps with glue, cradle leg and cover, waterproof USB sleeve, 1.2m USB extension cable

FAQs

Does this come with a mount? It includes a diamond ball base only, which fits any B size RAM double socket arm — so it suits adding to a base you already own. For a full windscreen kit with suction base and arm, see the RAM-B-166-UN12W-1.

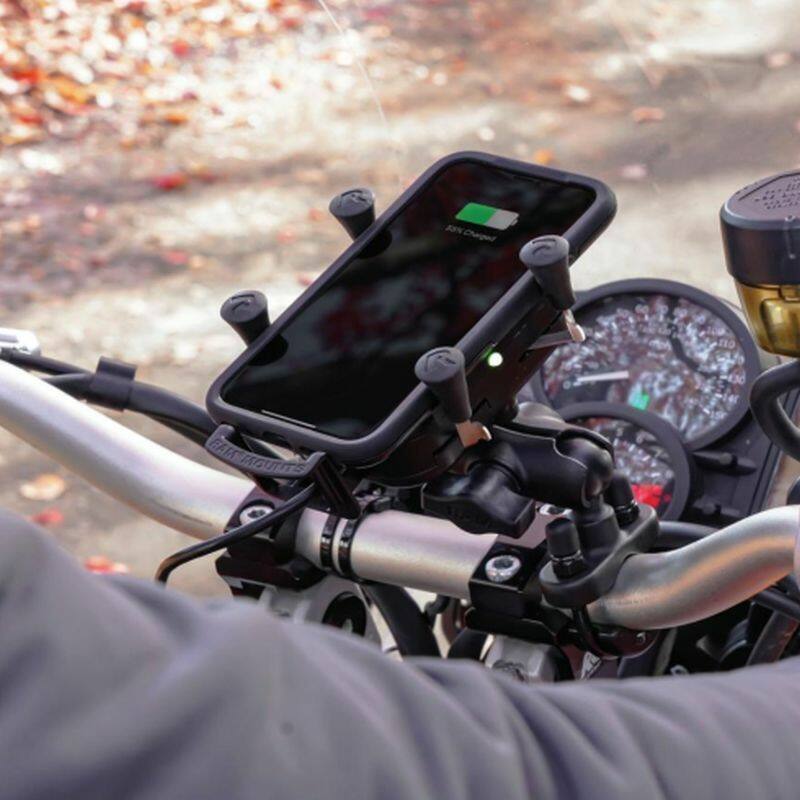

Is it actually waterproof? Yes — the charging module is sealed, with a silicone sleeve for the USB connection, so it suits open-cab and motorcycle use. The phone still needs to be Qi-compatible to charge, with a case no thicker than 6mm.

Why is the warranty different? The RAM mounting hardware carries RAM's lifetime warranty; the electronics in the charging cradle carry a 1-year warranty.

How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.

Videos

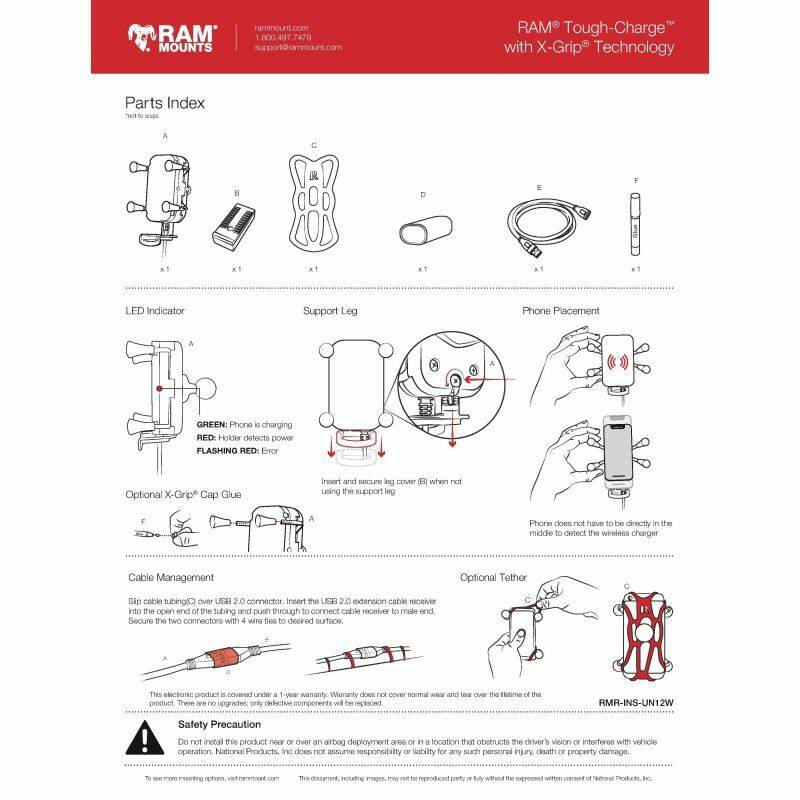

• RAM Tough-Charge installation
• RAM Tough-Charge overview
